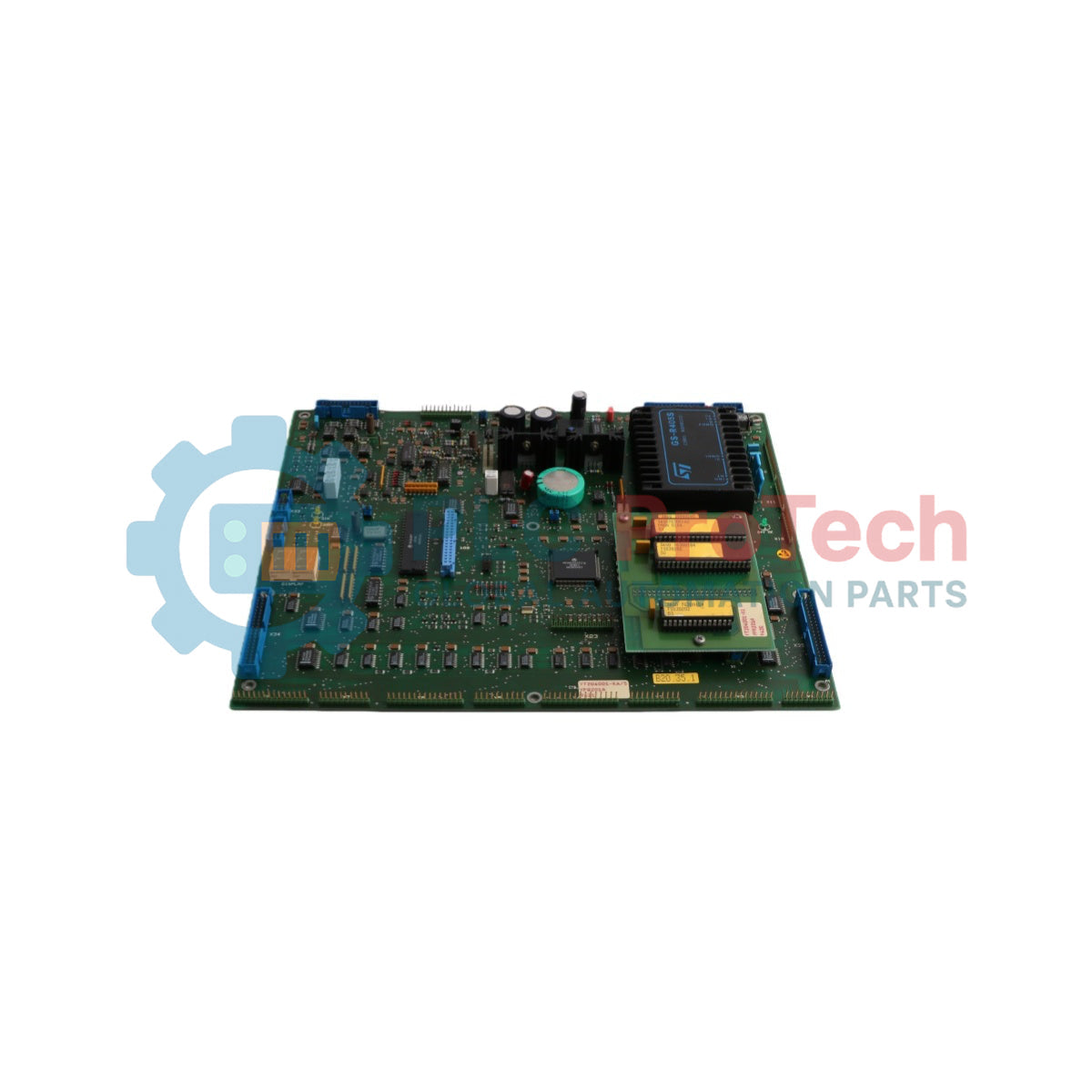

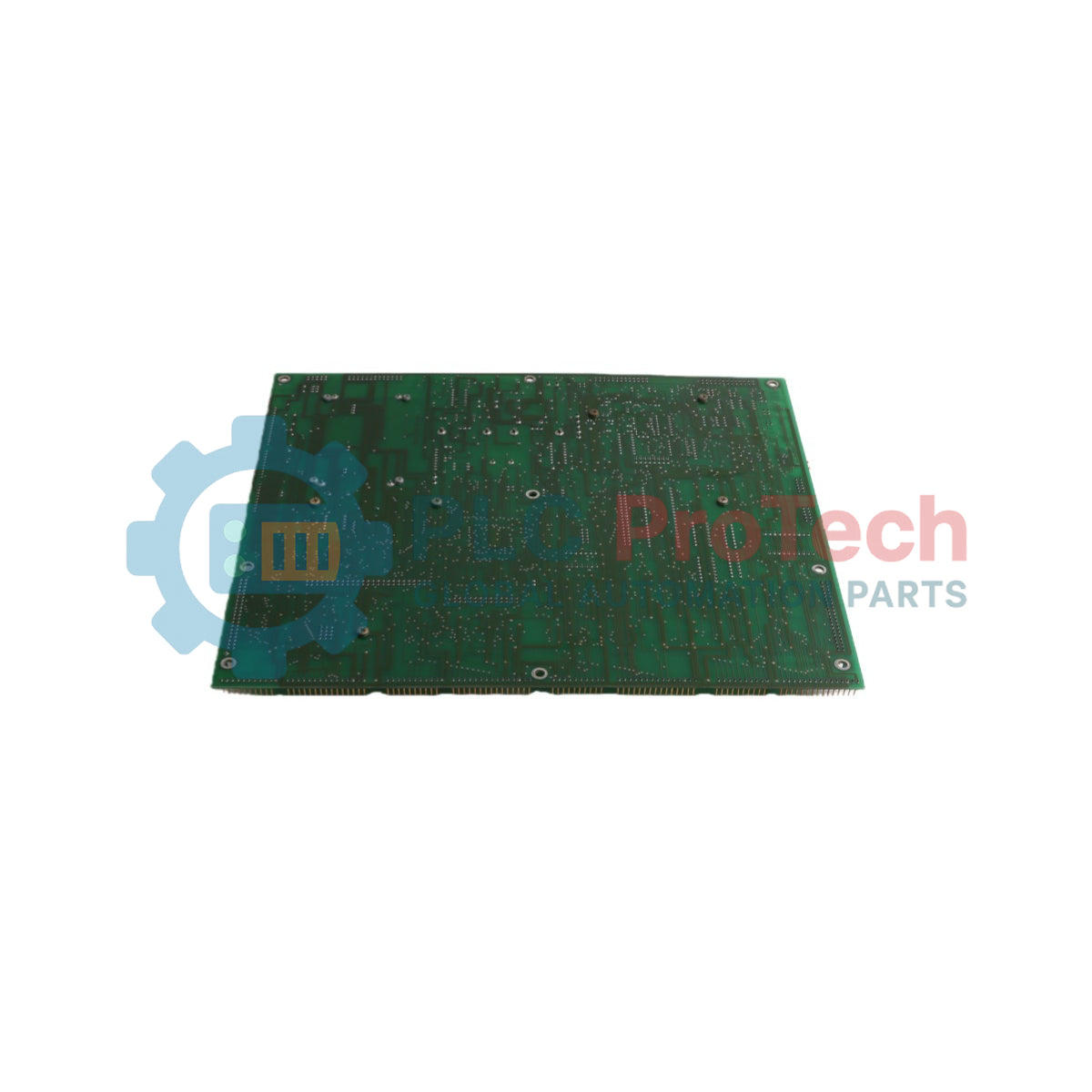

ABB YPQ 201A YT204001-KA/5 CPU BOARD

SKU YPQ201A YT204001-KA/5

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: YPQ201A YT204001-KA/5
  • Origin Sweden
  • Product Type: CPU Board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.75 kg
  • Dimensions: 32.0 cm x 24.0 cm x 7.0 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

CPU Boards
Quantità
Call sales Contact

Product Description

Product Description

The ABB YPQ 201A YT204001-KA/5 is a high-performance industrial central processing unit board engineered for heavy-duty automation and drive control. Serving as the primary computational core, this computer board delivers real-time processing and synchronized control for large-scale industrial direct current drive systems, such as the ABB Tyrak series, and high-voltage indoor magnetically actuated circuit breakers, including the AMVAC series. The architecture integrates robust processing capabilities with versatile communication buses to manage high-speed data exchange and field-level command execution in demanding electromagnetic environments.

Features

  • Integrated Status Display: Onboard 2-digit LED diagnostic display provides real-time system codes, operational status, and fault telemetry directly to maintenance personnel.
  • Multi-Protocol Communication Interface: Equipped with native Ethernet, high-speed USB 3.0, and industrial-grade CANbus ports for seamless distributed control system integration and local configuration.
  • Robust Signal Conditioning: Features integrated resistor networks to ensure precise signal termination, impedance matching, and high noise immunity.
  • Dedicated Low-Voltage DC Operation: Engineered to run on a stable 12 V DC power supply input, optimizing energy efficiency and minimizing thermal dissipation on the control board.

Applications

  • Magnetically Actuated Circuit Breakers: Acts as the core magnetic actuator controller within ABB AMVAC series indoor medium-voltage vacuum circuit breakers.
  • Large-Scale Industrial DC Drives: Deployed as the central processing and computation unit within heavy-duty ABB Tyrak drive architectures.
  • Distributed Control System Integration: Facilitates high-speed, deterministic data exchange between localized machinery and plant-wide DCS networks.

Technical Specifications

Parameter Specification
Manufacturer ABB
Model Designation YPQ 201A
Part Number / Product ID YT204001-KA/5
Device Classification Central Processing Unit Board / Computer Board
Supply Voltage 12 V DC
Communication Interfaces Ethernet, USB 3.0, CANbus
Onboard Diagnostics 2-Digit LED Status Display
Country of Origin Sweden
Net Weight 0.75 kg
Shipping Weight (Calculated) 1.40 kg
Package Dimensions (Calculated) 32.0 cm x 24.0 cm x 7.0 cm

Installation Guidelines

CRITICAL WARNING: ELECTRICAL HAZARD

Isolate all primary and secondary power sources before performing hardware installation or extraction. Verify that the 12 V DC bus bar and all connected high-voltage breaker mechanics are fully de-energized. Failure to strictly follow lock-out/tag-out (LOTO) protocols can result in catastrophic equipment destruction, accidental breaker actuation, or severe personal injury.

  1. 1 Implement proper electrostatic discharge protections, including a grounded ESD wrist strap, prior to unboxing the printed circuit board assembly.
  2. 2 Align the card edge with the designated subrack or enclosure guide rails inside the Tyrak drive chassis or AMVAC control compartment.
  3. 3 Gently slide the assembly inward until the backplane connectors interface completely. Secure all retention screws to complete the mechanical grounding path.
  4. 4 Attach the Ethernet, USB, or CANbus communication lines to their specific interfaces before restoring the 12 V DC power supply.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the specific input voltage rating for this CPU board?
The module requires a regulated 12 V DC power supply input for correct operations.
Which communication protocols are natively integrated on the hardware?
The board features built-in interfaces supporting Ethernet, USB 3.0, and CANbus networks.
What is the purpose of the 2-digit LED display located on the front of the board?
The LED display outputs real-time operational status parameters, system codes, and diagnostic fault codes for troubleshooting.
Are specialized handling measures necessary during installation?
Yes. Electrostatic discharge protection must be worn, and the system must be fully de-energized to prevent accidental circuit breaker actuation.
