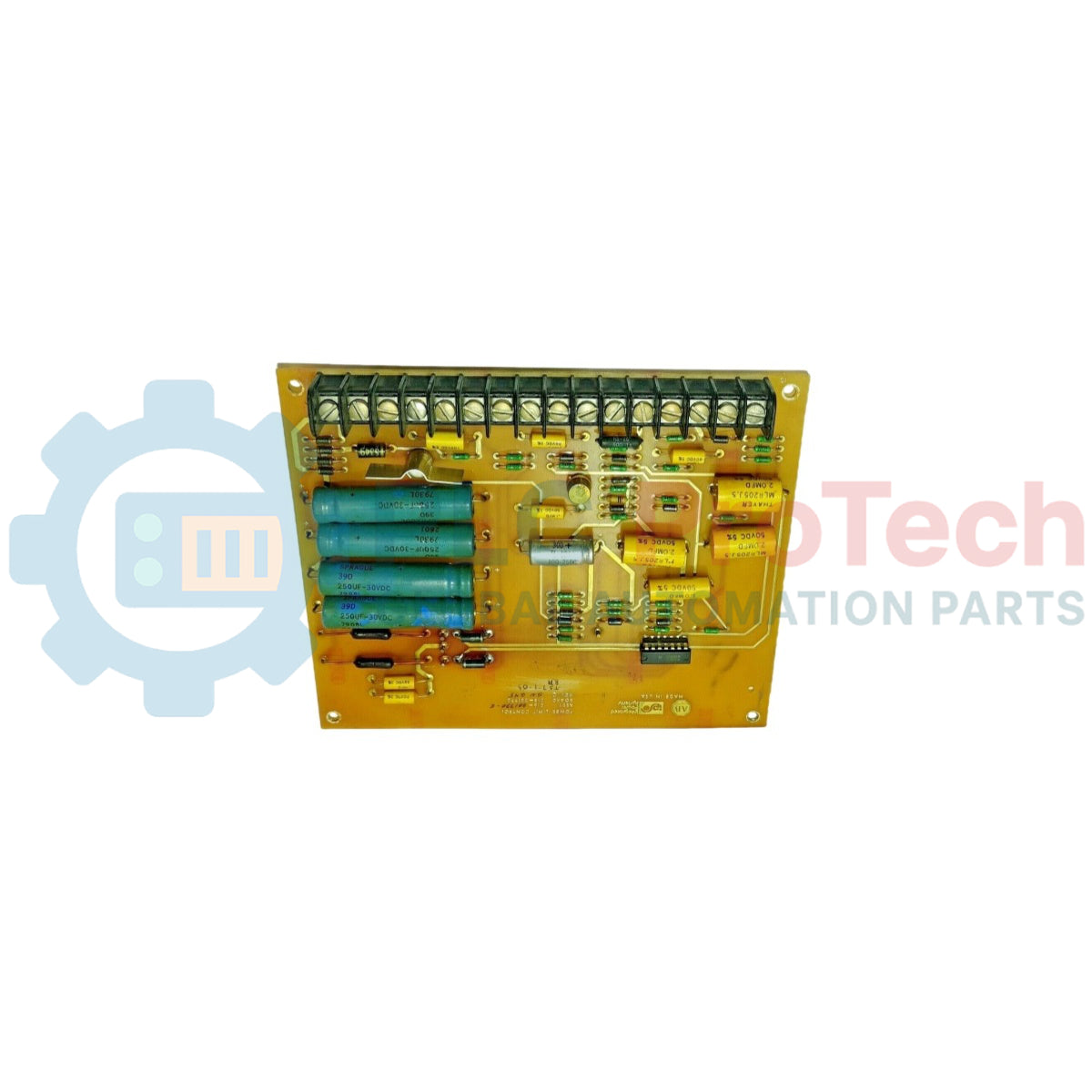

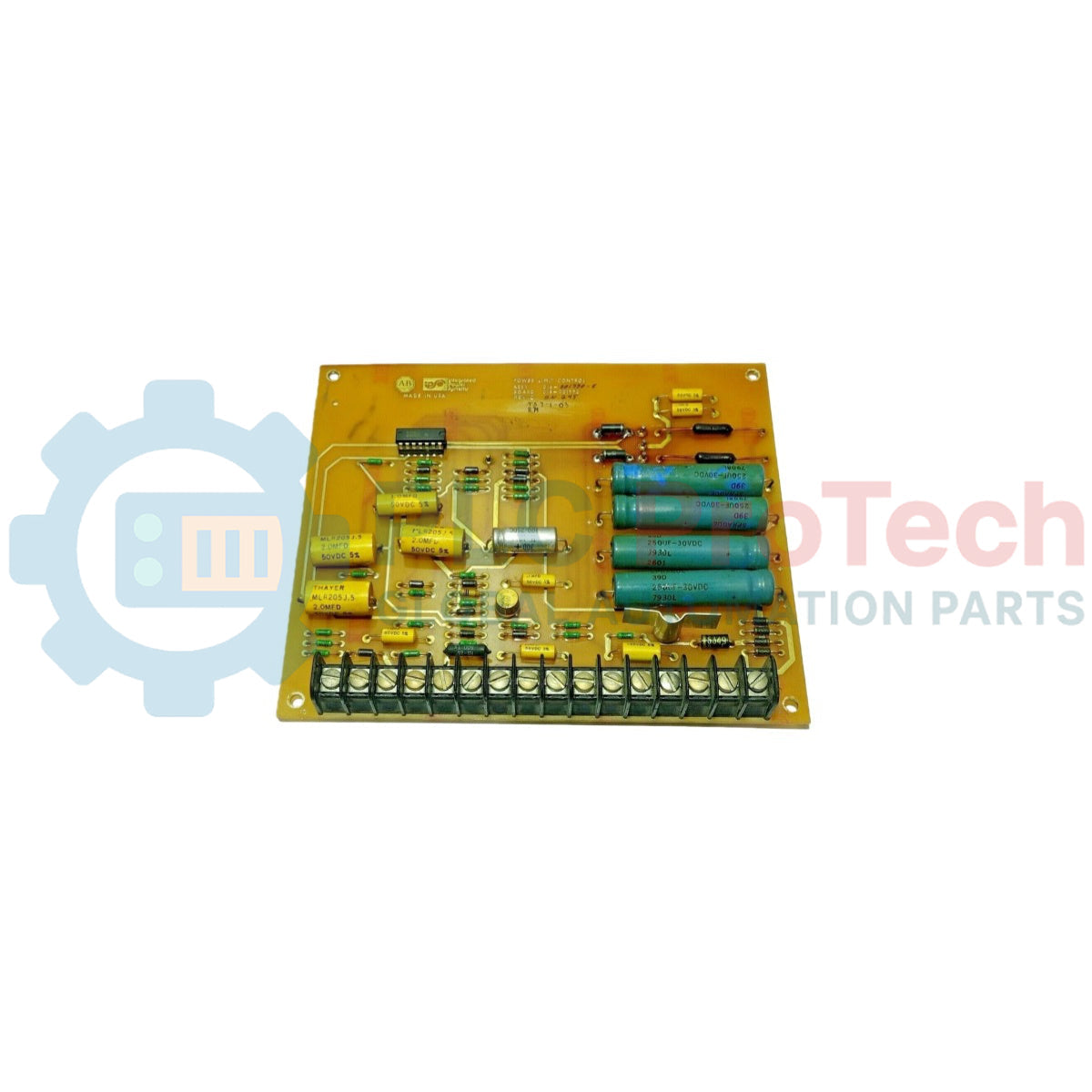

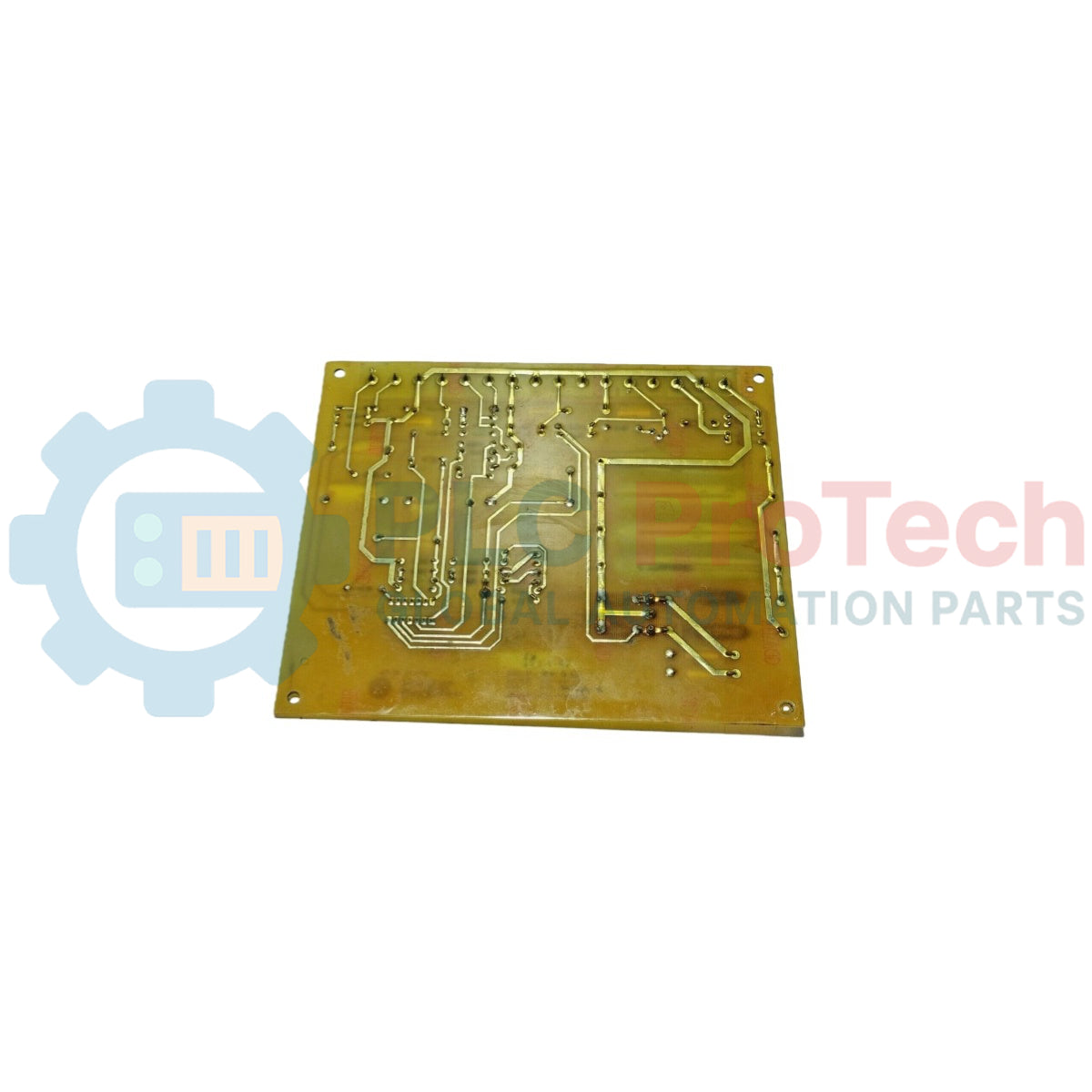

Allen-Bradley 018-001770 Power Limit Control Board

SKU 018-001770

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 018-001770
Origin United States
Product Type: Power Limit Control Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.15 kg
Dimensions: 18.2 cm x 15.2 cm x 2.5 cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The Allen-Bradley 018-001770 is a power limit control printed circuit board (PCB Revision C) designed for integrated power systems and industrial motor drive applications. The module performs real-time load monitoring and power output regulation, preventing mechanical damage or electrical failure caused by overload and stall conditions. Utilizing industrial surface-mount components, the 018-001770 collects electrical parameters such as current and voltage to execute millisecond-level power limiting and system protection.

Features

Real-time power monitoring and power limit regulation for industrial motor drive configurations.
Fast-acting, millisecond-level response to over-power, overload, and locked-rotor conditions.
Compact, surface-mount PCB assembly engineered for high reliability in harsh operating environments.
Wide input power isolation range protecting logic control circuits from electrical disturbances.

Applications

Spindle motor drive control in machine tools
Hoisting and lifting equipment load protection
Conveyor line motor power limiting
Integrated Power Systems protection and control

Technical Specifications

Attribute	Value
Manufacturer	Allen-Bradley / Rockwell Automation
Product Model	018-001770
Revision	Rev C
Assembly Part Number	016-001770
Tariff Code (HS Code)	8537101190
Country of Origin	USA
Place of Shipment	Xiamen, China
Power Supply	24V DC
Power Consumption	5-15 W (typical)
Isolation Rating	500-1500V AC
Operating Temperature	0...70 degC (32...158 degF)
Storage Temperature	-40...85 degC (-40...185 degF)
Humidity	5-95% RH (non-condensing)
Estimated Package Size	18.2 cm x 15.2 cm x 2.5 cm
Weight	0.15 kg

Installation Guidelines

Power Disconnection: Always remove line power and wait for power system bus capacitors to fully discharge before installing, removing, or servicing the control board.
ESD Protection: Handle the PCB using a grounded wrist strap or static-dissipative mat to prevent electrostatic damage to sensitive onboard components.
Mounting: Secure the board inside an appropriately IP-rated enclosure free from conductive dust, moisture, and extreme temperature fluctuations.
Wiring Integration: Verify correct polarity on the 24V DC auxiliary input lines before energizing the control system.

Compliance and Certifications

CE Compliant
RoHS Compliant
UL Recognized Component

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the 018-001770 control board?

The board monitors electrical parameters like current and voltage in real time to provide fast power limiting and overload protection for drive systems.

What input power voltage does the 018-001770 board require?

The board operates on a 24V DC power supply with a typical power consumption of 5 to 15 Watts.

What is the operating temperature range for this board?

The board is rated for an operating temperature range of 0 to 70 degC (32 to 158 degF).

What is the revision level and country of origin for part number 018-001770?

This module is Revision C (Rev C) and is manufactured in the USA.
