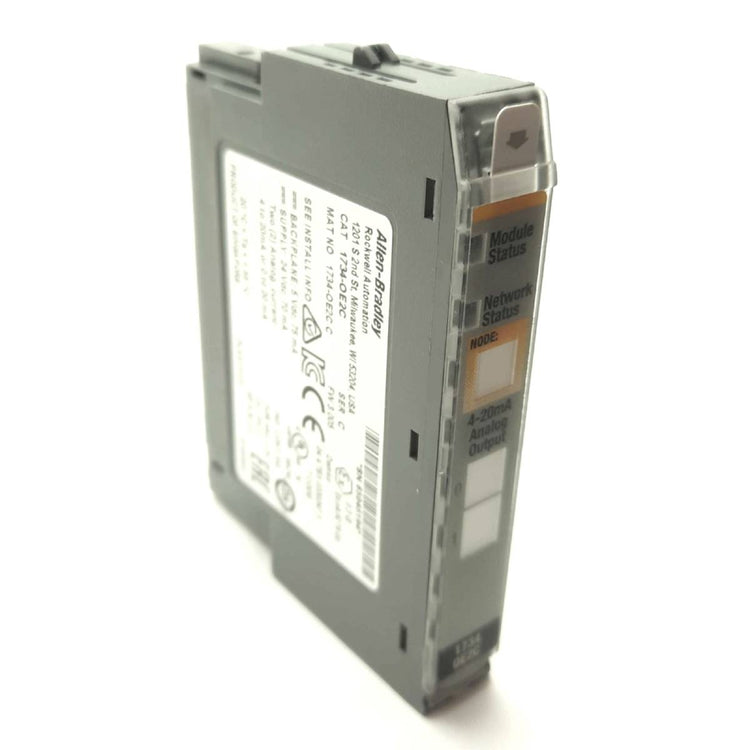

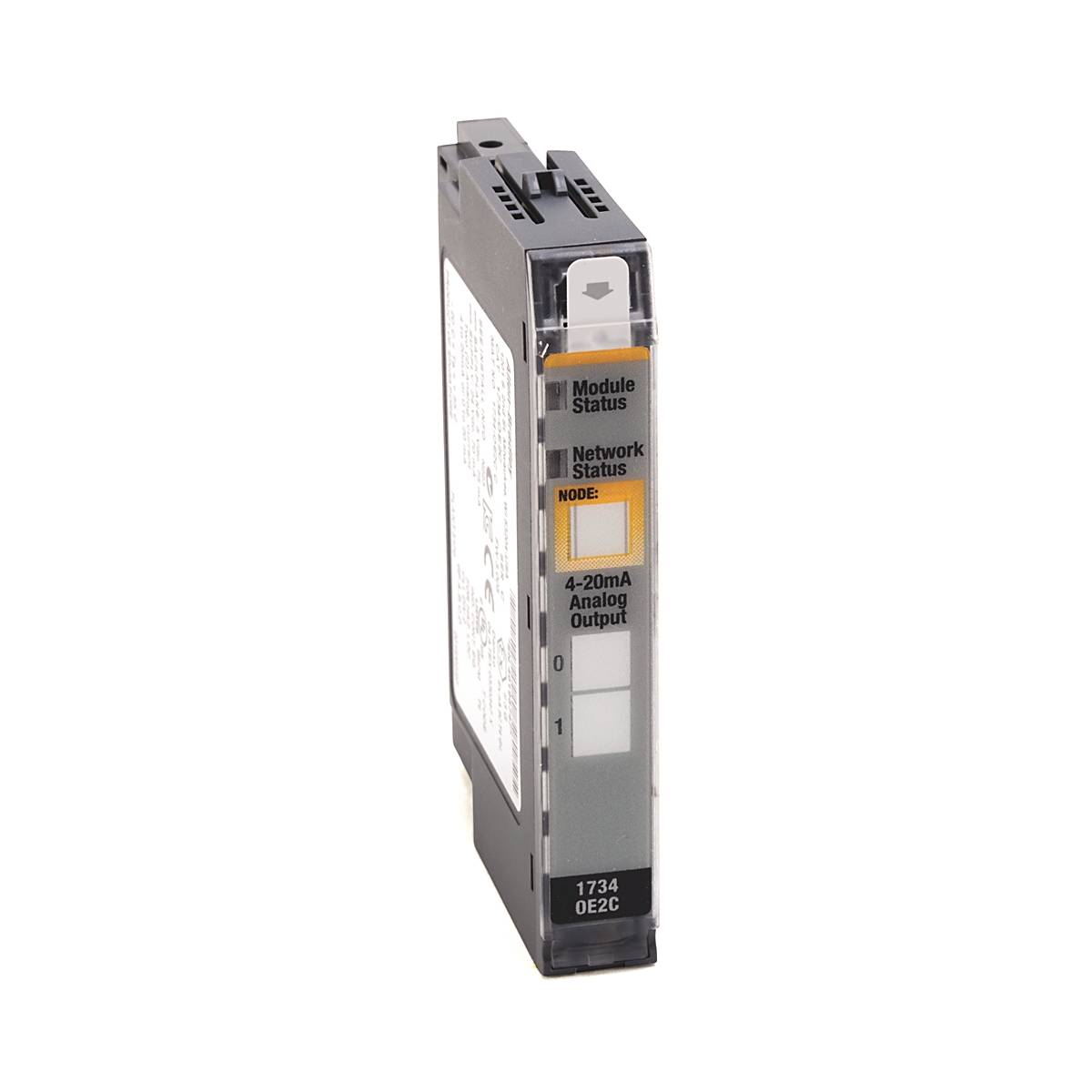

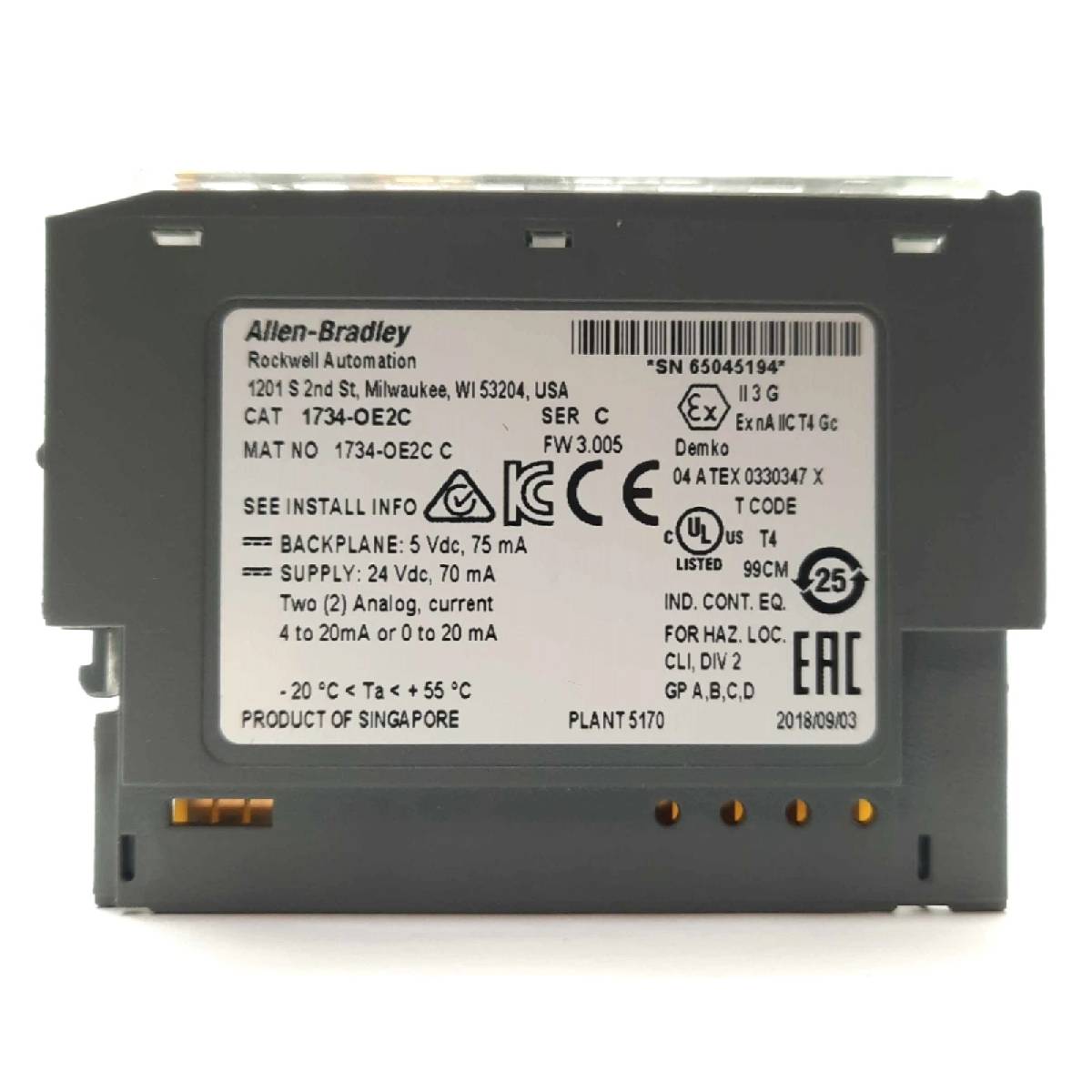

Allen-Bradley 1734-OE2C POINT I/O Analog Current Output Module

SKU 1734-OE2C

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1734-OE2C
Origin Singapore
Product Type: Analog Output Modules
Payment: T/T, Western Union
Weight: 0.036 kg
Dimensions: 56.6 x 12.1 x 77.5 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The 1734-OE2C is a 24V DC, 2-channel analog current output module designed for the Allen-Bradley POINT I/O system. The unit converts digital output data into 4...20 mA or 0...20 mA analog current signals to control field devices in industrial automation environments. Operating via the internal field power bus, the module produces 2 bytes of input data with fault status information and consumes 4 bytes of output data across the backplane. It communicates via DeviceNet, PROFIBUS, ControlNet, or EtherNet/IP adapters.

Features

Provides 2 single-ended, non-isolated analog current outputs.
Field-configurable output ranges of 4...20 mA or 0...20 mA.
13-bit output resolution over 0...21 mA.
Features local status indicators for module status, network status, and individual output channel status.
Mounts into compatible two-piece or one-piece POINT I/O terminal bases.
Supports removable terminal blocks (RTB) to allow module replacement without disconnecting field wiring.

Applications

Industrial process automation and field device control
Current loop signal generation (0...20 mA / 4...20 mA)
Distributed I/O systems using POINT I/O architecture
Control valve and actuator positioning

Technical Specifications

Attribute	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Model	1734-OE2C
UPC	612598205295
Country of Origin	Singapore
Dimensions (H x W x D)	56.6 x 12.1 x 77.5 mm (2.23 x 0.48 x 3.05 in.)
Weight	36 g (1.27 oz)
Number of Outputs	2 single-ended, non-isolated, current
Output Current Ranges	0...20 mA, 4...20 mA (user configurable)
Resolution	13 bits over 0...21 mA (2.5 uA/cnt)
Absolute Accuracy	0.1% full scale @ 25 degC
Accuracy Drift with Temp	30 ppm/degC
Step Response to 63% of FS	24 us
Resistive Load on Current Output	0...750 ohms
Conversion Type	Digital to analog converter
Conversion Rate	16 us
Data Format	Signed Integer
Calibration	Factory-calibrated
Compatible Terminal Bases	1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, 1734-TOPS, 1734-TOP3, 1734-TOP3S
Terminal Base Screw Torque	0.6 N-m (7 lb-in)
Keyswitch Position	4
POINTBus Current (Max)	75 mA @ 5V DC
Power Dissipation (Max)	1.23 W (750 ohm load), 1.83 W (0 ohm load)
Thermal Dissipation (Max)	4.19 BTU/hr (750 ohm load), 6.24 BTU/hr (0 ohm load)
Isolation Voltage	50V Continuous (Tested to withstand 2200V DC for 60 s)
Nominal External DC Power Supply	24V DC
External DC Voltage Range	10...28.8V DC
External DC Power Supply Current	70 mA @ 24V DC (including outputs @ 20 mA)
Wire Size	0.25...2.5 mm2 (22...14 AWG) solid or stranded copper wire rated at 75 degC or greater
Enclosure Type Rating	None (open-style)
Operating Temperature	-20 degC to +55 degC (-4 degF to +131 degF)
Surrounding Air Temperature (Max)	55 degC (131 degF)
Storage Temperature	-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity	5...95% noncondensing
Vibration	5 g @ 10...500 Hz
Operating Shock	30 g
Nonoperating Shock	50 g

Connections/Interfaces

Connector Pin	Function
0	Current Output Channel 0 (Out 0)
1	Current Output Channel 1 (Out 1)
2	Chassis Ground (Chas gnd)
3	Chassis Ground (Chas gnd)
4	Common (C)
5	Common (C)
6	24V DC Nominal Supply (V)
7	24V DC Nominal Supply (V)

Installation Guidelines

DIN Rail Mounting: Mount the assembly onto a zinc-plated chromate-passivated steel DIN rail to maintain appropriate chassis grounding. Anchor the DIN rail approximately every 200 mm (7.8 in.).
Keyswitch Configuration: Set the mechanical keyswitch on the terminal base to position 4 prior to installing the module.
DIN Rail Locking Screw: Ensure the DIN rail locking screw is in the horizontal position before attempting module installation.
Electrostatic Discharge (ESD) Prevention: Discharge static electricity by touching a grounded object or wearing an approved grounding wriststrap prior to handling module components.
Clearance Requirements: Maintain a minimum clearance of 2.54 cm (1.0 in.) above the module for proper ventilation.
Wiring Requirements: Use 0.25...2.5 mm2 (22...14 AWG) shielded copper wire rated for at least 75 degC with a maximum insulation thickness of 1.2 mm (3/64 in.).

Compliance and Certifications

c-UL-us: UL Listed Industrial Control Equipment (UL File E65584); UL Listed for Class I Division 2 Groups A, B, C, D Hazardous Locations (UL File E194810).
UK / CE: Compliant with EMC Directives (EN 61326-1, EN 61000-6-2, EN 61000-6-4), Programmable Controllers (EN 61131-2), and RoHS (EN IEC 63000).
Ex / ATEX: EN IEC 60079-0, EN IEC 60079-7; II 3G Ex ec IIC T4 Gc (DEMKO 04 ATEX 0330347X, UL22UKEX2478X).
IECEx: IEC 60079-0, IEC 60079-7; Ex ec IIC T4 Gc (IECEx UL 20.0072X).
RCM: Compliant with Australian Radiocommunications Act (EN 61000-6-4).
KC: Korean Registration of Broadcasting and Communications Equipment.
Morocco: Arrête ministériel n° 6404-15.
CCC: CNCA-C23-01 Implementation Rule Explosion-Proof Electrical Products (CCC 2020122309111607).
