Allen-Bradley

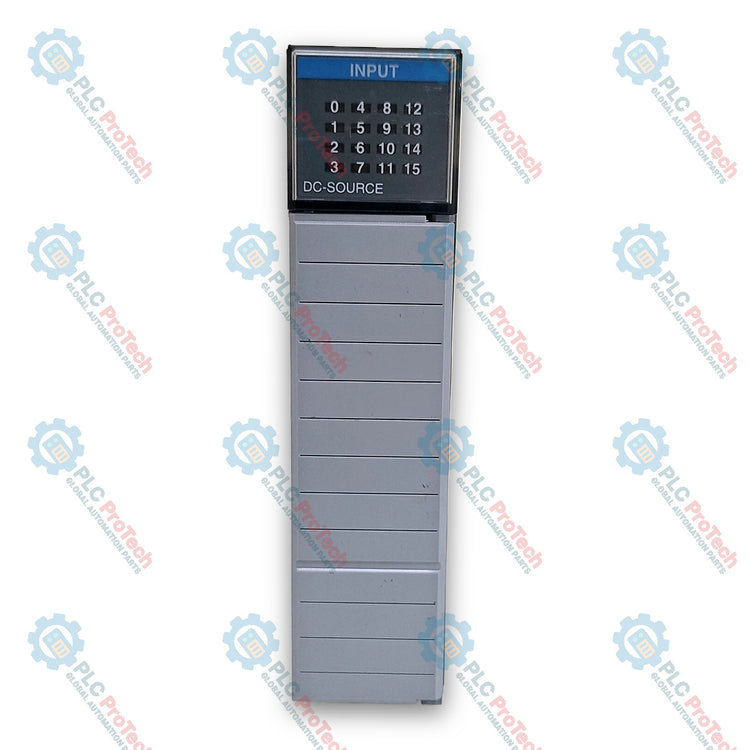

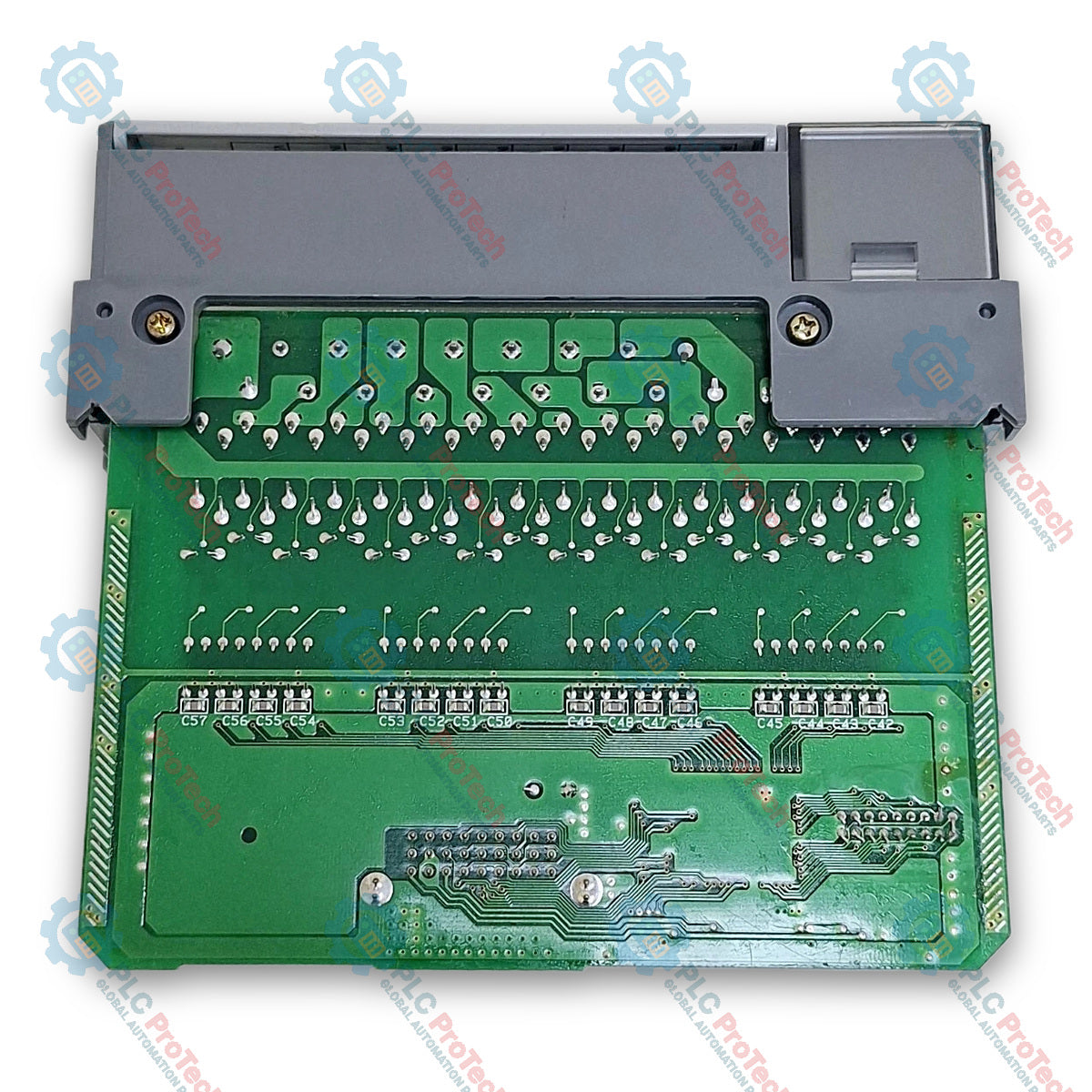

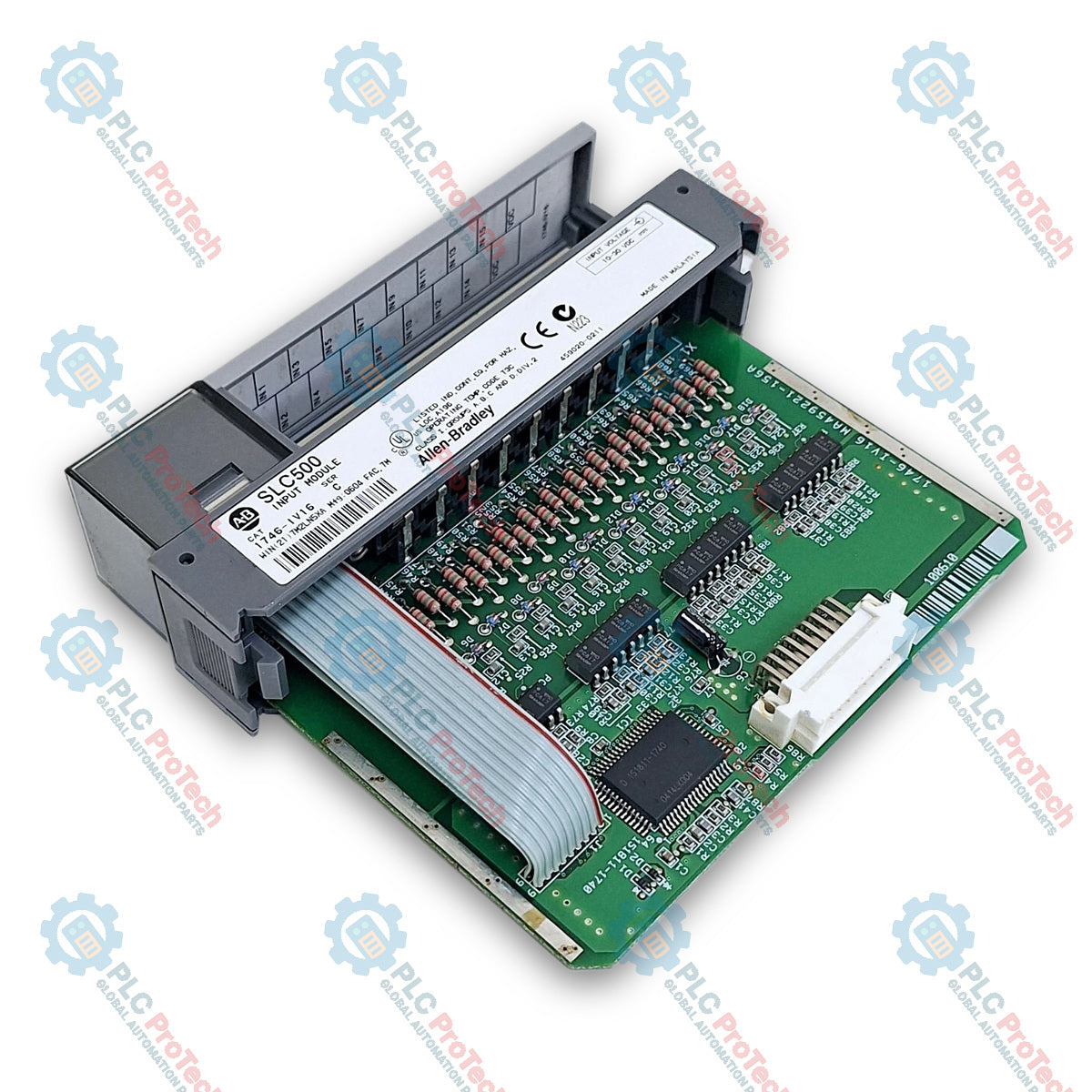

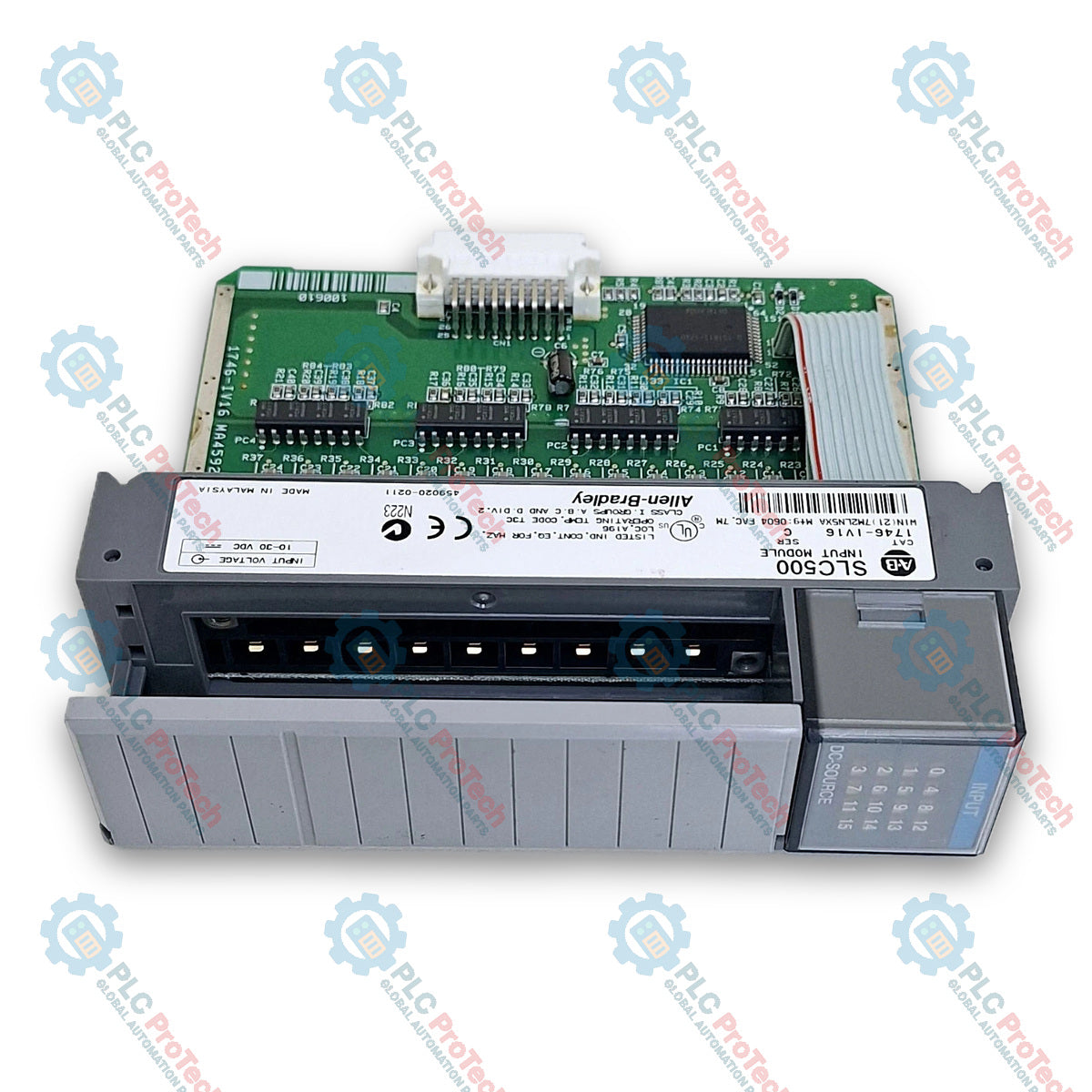

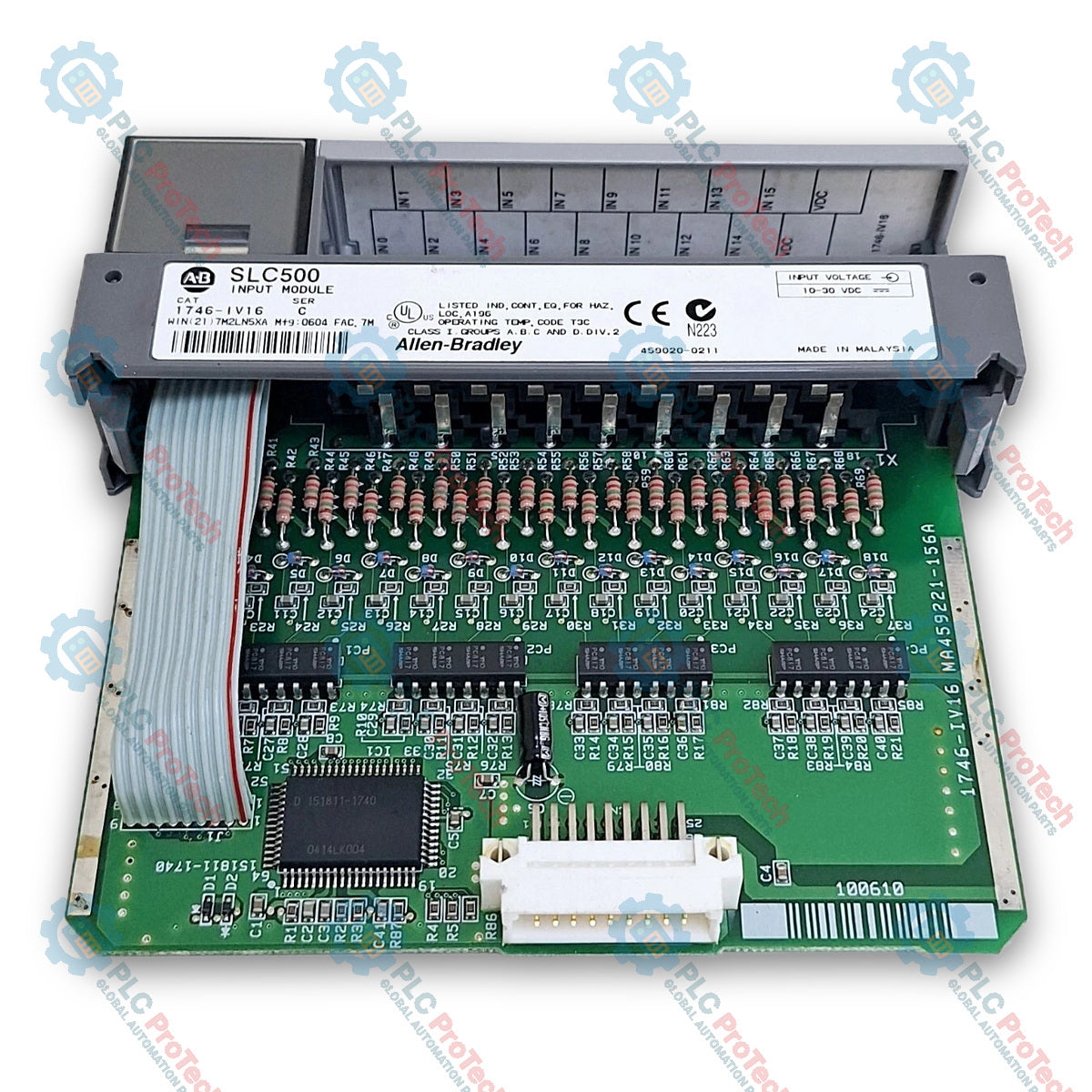

Allen-Bradley 1746-IV16 SLC 500 Sourcing DC Input Module

SKU 1746-IV16

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1746-IV16
Origin Malaysia
Product Type: Digital Input Modules
Payment: T/T, Western Union
Weight: 0.22 kg
Dimensions: 145 mm x 35 mm x 125 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The Allen-Bradley 1746-IV16 is a 24V DC sourcing digital input module designed for integration within the Allen-Bradley SLC 500 I/O chassis system. Featuring 16 sourcing input points sharing a single common, the 1746-IV16 interfaced module captures DC discrete signals from field sensors and switching devices to deliver accurate status feedback to the SLC 500 controller backplane.

Features

Equipped with 16 DC sourcing input points operating on a 24V DC voltage category.
Utilizes a single common line across all 16 channels.
Draws backplane current directly at 5V DC (85 mA) with 0 mA current consumption at 24V DC.

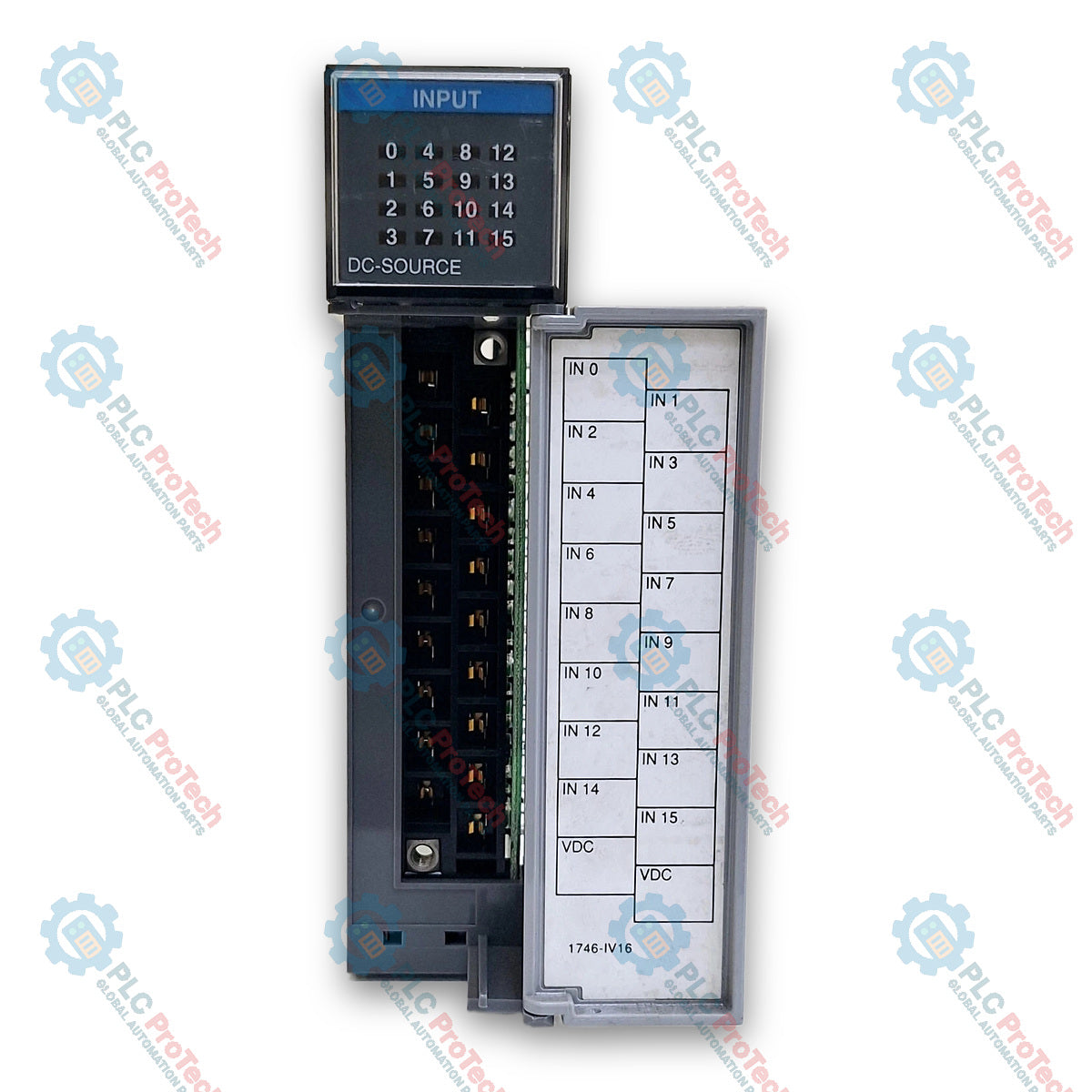

Features color-coded removable terminal blocks (RTB) for efficient field wiring maintenance.
Compatible with Bulletin 1492 pre-wired cable systems (1492-CABLEB) for direct interface module connection.

Applications

Digital sensor signal processing in SLC 500 industrial automation systems
Sourcing input interfaces for field switches, proximity sensors, and pushbuttons
Control panel discrete I/O rack integration

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Model	1746-IV16
Country of Origin	Malaysia
UPC	662468092753
Module Type	Sourcing DC Input Module
Number of Inputs	16
Points per Common	16
Voltage Category	24V DC
Operating Voltage Range	10...30V DC @ 50 degC (122 degF) / 15...26.4V DC @ 60 degC (140 degF)
Off-State Voltage (Max.)	5.0V DC
Nominal Input Current	5.1 mA @ 24V DC
Off-State Current (Max.)	1.5 mA
Signal On Delay (Max.)	3 ms max
Signal Off Delay (Max.)	3 ms max
Backplane Current @ 5V DC	85 mA
Backplane Current @ 24V DC	0 mA
Watts Per Point	0.200 W
Thermal Dissipation (Min.)	0.425 W
Thermal Dissipation (Max.)	3.60 W

Installation Guidelines

Chassis Placement: Install the module into any available slot within an SLC 500 I/O chassis.
Wiring Interface: Utilize the front-mounted removable terminal block (RTB) or the optional 1492-CABLEB pre-wired cable assembly.
Wiring Setup: Route field input signal wires into the dedicated 16 points sharing the common connection terminal block.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the Allen-Bradley 1746-IV16 used for?

The Allen-Bradley 1746-IV16 is a 16-point 24V DC sourcing input module used to interface discrete field input signals with an SLC 500 controller backplane.

Which system does the 1746-IV16 belong to?

The 1746-IV16 belongs to the Allen-Bradley SLC 500 I/O system.

How many points per common does the device feature?

The device features 16 input points per single common line.

What is the backplane power requirement for the module?

The module requires 85 mA backplane current at 5V DC and 0 mA backplane current at 24V DC.
