Allen-Bradley

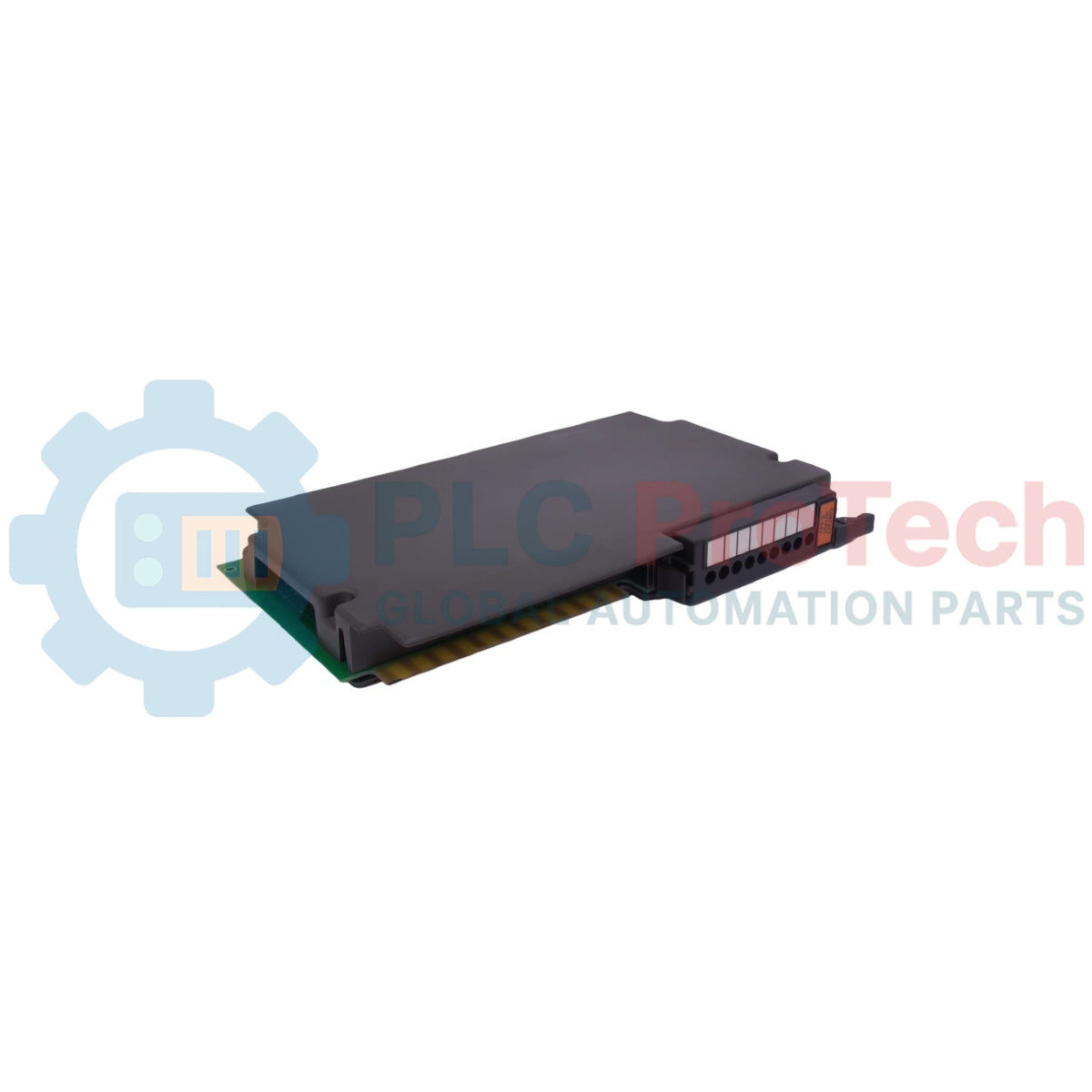

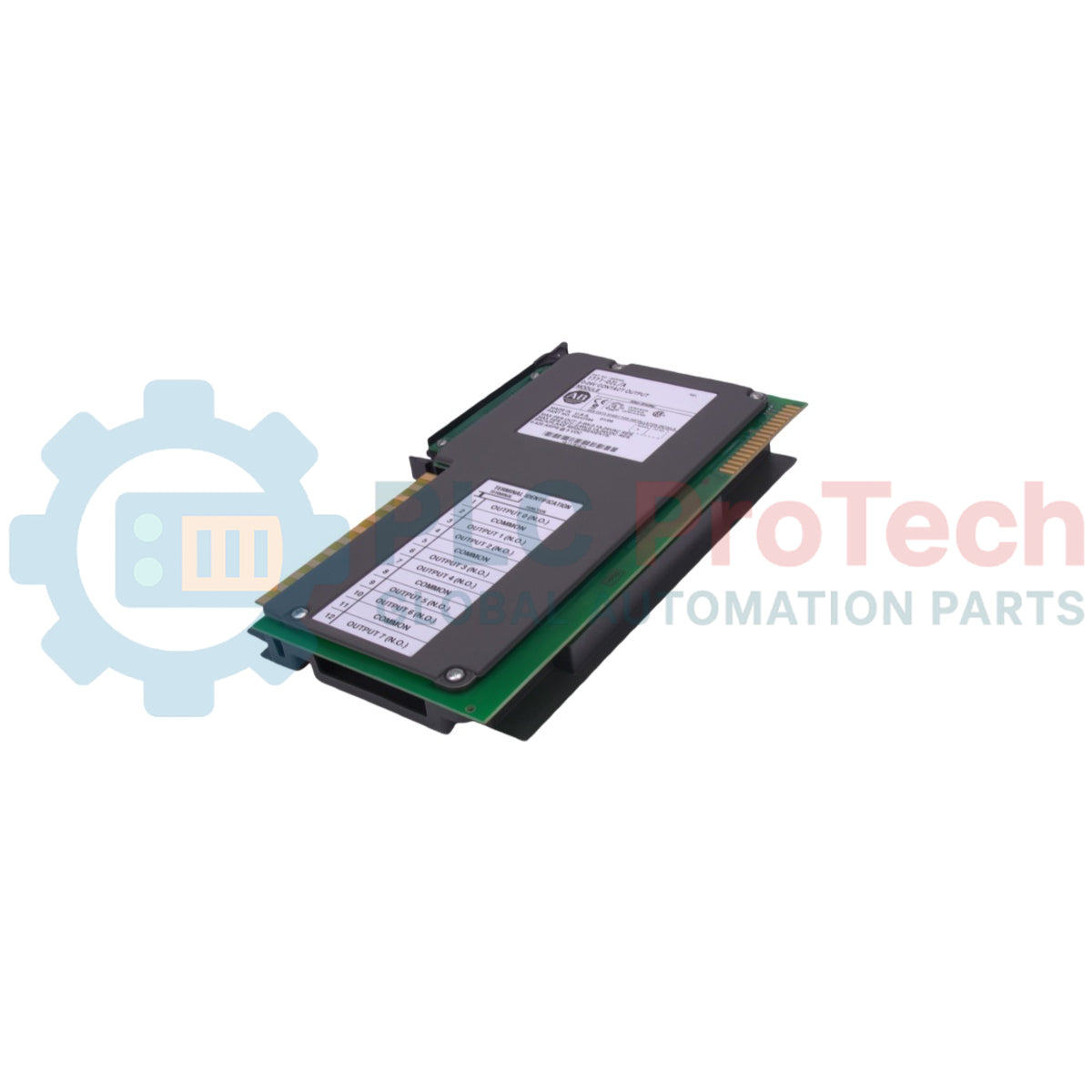

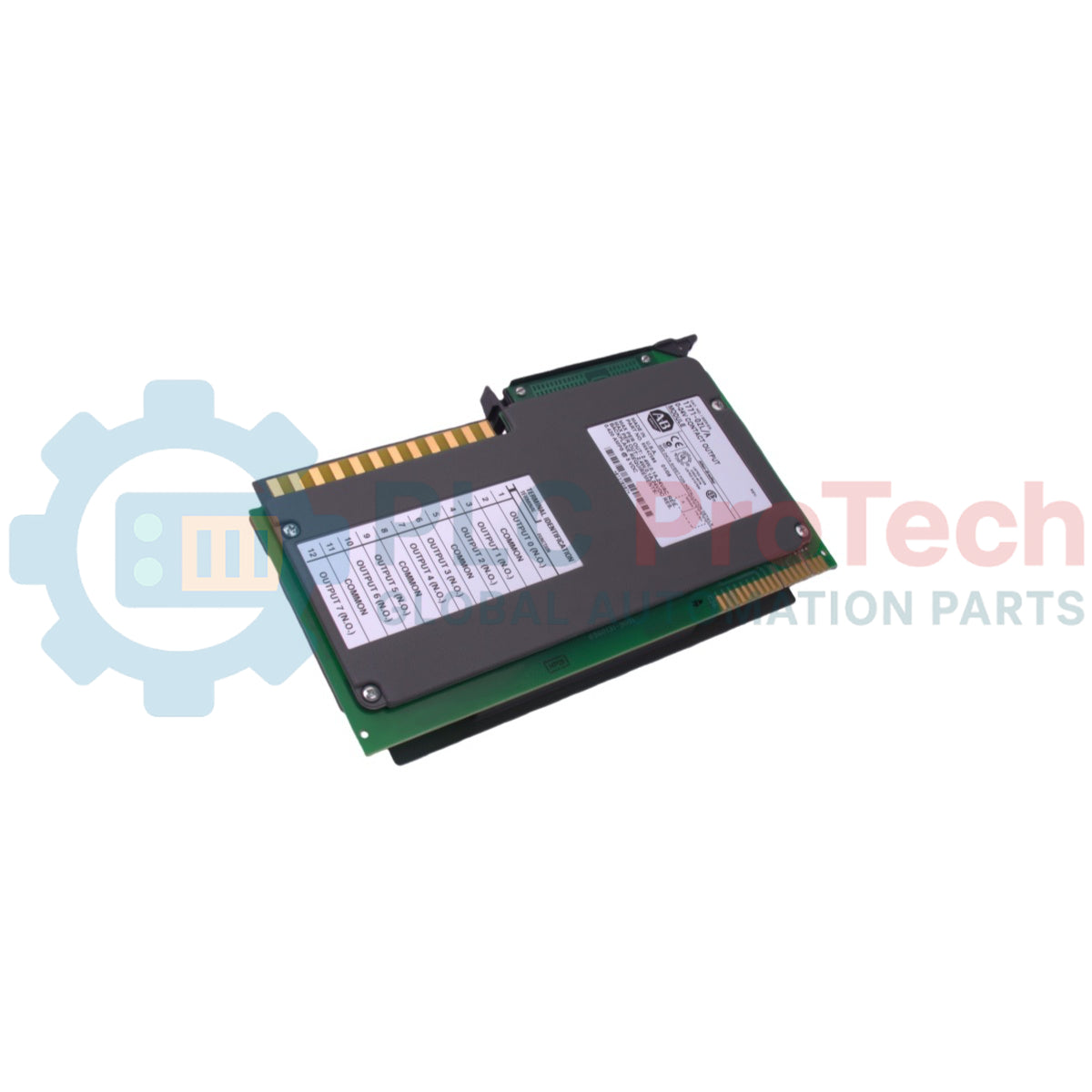

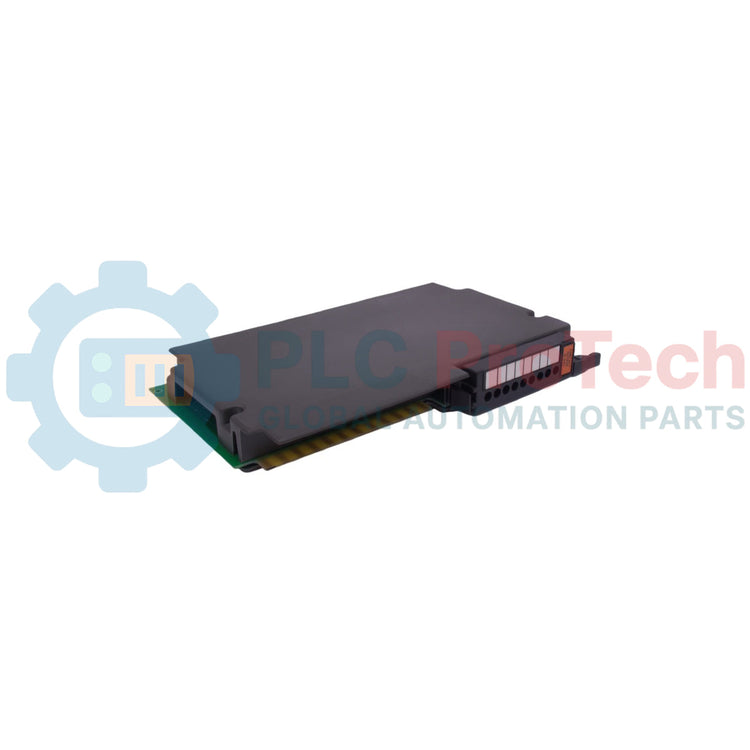

Allen-Bradley 1771-OZL 1771 Digital I/O Relay Contact Output Module

SKU 1771-OZL

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 1771-OZL
  • Origin United States
  • Product Type: Digital Output Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 1.1 kg
  • Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Output Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Allen-Bradley 1771-OZL 1771 Digital I/O Relay Contact Output Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Allen-Bradley 1771-OZL is an 8-channel digital relay contact output module designed to provide reliable switching control within the PLC-5 system architecture. It offers dry contacts that eliminate leakage current, preventing accidental energization of highly sensitive load devices. The 1771-OZL module functions as an effective interface between control logic and field devices, providing electrical isolation and robust signal switching for industrial automation processes.

Features

  • Zero Leakage Current: Dry contact outputs eliminate solid-state leakage currents, ensuring high-sensitivity load devices remain de-energized when contacts are open.
  • Individually Isolated Channels: Features 8 channels with independent contact isolation, allowing for diverse voltage reference routing.
  • Robust Diagnostic Indicators: Active LED indicators on the front panel provide real-time status display of each relay channel for simplified maintenance.
  • Secure Connection System: Compatible with standard Allen-Bradley I/O chassis swing arms to simplify wiring and field replacement.

Applications

  • High-sensitivity relay and coil control
  • Interlocking and safety signal isolation circuits
  • Solenoid and contactor pilot duty switching
  • DCS and PLC interface systems in process industries

Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Model 1771-OZL
Module Type Relay Contact Output Module
Number of Outputs 8 isolated outputs
Contact Type Form A (Normally Open)
Operating Voltage Range 120V AC or 24V DC nominal
Backplane Current Load 1.0 A at 5V DC
Power Dissipation 5.5 Watts (typical)
Isolation Voltage 1500V AC RMS channel-to-backplane
Country of Origin Mexico

Connections/Interfaces

Connector Pin Function
Terminal 1 Output 00 (A)
Terminal 2 Output 00 (B)
Terminal 3 Output 01 (A)
Terminal 4 Output 01 (B)
Terminal 5 Output 02 (A)
Terminal 6 Output 02 (B)
Terminal 7 Output 03 (A)
Terminal 8 Output 03 (B)
Terminal 9 Output 04 (A)
Terminal 10 Output 04 (B)
Terminal 11 Output 05 (A)
Terminal 12 Output 05 (B)
Terminal 13 Output 06 (A)
Terminal 14 Output 06 (B)
Terminal 15 Output 07 (A)
Terminal 16 Output 07 (B)

Installation Guidelines

  • Chassis Insertion: Power down the I/O chassis before inserting or removing the module. Align the module with the card guides and slide firmly into the backplane connector.
  • Wiring Arm: Use the designated 1771 wiring arm to land field wiring safely without disconnecting individual conductors from the terminal strip during module replacement.
  • Routing: Maintain physical separation between low-voltage signal lines and high-voltage AC/DC power cables to mitigate electromagnetic interference.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the key benefit of dry contacts on this module?
The dry contacts on the module prevent any leakage current from flowing when the outputs are open, eliminating the risk of falsely energizing highly sensitive load devices.
Does the device require external power for its backplane logic?
No, the logic power is drawn directly from the 1771 I/O chassis backplane, requiring 1.0 A at 5V DC.
How many outputs does the module support?
The module supports 8 isolated relay contact outputs.
