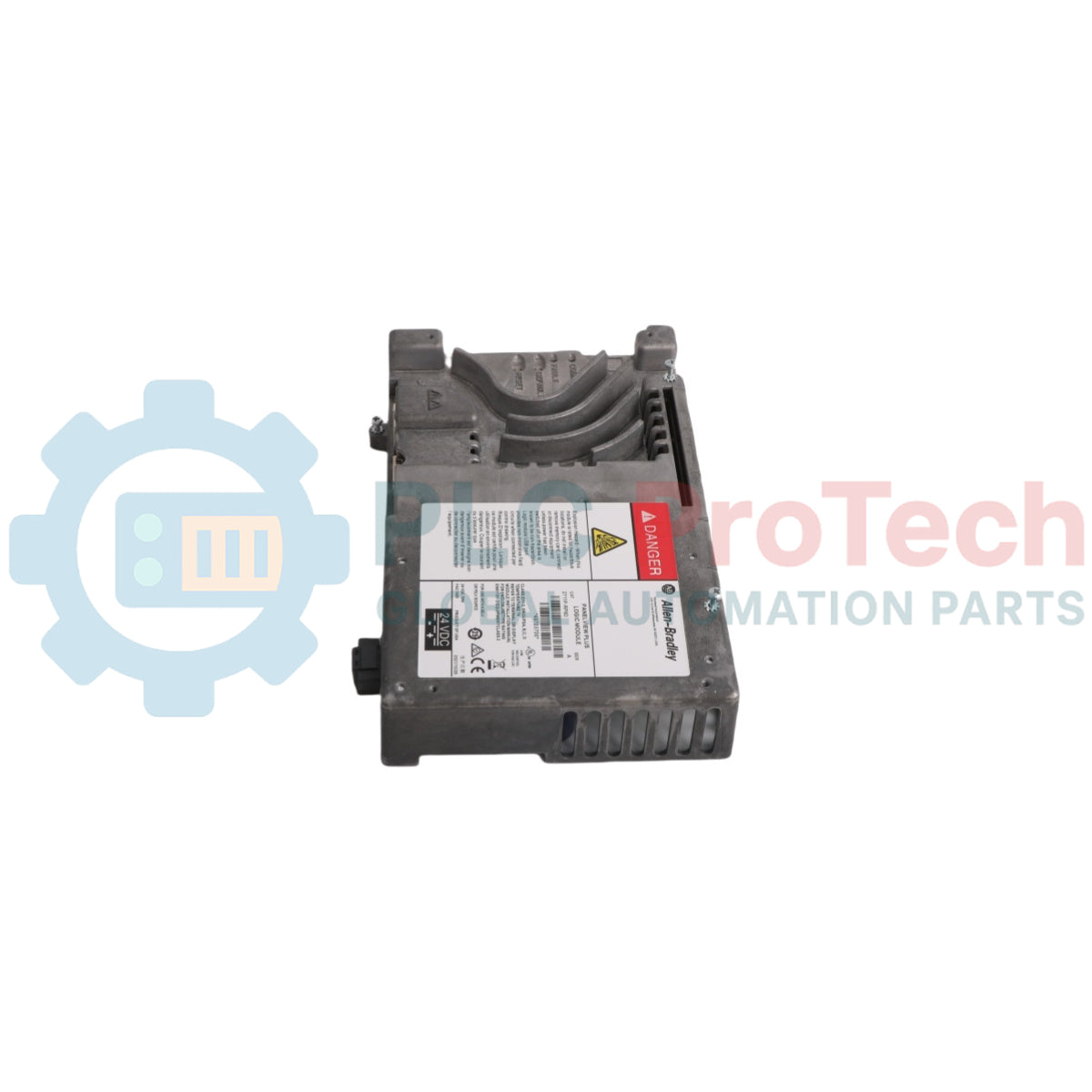

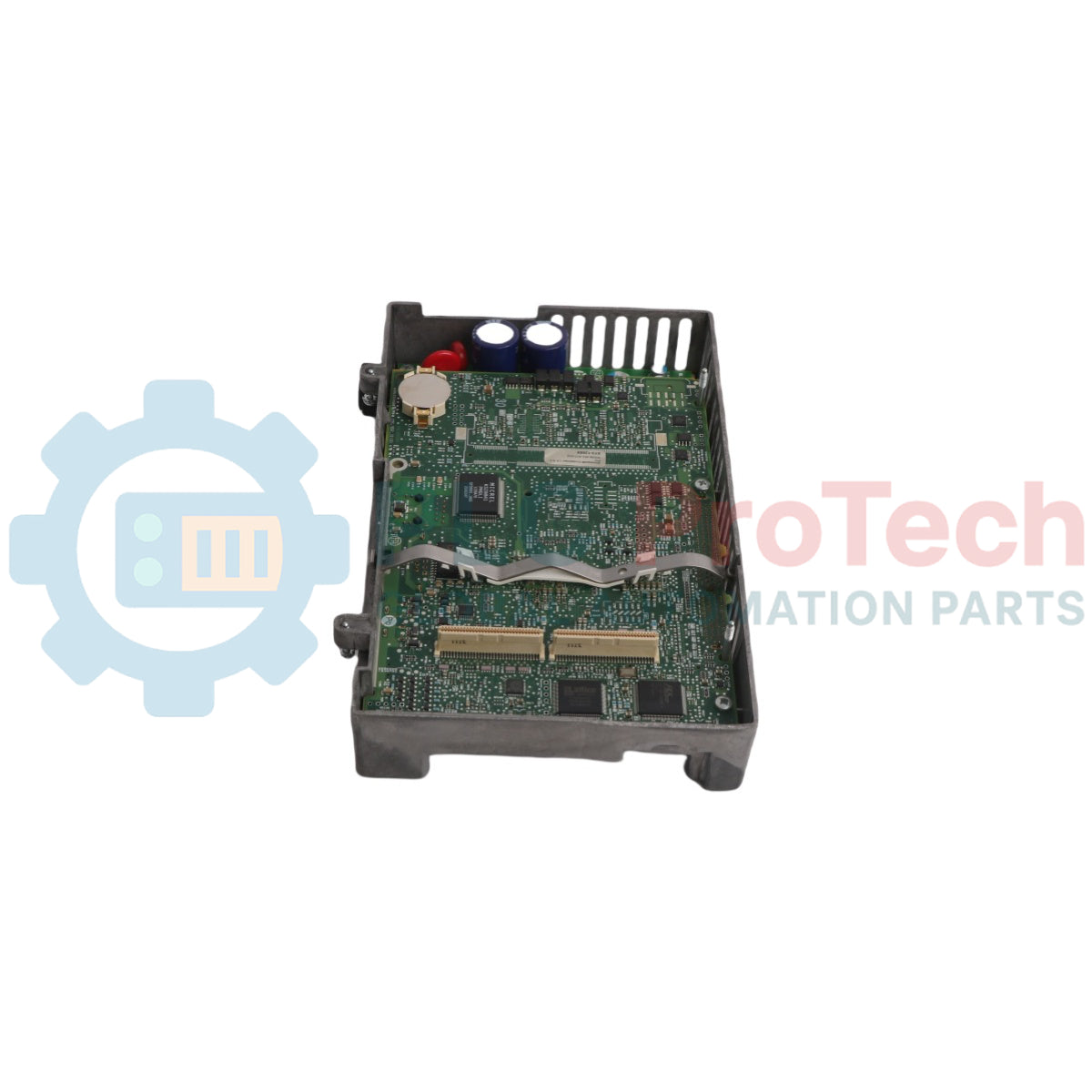

Allen-Bradley 2711P-RP1X PanelView Plus 700 to 1500 Logic Module

SKU 2711P-RP1X

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Allen-Bradley
  • Product No.: 2711P-RP1X
  • Origin United States
  • Product Type: Logic Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.45 kg
  • Dimensions: 160 mm x 130 mm x 35 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Logic Modules PanelView Plus
Quantità
Call sales Contact

Product Description

Description

The 2711P-RP1X is a logic module family for Allen-Bradley PanelView Plus 700 to 1500 terminals. It attaches to the rear of the display module and provides the terminal processing, memory, communication, firmware, and operating-system functions.

The logic module includes 64 MB internal CompactFlash memory and 64 MB RAM. Its external connections include an Ethernet port, a serial port, two USB ports, and a CompactFlash card slot. Status indicators provide operating information for the installed terminal.

The official installation document uses 2711P-RP1x as the family designation. Individual module revisions are identified by their series suffix.

Features

  • Designed for PanelView Plus 700 to 1500 terminals
  • 64 MB internal CompactFlash memory
  • 64 MB RAM
  • Ethernet communication port
  • Serial communication port
  • Two USB ports
  • CompactFlash card slot
  • Integrated status indicators
  • Replaceable RAM module
  • Replaceable internal CompactFlash card
  • Rear-mounted connection to the display module
  • Field-installable module construction

Applications

  • PanelView Plus terminal logic-module replacement
  • Industrial machine operator interfaces
  • Manufacturing HMI stations
  • Production-line visualization terminals
  • Process equipment operator panels
  • Existing PanelView Plus system maintenance

Technical Specifications

General

Parameter Specification
Manufacturer Allen-Bradley
Model Family 2711P-RP1x
Product Type Logic Module
Product Series PanelView Plus
Compatible Terminal Range PanelView Plus 700 to 1500
Installation Location Rear of the display module

Memory

Parameter Specification
Internal CompactFlash 64 MB
RAM 64 MB
RAM Type SODIMM RAM
Firmware Storage Internal CompactFlash
Operating System Storage Internal CompactFlash

Module Series

Series Module Designation
Series A 2711P-RP1x/A
Series B 2711P-RP1x/B
Series C 2711P-RP1x/C
Series D 2711P-RP1x/D
Series E 2711P-RP1x/E
Series F 2711P-RP1xx/F
Series G 2711P-RP1xxx/G

Connections/Interfaces

Interface Function
Ethernet Port Ethernet network connection
Serial Port Serial communication connection
USB Ports Two USB device connections
CompactFlash Card Slot External CompactFlash card access
Internal CompactFlash Interface Firmware and operating-system storage
Display Module Connectors Connection between the logic module and display module
Status Indicators Module operating-status indication

Installation Guidelines

  • Disconnect all power from the terminal before installing or replacing the module.
  • Disconnect all power and communication cables before module removal.
  • Wear a properly grounded ESD wristband.
  • Work in a static-free environment.
  • Avoid touching exposed electronic components.
  • Install the RAM and internal CompactFlash before attaching the logic module when supplied separately.
  • Place the display module face-down on a clean, flat, stable surface.
  • Align the two logic-module connectors with the display-module connectors.
  • Press the logic module down until it is firmly seated.
  • Tighten the six captive screws to 0.58 N m (5 to 7 lb in).
  • Remove any attached communication module before replacing the logic module.
  • Reinstall the communication module after the logic module is securely mounted.
  • Verify the logic-module series before transferring RAM or internal CompactFlash components.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which terminals support the module?
The module family is designed for PanelView Plus 700 to 1500 terminals.
How much memory does the module include?
The module family includes 64 MB internal CompactFlash and 64 MB RAM.
Which communication interfaces are provided?
The module includes one Ethernet port, one serial port, and two USB ports.
Can the internal memory be replaced?
Yes. The RAM and internal CompactFlash can be installed or replaced separately.
What mounting torque is required?
Tighten the six captive screws to 0.58 N m, equivalent to 5 to 7 lb in.
