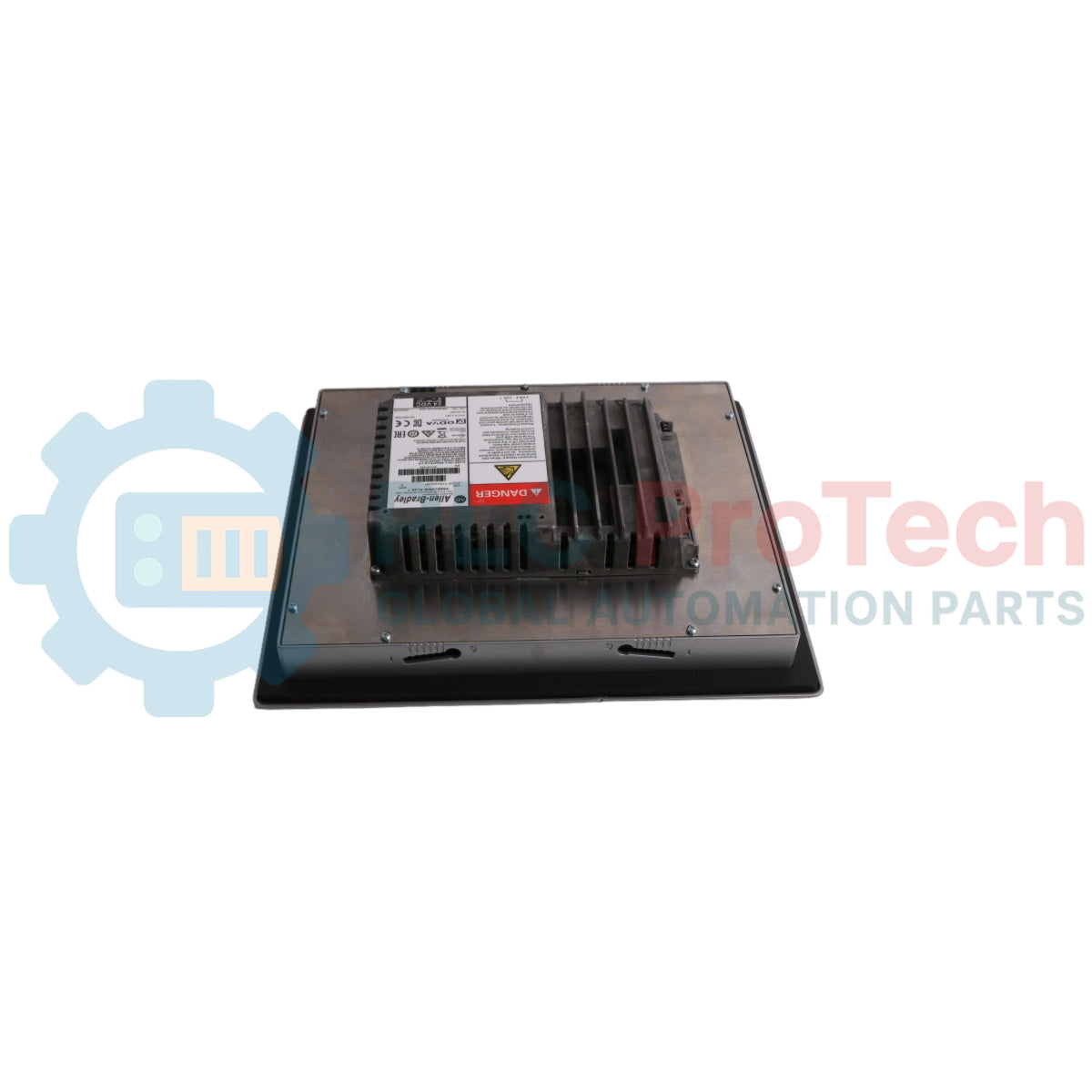

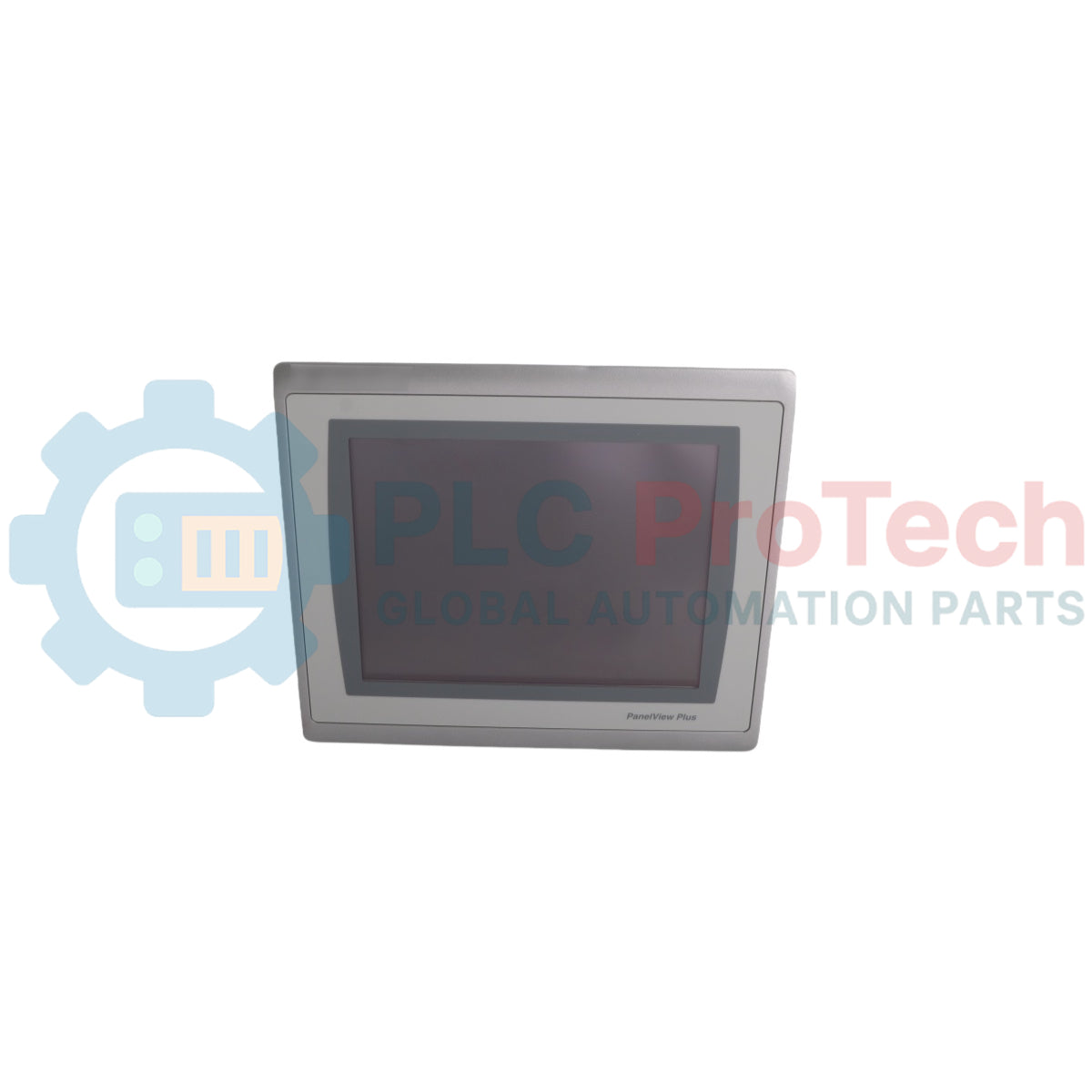

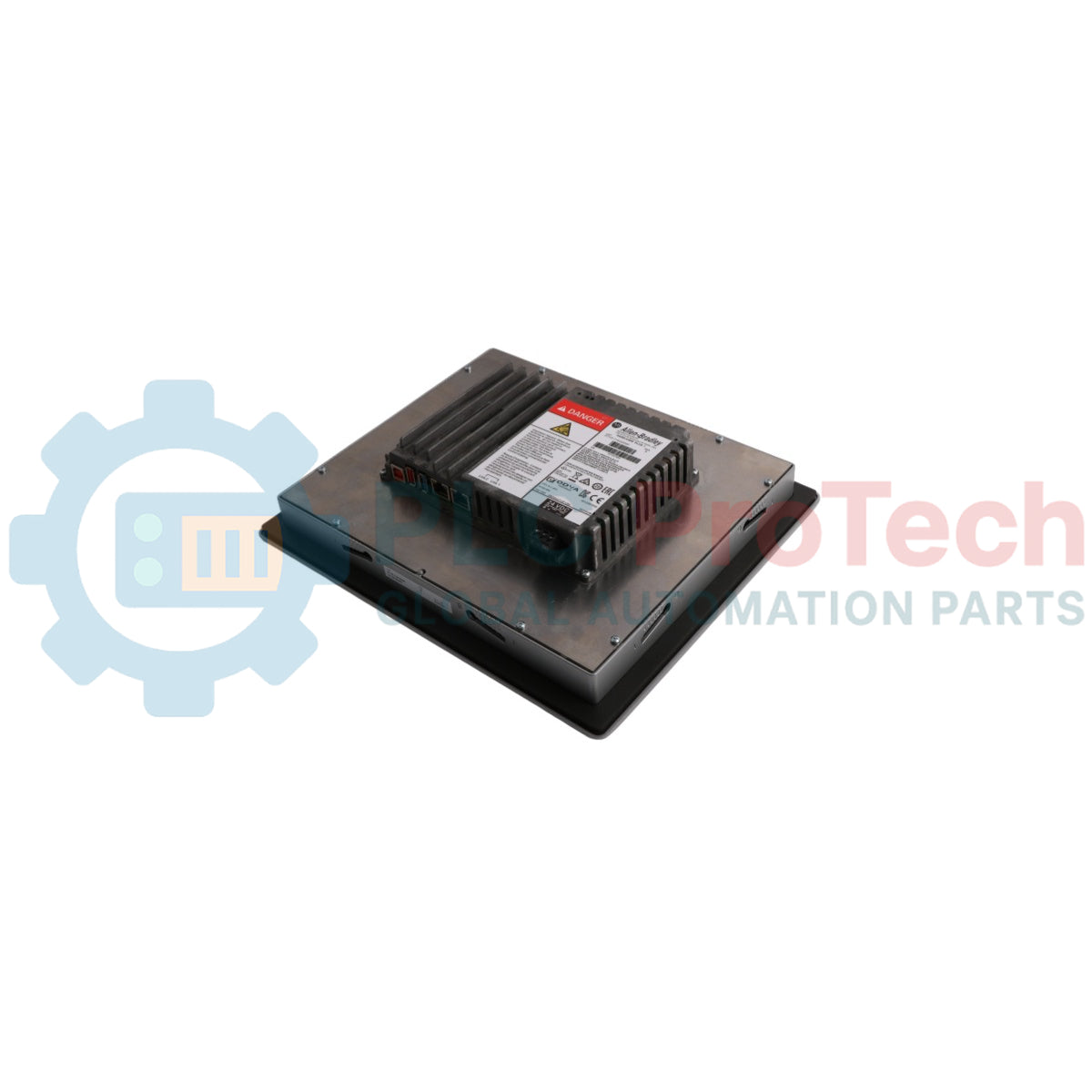

The Allen-Bradley 2711P-T10C22D9P is a high-performance human-machine interface (HMI) terminal designed to provide robust control and visualization for automated industrial applications. This operator interface device enables comprehensive monitoring and control over field devices connected to ControlLogix and CompactLogix 5370 controllers across an EtherNet/IP network. Featuring a 10.4-inch color TFT display with an analog resistive touch screen, it delivers animated graphics and sharp text readouts to offer operators precise insight into active machinery and process states. The terminal operates on the Windows 10 IoT Core operating system (Series B) and features dual 10/100Base-T Ethernet ports configured for Device Level Ring (DLR), linear, and star network topologies. Engineered for demanding industrial integration, it provides runtime execution via FactoryTalk View Machine Edition Station to securely link human intervention with core automation controllers.
| Attribute | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Operator Input | Touch |
| Display Type | TFT Color |
| Display Size, Diagonal | 10.4-in. |
| Viewing Area (W x H) | 211 x 158 mm (8.3 x 6.2 in.) |
| Display Resolution | 800 x 600 SVGA, 24-bit color graphics (Series B) |
| Aspect Ratio | 4:3 |
| Brightness, Typical | 300 cd/m2 (Nits) or more |
| Backlight Life | White light-emitting diode, solid-state; 50,000 h min at 40 Celsius to half-brightness (non-replaceable) |
| Touch Screen Type | Analog resistive; 1 million presses actuation rating; 100 grams operating force |
| Battery (Real-Time Clock) | CR2032 lithium coin cell; Accuracy: +/-2 minutes per month; 4 years min life at 25 Celsius |
| Memory (Series B) | 4 GB RAM and 19.87 GB storage; Approx 2 GB nonvolatile storage for applications |
| SD Card Support | One SD card slot; supports cat. no. 1784-SDx and 1784-SDHCx cards |
| USB Ports (Series B) | One USB high-speed 3.0 host port, one USB 2.0 host port (Type A), one high-speed 2.0 device port (Type B) |
| Operating System (Series B) | Windows 10 IoT Core |
| Ethernet Ports | Two 10/100Base-T, Auto MDI/MDIX ports supporting DLR, linear, or star topologies |
| Software Compatibility | FactoryTalk View Studio for Machine Edition, FactoryTalk ViewPoint version 2.6 or later |
| Input Voltage | 24V DC nom (18...30V DC) |
| Power Consumption (Series B) | 32 W max |
| Power Supply Type | Supports safety extra low voltage (SELV) and protective extra low voltage (PELV) 24V DC supplies |
| Weight, Approx. | 2.28 kg (5.03 lb) |
| Dimensions, Approx. (H x W x D) | 252 x 297 x 69.6 mm (9.92 x 11.69 x 2.74 in.) |
| Cutout Dimensions, Approx. (H x W) | 224 x 269 mm (8.82 x 10.59 in.) |
| Temperature, Operating | 0...55 Celsius (32...131 Fahrenheit) |
| Temperature, Nonoperating | -25...+70 Celsius (-13...+158 Fahrenheit) |
| Relative Humidity | 5...95% without condensation |
| Vibration | 0.012 pk-pk, 10...57 Hz; 2 g peak at 57...500 Hz |
| Shock, Operating | 15 g at 11 ms |
| Shock, Nonoperating | 30 g at 11 ms |
| Enclosure Ratings | NEMA and UL Type 12, 13, 4X, IP66 as Classified by UL |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 2711P-T10C22D9P
Country of origin:United States
Product Type: Graphic Terminal
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 2280g
Dimensions: 252 x 297 x 69.6 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
