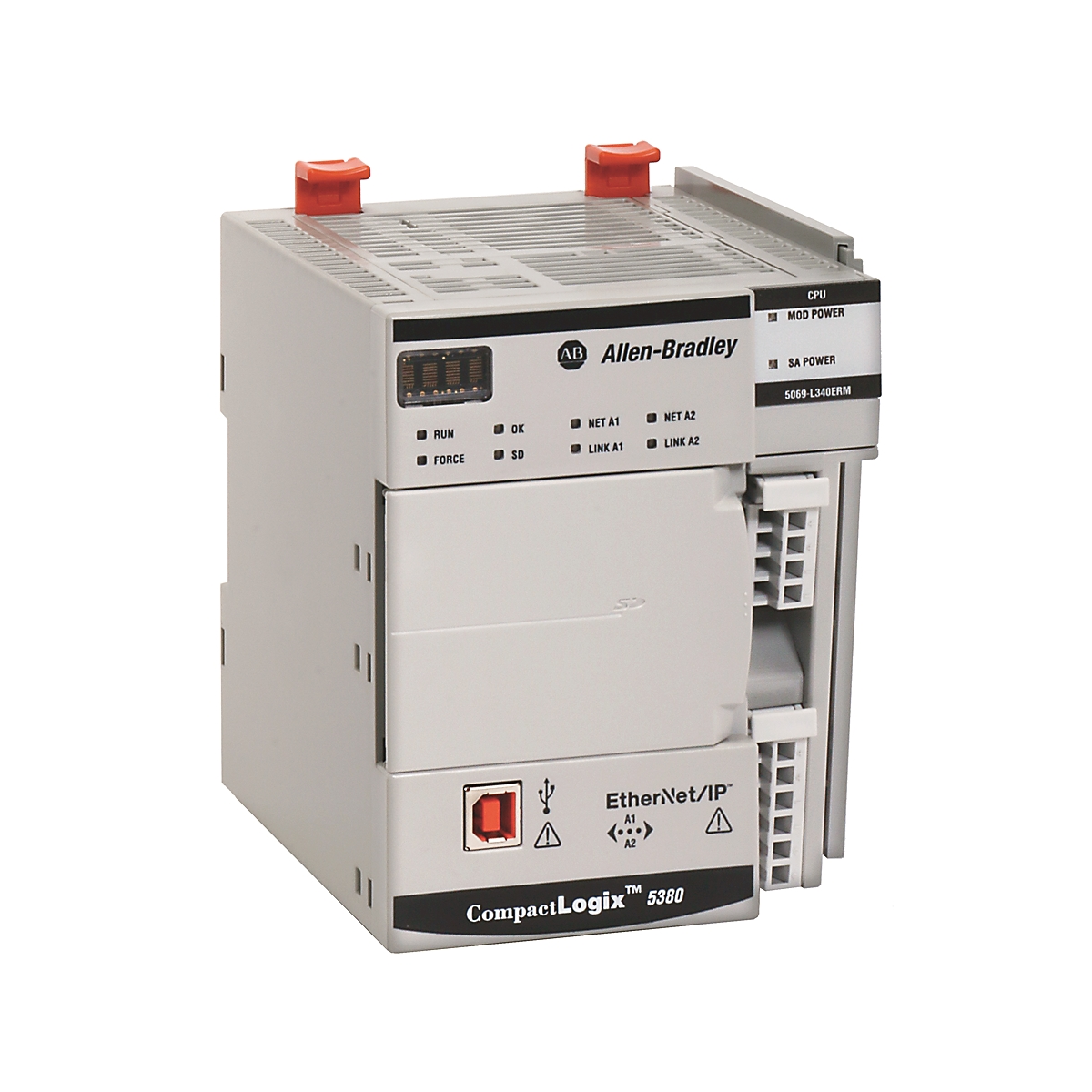

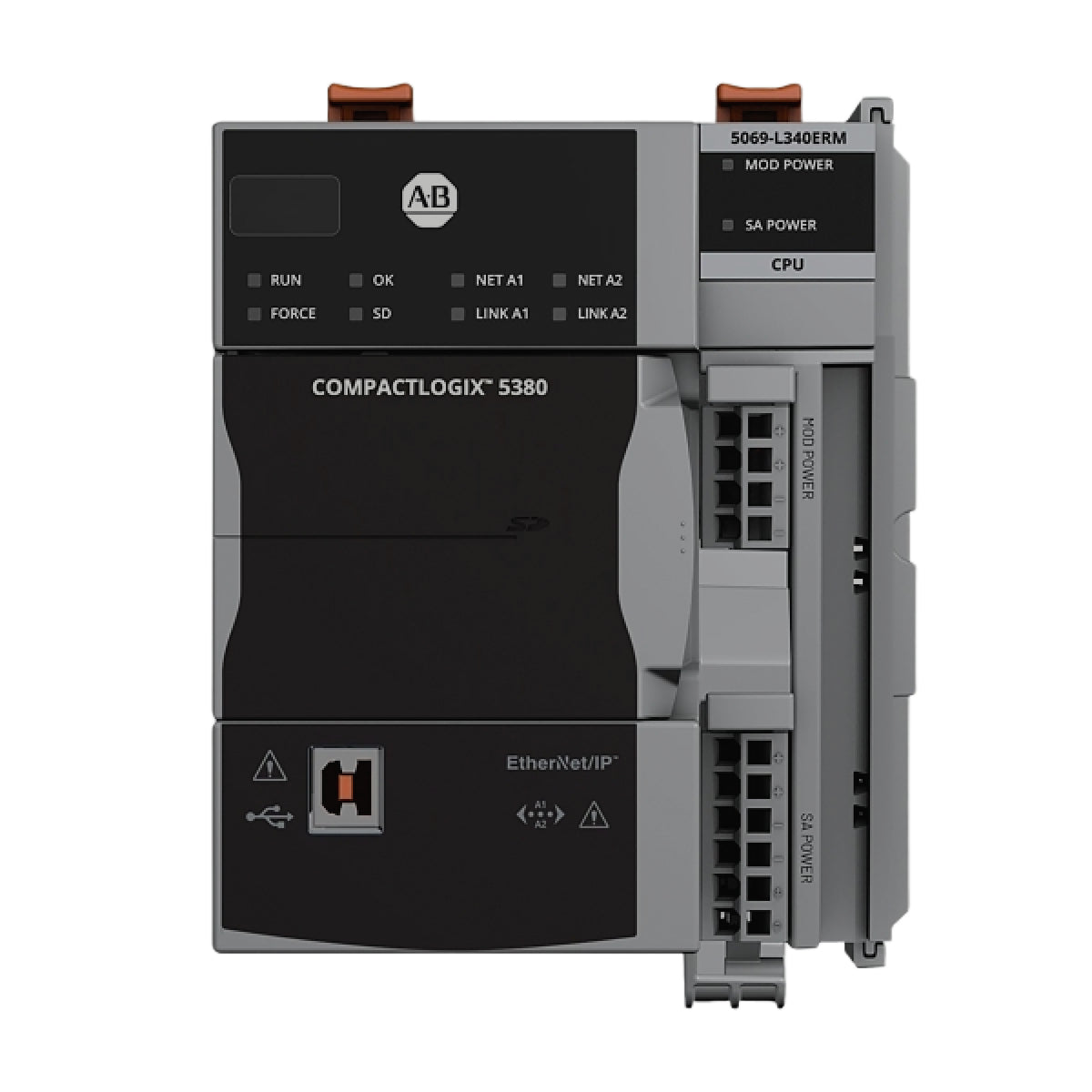

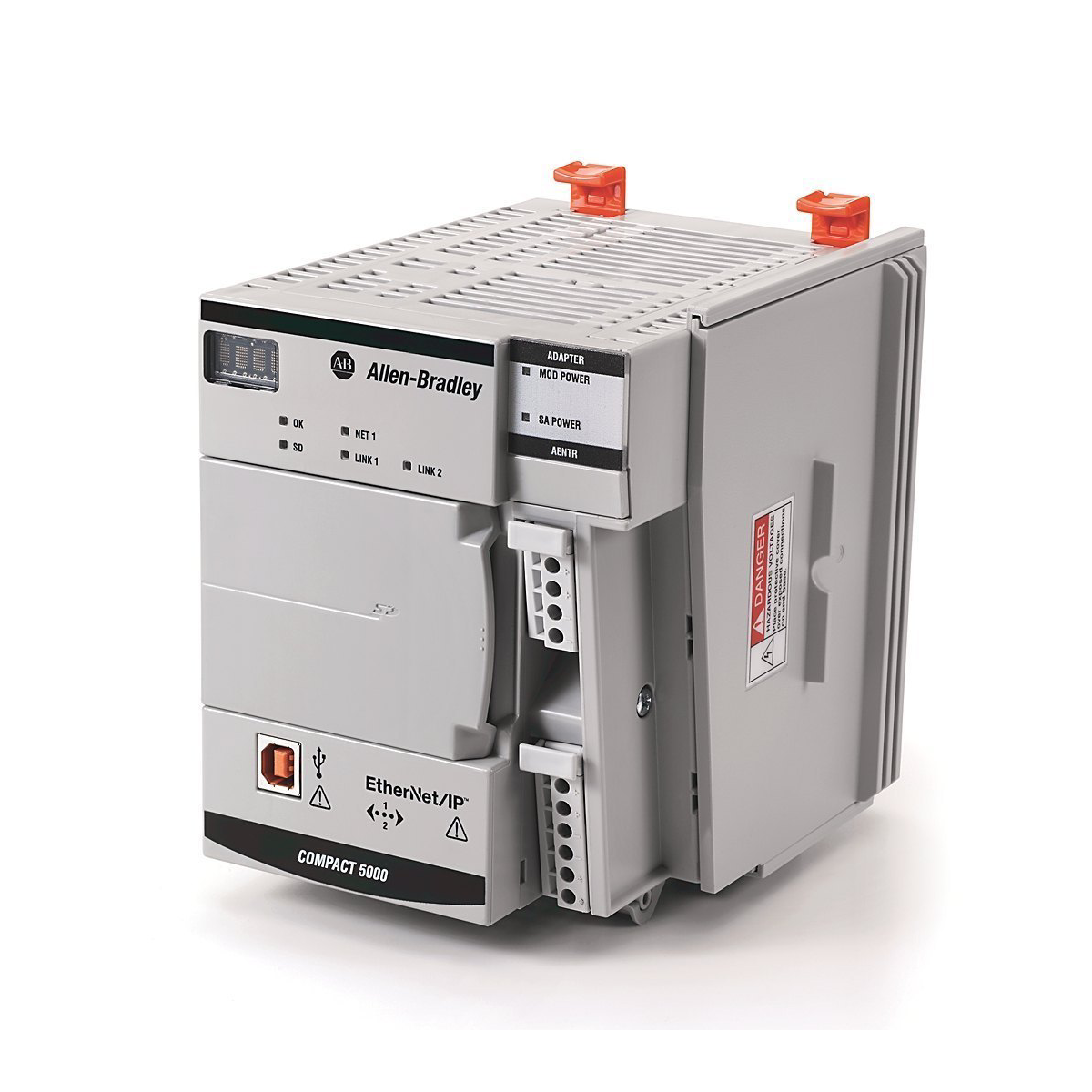

The 5069-L306ERM is a high-performance, mid-range controller from the CompactLogix 5380 family by Rockwell Automation. Designed for modern industrial applications, it provides increased processing power, high-speed I/O throughput, and integrated motion control capabilities. It is particularly well-suited for machine builders requiring precision, scalability, and enhanced security within the Logix 5000 ecosystem.

Key Technical Specifications

Core Functionalities

1. Integrated Motion on EtherNet/IP

The "M" in the model name signifies Integrated Motion capability. The 5069-L306ERM supports up to 2 axes of coordinated motion, allowing for precise control of Kinetix drives and motors over a standard Ethernet cable without the need for dedicated motion hardware.

2. Dual Gigabit Ethernet Ports

This controller features two 1-Gigabit Ethernet ports that can be configured in two modes:

• Dual-IP Mode: Assign separate IP addresses to each port to isolate plant-floor traffic from the enterprise network.

• Linear/DLR Mode: Allows for Device Level Ring (DLR) topologies, providing network resiliency so that a single cable break does not stop the system.

3. 5069 I/O Platform

It utilizes the 5069 Compact I/O platform, which offers significantly faster backplane speeds compared to older generations. This results in reduced latency and more deterministic I/O performance for high-speed counting or sensing applications.

Technical FAQs

What is the difference between the 5069-L306ER and the 5069-L306ERM?

The ER version is a standard controller with no integrated motion capability. The ERM version includes support for CIP Motion, making it capable of controlling synchronized servo axes.

Does the 5069-L306ERM require a battery?

No. Like most modern Logix controllers, it uses internal non-volatile memory and energy storage (capacitors) to back up the user program and data during a power loss, eliminating the need for periodic battery replacement.

Can I use 1769-series I/O modules with this controller?

No. The 5380 series is only compatible with the 5069 I/O platform for local modules. To use 1769 modules, you would need to connect to them as remote I/O via an Ethernet adapter (e.g., 1769-AENTR).

Engineering & Installation Guide

• Power Architecture: The controller requires two separate DC power inputs: MOD Power (for the controller and module electronics) and SA Power (for field-side power to the I/O). These must be connected via a removable terminal block (RTB).

• Security Features: The 5069-L306ERM includes controller-based security features, such as digitally signed firmware and role-based access control, to help protect against unauthorized modifications and cyber threats.

• Mounting: It is designed for standard DIN rail mounting. Ensure adequate clearance (approx. 50mm) above and below the module to allow for passive convection cooling, as this series can run warm during high-load processing.

Engineering Advantages

The 5069-L306ERM stands out for its Low-Latency Performance. With a Gigabit backplane and high-speed task execution, it can handle complex logic and motion tasks with minimal jitter. It serves as an ideal entry-point for motion applications that don't require the massive memory or high axis count of the 1756 ControlLogix line, but still demand the reliability and precision of the Allen-Bradley brand.
