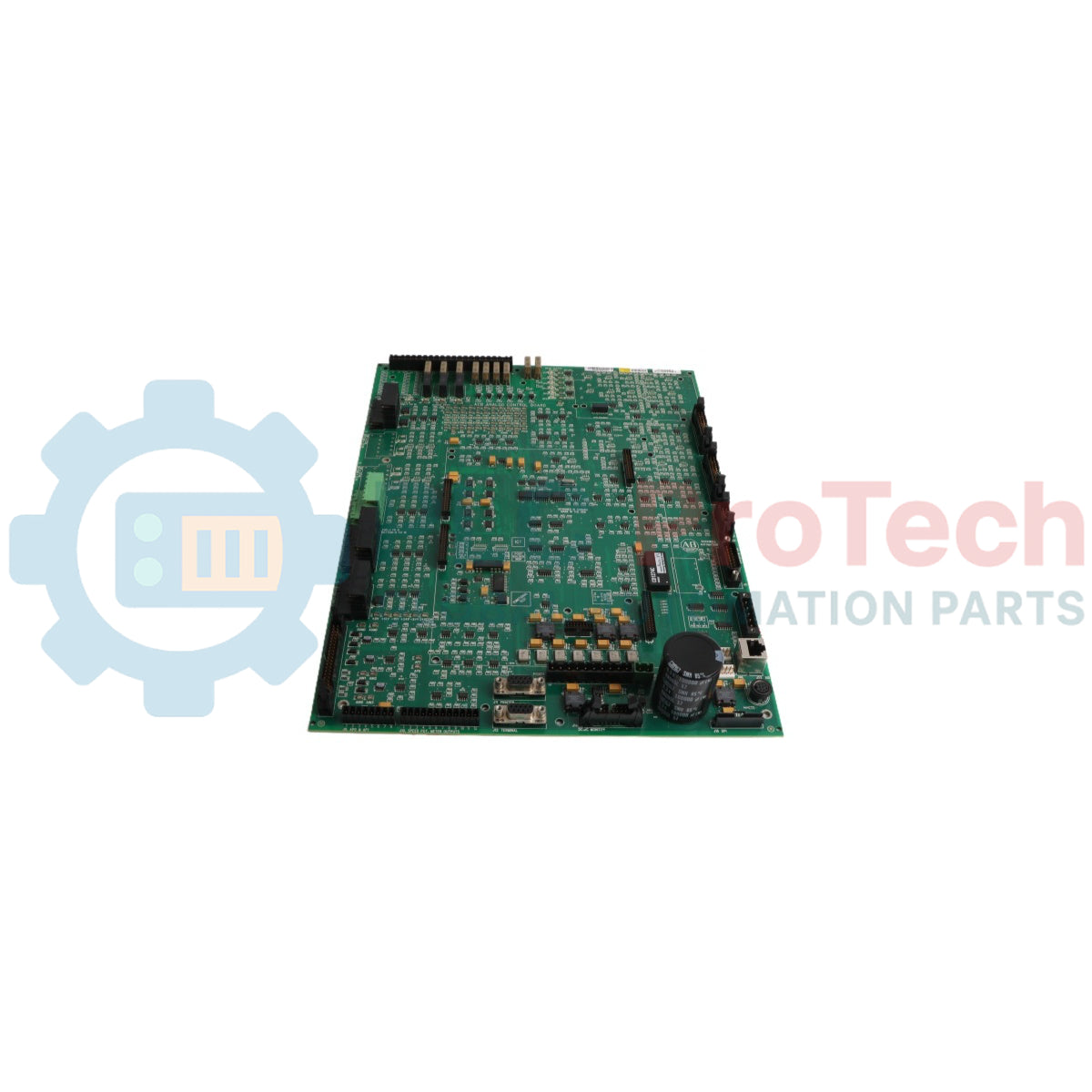

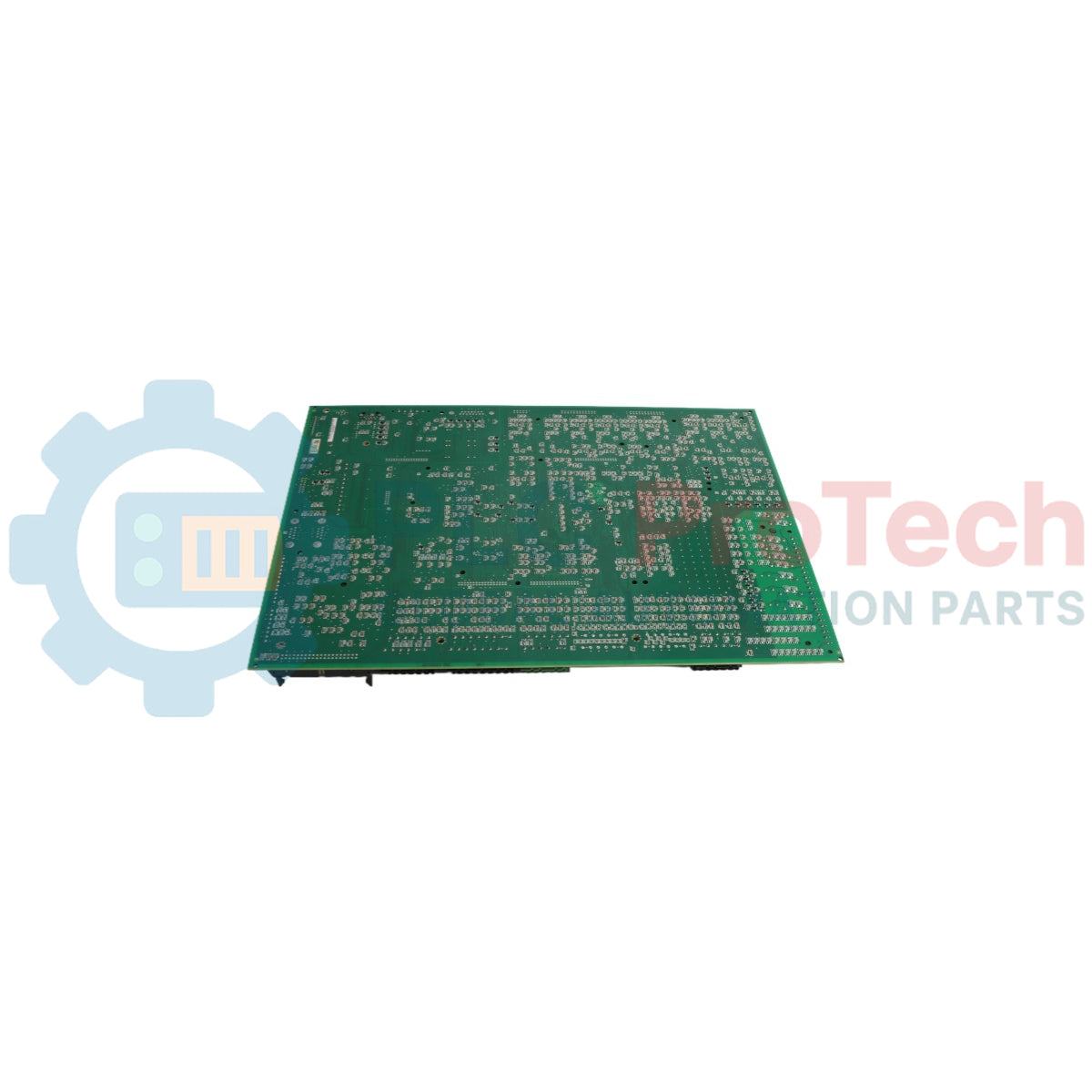

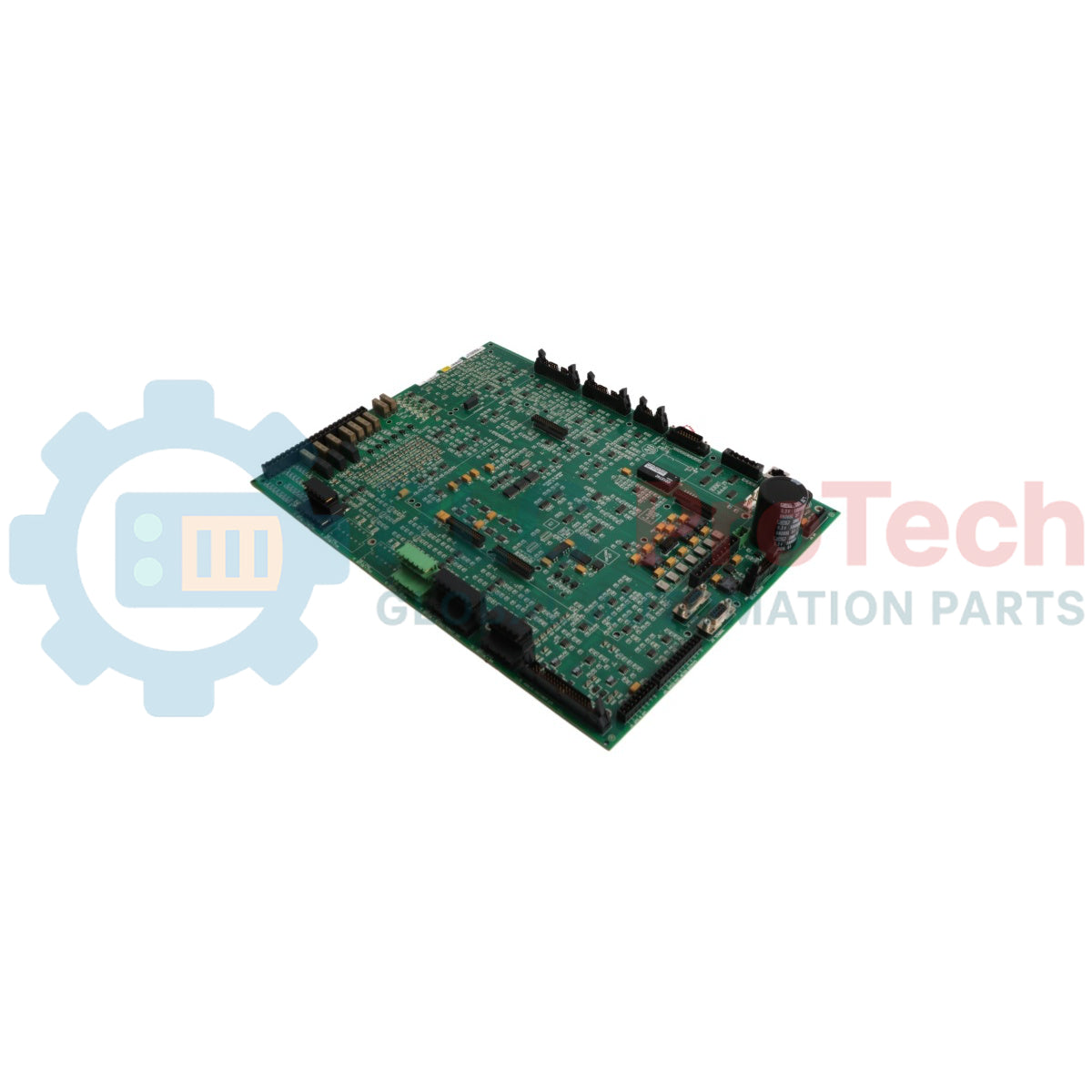

Allen-Bradley 80190-560-02-R PowerFlex 7000 Analog Control Board

SKU 80190-560-02-R

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 80190-560-02-R
Origin United States
Product Type: Analog Control Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.9 kg
Dimensions: 3.5cm x 13cm x 14.5cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The Allen-Bradley 80190-560-02-R is a Packaged Customer Analog Control Board (ACB) configured exclusively for Pulse Width Modulated (PWM ONLY) operations within medium voltage drive systems. This assembly serves as a critical control component designed to process analog regulation signals and execute precise pulse width modulation sequences to manage the power switching frequency and voltage outputs of the drive. The 80190-560-02-R interfaces directly with the main drive processor module (DPM) and fiber-optic peripheral links to maintain stable synchronous motor control and deliver real-time operational feedback.

Features

Dedicated Pulse Width Modulated (PWM) analog control loop processing
Direct integration interface with PowerFlex Drive Processor Modules (DPM)
Multi-pin terminal block connections for secure control signal routing
Designed for low-latency analog signal conditioning in medium voltage drive control layers

Applications

PowerFlex 7000 Medium Voltage AC Drive control systems
Industrial motor control center (MCC) applications
Pulse width modulation inverter control loops

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley / Rockwell Automation
Part Number	80190-560-02-R
Product ID	80190-560-02-R
Component Type	Analog Control Board (ACB)
Configuration	Pulse Width Modulated (PWM) ONLY
System Compatibility	PowerFlex 7000 Series Drive

Installation Guidelines

Electrostatic Discharge (ESD) Protection: This assembly contains static-sensitive components. Utilize a grounded static-dissipative wrist strap and an ESD-safe mat during unboxing and installation procedures.
Lockout-Tagout (LOTO): Isolate the drive from all medium voltage input lines. Verify that internal DC link capacitors and snubber networks are completely discharged prior to servicing the board.
Harness Realignment: Check all multi-pin terminal blocks and cable routing connections for alignment. Ensure pins are not bent during mating to prevent intermittent signal distortion or control communication faults.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the device?

The device processes analog control signals and handles dedicated pulse width modulation sequences specifically for the inverter topology within the drive system.

Which drive series is this control board compatible with?

The board is designed for integration into Allen-Bradley PowerFlex 7000 Medium Voltage AC Drive architectures.

Does this control board handle digital auxiliary signaling?

No, this specific hardware revision is designated as a Pulse Width Modulated ONLY assembly, focusing strictly on PWM analog control paths.
