Description

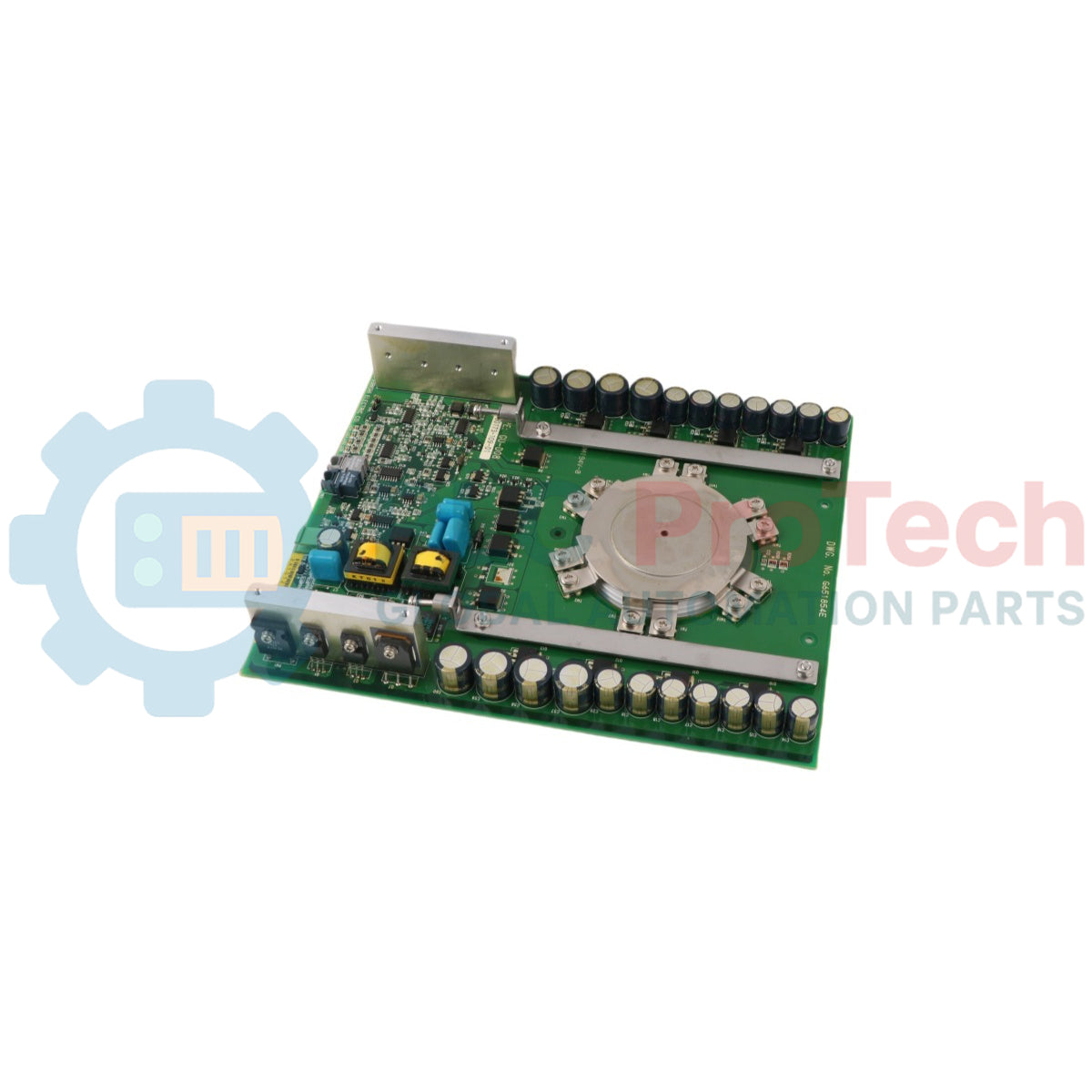

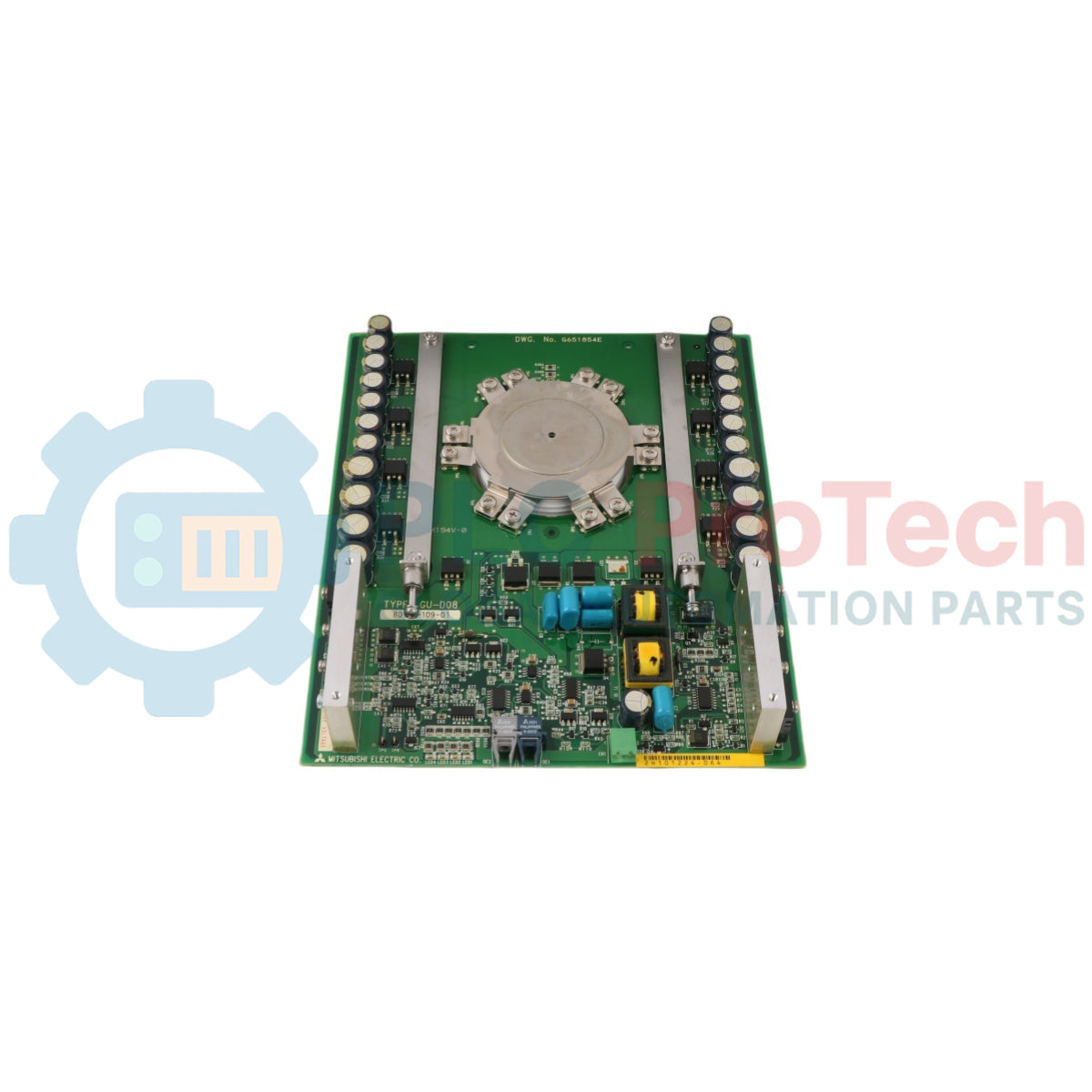

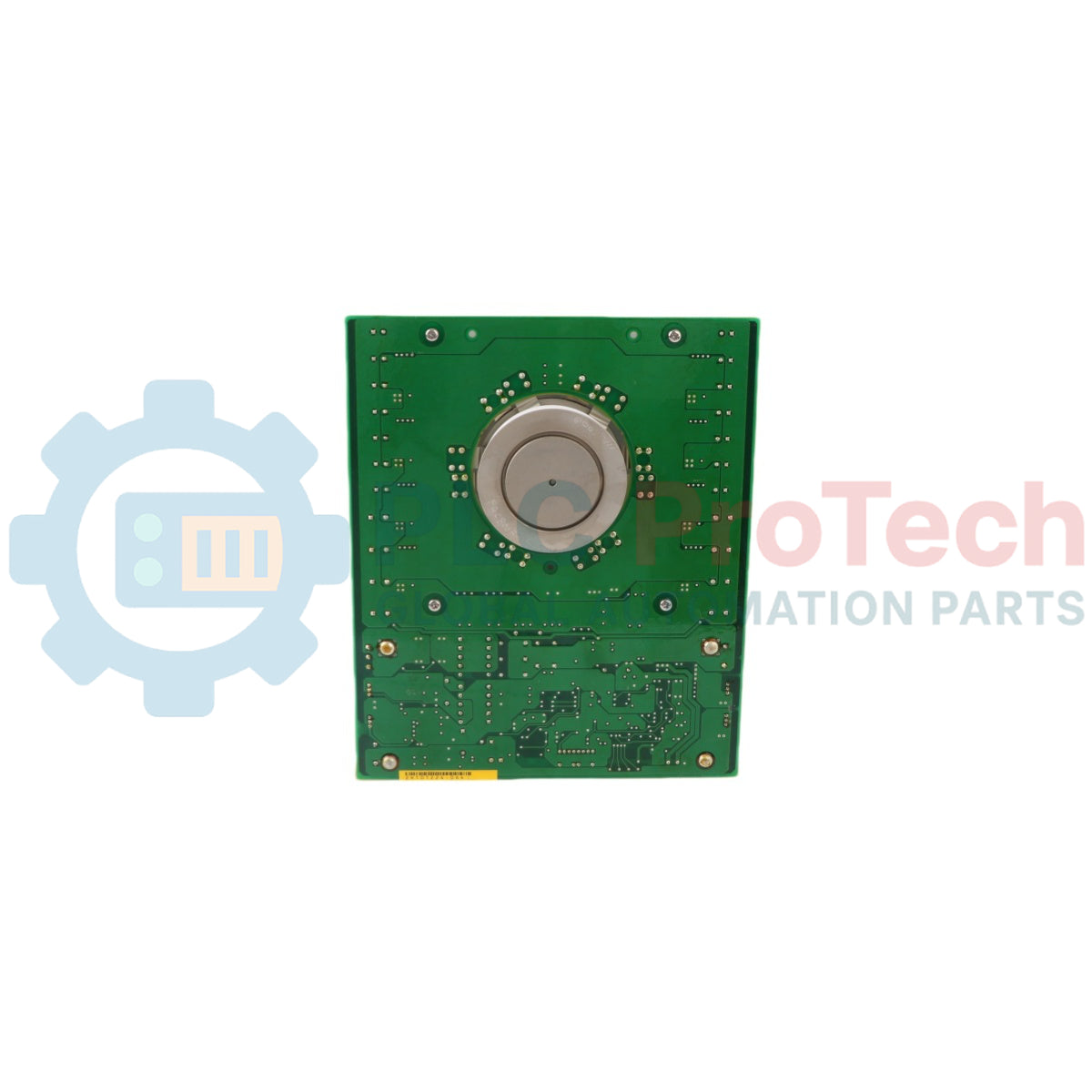

The Allen-Bradley 81001-450-52-R is a packaged assembly containing a matched pair of two Symmetrical Gate-Commutated Thyristors (PKGD (2) SGCT MATCHED SET) rated at 800A for use in medium voltage variable frequency drives. This semiconductor power switching kit is specifically engineered for the inverter and rectifier modules within the PowerFlex 7000 liquid-cooled or air-cooled drive systems. By providing gate drive circuit boards positioned close to the thyristors, the assembly establishes a low-inductance path that ensures highly efficient and uniform gating performance across the drive phases. Operating as a critical component in Pulse Width Modulated (PWM) Current Source Inverter (CSI) topologies, this semiconductor assembly handles high-capacity power conversion while supporting a fail-safe, non-rupture, and non-arc failure mode to preserve enclosure integrity under fault conditions.

Features

• Matched Component Engineering: Supplied as a factory-calibrated pair of two SGCT devices to maintain precise electrical symmetry and balanced current sharing during conduction phases.
• Integrated Gate Drive Integration: Features gate driver circuit boards directly attached to the semiconductor switches to optimize signal transmission timing.
• Double-Sided Cooling Interfacing: Structured for placement between liquid-cooled chill blocks to manage extreme thermal dissipation requirements under full load.
• High Peak Inverse Voltage Capacity: Designed to support series-connected topologies to increase the total voltage blocking capacity across the medium voltage network.

Applications

• Inverter phase modules and Pulse Width Modulated Rectifier (PWMR) structures within PowerFlex 7000 medium voltage drives.
• Heavy-duty industrial motor control platforms requiring high-capacity 800A power switching.
• Marine propulsion, oil and gas extraction pumps, mining conveyors, and high-volume water treatment systems utilizing Current Source Inverter technology.

Technical Specifications

Installation Guidelines

• Electrostatic Discharge Protection: This device contains highly sensitive electronics. Utilize a grounded wrist strap and static control procedures compliant with proper ESD protection handbooks during handling.
• Simultaneous Set Replacement: To ensure uniform gating characteristics and proper load distribution, always replace components in their full factory-matched sets.
• Clamping Pressure Verification: Secure the assembly within the PowerCage frame by verifying the clamping force matches original specifications. Ensure the indicating washer on the clamp head can be turned with fingertips under moderate resistance but does not spin freely.
• Thermal Interface Alignment: Confirm correct alignment between the device faces and the surrounding liquid-cooled chill blocks to maintain low thermal resistance. Do not interrupt or crimp the coolant line routing.
• Voltage-Free Verification: Prior to working inside the converter cabinet, implement full lockout/tagout protocols, wait a minimum of 10 minutes for stored energy dissipation, and use a high-voltage measuring device to verify all circuits are completely voltage-free.
