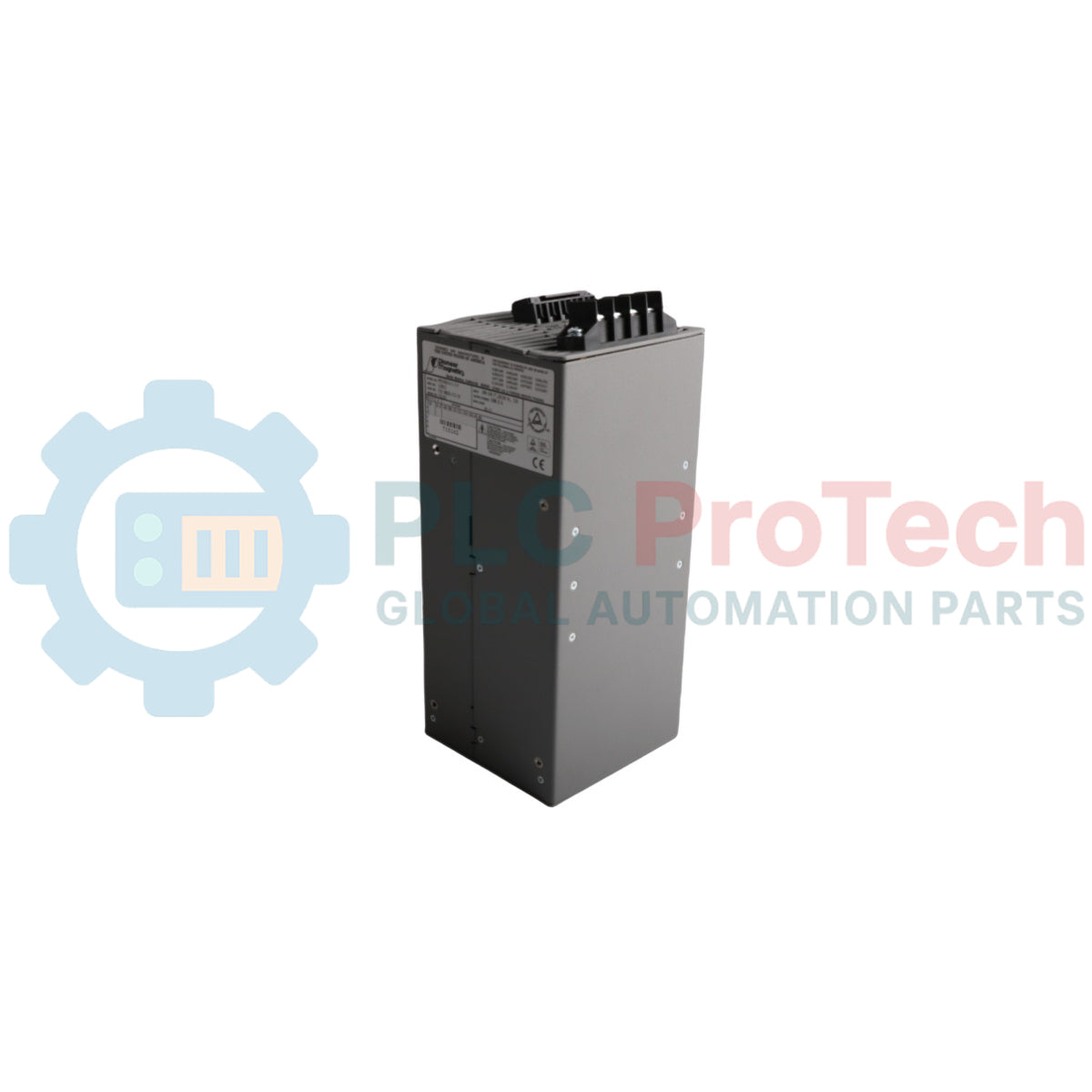

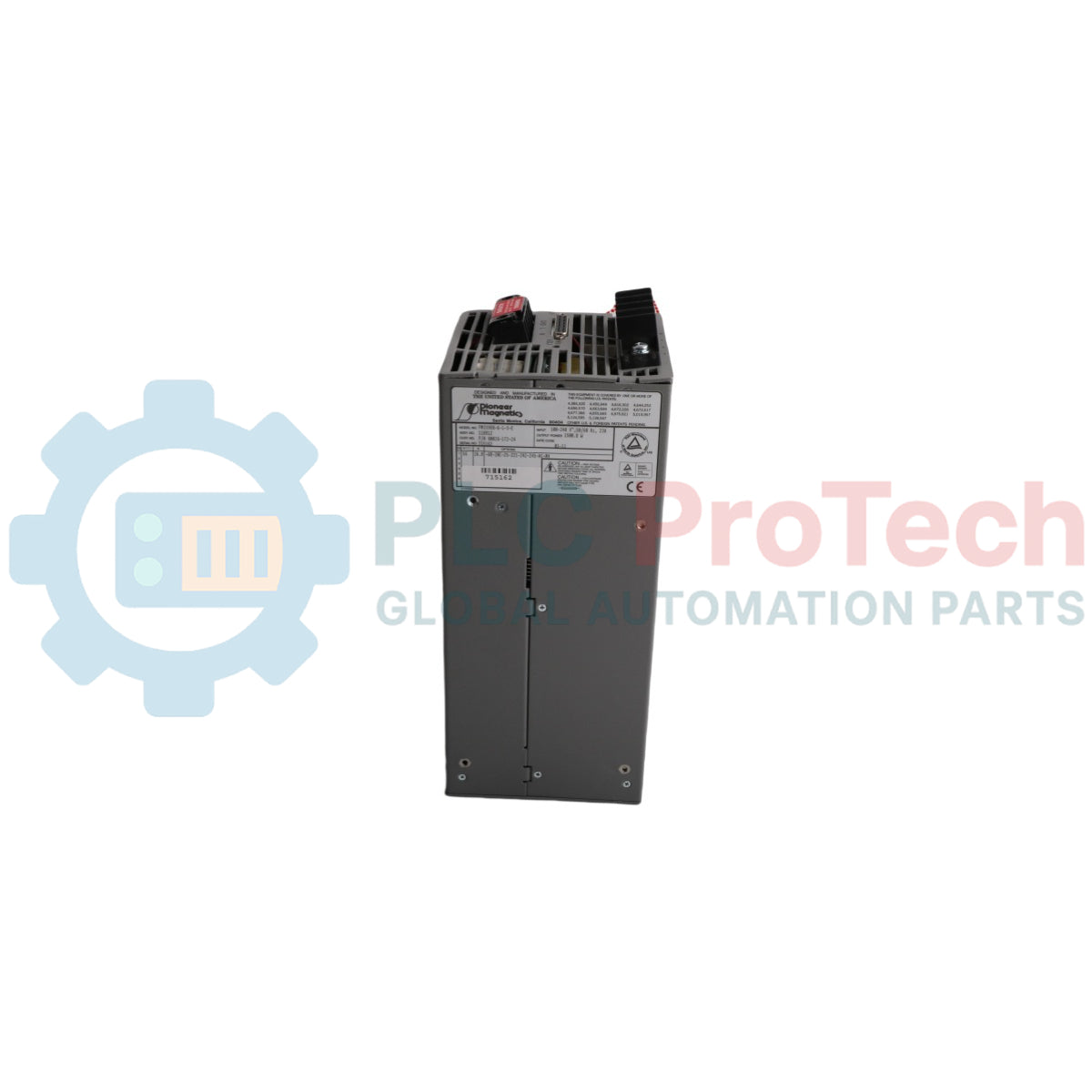

Allen-Bradley PM3398B-6-1-3-E 80026-172-24 PowerFactors AC-DC Power Supply

SKU PM3398B-6-1-3-E

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: PM3398B-6-1-3-E
Origin United States
Product Type: Power Supply
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 4.99 kg
Dimensions: 5 x 5 x 11.25 in
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The PM3398B-6-1-3-E (Part Number: 80026-172-24) is a single-phase PFC isolated front-end AC-to-DC power supply designed for industrial control and automation applications. This unit provides a regulated 56 VDC output with power factor correction and integrated protection functions for reliable operation in commercial and industrial environments.

The Allen-Bradley PM3398B-6-1-3-E delivers up to 1500 W output power and supports remote sensing, voltage adjustment, overcurrent protection, overvoltage protection, and overtemperature protection. The isolated output architecture allows reference flexibility while maintaining electrical separation between input and output circuits.

Designed for panel-mounted installations, the power supply incorporates forced-air cooling and is suitable for automation systems requiring stable DC power for controllers, drives, I/O systems, communication equipment, and associated industrial electronics.

Features

Single-phase PFC isolated front-end power supply
1500 W output rating
56 VDC nominal output
26.8 A output current
Power factor corrected input
Universal 90 to 264 VAC input range
Remote sense capability
Output voltage adjustment
Overcurrent protection
Overvoltage protection
Overtemperature protection
Self-contained forced-air cooling
Isolated output design
Power fail signal option
Current limit protection option
Built-in internal fuse option

Applications

PLC and DCS control systems
Industrial automation panels
Process control equipment
Motion control systems
Communication cabinets
Factory automation systems
Test and measurement equipment
Power distribution assemblies
OEM machine control systems

Ordering Information

Model	Part Number

PM3398B-6-1-3-E

80026-172-24

Technical Specifications

General	Specification
Manufacturer	Allen-Bradley
Original Manufacturer	Pioneer Magnetics
Model	PM3398B-6-1-3-E
Product Type	AC-DC Power Supply
Power Rating	1500 W
Country of Origin	United States
Weight	11 lb
Dimensions	5 x 5 x 11.25 in

Input Specifications	Specification
Input Voltage Range	90 to 264 VAC
Input Phase	Single Phase
Input Frequency	47 to 63 Hz
Power Factor	0.99 at Full Load
Harmonic Current	Meets IEC 555-2
Hold-Up Time	30 ms from AC input loss to output reduction from 42 V at full load

Output Specifications	Specification
Nominal Output Voltage	56 VDC
Output Current	26.8 A
Voltage Adjustment Range	+5% to -10% of nominal voltage
Output Power	1500 W
Isolation	Output isolated and may be referenced positive or negative
Load Regulation	Line: +/-0.1%; Load: +/-0.1%
Voltage Stability	+/-0.1% for 24 hours after 30 minute warm-up
Remote Sense Compensation	Up to 0.5 V total loop drop
Ripple and Noise	1% maximum bandwidth limited to 20 MHz
Turn-On Delay	1 second maximum after AC application
Turn-Off Delay	Greater than or equal to 180 VAC operation

Protection	Specification
Overvoltage Protection	62.5 V +/-1 V
Overcurrent Protection	Current limit option available
Overtemperature Protection	Automatic shutdown and restart after cooling
Power Fail Signal	Optional
Undervoltage Detect	Optional

Environmental Specifications	Specification
Operating Temperature	0 degC to +50 degC at full load
Storage Temperature	-55 degC to +85 degC
Temperature Derating	2.5% per degC above +50 degC
Humidity	0% to 95% non-condensing
Altitude	Up to 8000 ft, derated 75 W per 1000 ft above 4000 ft
Vibration	0.02 in double amplitude, 5 to 27 Hz; 0.10 in double amplitude, 17 to 500 Hz
Shock	5 G half sine, 11 ms

Compliance	Specification
Safety	Designed to meet UL1950, CSA22.2 No.950
EMC	Designed to meet FCC Class B
Immunity	Designed to meet EN50082 Level A
Environmental Standard	Designed to meet EN60950

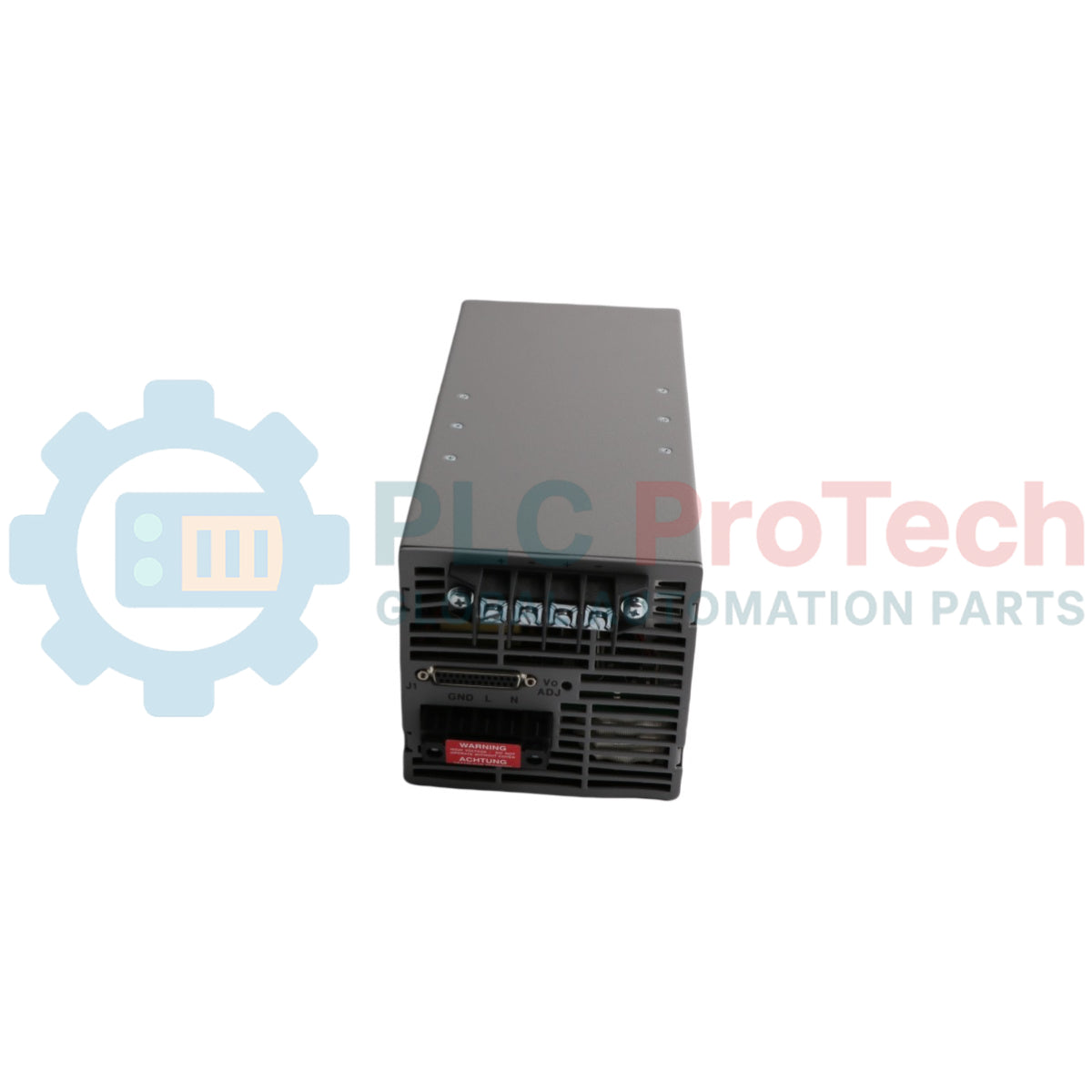

Connections/Interfaces

Connector Pin	Function
AC Input Terminal	Single-phase AC input (90 to 264 VAC)
DC Output Terminal	56 VDC regulated output
Remote Sense +	Positive remote voltage sensing
Remote Sense -	Negative remote voltage sensing
Power Fail Signal	Optional open collector status output
Undervoltage Detect	Optional status output
DB25 Connector	Optional signal interface connection

Installation Guidelines

Install the unit inside a commercial or industrial control enclosure.
Maintain ambient temperature below 50 degC and relative humidity below 95%.
Do not obstruct airflow from the internal cooling fan.
Use mounting hardware that does not exceed 3/32 in penetration depth.
Verify all input and output wiring before applying AC power.
Connect suitable gauge conductors to input and output terminals.
Use remote sense terminals when voltage compensation is required at the load.
Confirm output voltage with a digital voltmeter before connecting critical loads.
Provide adequate enclosure ventilation to support forced-air cooling.
Observe polarity when connecting DC output wiring.

Compliance and Certifications

Standard
UL1950
CSA22.2 No.950
FCC Class B
EN50082 Level A
EN60950

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the rated output voltage?

The power supply provides a nominal regulated output of 56 VDC.

What input voltage range is supported?

The unit accepts single-phase AC input from 90 to 264 VAC.

Is output isolation provided?

Yes. The output is electrically isolated and can be referenced positive or negative.

Does the unit support remote sensing?

Yes. Remote sense compensation supports up to 0.5 V total loop drop.

What cooling method is used?

The power supply uses a self-contained forced-air cooling system with an internal fan.
