Field Networking and Infrastructure Automation

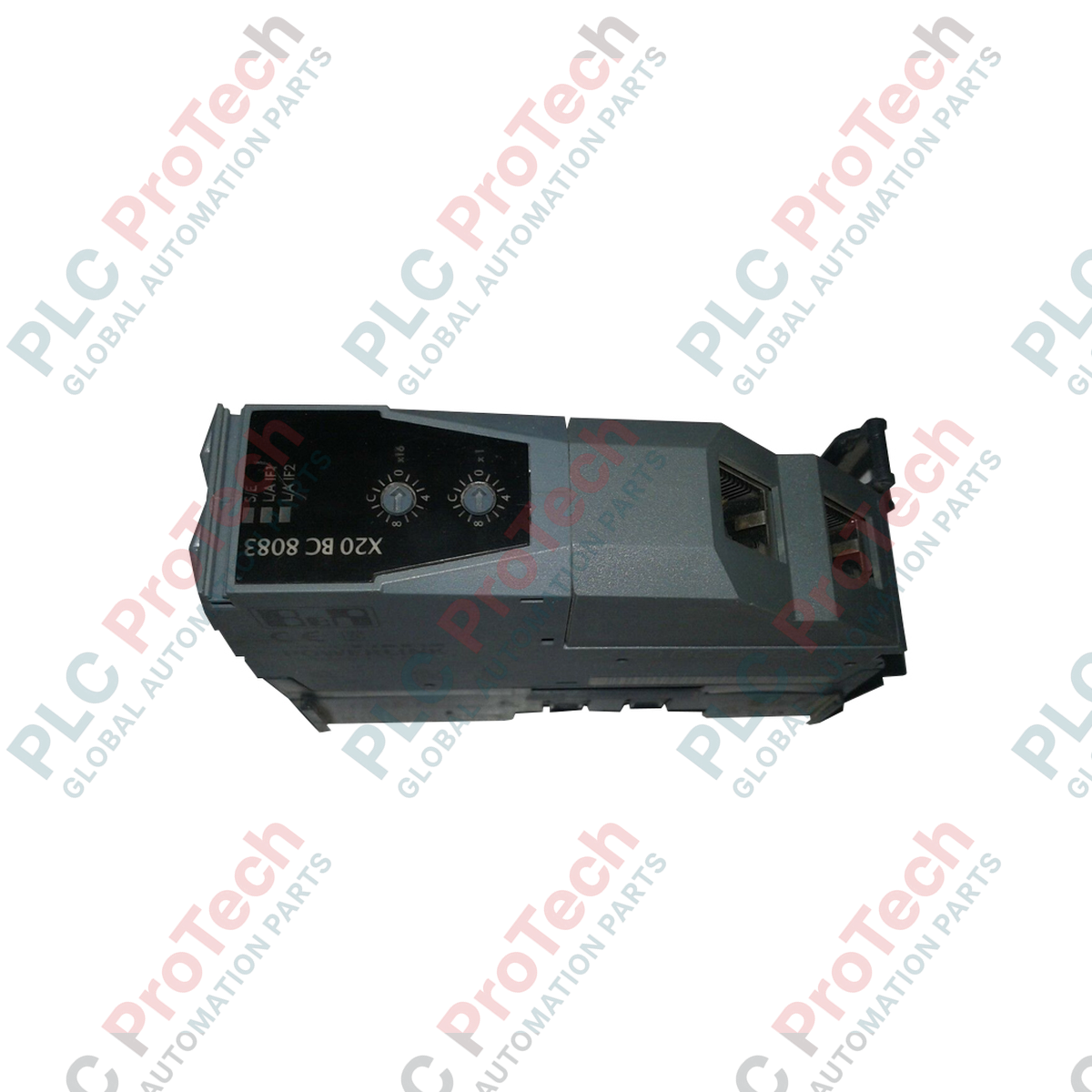

The X20BC8083 (X20 BC 8083) is a high-performance network interface module engineered for the B&R X20 System platform. Serving as the deterministic routing link between individual backplane I/O slices and a centralized control network, this module natively implements the Ethernet POWERLINK industrial communication protocol.

It is designed for real-time synchronization in heavy industrial setups, such as modular printing infrastructure, multi-axis packaging lines, and distributed automotive assembly cells. The X20BC8083 offloads fieldbus line-management tasks from the primary processor, ensuring jitter-free sub-millisecond cycle times, preventing frame collisions, and maintaining network stability during intensive industrial field processes.

Interface Integration and System Modularity

The hardware features an integrated 2-port Ethernet hub routed through dual standard RJ45 connectors, facilitating cost-effective line or daisy-chain network topologies without requiring external industrial switches. The module architecture fully supports expansion via native X20 hub modules, allowing engineers to scale localized topologies into branching star configurations directly at the field node.

The bus controller manages local initialization parameters and backplane configuration data dynamically, allowing the broader I/O station to operate as a singular, highly organized node within the master controller's hardware tree.

Mechanical and Network Parameters

Field Deployment and Support FAQs

How is the network node address configured on the X20BC8083 hardware?

The module uses two integrated rotary switches located behind its protective front faceplate to establish the unique POWERLINK node ID. The left switch configures the tens digit, and the right switch manages the ones digit, allowing manual assignment from 01 to 99 before powering on the station.

Does this bus controller module feature integrated power input terminals?

No. The X20BC8083 handles network communication exclusively. To provide power to the local system backplane and downstream I/O slices, you must dock a separate X20 Power Supply Module (such as the X20PS9400) directly adjacent to the controller on the designated bus base assembly.

What elements contribute to the listed 4.0 kg shipping weight specification?

The 4.0 kg shipping specification covers industrial heavy-cargo logistics protection. Because bus controllers serve as single-point-of-failure communication heads for entire I/O racks, they are packed within specialized anti-static containment cells, nested in thick high-density shock-dampening foam, and boxed in rigid exterior enclosures to withstand heavy vibrations during global transit.

Engineering Infrastructure and Commissioning Guide

• Mandatory Separate Hardware Procurement: The standalone X20BC8083 contains the network processor only. Complete field deployment requires ordering one X20BB80 bus base, an appropriate X20 power supply module, and the matching terminal blocks as separate line items to build a functional network node assembly.

• POWERLINK Cabling and Hub Interconnection: When utilizing the integrated 2-port hub to loop network signals to subsequent nodes, use Category 5e or better double-shielded twisted-pair (SF/UTP) industrial Ethernet cables. Maintain standard separation from variable frequency drive (VFD) output paths to prevent high-frequency noise from inducing network frame losses.

• Bus Base Rail Seat Verification: Before mounting the electronics, align and snap the X20BB80 bus base onto the standard DIN rail. Ensure the sliding physical connection keys between adjacent bases are fully closed and locked. Incomplete bus base alignment will prevent the internal backplane pins from establishing solid, low-resistance communication contacts.
