Product Overview

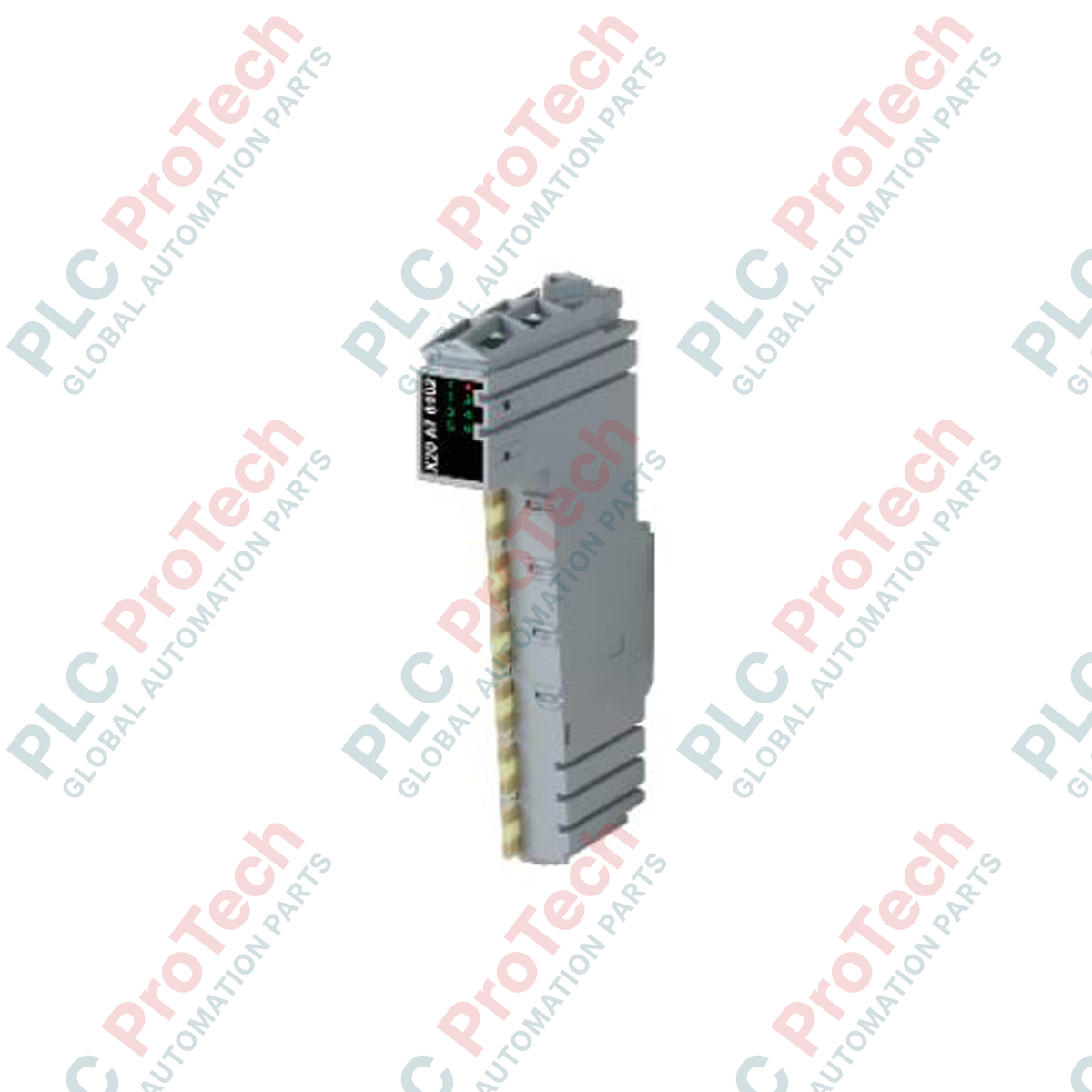

The X20DI4760 (X20DI4760) is a high-precision digital input module from the B&R X20 series, specifically designed for applications requiring the monitoring of NAMUR encoders. This module features four isolated digital inputs capable of detecting open-circuit or short-circuit conditions, making it an essential component for safety-critical monitoring in chemical, petrochemical, and high-reliability manufacturing processes. By providing real-time signal validation, the X20DI4760 minimizes the risk of false positives and enhances the diagnostic accuracy of your automation system.

Technical Configuration

The X20DI4760 architecture is engineered to interface directly with NAMUR-compliant sensors, which are widely used in hazardous environments to monitor flow, position, and speed. A standout feature of this module is its dual-purpose functionality; each of the four inputs can be independently configured to serve as a high-speed counter input. This flexibility allows engineers to utilize the module for both state-monitoring (e.g., proximity sensor status) and process-variable measurement (e.g., pulse counting for rotation speed) without requiring additional hardware.

The module supports rigorous signal diagnostics, providing immediate feedback on sensor health. By detecting wire breaks or short circuits at the source, the system can trigger an automated alarm or safety shutdown before the process is compromised. This level of granular visibility is key to reducing unplanned downtime and maintaining operational safety.

Technical Specifications

FAQs

What are the primary advantages of NAMUR sensor support?

NAMUR sensors are designed to transmit information via current variations. This allows the X20DI4760 to distinguish between a valid signal and a damaged cable (wire break or short circuit), which is impossible with standard binary digital inputs.

Can all four inputs function as counters simultaneously?

Yes. Each of the four channels is individually configurable. You can designate any combination of inputs for standard state monitoring or high-speed pulse counting depending on your application requirements.

Does this module require a specific bus base?

The X20DI4760 is designed for the standard X20 system. Ensure it is mounted on a compatible X20 bus base module to maintain electrical connectivity to the rest of the rack.

How do I interpret the diagnostic alarms for this module?

Diagnostic data is mapped to the controller via the X20 system bus. In Automation Studio, you can configure software registers to trigger specific alarms when the module detects a wire-break or short-circuit condition on any channel.

Installation and Wiring Best Practices

• Sensor Compatibility: Ensure that your field sensors comply with the NAMUR (EN 60947-5-6) standard before connecting them to the module. Connecting non-NAMUR sensors will lead to incorrect state readings or failure of the diagnostic detection logic.
• Shielding: Even though NAMUR circuits are inherently robust, use shielded cables for long runs to prevent electromagnetic interference from triggering false pulse counts or diagnostic errors.
• Input Configuration: When setting up the counter functionality in software, ensure that the input frequency does not exceed the hardware limitations of the X20DI4760 to avoid pulse loss.
