Product Overview

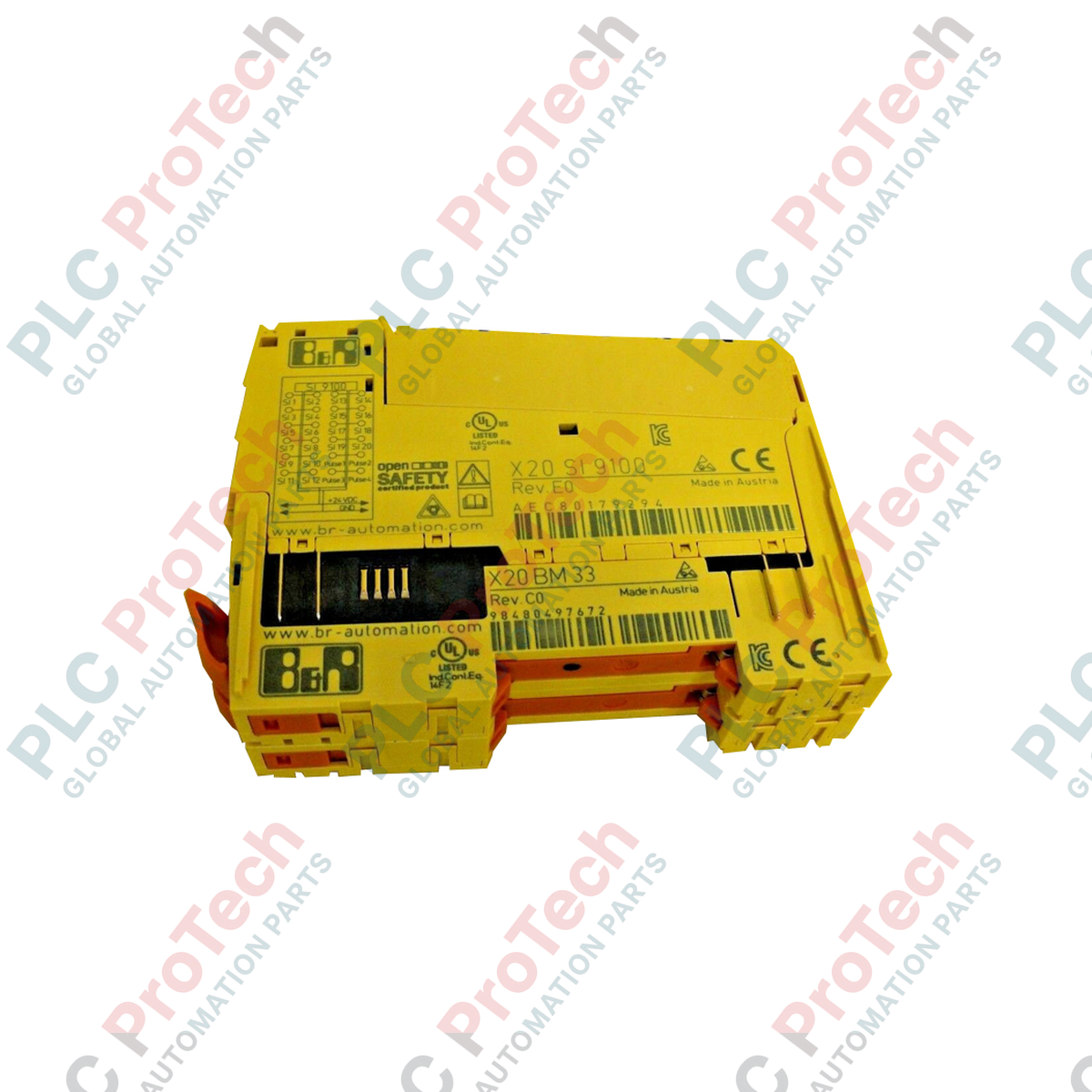

The X20SI9100 (X20SI9100) is a high-density safety digital input module engineered for the B&R X20 System, designed to meet the most stringent functional safety requirements in industrial environments. This module features 20 safe type A digital inputs and 4 pulse outputs, operating at a nominal 24 VDC. It is a critical component for safety-instrumented systems (SIS) in sectors such as automotive manufacturing, high-speed packaging, and robotic assembly lines, where immediate response to emergency stops, light curtains, or safety gates is mandatory. By integrating internal diagnostics and reverse polarity protection, the X20SI9100 ensures maximum system availability and integrity, facilitating a safe state even during hardware or wiring failures, thereby protecting both personnel and high-value machinery.

Technical Configuration

The hardware architecture of the X20SI9100 is optimized for high-speed safety processing with a maximum I/O cycle time of 1600 microseconds. The 20 safe digital inputs are classified as Type A, providing a robust interface for safety sensors. The inclusion of 4 pulse outputs allows for cross-fault detection and monitoring of the input wiring, ensuring that short circuits or cable breaks are identified in real-time. Power management is handled efficiently via the X20 bus with a low 0.4 W bus consumption, while the internal I/O circuitry draws 1.6 W. The module supports "Blackout Mode" for the entire module scope, ensuring predictable behavior during signal interruptions. As a non-standalone module, it requires a safety controller (SafeLOGIC) to manage the safety protocol and logic execution across the network.

Technical Specifications

Technical FAQs

How do the 4 pulse outputs enhance the safety level of the X20SI9100?

The pulse outputs are used to supply power to the safety sensors. By sending unique pulse patterns, the module can detect "cross-talk" or short circuits between input channels. If the pulse pattern received on an input does not match the assigned output pulse, the module immediately triggers a safety demand or fault state.

What is the significance of the "Blackout Mode" in this safety module?

The Blackout Mode allows the module to maintain or transition to a predefined safe state even if communication with the central safety controller is momentarily interrupted. This ensures that the local I/O remains under controlled safety parameters regardless of network stability.

Can standard (non-safety) sensors be connected to the X20SI9100 inputs?

While technically possible to wire standard sensors, doing so would negate the safety certification of that specific loop. To maintain SIL3/PLe compliance, only certified safety devices should be integrated with these inputs, utilizing the pulse outputs for diagnostic coverage.

Engineering & Installation Guide

• Pulse Output Wiring: To maximize diagnostic coverage, ensure that safe inputs are paired with the module's own pulse outputs (T0-T3). Avoid using external 24 VDC power sources for safety sensor supply if cross-fault monitoring is required by your Risk Assessment.

• Reverse Polarity and Grounding: While the module features integrated reverse polarity protection, ensure that the 0 V reference is common across the safety segment to prevent ground loops that could interfere with the high-speed pulse diagnostics.

• Electromagnetic Compatibility (EMC): Safety signals are sensitive to high-frequency interference. Always use shielded twisted-pair cabling for safety inputs exceeding 30 meters in length. Ensure the shield is properly grounded at the entry point of the control cabinet to maintain the 1600 microsecond cycle integrity.
