Product Overview

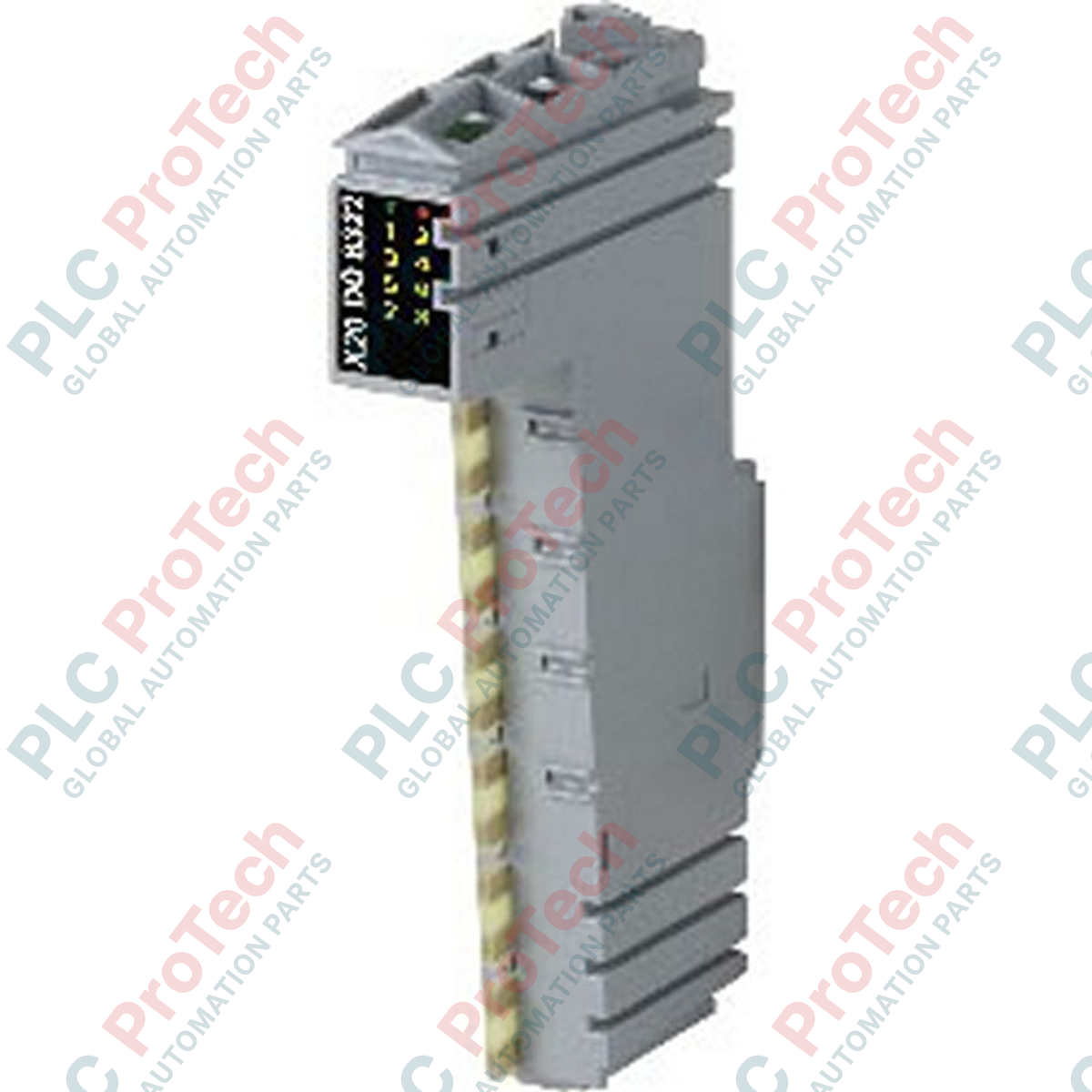

The X20DO8322 (X20DO8322) is a high-density digital output solution within the modular B&R X20 System lineup. Featuring 8 integrated outputs, this module is engineered to control actuators, solenoid valves, and relays in demanding industrial environments such as automotive assembly, pharmaceutical packaging, and water treatment facilities. Operating at 24 VDC with a 0.5 A sourcing current per channel, the X20DO8322 provides a reliable interface between the controller's logic and field-level hardware. Its 1-wire connection design optimizes cabinet space, while the modular "slice" architecture allows for rapid expansion and maintenance, effectively reducing the Total Cost of Ownership (TCO) and minimizing potential system downtime.

Hardware Architecture and Channel Logic

The X20DO8322 utilizes a sourcing (PNP) output logic, meaning the module switches the positive 24 VDC potential to the load. This is the industrial standard for safety and troubleshooting in European and global markets.

• 1-Wire Connectivity: This module is specifically designed for 1-wire connections, where the common ground is handled externally or through a specialized bus base, allowing for a slim 12.5 mm form factor.

• Firmware Compatibility: System integrity is guaranteed starting from Firmware Version V1.00, ensuring long-term availability and stable performance in legacy and modern B&R environments.

• Power Density: Managing 8 channels at 0.5 A each within a single digital module slot provides an excellent balance of I/O density and thermal dissipation.

Technical Specifications

Technical FAQs

What are the advantages of the "Source" (PNP) output type in the X20DO8322?

The X20DO8322 "Source" type is preferred in industrial safety because if a wire shorts to the machine frame (ground), the output simply stays off. In "Sink" (NPN) systems, a ground fault can unintentionally trigger the actuator, leading to hazardous machine movement.

How does the 1-wire connection impact my wiring labor?

The 1-wire design significantly reduces the number of terminal points within the X20 block. Since the module only requires the signal wire for each output, engineers can use a high-density terminal block, reducing the physical footprint of the PLC station by up to 50% compared to traditional 3-wire modules.

Can I parallel multiple outputs to drive a larger load?

Generally, paralleling outputs on the X20DO8322 to drive a single load higher than 0.5 A is not recommended unless the switching times are perfectly synchronized via software. For loads exceeding 0.5 A, it is best practice to use an interposing relay or a dedicated high-current X20 module.

Field Engineering & Installation Guide

• Overload Protection: While the X20 series features internal protection, always ensure that inductive loads (like large solenoid valves) are equipped with external flyback diodes or suppressors. This prevents back-EMF spikes from prematurely aging the X20DO8322 output transistors.

• Terminal Block Selection: Ensure you are using the correct X20 terminal block (e.g., X20TB12) for 1-wire configurations. Verify that all locking levers are engaged to maintain a vibration-proof connection, especially in applications involving rotating machinery.

• Thermal Budgeting: When all 8 channels are active at the full 0.5 A load simultaneously, the module generates localized heat. Ensure the cabinet has adequate convection. If the ambient temperature exceeds 45 Celsius, consider adding 12.5 mm spacers between high-load modules to prolong component life.

Engineering Advantages

The X20DO8322 excels in precision control due to its low propagation delay and high switching frequency capability. The 2.0 kg shipping weight (reflecting bulk packaging standards) underscores the ruggedness of the B&R industrial housing. Its native integration into B&R Automation Studio allows for advanced diagnostics, such as short-circuit detection and open-load monitoring, which are essential for Industry 4.0 predictive maintenance strategies.
