Description

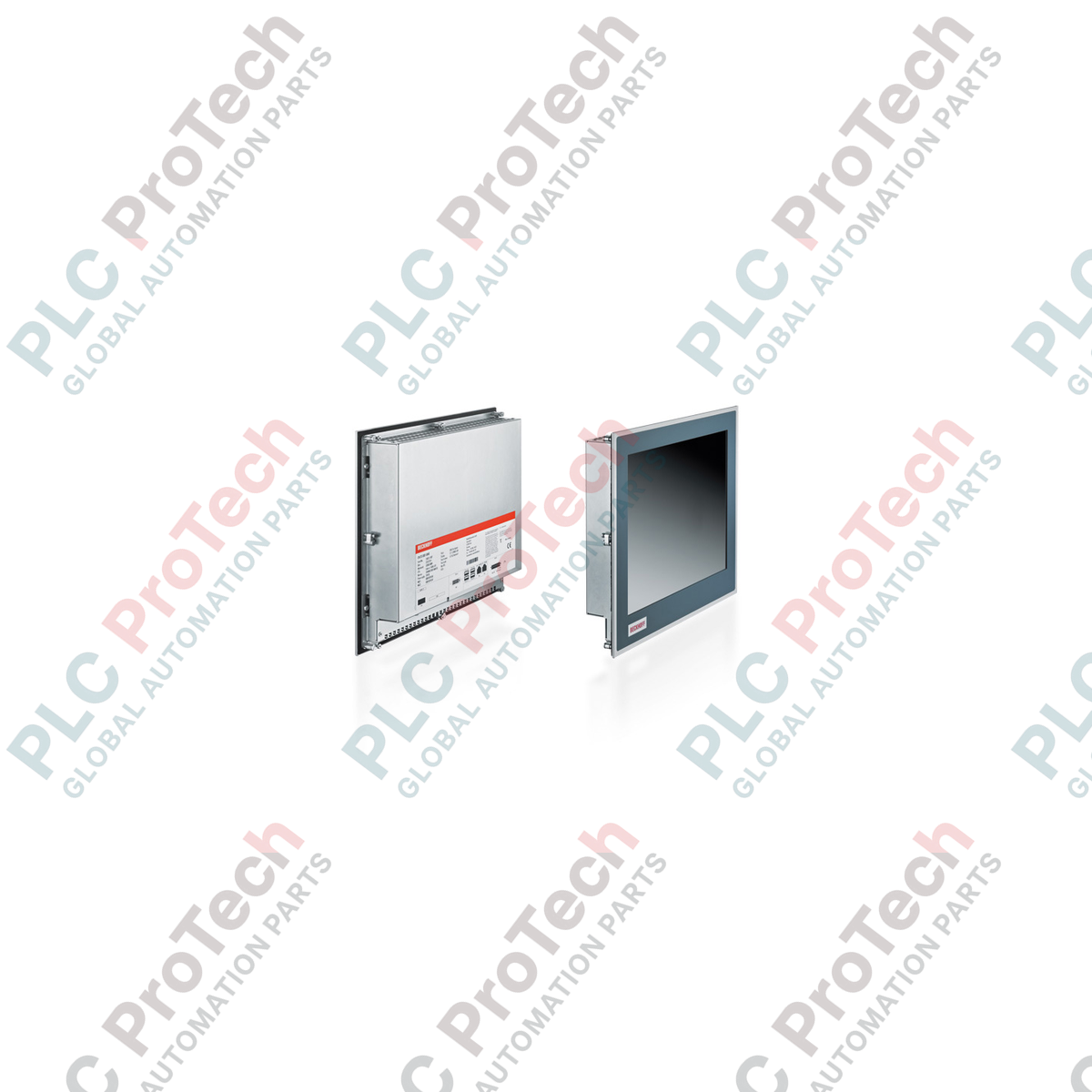

Engineered for seamless integration into industrial control environments, the Beckhoff CP6731-0001-0060 functions as a high-reliability, space-saving operator interface and controller. This built-in Panel PC combines a 12-inch TFT display (800 x 600 SVGA resolution) with high-efficiency computing architecture powered by the Intel Atom x5-E39xx processor platform. Constructed with a robust IP65-rated aluminum front panel and a protective sheet-steel rear enclosure, this hardware platform is optimized for continuous deployment in harsh industrial automation environments, supporting high-speed machine control, fieldbus synchronization, and local visualization interfaces.

Key Features

• High-Resolution TFT Display: 12-inch industrial SVGA liquid crystal display featuring an 800 x 600 native resolution and single-finger touch control.
• Industrial Processor Platform: Configured with Intel Atom x5-E39xx processors, optimizing power efficiency and deterministic TwinCAT execution.
• Rugged Physical Protection: Front panel protected to IP65 standards against liquid ingress and dust, with a durable IP20 sheet-steel rear cover.
• Expandable Industrial Storage: Equipped with dedicated CFast card slot architectures for reliable system booting and system data storage.
• Integrated Industrial Connectivity: Standard configuration features dual on-board 100/1000BASE-T RJ45 Ethernet ports for machine network isolation.
• Clamping Lever Installation: Uses integrated pull-out clamping levers to guarantee secure mechanical mounting without loose fasteners.

Industrial Applications

• Machine tool HMI interfaces and local automation station control.
• Continuous process control and chemical formulation monitoring.
• Packaging machinery sequence coordination and multi-axis motion tracking.
• Automated storage, retrieval, and smart sorting line controllers.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CP6731-0001-0060 belongs to the economy line of built-in Panel PCs. When transitioning from older CP6721/CP6711 display panels, check your functional cutout dimensions. In terms of operating systems, while units can execute TwinCAT BSD/RTOS, specific hardware keys require the system to be matched directly with the Windows 10 IoT license options configured at the factory (the -0060 suffix indicates standard CPU/RAM and pre-installed OS configurations). Licensing level is generally configured at TwinCAT 3 Level 40 for dual-core, or Level 50 for quad-core variants.

Application Pitfalls & Engineering Notes

Avoid high-temperature trapping in sealed enclosures without active thermal circulation. While rated up to 55 degC ambient, the CPU's safety limit will throttle processor speed if core temperatures rise excessively. For installations with highly dynamic, high-vibration profiles, utilize a threadlocker on the clamping levers. Additionally, always configuration-proof the file storage: sudden power cuts without a continuous 1-second UPS configuration can cause OS filesystem partition corruptions on CFast media.

Commissioning & Wiring Tips

Ensure a direct, low-resistance connection between the earthing terminal on the power connector and the control cabinet's ground bar. Poor earthing schemes lead to high noise levels on the resistive touch overlay, causing erratic pointer behavior or false presses. Use shielded RJ45 CAT6 cables for machine control connections and ensure standard system separation rules apply between high-voltage power lines and the 24V DC logic lines supplying the PC chassis.

Installation Guidelines

1. 1 Prepare the front mounting cutout precisely according to Beckhoff dimensional layout specifications for 12-inch displays. Remove all metallic burrs and dust.
2. 2 Insert the Panel PC through the panel opening from the front, ensuring the perimeter rubber sealing gasket sits flush against the panel surface without twists.
3. 3 Release and slide the built-in pull-out clamping levers outwards from the rear chassis. Tighten clamping screws evenly to compress the front gasket for IP65 rating.
4. 4 Insert the pre-configured industrial CFast system storage card into the dedicated boot media slot on the rear plate.
5. 5 Terminate industrial network lines to the RJ45 sockets, secure auxiliary USB hardware devices, and insert the wired 24V DC terminal block into the main power inlet.
