Description

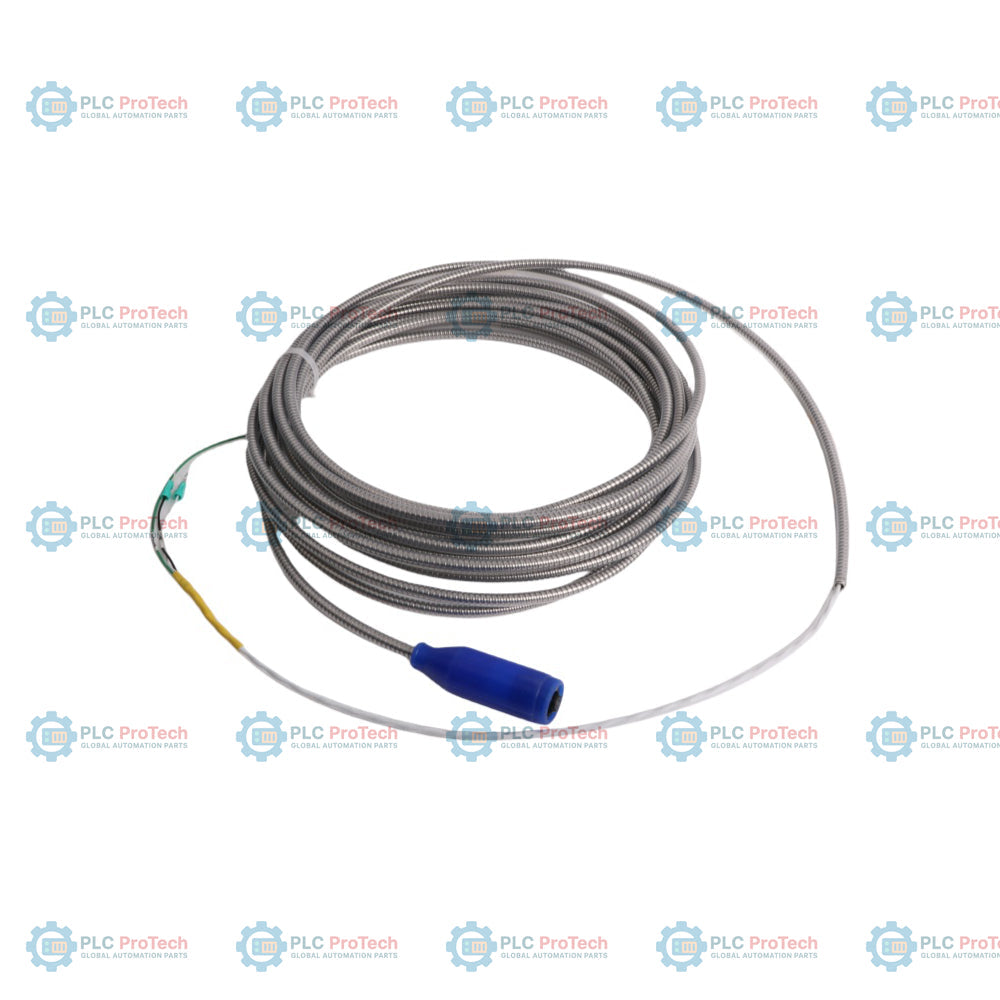

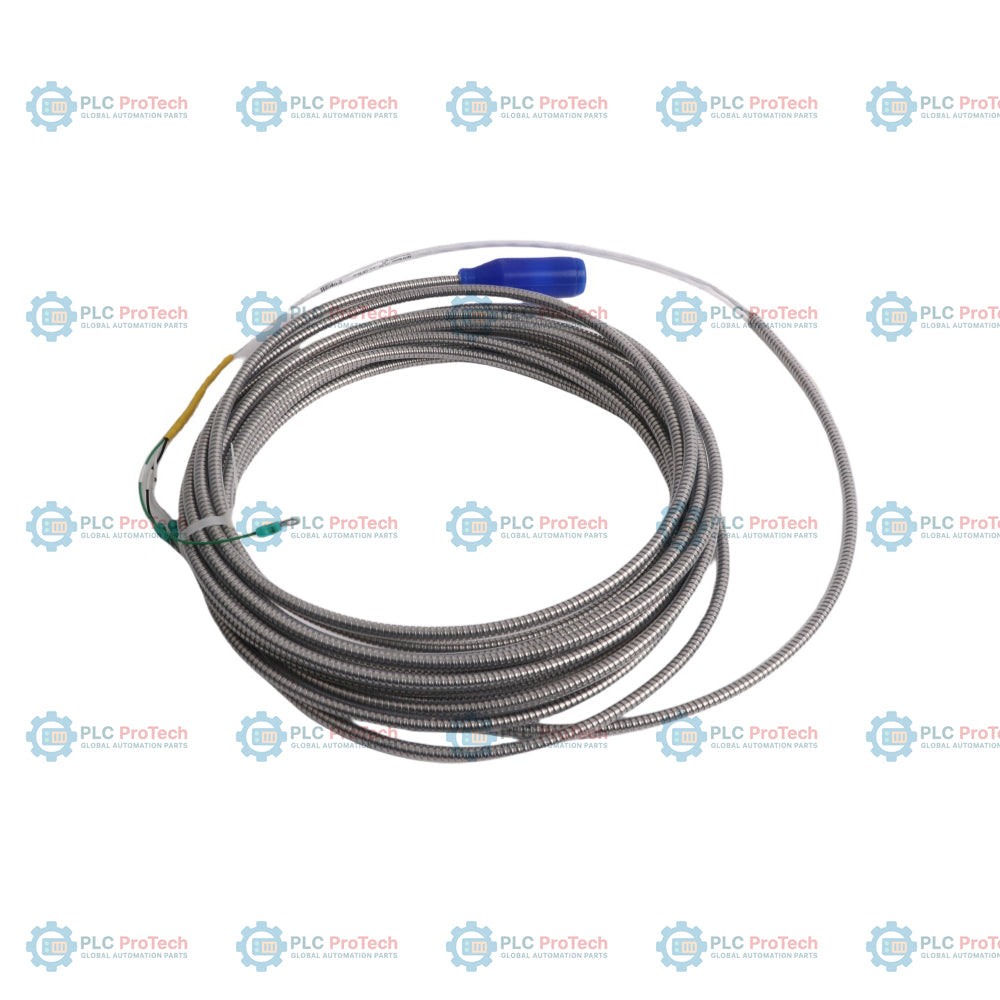

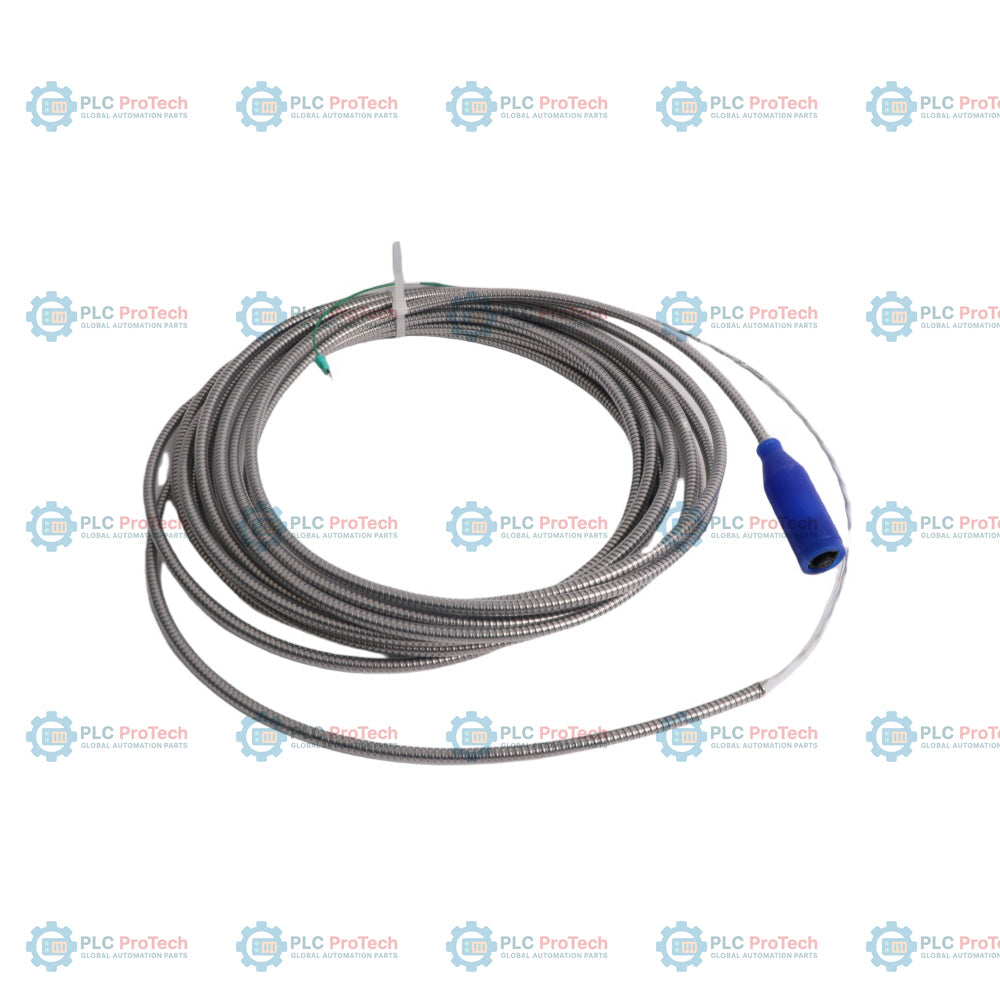

The 106765-16 interconnect cable is a specialized signal transmission component designed for use with the 330525 Velomitor XA (eXtended Application) Piezo-velocity Sensor. This shielded, 2-conductor twisted cable provides a reliable connection between the sensor and the monitor field wiring, ensuring signal integrity in industrial machinery vibration monitoring applications. This configuration features a 16-meter total length (Option 16), facilitating connection over distances required in complex installations where the sensor is mounted on rotating machinery casings. The 106765 series cable is engineered to maintain signal fidelity and is suitable for use in moist or harsh environments when paired with compatible sensor housings and splash-resistant boots.

Features

• 16-meter total cable length
• 2-conductor twisted, shielded construction
• 22 AWG wire gauge
• Compatible with 330525 Velomitor XA Piezo-velocity sensor systems
• Designed for machinery casing vibration monitoring

Applications

• Power generation machinery
• Oil and gas rotating equipment
• Petrochemical processing plants
• Water and wastewater pumping stations
• General industrial machinery vibration monitoring

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	106765-16	Interconnect Cable for Velomitor XA
A - Length	16	16 meters total length

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Part Number	106765-16
Cable Type	2-conductor twisted, shielded
Wire Gauge	22 AWG
Length	16 meters
Compatibility	330525 Velomitor XA Sensor
Minimum Bend Radius	38.1 mm (1.5 in)

Installation Guidelines

• Ensure the cable is routed away from high-voltage AC power lines to minimize electromagnetic interference (EMI).
• Use appropriate conduit fittings if installing in outdoor or hazardous environments to maintain the ingress protection rating of the sensor assembly.
• Ensure the splash-resistant boot (if used) is correctly clamped at both the sensor and cable ends.
• Verify connections are secure to prevent signal loss or "noisy" data in the monitoring system.

Compliance and Certifications

• Complies with relevant Bently Nevada 330525 system standards.
• For specific hazardous area approvals, ensure the entire monitoring chain (Sensor + Cable + Monitor) is installed according to the applicable control drawings.
