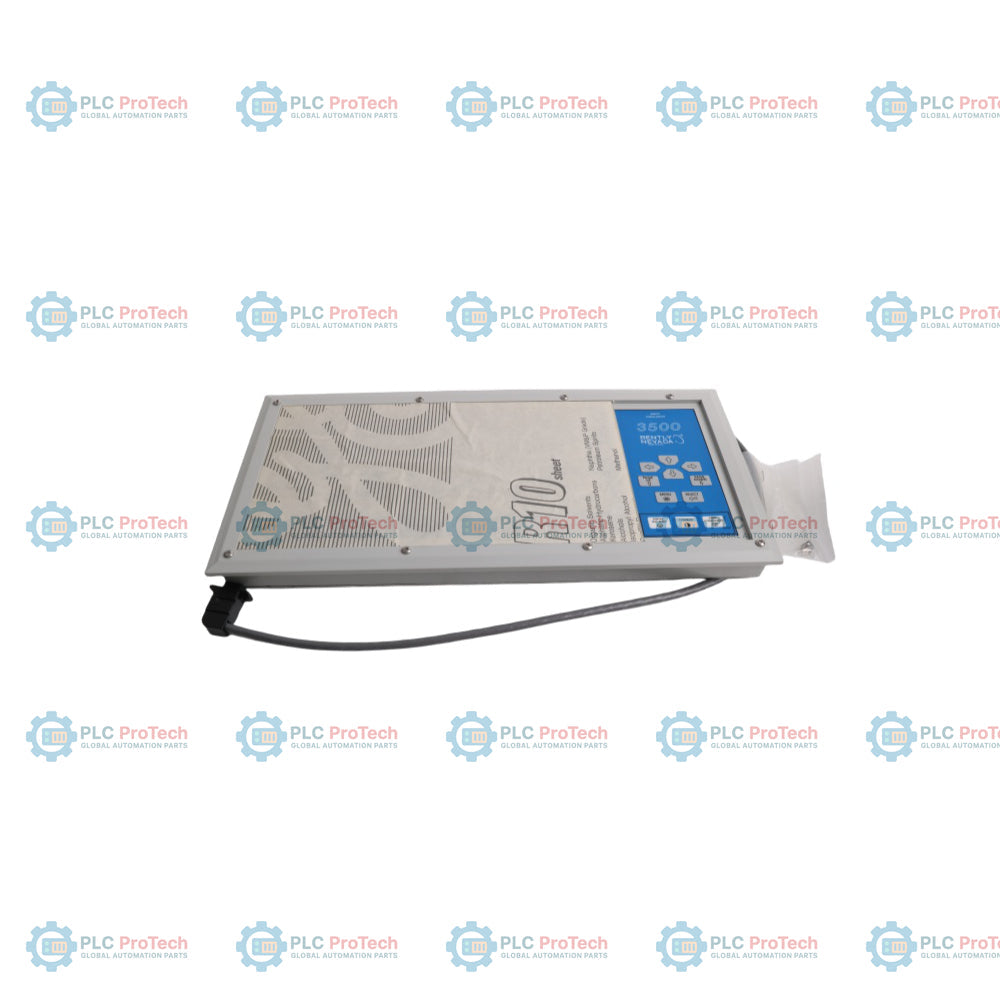

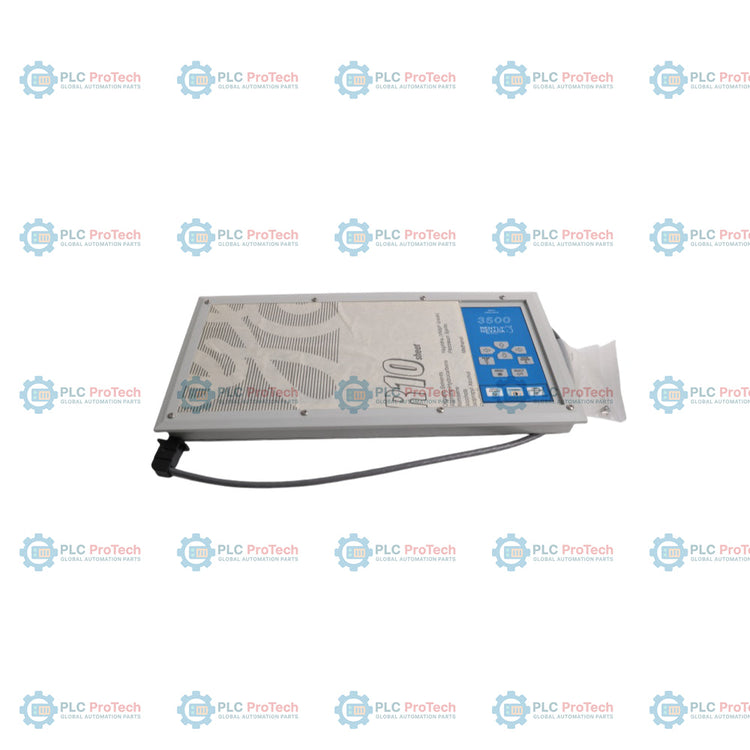

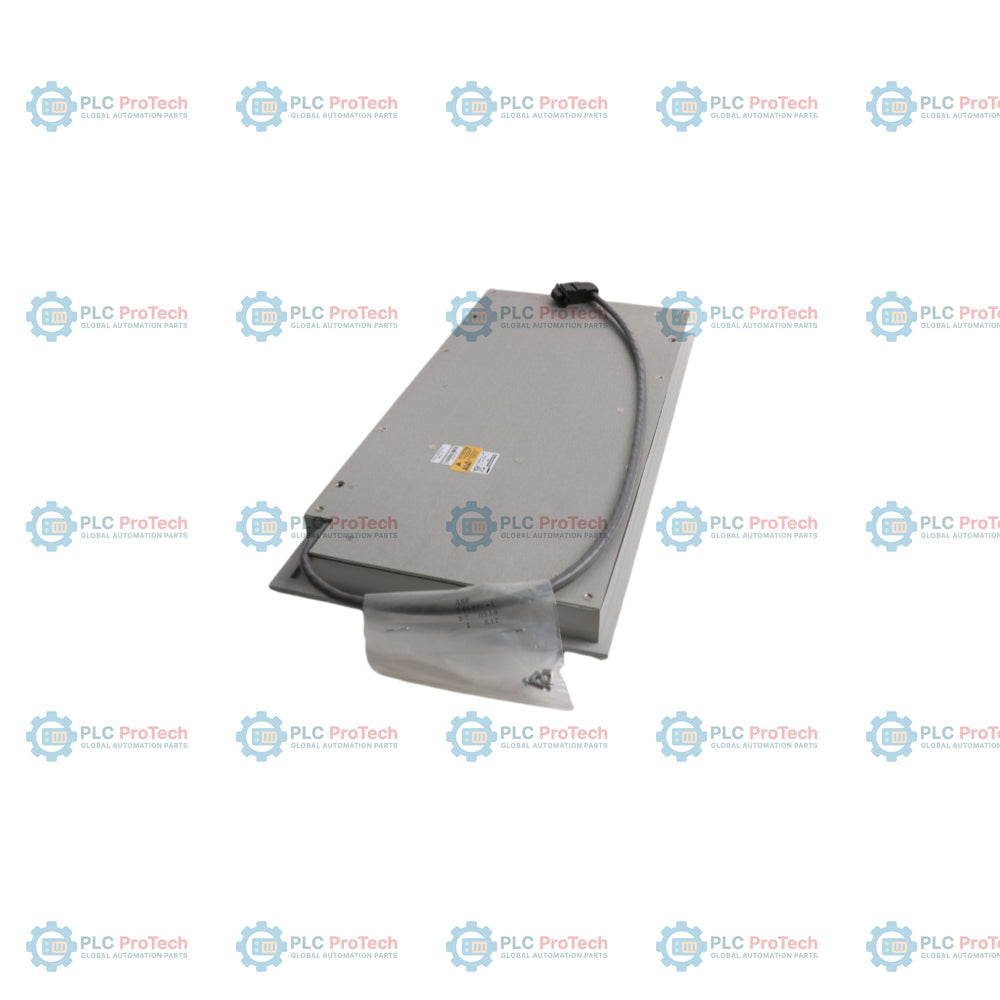

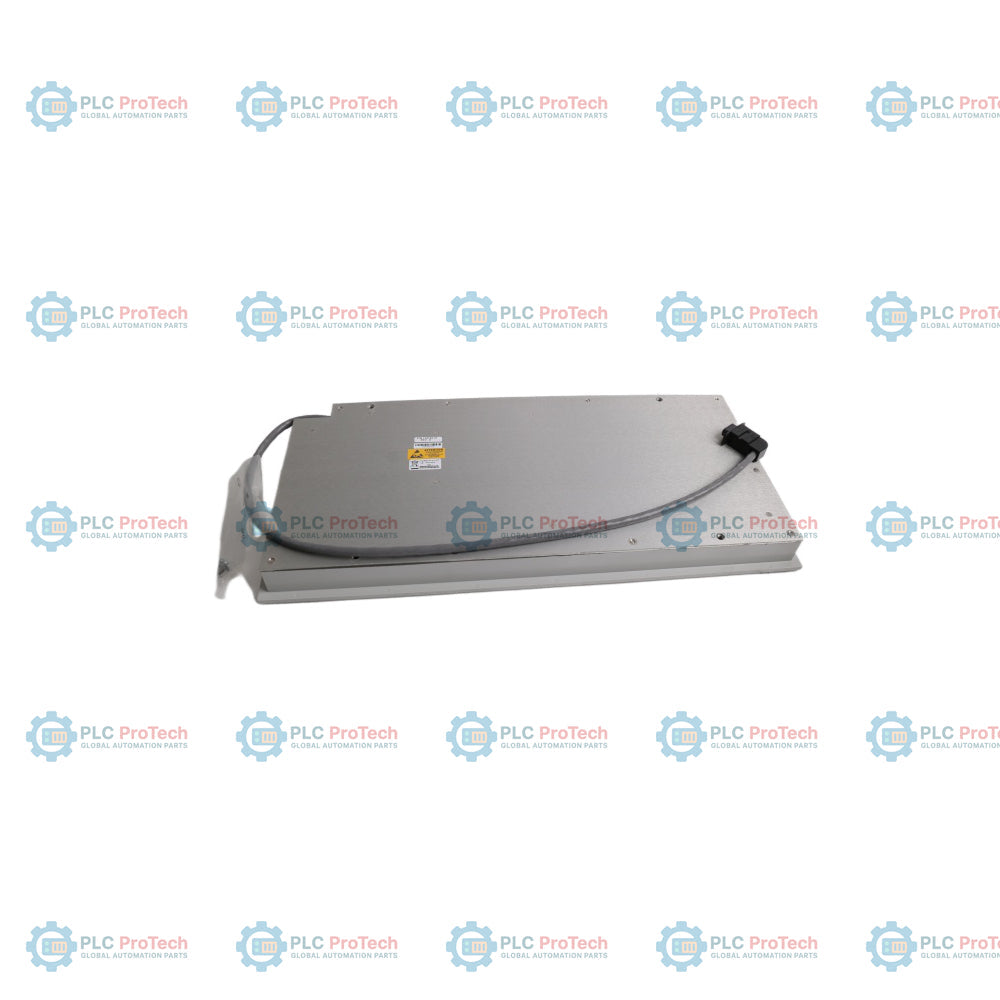

The Bently Nevada 135785-01 is a non-backlighted display unit designed for providing local or remote visual indication of 3500 Machinery Protection System data residing in the rack. The 135785-01 collects system information via a high-speed internal network, including System Event Lists, Alarm Event Lists, and channel, monitor, relay module, Keyphasor module, or tachometer module data. It utilizes a reflective 640 x 200 dots FSTN dot matrix LCD display without a backlight, requiring ambient white light for visual operation. The unit interfaces with the 3500/93 Display Interface Module (DIM) over an RS422 hardware interface supporting Bently Nevada proprietary protocol and Modbus protocol.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Part Number | 135785-01 |
| Display Type | Reflective 640 x 200 Dots FSTN Dot Matrix LCD (Non-backlighted) |
| Display Visibility | Requires ambient white light; best under indirect sunlight; acceptable under normal office lighting |
| Power Consumption | 5.6 watt maximum |
| Communication Interface | RS422 Interface |
| Communication Protocols | Bently Nevada proprietary protocol; Modbus protocol (AEG PI-MBUS-300 Rev. E based) |
| Channel Update Rate | 1 second, typical |
| Operating Temperature | -20 degC to 65 degC (-4 degF to 149 degF) |
| Storage Temperature | -30 degC to 80 degC (-22 degF to 176 degF) |
| Operating Humidity | 95%, noncondensing |
| Dimensions (Height x Width x Depth) | 203.2 mm x 412.8 mm x 31.2 mm (8.00 in x 16.25 in x 1.23 in) |
| Weight | 2.1 kg (4.6 lb.) |
| Standard / Approval | Details |
|---|---|
| EMC Directives | EN50081-2 (EN 55011 Class A), EN50082-2 (EN 61000-4-2, ENV 50140, ENV 50141, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-4-11, ENV 50204) |
| Low Voltage Directives | EN 61010-1 Safety Requirements |
| Hazardous Area Approvals | CSA/NRTL/C: Class I, Division 2, Groups A through D |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 135785-01
Country of origin:United States
Product Type: Display Unit
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 2100g
Dimensions: 412.8 mm x 203.2 mm x 31.2 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
The Bently Nevada 135785-01 is a non-backlighted display unit designed for providing local or remote visual indication of 3500 Machinery Protection System data residing in the rack. The 135785-01 collects system information via a high-speed internal network, including System Event Lists, Alarm Event Lists, and channel, monitor, relay module, Keyphasor module, or tachometer module data. It utilizes a reflective 640 x 200 dots FSTN dot matrix LCD display without a backlight, requiring ambient white light for visual operation. The unit interfaces with the 3500/93 Display Interface Module (DIM) over an RS422 hardware interface supporting Bently Nevada proprietary protocol and Modbus protocol.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Part Number | 135785-01 |
| Display Type | Reflective 640 x 200 Dots FSTN Dot Matrix LCD (Non-backlighted) |
| Display Visibility | Requires ambient white light; best under indirect sunlight; acceptable under normal office lighting |
| Power Consumption | 5.6 watt maximum |
| Communication Interface | RS422 Interface |
| Communication Protocols | Bently Nevada proprietary protocol; Modbus protocol (AEG PI-MBUS-300 Rev. E based) |
| Channel Update Rate | 1 second, typical |
| Operating Temperature | -20 degC to 65 degC (-4 degF to 149 degF) |
| Storage Temperature | -30 degC to 80 degC (-22 degF to 176 degF) |
| Operating Humidity | 95%, noncondensing |
| Dimensions (Height x Width x Depth) | 203.2 mm x 412.8 mm x 31.2 mm (8.00 in x 16.25 in x 1.23 in) |
| Weight | 2.1 kg (4.6 lb.) |
| Standard / Approval | Details |
|---|---|
| EMC Directives | EN50081-2 (EN 55011 Class A), EN50082-2 (EN 61000-4-2, ENV 50140, ENV 50141, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-4-11, ENV 50204) |
| Low Voltage Directives | EN 61010-1 Safety Requirements |
| Hazardous Area Approvals | CSA/NRTL/C: Class I, Division 2, Groups A through D |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Color pattern |
Greyish White
|
| Country of origin |
United States
|
