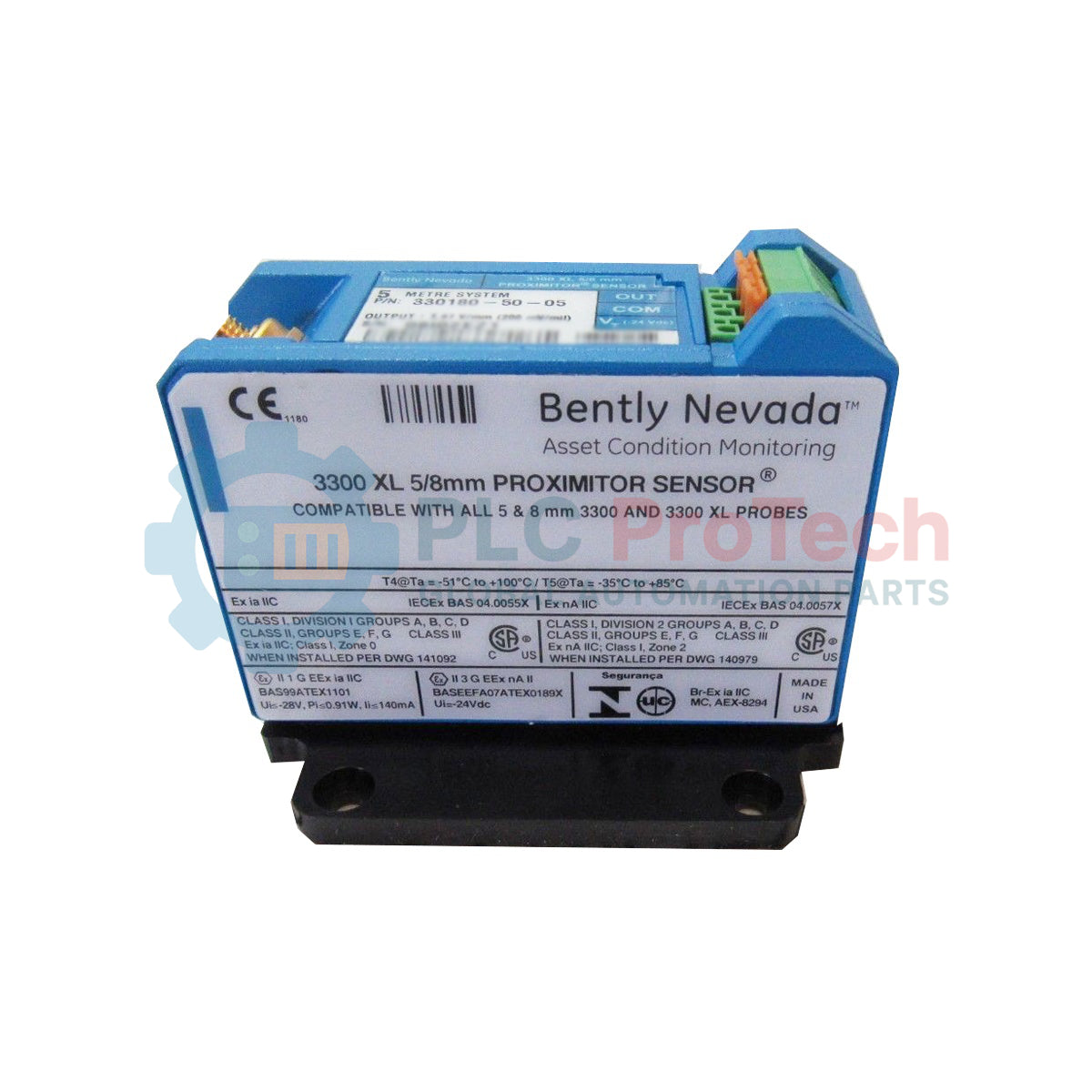

Engineered for highly reliable proximity measurement within machine protection systems, the Bently Nevada 143416-01 processes eddy current signals from a 3300 XL 5mm or 8mm probe to deliver precise vibration and position telemetry. This high-precision sensor acts as a key signal conditioner, generating an analog voltage output directly proportional to the static or dynamic distance between the probe tip and the target shaft. Specifically calibrated for a 5.0-meter system length, the Bently Nevada 143416-01 ensures continuous, uninterrupted monitoring of critical rotating machinery in demanding industrial environments.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 143416-01 |
| Product Series | 3300 XL |
| Compatible Probes | 3300 XL 5mm and 8mm Proximity Probes |
| System Length Calibration | 5.0 Meters |
| Scale Factor | 7.87 V/mm (200 mV/mil) Nominal |
| Supply Voltage Requirements | -24 Vdc (Acceptable input range: -18 Vdc to -26 Vdc) |
| Current Consumption | Less than 12 mA (Nominal) |
| Output Impedance | 50 ohms |
| Operating Temperature | -51 degC to +100 degC (-60 degF to +212 degF) |
| Storage Temperature | -51 degC to +105 degC (-60 degF to +221 degF) |
| Country of Origin | United States |
| Shipping Weight (Calculated) | 0.25 kg (0.55 lbs) |
| Package Dimensions (Calculated) | 12.0 cm x 10.0 cm x 6.0 cm |
| Terminal / Connector | Function / Circuit Assignment |
|---|---|
| PROBE Coaxial Port | Accepts subminiature coaxial connection from the 3300 XL extension cable. |
| VT Terminal | Power Input (-24 Vdc supply connection relative to COM). |
| OUT Terminal | Dynamic Analog Voltage Signal Output (proportional to target distance). |
| COM Terminal | Common Ground Reference for power supply and signal return. |
Alternative Models & Compatibility: The 143416-01 is explicitly tuned to a 5.0-meter system length. If your loop utilizes a 9.0-meter probe and extension cable arrangement, utilizing this sensor will severely skew output voltage calculations, requiring substitution with a 9.0-meter variant. Never mix 3300 XL series components with obsolete 7200 series sensors as impedance mismatches will compromise safety shutdowns.
Application Pitfalls & Engineering Notes: Because eddy current technology relies on the electromagnetic properties of the target material, any deviation from standard AISI 4140 steel targets requires custom calibration of the Proximitor to prevent major measurement errors. Always mount the unit within a secure weather-proof or explosion-proof enclosure if located near process streams to avoid housing erosion from corrosive gases.
Commissioning & Wiring Tips: Ensure the coaxial connection is fully tightened using only hand torque; over-tightening with hand tools can fracture the internal subminiature connector. For electrical noise isolation, wrap the coaxial connection boot with self-amalgamating insulation tape to prevent accidental shorting or grounding against adjacent conduit runs.
