Description

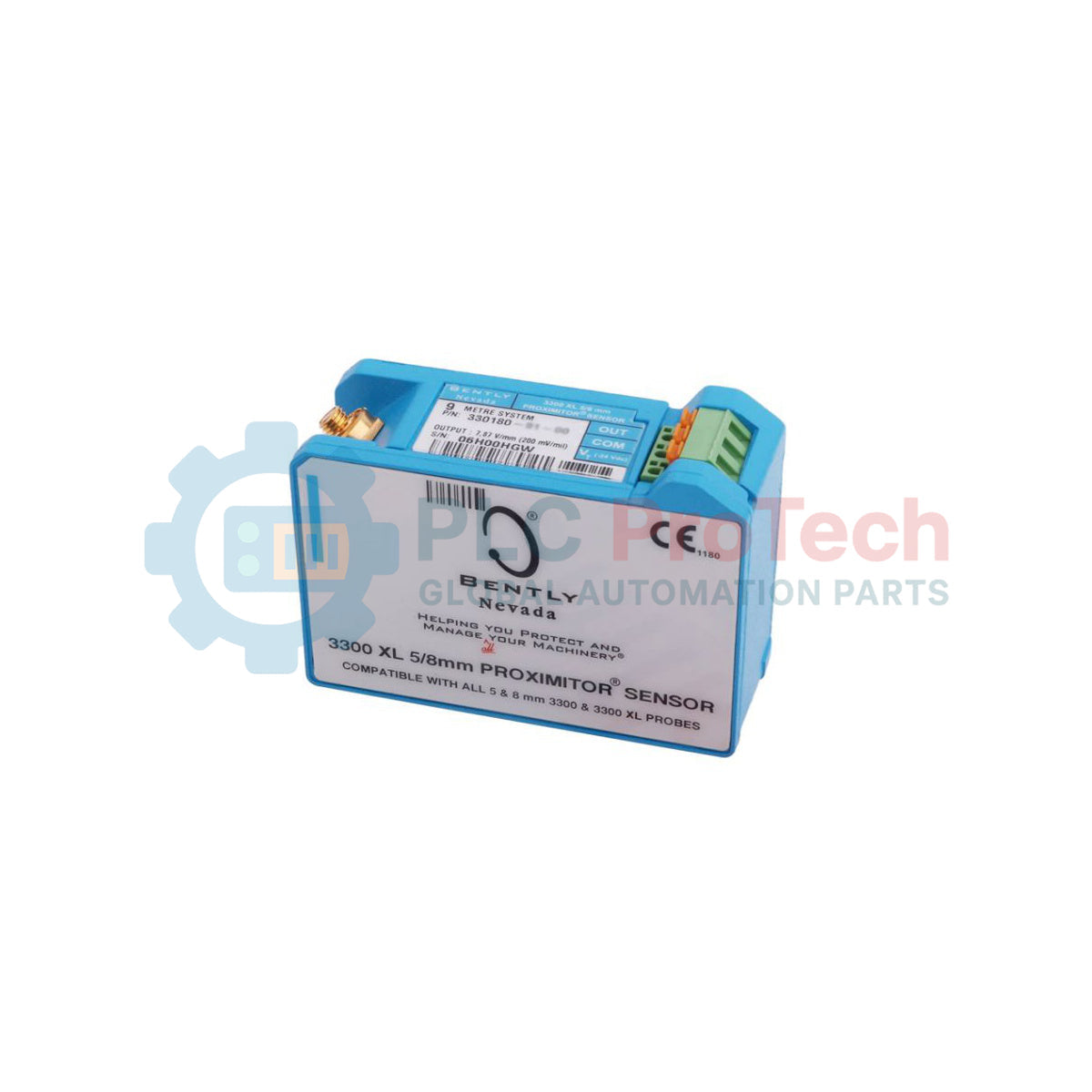

Designed for continuous machinery condition monitoring, the Bently Nevada 145193-07 serves as a core component in the 3300 XL 8mm Proximity Transducer System. This physical sensor interface processes high-frequency radio frequency (RF) signals received from a proximity probe and extension cable, translating them into a highly accurate continuous voltage output. This output is directly proportional to the static or dynamic distance between the proximity probe tip and the observed conductive target material.

The sensor is optimized for challenging industrial environments, offering high resistance to electromagnetic interference and exceptional thermal stability. It provides critical feedback for monitoring parameters such as radial vibration, axial thrust position, and speed across steam turbines, gas turbines, centrifugal compressors, and industrial pumps. Designed for 9.0-meter system configurations, the module incorporates robust physical housing with hazardous area certification compatibility.

Features

• Provides continuous conversion of high-frequency RF signals into a linear voltage output.
• Features a calibrated scale factor of 7.87 V/mm (200 mV/mil) for precise signal translation.
• Robust housing design offers high level of immunity to electromagnetic interference (EMI) and radio frequency interference (RFI).
• Integrated coaxial connection interface with gold-plated contacts to ensure signal integrity.
• Designed for direct integration with Bently Nevada 3500 and 3300 monitoring racks.
• Includes isolation plate to prevent electrical grounding loops at the mounting location.

Applications

• Radial shaft vibration measurement on high-speed turbines and compressors.
• Axial thrust position monitoring in power generation and oil and gas processing equipment.
• Speed and phase reference measurements using Keyphasor sensor setups.
• General industrial machine case expansion and eccentricity monitoring.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Ensure the Proximitor sensor is mounted in a protective, weather-tight enclosure when deployed in outdoor or harsh chemical environments.
• Use the supplied isolation mounting plate to isolate the metallic housing of the sensor from the structural chassis ground, preventing ground loop interference.
• Always match the sensor configuration (9.0 meters) with the corresponding probe and extension cable system length for correct signal calibration.
• Observe minimum bend radius limits when routing the coaxial probe and extension cables to avoid signal degradation.

Compliance and Certifications

• CE Compliant
• ATEX / IECEx certified for hazardous area installations (Ex ia / Ex nA)
• CSA / FM approved for Class I, Division 1 and 2 locations
