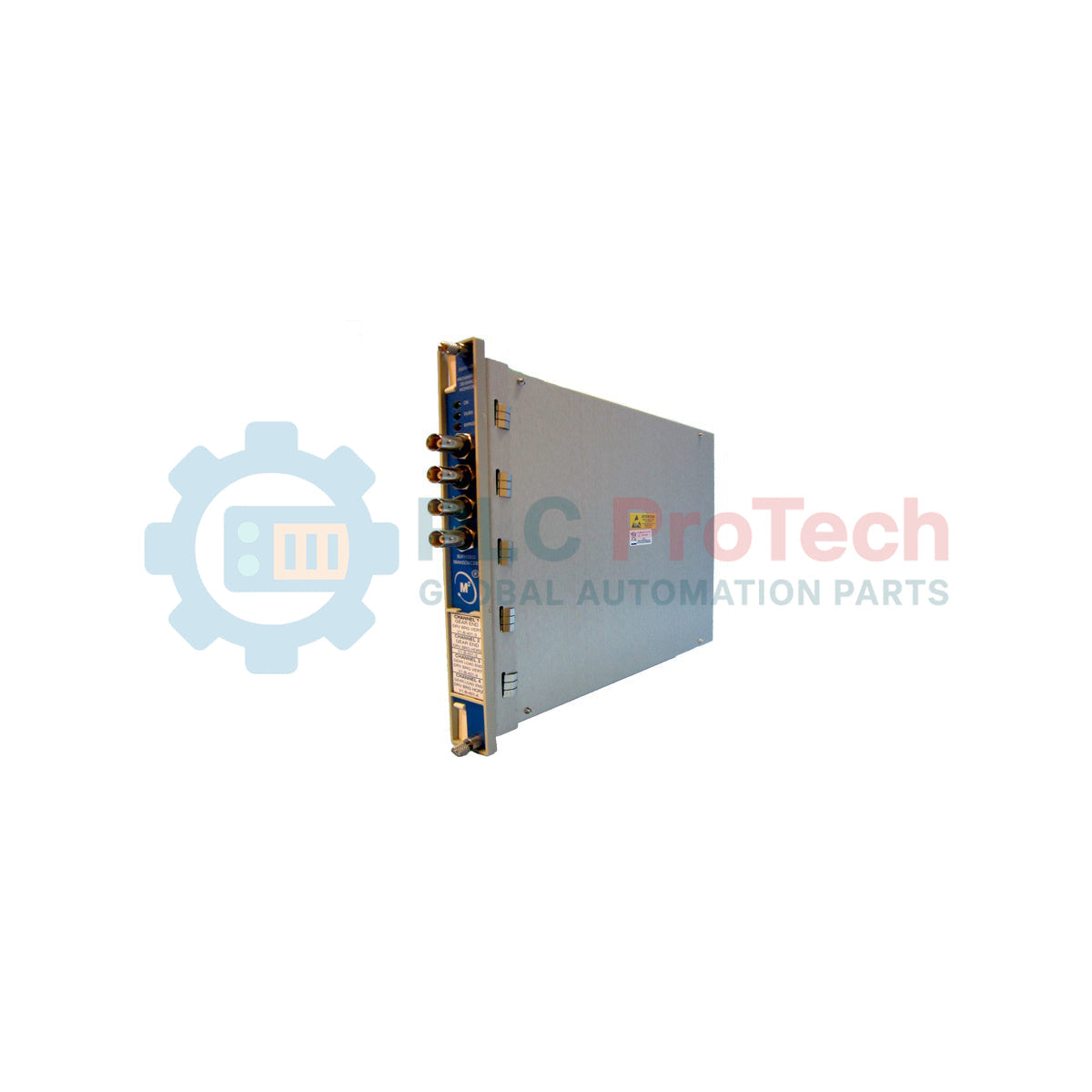

The 176449-02 (176449-02) is the high-performance main board for the Bently Nevada 3500/42M Proximitor Seismic Monitor, a cornerstone of the 3500 Series Machinery Protection System. This 176449-02 module is a four-channel instrument that accepts inputs from both proximity and seismic transducers, providing comprehensive vibration and position monitoring for critical rotating assets. Engineered for high-stakes environments such as power generation turbines, large-scale centrifugal compressors, and mining heavy machinery, the 3500/42M continuously compares monitored parameters against programmable setpoints. By delivering real-time machinery health data to operations personnel, it facilitates immediate protective actions and long-term predictive maintenance, effectively mitigating the risk of catastrophic shaft failure and significantly reducing unplanned plant downtime.
The 176449-02 module utilizes advanced digital signal processing to condition raw transducer data into actionable static values. The four channels are programmed in pairs, allowing for versatile monitoring configurations where one pair handles radial vibration while the other manages thrust position or eccentricity. The "M" designation signifies "Multimode" capability, meaning the module supports a vast array of measurement types including REBAM, acceleration, velocity, and shaft absolute measurements. Each channel can be assigned individual Alert setpoints for all active static values, while Danger setpoints can be targeted to any two parameters per channel, providing a tiered defense-in-depth strategy for machinery protection.
| Attribute | Specification Details |
| Model | 176449-02 |
| Brand | Bently Nevada (Baker Hughes) |
| Origin | U.S.A. |
| Monitor Type | 4-Channel Proximitor / Seismic |
| Operating Temp | -30 to +65 deg C (Standard I/O) |
| Humidity | 95 percent non-condensing |
| Input Signals | Proximity, Velocity, and Accelerometers |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Net Weight | 0.91 kg |
| Shipping Weight | 3.0 kg |
What is the function of the 176449-02 within the 3500/42M system?
The 176449-02 is the specific spare part number for the Main Monitor Module (the front circuit board). It serves as the primary processing engine that interprets transducer signals and communicates with the 3500 rack backplane and I/O modules.
Can this module monitor different parameters on the same channel?
Channels are programmed in pairs. For example, Channels 1 and 2 must perform the same function or related functions, while Channels 3 and 4 can be configured for a completely different measurement type, such as switching from radial vibration to seismic velocity.
Is this module compatible with Internal Barrier I/O modules?
Yes. When paired with Internal Barrier I/O modules, the operating temperature range is restricted to 0 to +65 deg C. Always verify your specific I/O hardware before commissioning in extreme cold environments.
Channel Pairing and Software Logic
When configuring the 176449-02 via the 3500 Rack Configuration Software, remember that the hardware architecture dictates channel pairing. If you require both Thrust and Radial Vibration on a single machine, ensure they are assigned to different pairs (e.g., Thrust on Ch 1/2 and Vibration on Ch 3/4) if the processing requirements exceed the two-function limit per pair.
Signal Grounding and Noise Immunity
To ensure the integrity of seismic and proximity signals, the field wiring shields must be terminated at the 3500 I/O module's shield terminals. Avoid "daisy-chaining" grounds, as this can introduce ground loops that manifest as false vibration "noise." This is particularly critical in large power plant environments where high-voltage EMI is prevalent.
Replacement Protocol
As the 176449-02 is a "Spare" module, it is hot-swappable in most 3500 rack configurations. However, the rack must be in "Config" or "Program" mode for the new module to accept the existing software parameters. Always verify that the firmware version on the replacement 176449-02 matches or is compatible with the existing 3500/01 Rack Interface Module (RIM).
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 3500/42 176449-02
Country of origin:United States
Product Type: Proximitor Seismic Monitor
Payment: T/T, Western Union
Weight: 650g
Dimensions: 241.3 mm x 24.4 mm x 241.8 mm
Shipping port: Xiamen
Warranty: 12 months
