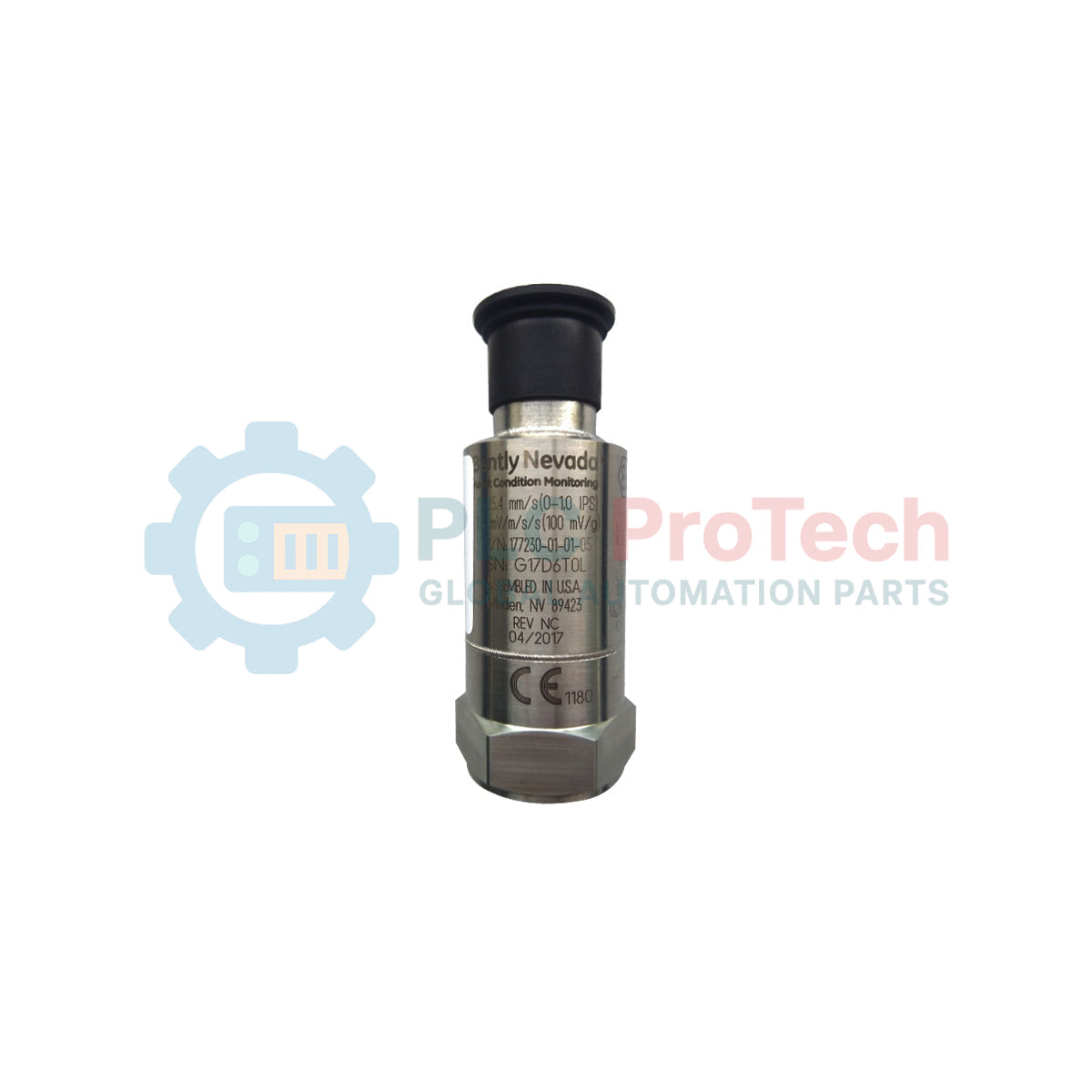

177230-01-01-05 | Bently Nevada | Seismic Transmitter

Bently Nevada 177230-01-01-05 Seismic Transmitter

SKU 177230-01-01-05

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 177230-01-01-05
Origin United States
Product Type: Seismic Transmitter
Payment: T/T, Western Union
Weight: 0.131 kg
Dimensions: 66.0 mm x 25.4 mm x 25.4 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Bently Nevada 177230-01-01-05 is a loop-powered seismic transmitter designed for machinery condition monitoring. It integrates directly into programmable logic controllers (PLCs), DCS, and SCADA systems that provide internal loop power. The 177230-01-01-05 processes vibration measurements and outputs a primary 4 to 20 mA current loop representing velocity vibration, along with a secondary raw dynamic voltage output representing acceleration for detailed signal analysis.

Features

Interfaces directly with PLCs, DCS, and SCADA control systems.
Provides a primary 4 to 20 mA loop-powered velocity output and a secondary raw dynamic voltage output.
Requires no field configuration or adjustments.
Features a hermetically sealed 316L stainless steel case for demanding environments.
Includes self-test capabilities and a protected interface.

Applications

Machinery asset condition monitoring
Overall plant vibration measurement
Balance-of-plant rotating machinery protection
Integration into PLC, DCS, and SCADA control loops

Ordering Information

Option / Ordering Code	Description
177230-AA-BB-CC	Seismic Transmitter
AA: Measurement Range	01 = 0 to 25.4 mm/s (0 to 1.0 in/s)
BB: Frequency	01 = 10 Hz to 1 kHz (600 to 60 kcps) rms
CC: Approvals	05 = Multiple Approvals (CSA/NRTL/C, ATEX/IECEx)

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model	177230-01-01-05
Product Type	Seismic Transmitter
Main Loop Sensitivity (Signal One)	0.0 to 25.4 mm/s (0 to 1.0 in/s) +/- 10% FS, broadband rms
Output Format (Pin A ref Pin B)	4 to 20 mA current loop, velocity vibration
Dynamic Signal Sensitivity (Signal Two)	10.2 mV/m/s2 (100 mV/g) +/- 20%
Output Format (Pin C ref Pin B)	Voltage, acceleration vibration, unbuffered
Dynamic Signal Frequency Response	2.5 Hz to 10 kHz (150 cpm to 600 kcpm) +/- 10%
Main Loop Frequency Response	10 Hz to 1 kHz (600 cpm to 60 kcpm) +/- 10%
Excitation Voltage	12 to 30 Vdc (current limited to 40 mA)
Settling Time	Less than 15 seconds within 2% of final value
Linearity	+/- 1%
Output Bias (ref Pin B)	2.5 V +/- 0.1 V
Full Scale Range	147 m/s2 (15 g's) peak
Mounted Resonant Frequency	Greater than 12 kHz
Transverse Sensitivity	Less than 5% of sensitivity
Sensing Element Type	Ceramic / Shear
Operating Temperature Range	-40 degC to +85 degC (-40 degF to +185 degF)
Electrical Isolation	Greater than 10^8 ohms
Isolation Breakdown Voltage	600 Vrms with less than 1 mA leakage current
Sensor Seal	Hermetically sealed
Relative Humidity	To 100% non-submerged
Case Material	316L stainless steel
Connector Type	3-pin MIL-C-5015, 316L stainless steel
Mounting Hole / Threads	1/4-28 UNF; supplied with M6x1, M8x1.25, and 1/4-28 UNF adapters
Mounting Torque	4 to 7 N-m (35.4 to 62.0 in-lbf)
Transmitter Weight	131 g (4.62 oz) typical
Dimensions	25.4 mm (1.00 in) Diameter x 66.0 mm (2.60 in) Height

Connections/Interfaces

Connector Pin	Function
Pin A	4-20 mA Positive Loop (Positive with reference to Pin B)
Pin B	4-20 mA Negative Loop / Return for Dynamic Signal
Pin C	Dynamic Signal in voltage, unbuffered (Referenced to Pin B)

Installation Guidelines

Mounting Method: Mount directly to the machine surface using the provided stud adapters and torque to 4 to 7 N-m.
Magnetic Base Precaution: If using a magnetic base, roll the base onto the machine surface. Avoid snapping the unit onto the machine, as sudden impact can generate large voltage spikes that may damage internal electronics.
Grounding and Signal Isolation: Ensure the dynamic signal return (Pin B) is isolated from external grounds. Grounding this terminal shorts the 4 to 20 mA current loop, resulting in signal loss.

Compliance and Certifications

FCC: Complies with Part 15 of FCC Rules.
EMC: EMC Directive 2014/30/EU.
RoHS: RoHS Directive 2011/65/EU.
CSA/NRTL/C: Class I, Div 1, Groups A, B, C, D; Class II, Div 1, Groups E, F, G; Class III, Div 1 (Ex ia IIC T4 / AEx ia IIC T4); Class I, Div 2, Groups A, B, C, D (Ex nL IIC T4 / AEx nA IIC T4).
ATEX/IECEx: II 1 G Ex ia IIC T4 Ga / II 3 G Ex na IIC T4 Gc (Ta = -40 degC to +80 degC).

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What power supply is required to operate the device?

The device operates on a 12 to 30 Vdc loop power excitation voltage, current limited to 40 mA, typically supplied directly by host PLCs or DCS controllers.

What outputs are provided by the unit?

The device provides a primary 4 to 20 mA loop-powered velocity output on Pin A and a secondary unbuffered dynamic acceleration voltage output on Pin C.

What mounting precaution should be followed when using a magnetic base?

The device must be rolled onto the machine surface rather than snapped into place, preventing mechanical shocks that can produce high voltage spikes and damage internal electronics.
