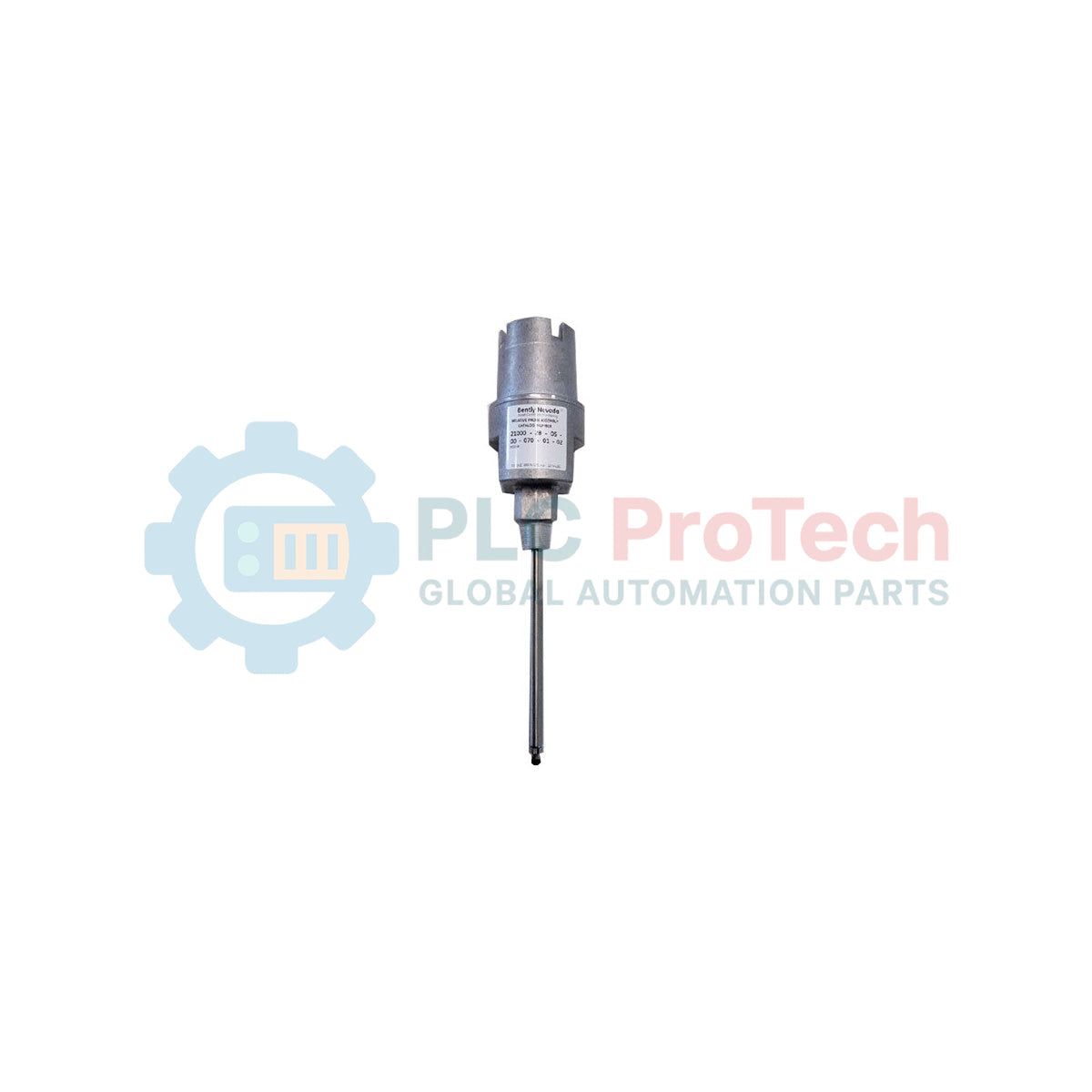

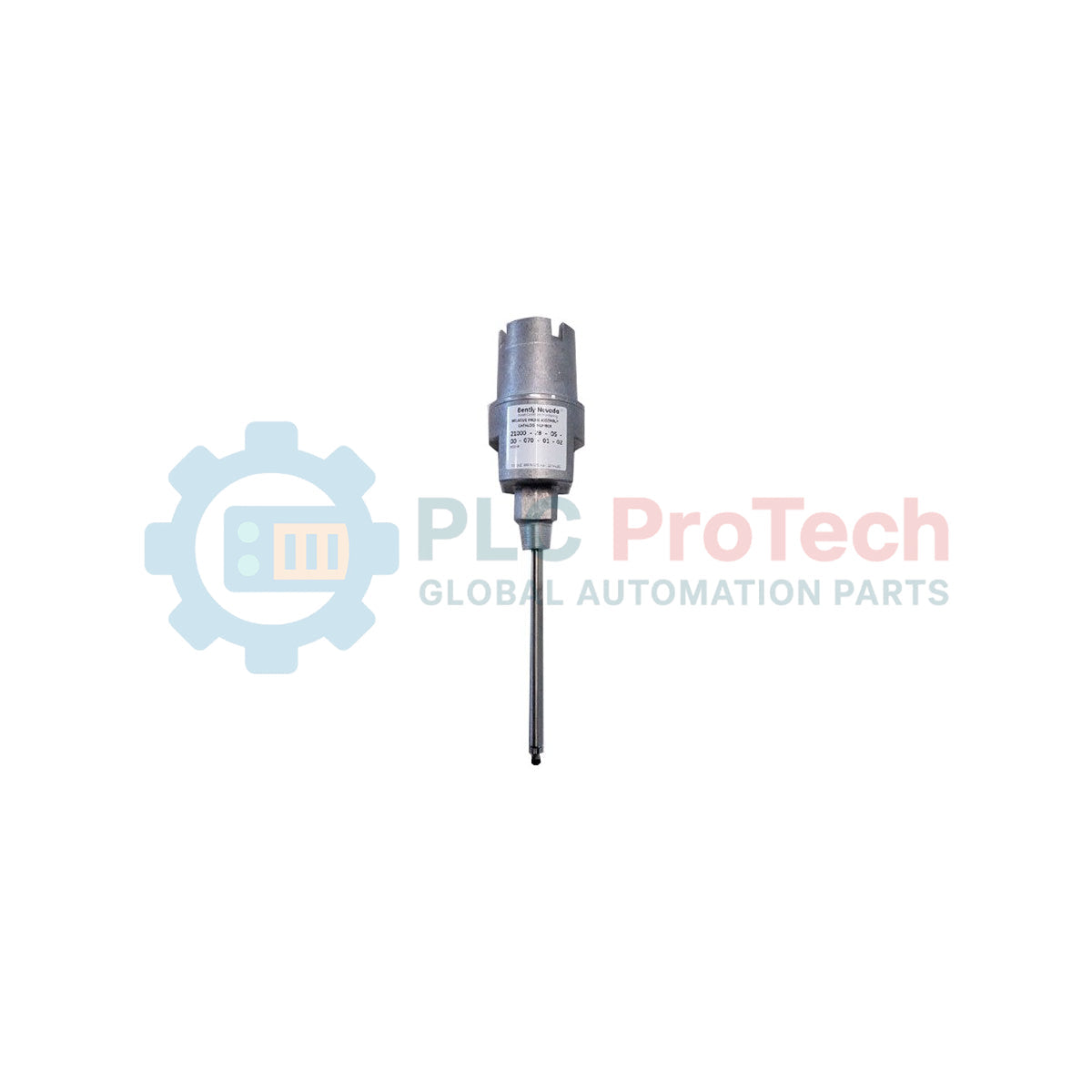

The 21000-34-05-15-032-01-02 is a heavy-duty, explosion-proof proximity probe housing assembly designed for the most demanding vibration monitoring environments. Engineered by Bently Nevada, this assembly protects the sensitive 3300 XL 8 mm proximity probe from mechanical damage and hazardous atmospheric conditions. It is widely utilized in oil and gas refineries, petrochemical plants, and large-scale power generation facilities where precise radial vibration or axial position sensing is required on steam turbines, compressors, and pumps. By providing a ruggedized external mounting solution, this housing allows for the external adjustment of the probe's "Gap" voltage while the machinery is running, significantly reducing maintenance-related downtime and enhancing overall plant safety.
The 21000-34-05-15-032-01-02 model code provides a detailed roadmap of the assembly's mechanical and electrical configuration:
34 (Probe Option): Includes a 3300 XL 8 mm probe with a connector protector and multiple international hazardous area approvals.
05 (Cable Length): Specifies a 0.5 meter (20 inch) probe cable length.
15 (Standoff Adapter): Features a 1.5 inch (38 mm) standoff adapter to position the housing away from the machine casing.
032 (Probe Penetration): Sets the total probe penetration depth at 3.2 inches into the machine train.
01 (Fittings): Configured with one explosion-proof conduit fitting and one steel plug for cable routing.
02 (Mounting Thread): Utilizes a standard 3/4-14 NPT mounting thread to interface with the machine housing.
| Attribute | Specification Details |
| Model | 21000-34-05-15-032-01-02 |
| Brand | Bently Nevada (Baker Hughes) |
| Origin | U.S.A. |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Penetration Depth | 3.2 inches |
| Mounting Thread | 3/4-14 NPT |
| Hazardous Rating | Explosion-proof (Multiple Approvals) |
| Shipping Weight | 3.0 kg |
| Operating Temp | -35 to +177 deg C (Probe head) |
Can the probe penetration depth be adjusted in the field?
The 032 suffix specifies the factory-set penetration; however, the Bently Nevada 21000 series allows for minor fine-tuning of the probe position via the internal sleeve to achieve the correct Gap voltage during commissioning.
What are the advantages of the 3300 XL 8 mm probe in this assembly?
The 3300 XL 8 mm probe provides a standard linear range of 2.0 mm (80 mils) and offers superior resistance to moisture and chemical ingress compared to legacy probe models. The included connector protector prevents signal contamination at the cable junction.
Is this housing assembly suitable for Division 1 or Zone 1 environments?
Yes. The 21000-34-05-15-032-01-02 is designed for hazardous locations and features explosion-proof fittings (Option 01) and multiple approvals (Option 34) to meet stringent safety requirements in flammable atmospheres.
Gap Voltage Calibration
During installation, use a digital multimeter to monitor the DC Gap voltage from the Proximitor Sensor. For most Bently Nevada 3300 XL systems, the target is -10.0 VDC (the midpoint of the linear range). Carefully rotate the probe within the housing until the target voltage is reached, then secure the locknuts to prevent shifting caused by machine vibration.
Conduit and Seal Integrity
To maintain the explosion-proof rating of the 21000-34-05-15-032-01-02, ensure that all NPT threads are treated with an approved thread lubricant and tightened to the specified torque. The 01 fitting option requires proper cable glands or conduit seals to prevent the passage of gases through the wiring system.
Mechanical Stress and Heat Management
In high-temperature applications (such as steam turbine exhaust ends), ensure the standoff adapter (Option 15) provides sufficient distance between the machine case and the probe housing. This helps dissipate heat and prevents the cable insulation from exceeding its maximum operating temperature.
