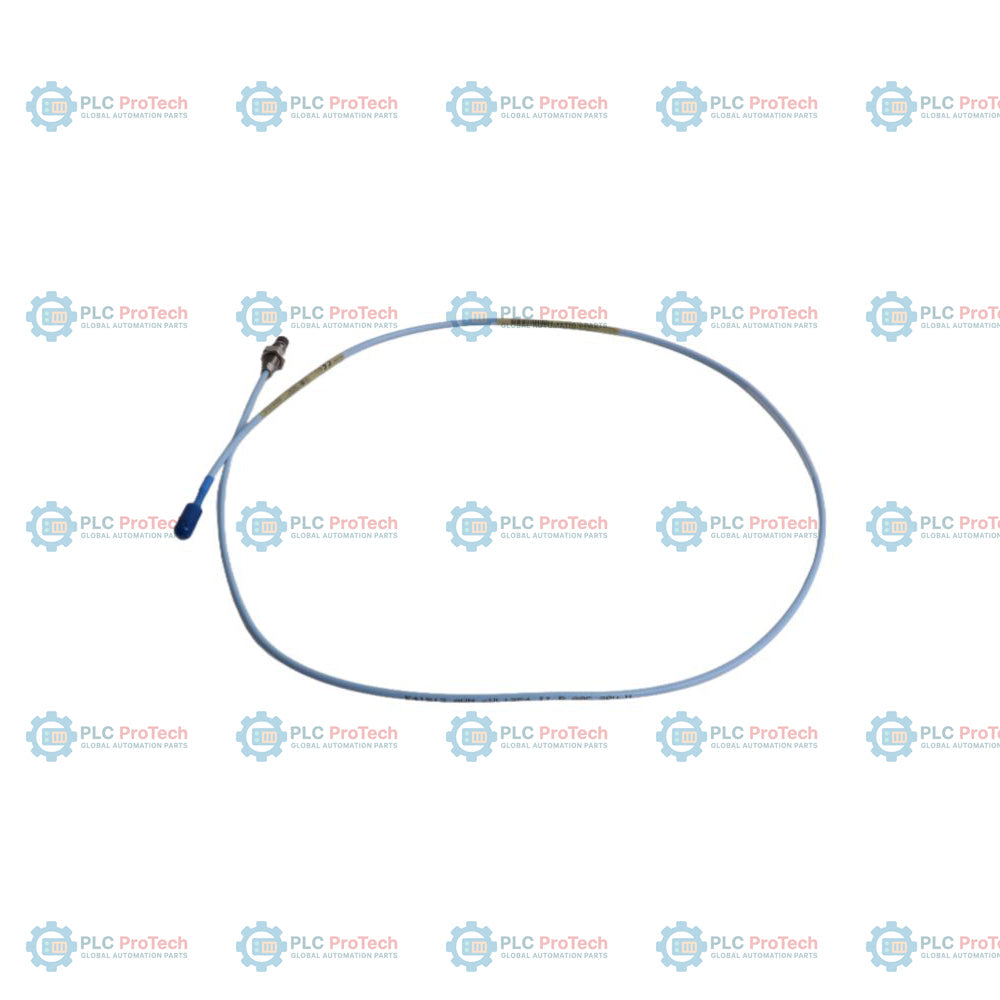

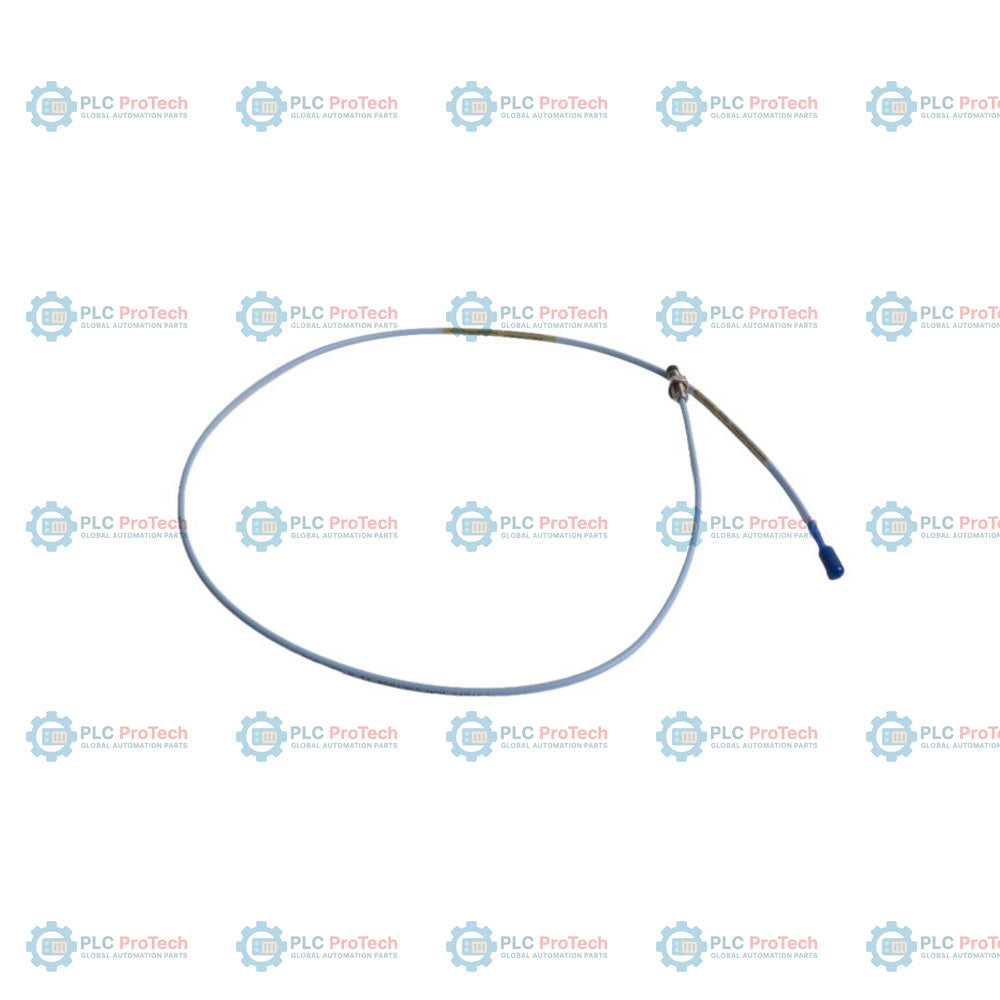

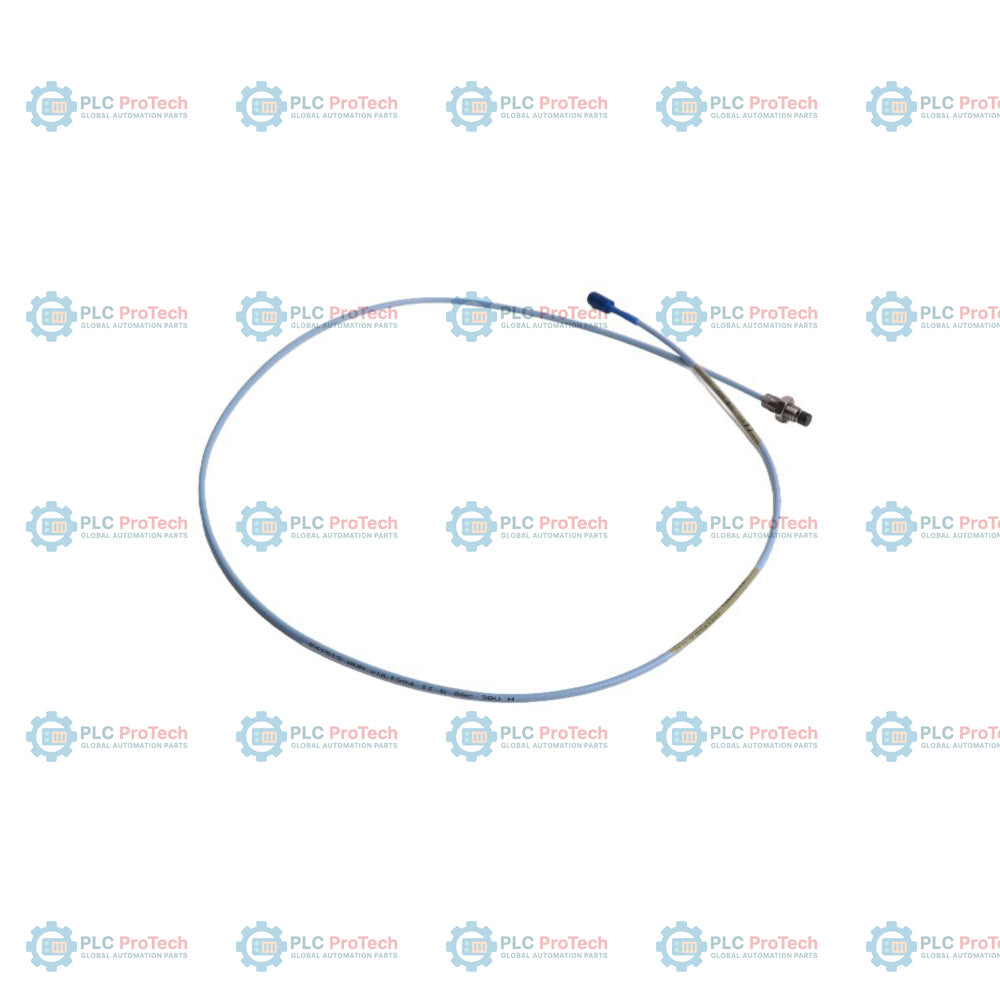

The Bently Nevada 330101-00-10-10-12-05 is a 3300 XL 8 mm eddy-current proximity probe used for non-contact shaft vibration and displacement monitoring in critical rotating machinery. This specific configuration features a 1.0-inch fully threaded 3/8-24 UNF body with zero unthreaded length, optimized for flush-mounting within tight clearances on bearing housings or casings.
This model integrates a 1.0-meter (3.3-foot) lead cable with patented FluidLoc® technology (Option 12) to prevent lubricating oil or process fluids from leaking through the cable core. The cable terminates in a gold-plated miniature coaxial ClickLoc™ connector. Additionally, the assembly includes Option 05 hazardous area approvals, certifying it for use in international explosion-proof and intrinsically safe installations.
| Option Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Base Model | 330101-00-10-10-12-05 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, unarmored |
| A - Unthreaded Length | 00 | 0.0 in (0 mm) |
| B - Overall Case Length | 10 | 1.0 in (25.4 mm) |
| C - Total Length | 10 | 1.0 meter (3.3 feet) |
| D - Connector/Cable Type | 12 | Miniature coaxial ClickLoc™ connector, FluidLoc® cable |
| E - Agency Approval | 05 | CSA, ATEX, and IECEx hazardous area approvals |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model / Part Number | 330101-00-10-10-12-05 |
| Product Family | 3300 XL 8 mm Transducer System |
| Probe Diameter | 8 mm |
| Measurement Type | Displacement / Proximity |
| Operating Principle | Eddy current |
| Thread Type | 3/8-24 UNF-2A |
| Unthreaded Length | 0.0 in (0 mm) |
| Overall Case Length | 1.0 in (25.4 mm) |
| Total Length | 1.0 meter (3.3 feet) |
| Cable Type | FluidLoc® standard lead cable |
| Connector Type | Gold-plated ClickLoc™ coaxial |
| Armor Option | Without armor |
| Target Material Compatibility | AISI 4140 steel (standard calibration target) |
| Output Resistance | 50 Ω |
| Nominal Probe DC Resistance | 7.59 Ω ± 0.50 Ω (center to outer conductor) |
| Linear Range | 2.0 mm (80 mils) typical |
| Scale Factor | 7.87 V/mm (200 mV/mil) typical |
| Operating Temperature Range | -35 °C to +177 °C (-31 °F to +350 °F) |
| Hazardous Area Certifications | CSA, ATEX, IECEx (Option 05) |
| Dimensions | 45 mm x 95 mm x 95 mm (H x W x D) |
| Weight | 0.14 kg |
Mount the probe at the target system's calibrated gap, typically 1.27 mm (50 mils) for AISI 4140 steel. Ensure mounting threads are clean and free of burrs. Follow standard industrial shielding and grounding practices during cable routing to prevent EMI/RFI noise. Hand-tighten the ClickLoc™ connectors until an audible click is achieved. Maintain the minimum specified cable bend radius to protect the coaxial core from degradation.
This probe is certified for hazardous locations under Option 05 (CSA, ATEX, IECEx). For intrinsically safe installations, refer to Bently Nevada installation drawings 141092 and 140979 to verify loop wiring and entity parameters: Ui = -28 V, Ii = 140 mA, Pi = 0.91 W, Ci = 1.5 nF, and Li = 610 uH.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-00-10-10-12-05
Country of origin:United States
Product Type: 3300 XL 8 mm Sonda di prossimità
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
