330101-00-32-05-01-CN | Bently Nevada | 3300 XL 8 mm Proximity Probes

Bently Nevada

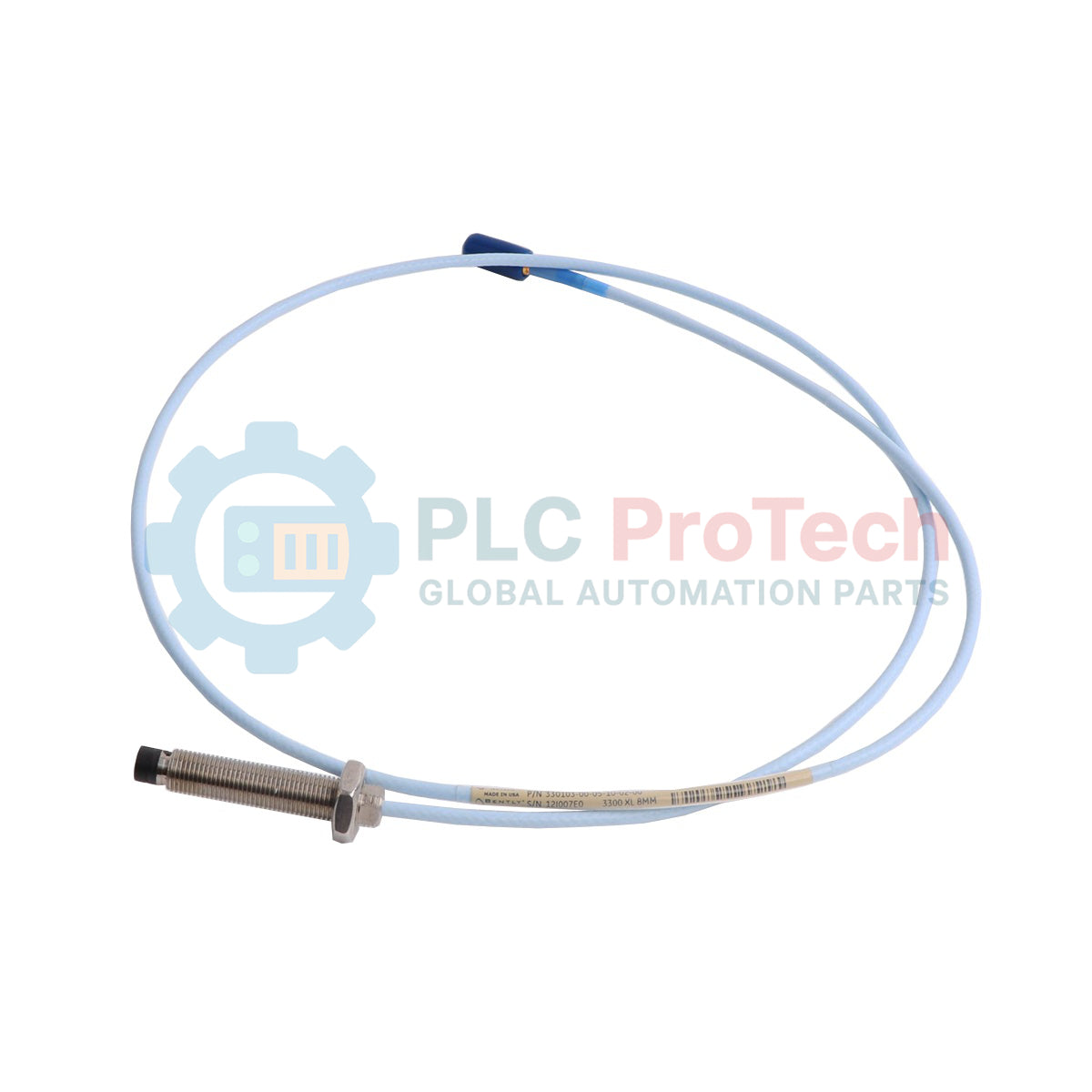

Bently Nevada 330101-00-32-05-01-CN 3300 XL 8 mm Proximity Probe

SKU 330101-00-32-05-01-CN

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330101-00-32-05-01-CN
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Payment: T/T, Western Union
  • Weight: 0.323 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330101-00-32-05-01-CN 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

Engineered for critical machinery protection and vibration monitoring, the Bently Nevada 330101-00-32-05-01-CN is an industrial-grade proximity probe belonging to the high-performance 3300 XL 8 mm series. This eddy current probe provides highly precise dynamic and static displacement measurements of rotating shafts in critical applications.

The sensor features a high-strength design with a polyphenylene sulfide (PPS) tip and a stainless steel case to withstand challenging industrial environments. Its integrated design ensures dependable sealing against differential pressures between the probe tip and case via a Viton O-ring. Operating as part of a complete transducer system, this probe works seamlessly with a compatible 3300 XL Proximitor sensor and extension cable to deliver robust, noise-immune signals to monitoring systems.

Features

  • Rugged polyphenylene sulfide (PPS) probe tip material for high chemical and thermal resistance.
  • Corrosion-resistant AISI 303 or AISI 304 stainless steel (SST) case structure.
  • Equipped with a miniature coaxial ClickLoc connector and integrated connector protector.
  • Differential pressure sealing using a high-durability Viton O-ring.
  • Flexible 0.5-meter standard cable optimized for industrial routing.

Applications

  • Steam and gas turbine shaft vibration and axial position monitoring.
  • Radial dynamic displacement measurements in high-speed compressors and pumps.
  • Thrust position measurements on critical gearboxes.
  • Hydroelectric generator shaft alignment and thermal expansion tracking.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330101-00-32-05-01-CN
Series 3300 XL 8 mm Series
Unthreaded Length 0.0 in
Overall Case Length 3.2 in
Total Length 0.5 meter (1.6 feet)
Connector Type Miniature coaxial ClickLoc connector with connector protector
Cable Type Standard coaxial cable
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 Stainless Steel (SST)
Sealing Element Viton O-ring
Agency Approvals Country-specific (CN Approvals Option)
Weight 0.323 kg (0.71 lbs)
Country of Origin USA

Installation Guidelines

  • Maintain proper side clearance around the probe tip to prevent calibration offsets from nearby metal surfaces.
  • Ensure the coaxial ClickLoc connector is dry and free of contaminants prior to joining.
  • Avoid exceeding recommended thread torque values during case mounting to prevent damage to the stainless steel threads.
  • Route the coaxial cable away from high-voltage conduits to prevent electromagnetic interference.

Compliance and Certifications

  • CN Country-Specific Safety Approvals.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the total cable length for the 330101-00-32-05-01-CN probe?
The probe is configured with the 05 option, which represents a total length of 0.5 meters (approximately 1.6 feet).
What kind of connector is used on this proximity probe?
This probe utilizes a miniature coaxial ClickLoc connector equipped with an integrated connector protector and standard cable.
What are the case and tip materials of the 330101-00-32-05-01-CN?
The case is made of AISI 303 or 304 stainless steel (SST), and the probe tip is made from durable polyphenylene sulfide (PPS).
Is the probe pressure tested before shipping?
Although designed to seal differential pressure between the tip and case with a Viton O-ring, 3300 XL 8 mm probes are not standardly pressure tested prior to shipment unless specifically requested as a custom order.
Reviews

More from this brand

Bently Nevada 168679-01-01-01-02-03-05-01-01-00-02-02 ADRE 408 DSPi Dynamic Signal Processing Instrument
168679-01-01-01-02-03-05-01-01-00-02-02Bently Nevada 168679-01-01-01-02-03-05-01-01-00-02-02 ADRE 408 DSPi Dynamic Signal Processing Instrument
Bently Nevada 3300/50-02-01-00-00 Tachometer Monitor
3300/50-02-01-00-00Bently Nevada 3300/50-02-01-00-00 Tachometer Monitor
Bently Nevada 3300/16-02-01-01-01-00-00 XY/GAP Dual Vibration Monitor
3300/16-02-01-01-01-00-00Bently Nevada 3300/16-02-01-01-01-00-00 XY/GAP Dual Vibration Monitor
Bently Nevada 87890-01 Monitor Circuit Assembly for 3300/03 System Monitor
87890-01Bently Nevada 87890-01 Monitor Circuit Assembly for 3300/03 System Monitor

330101-00-32-05-01-CN

Stock & lead time on request

Call
  • 330101-00-32-05-01-CN | Bently Nevada | 3300 XL 8 mm Proximity Probes
1 1

Bently Nevada 330101-00-32-05-01-CN 3300 XL 8 mm Proximity Probe

Only 7 item(s) left in stock

  • Manufacturer: Bently Nevada

  • Product No.: 330101-00-32-05-01-CN

  • Country of origin:United States

  • Product Type: 3300 XL 8 mm Proximity Probe

  • Payment: T/T, Western Union

  • Weight: 323g

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Engineered for critical machinery protection and vibration monitoring, the Bently Nevada 330101-00-32-05-01-CN is an industrial-grade proximity probe belonging to the high-performance 3300 XL 8 mm series. This eddy current probe provides highly precise dynamic and static displacement measurements of rotating shafts in critical applications.

The sensor features a high-strength design with a polyphenylene sulfide (PPS) tip and a stainless steel case to withstand challenging industrial environments. Its integrated design ensures dependable sealing against differential pressures between the probe tip and case via a Viton O-ring. Operating as part of a complete transducer system, this probe works seamlessly with a compatible 3300 XL Proximitor sensor and extension cable to deliver robust, noise-immune signals to monitoring systems.

Features

  • Rugged polyphenylene sulfide (PPS) probe tip material for high chemical and thermal resistance.
  • Corrosion-resistant AISI 303 or AISI 304 stainless steel (SST) case structure.
  • Equipped with a miniature coaxial ClickLoc connector and integrated connector protector.
  • Differential pressure sealing using a high-durability Viton O-ring.
  • Flexible 0.5-meter standard cable optimized for industrial routing.

Applications

  • Steam and gas turbine shaft vibration and axial position monitoring.
  • Radial dynamic displacement measurements in high-speed compressors and pumps.
  • Thrust position measurements on critical gearboxes.
  • Hydroelectric generator shaft alignment and thermal expansion tracking.

Technical Specifications

Manufacturer Bently Nevada
Part Number 330101-00-32-05-01-CN
Series 3300 XL 8 mm Series
Unthreaded Length 0.0 in
Overall Case Length 3.2 in
Total Length 0.5 meter (1.6 feet)
Connector Type Miniature coaxial ClickLoc connector with connector protector
Cable Type Standard coaxial cable
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 Stainless Steel (SST)
Sealing Element Viton O-ring
Agency Approvals Country-specific (CN Approvals Option)
Weight 0.323 kg (0.71 lbs)
Country of Origin USA

Installation Guidelines

  • Maintain proper side clearance around the probe tip to prevent calibration offsets from nearby metal surfaces.
  • Ensure the coaxial ClickLoc connector is dry and free of contaminants prior to joining.
  • Avoid exceeding recommended thread torque values during case mounting to prevent damage to the stainless steel threads.
  • Route the coaxial cable away from high-voltage conduits to prevent electromagnetic interference.

Compliance and Certifications

  • CN Country-Specific Safety Approvals.
Key Features:
#3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330101-00-32-05-01-CN 3300 XL 8 mm Proximity Probe

Download Open in new tab

What is the total cable length for the 330101-00-32-05-01-CN probe?
The probe is configured with the 05 option, which represents a total length of 0.5 meters (approximately 1.6 feet).

What kind of connector is used on this proximity probe?
This probe utilizes a miniature coaxial ClickLoc connector equipped with an integrated connector protector and standard cable.

What are the case and tip materials of the 330101-00-32-05-01-CN?
The case is made of AISI 303 or 304 stainless steel (SST), and the probe tip is made from durable polyphenylene sulfide (PPS).

Is the probe pressure tested before shipping?
Although designed to seal differential pressure between the tip and case with a Viton O-ring, 3300 XL 8 mm probes are not standardly pressure tested prior to shipment unless specifically requested as a custom order.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
