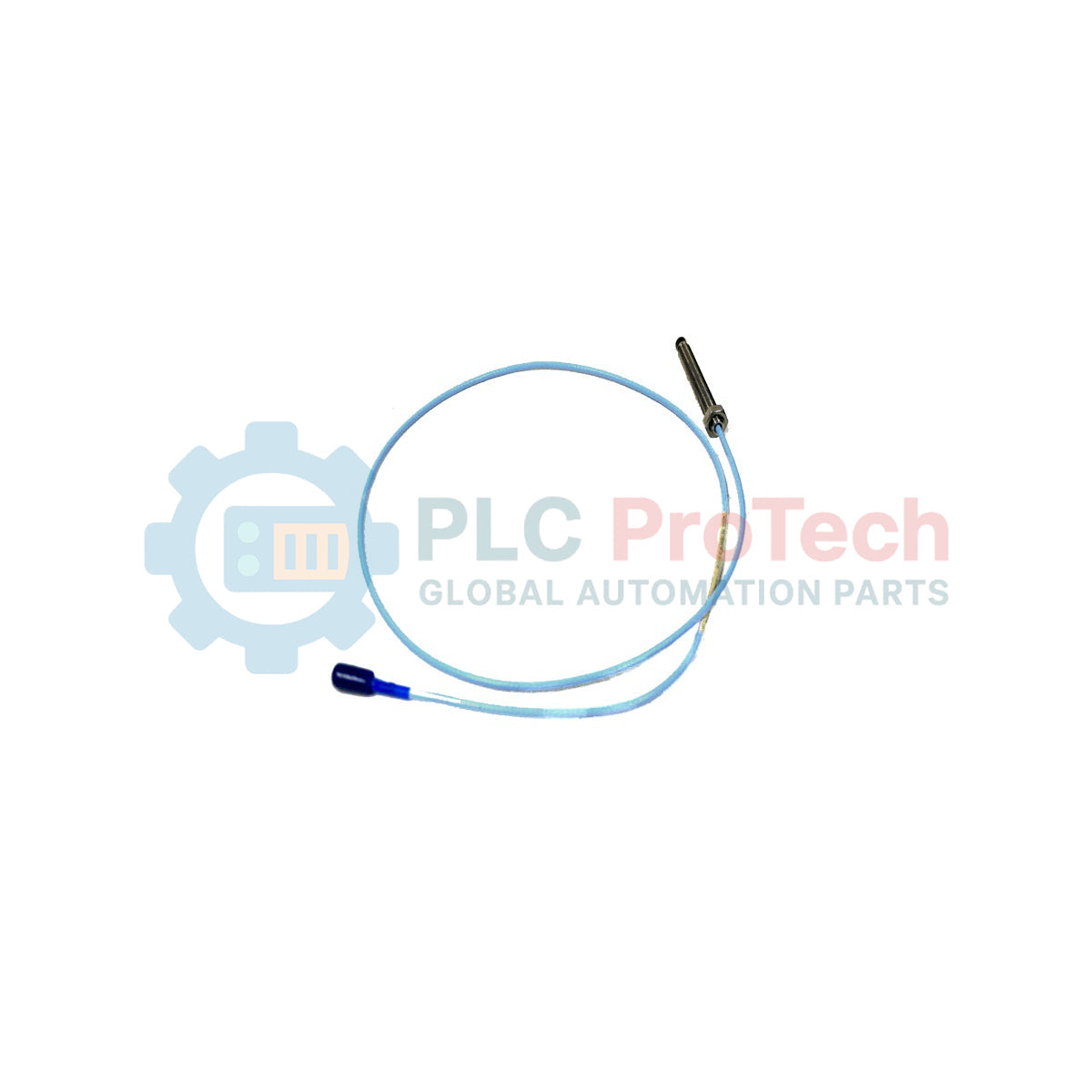

Engineered for critical machinery displacement and vibration monitoring, the Bently Nevada 330101-39-63-10-02-CN provides robust eddy current sensing performance within the 3300 XL 8 mm Series transducer system. This sensor operates on high-frequency electromagnetic principles to track micro-level shaft movement, ensuring reliable diagnostic data input for plant safety and asset protection networks. Designed to withstand harsh industrial atmospheres, it features a 3/8-24 UNF unarmored thread configuration, combining high mechanical durability with strict electrical precision to maintain calibrated performance over extensive operational life cycles.
| Option Code | Selected Parameter Value | Engineering Definition |
|---|---|---|
| 330101 | 3/8-24 UNF thread, without armor | Standard non-armored probe housing with standard US threads |
| 39 | 3.9 inches | Unthreaded length of the metal probe barrel |
| 63 | 6.3 inches | Total physical case length of the threaded probe body |
| 10 | 1.0 meter (3.3 feet) | Total integrated cable length |
| 02 | Miniature coaxial ClickLoc, standard cable | Standard non-armored cable with click-lock connector interface |
| CN | China Specific Approvals | Region-specific safety and explosion protection certifications |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) when paired with matching Proximitor |
| Linear Range | 2.0 mm (80 mils) starting at approximately 0.25 mm (10 mils) from the face |
| Thread Size | 3/8-24 UNF-2A |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Operating Temperature Range | -51 to +177 degC (-60 to +350 degF) |
| Connector Type | Gold-plated brass ClickLoc miniature coaxial connector |
| Country of Origin | United States of America (USA) |
| Shipping Weight (Calculated) | 1.5 kg (3.3 lbs) |
To ensure correct system calibration and noise rejection during turbine commissioning, implement the following industrial installation practices:
CRITICAL WARNING
Verify complete machinery de-energization and ensure the shaft has come to a total mechanical standstill before executing installation. Do not exceed the maximum installation torque rating of 11 N-m (100 in-lb) for the 3/8-24 UNF casing to prevent mechanical shearing of the threaded barrel.
Carefully thread the probe into the mounting bracket or casing by hand to avoid cross-threading. Secure the locknut to the recommended torque limit once final depth is reached.
Route the integrated 1.0-meter coaxial cable through protective industrial conduit, ensuring minimum bend radius rules (25.4 mm / 1.0 inch) are followed to avoid internal signal conductor damage.
Join the coaxial ClickLoc connector to the extension cable terminal, ensuring the outer sleeve locks securely with an audible snap. Ensure the shield integrity is maintained up to the control panel termination block.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-39-63-10-02-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
