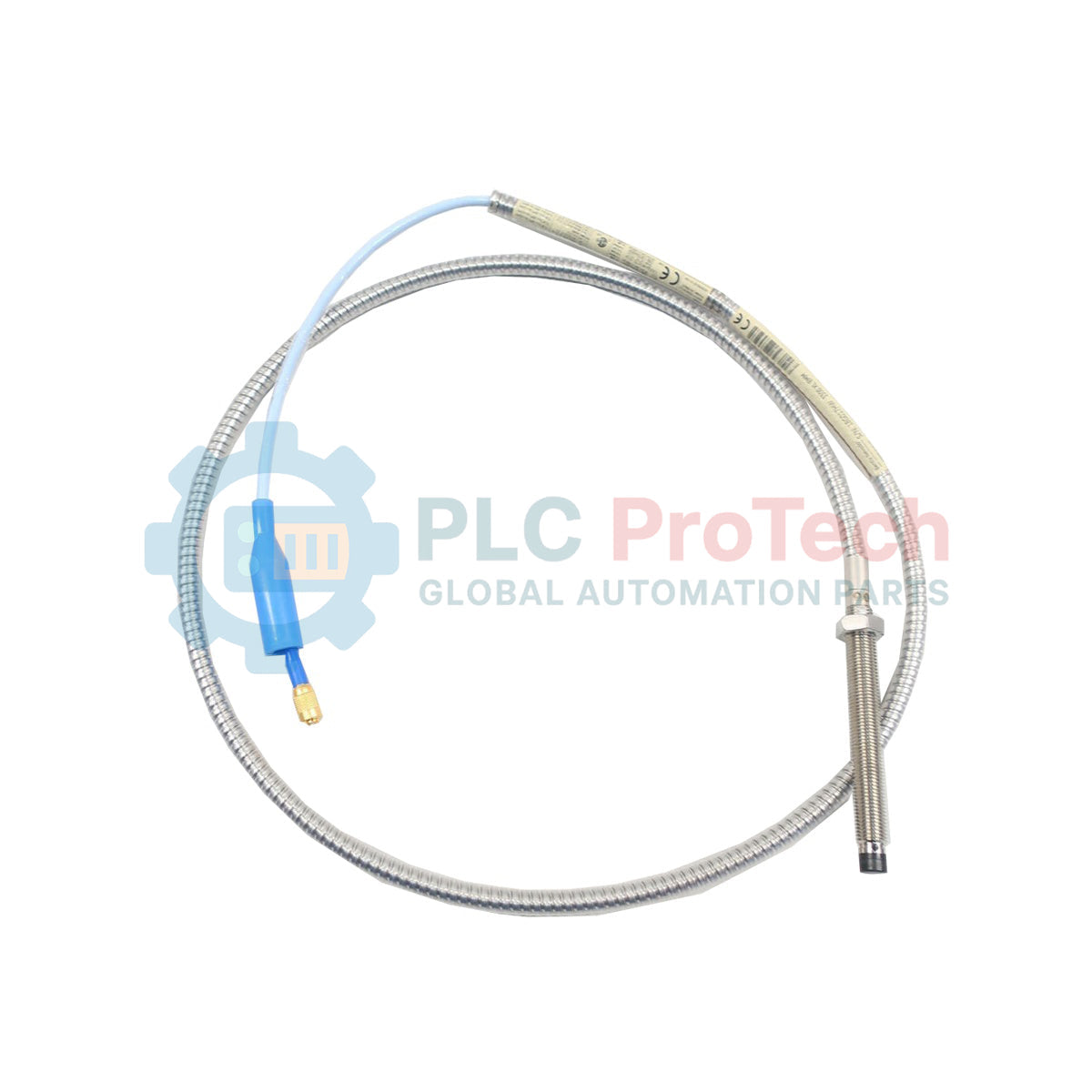

Engineered for heavy-duty machinery asset monitoring, the Bently Nevada 330102-00-14-10-02-00 3300 XL 8mm Proximity Probe delivers high-precision, non-contact dynamic displacement and static shaft position measurements. This probe is a critical sensing element designed for integration into API 670-compliant machinery protection systems, offering exceptional stability, linearity, and thermal performance in demanding industrial environments.
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Reference | 330102-00-14-10-02-00 |
| Product Series | 3300 XL 8 mm Proximity Probes |
| Unthreaded Length Option | 0 inches (00) |
| Overall Case Length Option | 1.4 inches (14) |
| Total Length Option | 1.0 meter / 3.3 feet (10) |
| Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable (02) |
| Agency Approval Option | Not required (00) |
| Country of Origin | United States |
| Shipping Weight (Calculated) | 1.5 kg |
| Component / Terminal | Functional Assignment |
|---|---|
| ClickLoc Coaxial Connector | High-frequency RF signal path to Proximitor Sensor / Extension Cable |
| Coaxial Shield | Inner shield signal return / common ground reference |
The 330102 series is highly compatible across the 3300 XL product family. Always ensure that the combined length of your probe and extension cable equals the exact calibration length required by the Proximitor Sensor (typically 5.0 meters or 9.0 meters total system length). Mixing a 1.0-meter probe with an incompatible extension cable or a non-matching Proximitor model will cause severe scale factor errors, degrading accuracy beyond API 670 limits.
When deploying the probe inside tight machine housings, maintain a minimum side clearance of at least three times the probe tip diameter (24 mm) from any surrounding structural metals. Failure to do so leads to "side-sensing" or "cross-talk," which artificially biases the DC gap voltage and disrupts accurate dynamic displacement measurement of the shaft target material.
During commissioning, use a calibrated digital multimeter to monitor the DC gap voltage at the Proximitor Sensor terminals. Adjust the probe depth until the output reads approximately -10.0 VDC, indicating that the probe is physically positioned at the center of its 80-mil (2.0 mm) linear operating range. Always apply a ClickLoc connector protection kit to seal connection points from oil contamination in the wet-sump areas of turbines or compressors.
Clean the threaded installation port of any old thread sealant or debris using a matching thread tap or solvent.
Carefully thread the probe into the mounting bracket or housing by hand to prevent cross-threading.
Hook up the probe ClickLoc connector to the extension cable, ensuring the lock mechanism clicks securely into place, then apply protective heat-shrink tubing if required.
