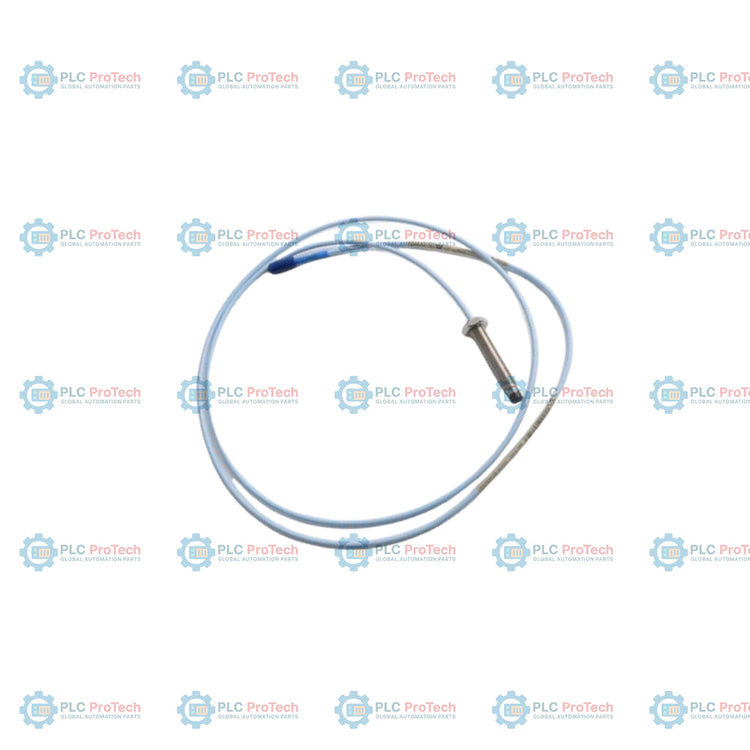

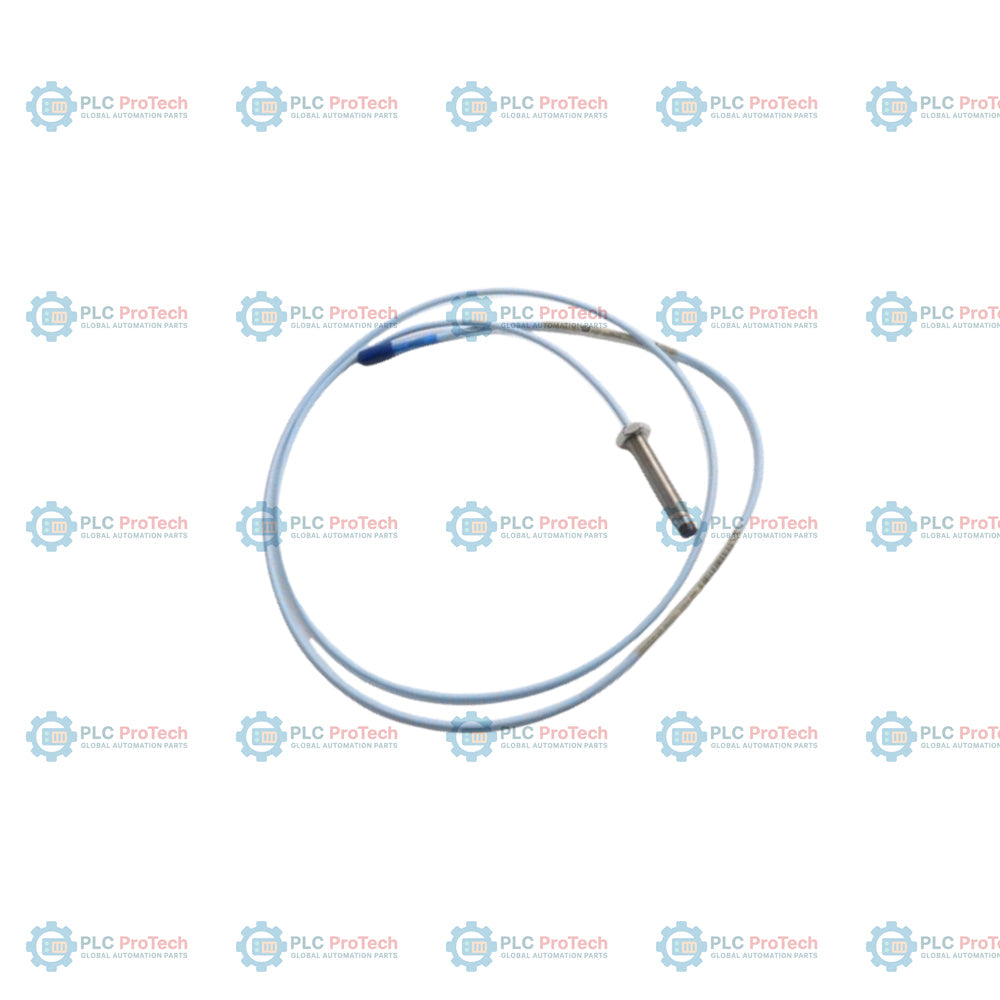

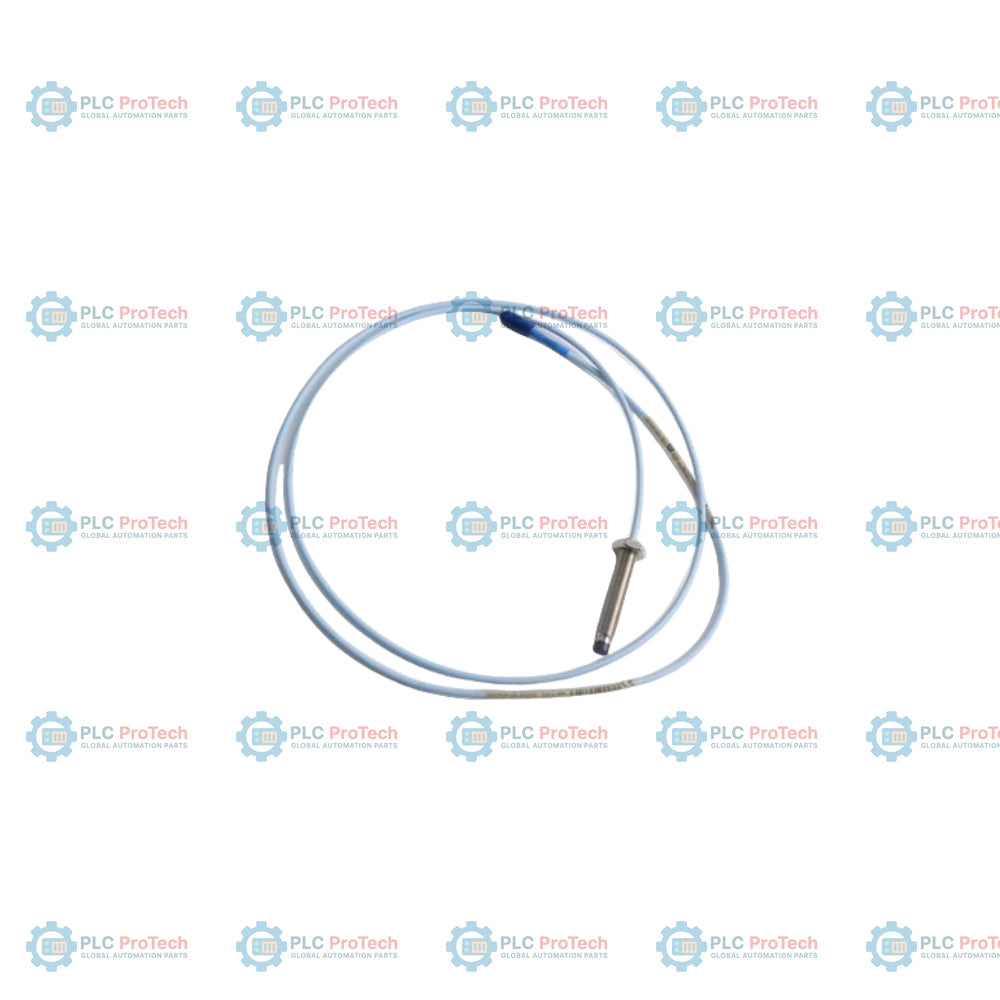

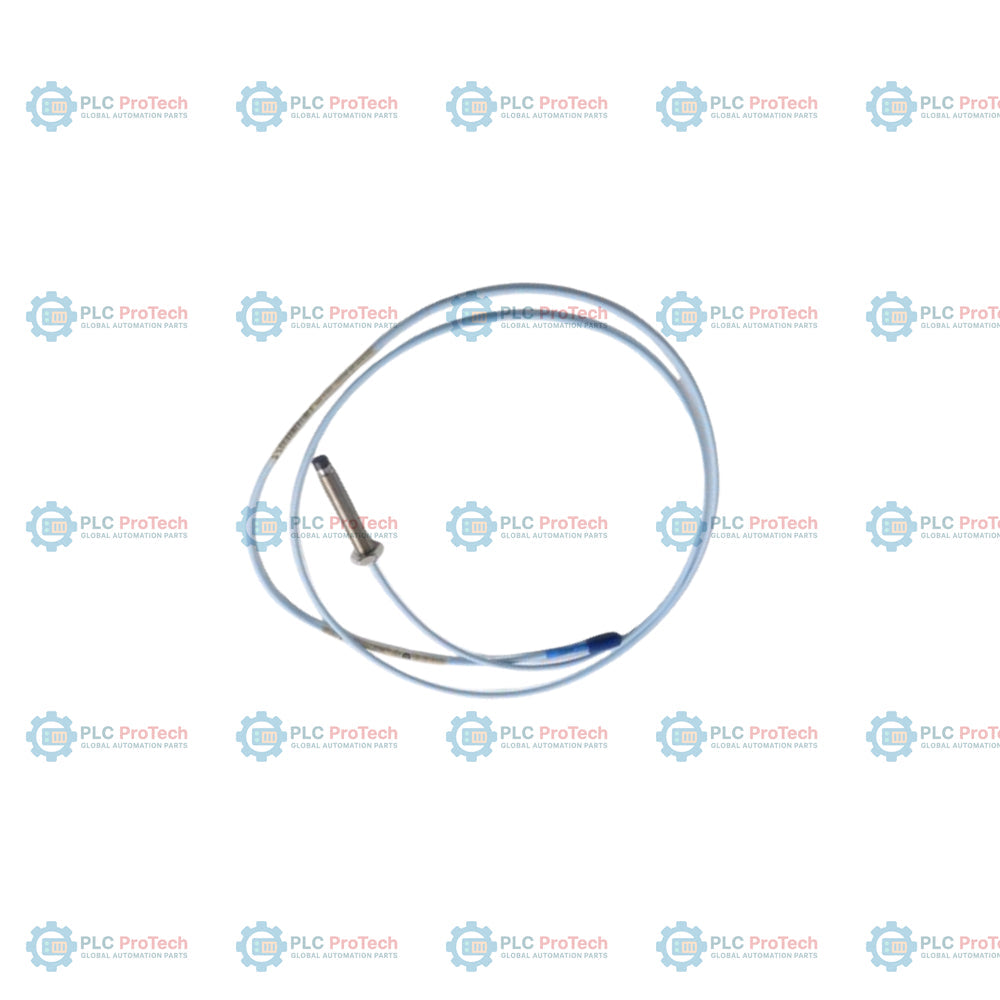

Fully threaded M10 x 1 metric probe body (Option 00) with a 60 mm case length (Option 06) and 1.5-meter total length (Option 15) defines the 330103-00-06-15-02-CN, a non-armored 3300 XL 8 mm proximity probe. This configuration is manufactured with a miniature coaxial ClickLoc connector and includes the specialized -CN suffix, indicating it is certified under the China hazardous area approval package for local explosive environment compliance.
Unlike armored sibling configurations or variants designed with custom unthreaded lengths, this probe features a 0 mm unthreaded length to allow deep mounting in industrial machine cases where a fully threaded metric sheath is required. It integrates with standard 3300 XL extension cables and Proximitor sensors to form a complete eddy-current measurement system. The system measures shaft vibration, thermal expansion, and axial displacement on critical rotating machinery such as turbines, compressors, and large industrial pumps.
This proximity probe is used in machinery protection systems to monitor rotating assets in heavy industries, specifically where Chinese hazardous area certifications are mandatory. Common environments include:
| Segment | Option Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-00-06-15-02-CN | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor, with China approvals |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 06 | 60 mm overall case length |
| C - Total Length Option | 15 | 1.5 meters (4.9 feet) total system length |
| D - Connector and Cable-Type Option | 02 | Miniature ClickLoc coaxial connector, standard cable |
| Suffix | -CN | China hazardous area approval package (NEPSI + CCC markings) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330103-00-06-15-02-CN |
| Base Model | 330103 |
| Thread Size | M10 x 1 |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Length | 1.5 meters (4.9 feet) |
| Cable Type | 75 Ohm triaxial, FEP-insulated |
| Connector Type | Miniature gold-plated ClickLoc coaxial connector |
| Armor Option | Without armor |
| Nominal DC Resistance (R_PROBE) | 7.73 +/- 0.50 Ohms (center conductor to outer conductor) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Operating and Storage Temperature | -52 degC to +177 degC |
| Tensile Strength (Maximum Rated) | 330 N (75 lbf) probe case to probe lead |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.15 kg |
| Dimensions | 60 mm x 10 mm x 1500 mm (H x W x D) |
To ensure structural integrity and correct electrical measurements during installation, follow these technical guidelines:
This specific configuration is certified under the following industrial and safety standards:
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-06-15-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 150g
Dimensions: 60 mm x 10 mm x 1500 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
