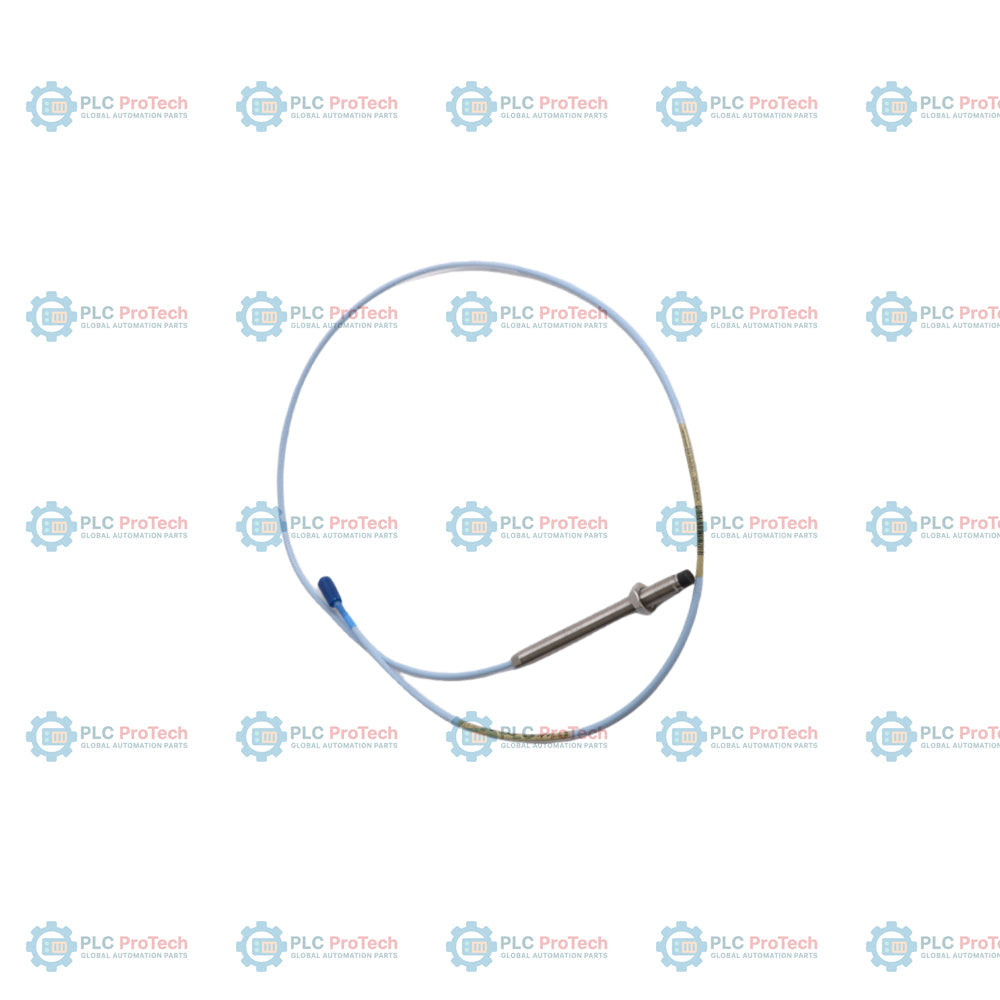

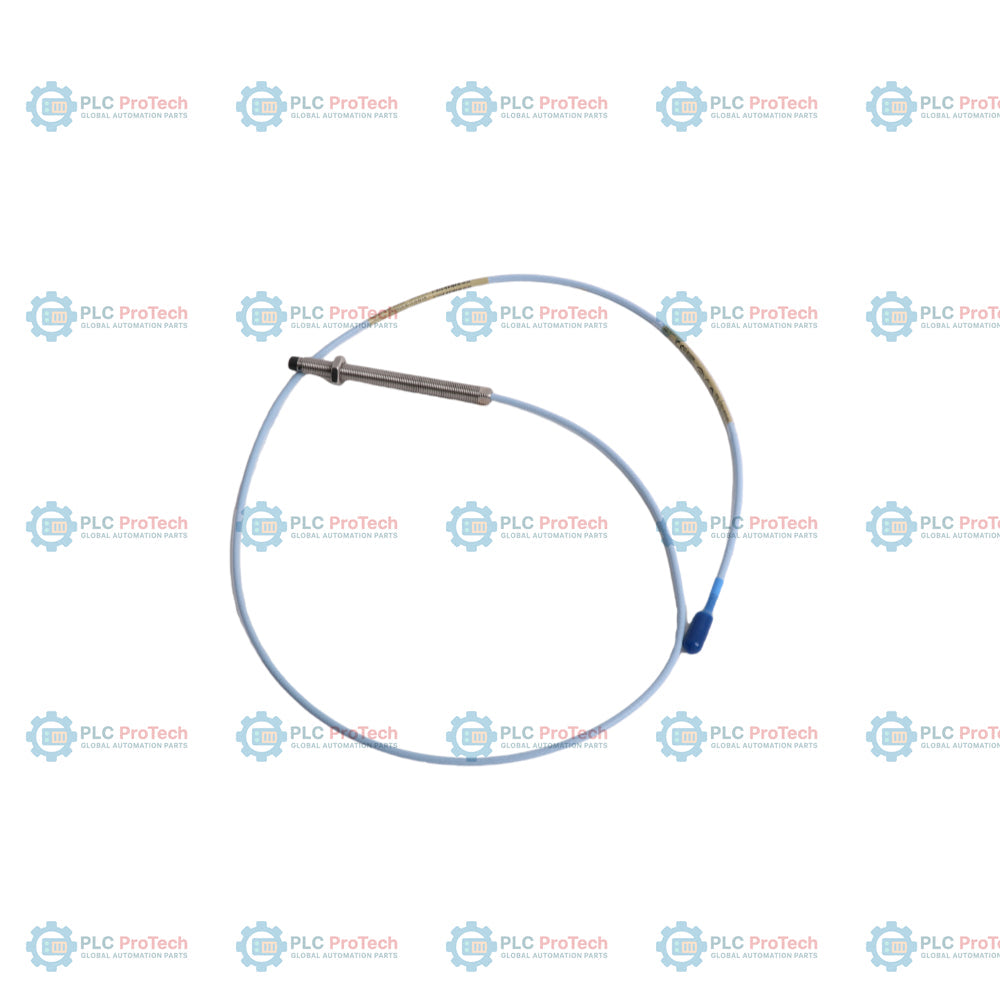

The 330103-00-11-10-02-CN is a high-precision 3300 XL 8 mm proximity probe designed for non-contact eddy-current displacement measurement in critical machinery monitoring applications. This specific configuration features an M10 x 1 thread with a 0 mm unthreaded length (Option 00) and an 110 mm case length (Option 11). It is terminated with a standard miniature coaxial ClickLoc connector (Option 02) and includes a 1.0 m total system length (Option 10). The -CN suffix indicates that this unit is supplied with the China hazardous area approval package, including NEPSI and CCC certifications.
As part of the Bently Nevada 3300 XL transducer system, this probe works with 3300 XL Proximitor sensors and extension cables to provide reliable gap, vibration, and position data. The M10 x 1 thread construction offers robust mounting for rotating machinery applications, such as steam turbines, gas compressors, and industrial motors. The ClickLoc connector provides a secure, vibration-resistant connection while ensuring signal integrity throughout the monitoring chain.
The 330103 8 mm proximity probe is utilized in heavy-industry sectors, including power generation, petrochemical refining, and oil and gas processing. It is primarily used for:
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-00-11-10-02-CN | 3300 XL 8 mm Proximity Probe, M10 x 1 |
| A - Unthreaded Length | 00 | 0 mm unthreaded length |
| B - Case Length | 11 | 110 mm case length |
| C - Total Length | 10 | 1.0 meter (3.3 feet) |
| D - Connector/Cable | 02 | Miniature ClickLoc connector, standard cable |
| Suffix | -CN | China hazardous area approval package |
| Manufacturer | Bently Nevada |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Cable Type | Standard coaxial (non-armored) |
| Connector | Miniature coaxial ClickLoc |
| Total Length | 1.0 m |
| Linear Range | 2 mm (80 mils) |
| Temperature Range | -51 degC to +177 degC |
Ensure that the probe is installed with the correct gap (typically 1.27 mm or 50 mils) from the target surface. When routing the cable, use conduit or cable trays to prevent mechanical damage and minimize exposure to high-temperature or abrasive environments. For applications in hazardous areas, ensure that all connections to the Proximitor sensor and associated I/O modules adhere to local safety regulations and the specific control drawings provided with the NEPSI/CCC certification documentation.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-11-10-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
