Description

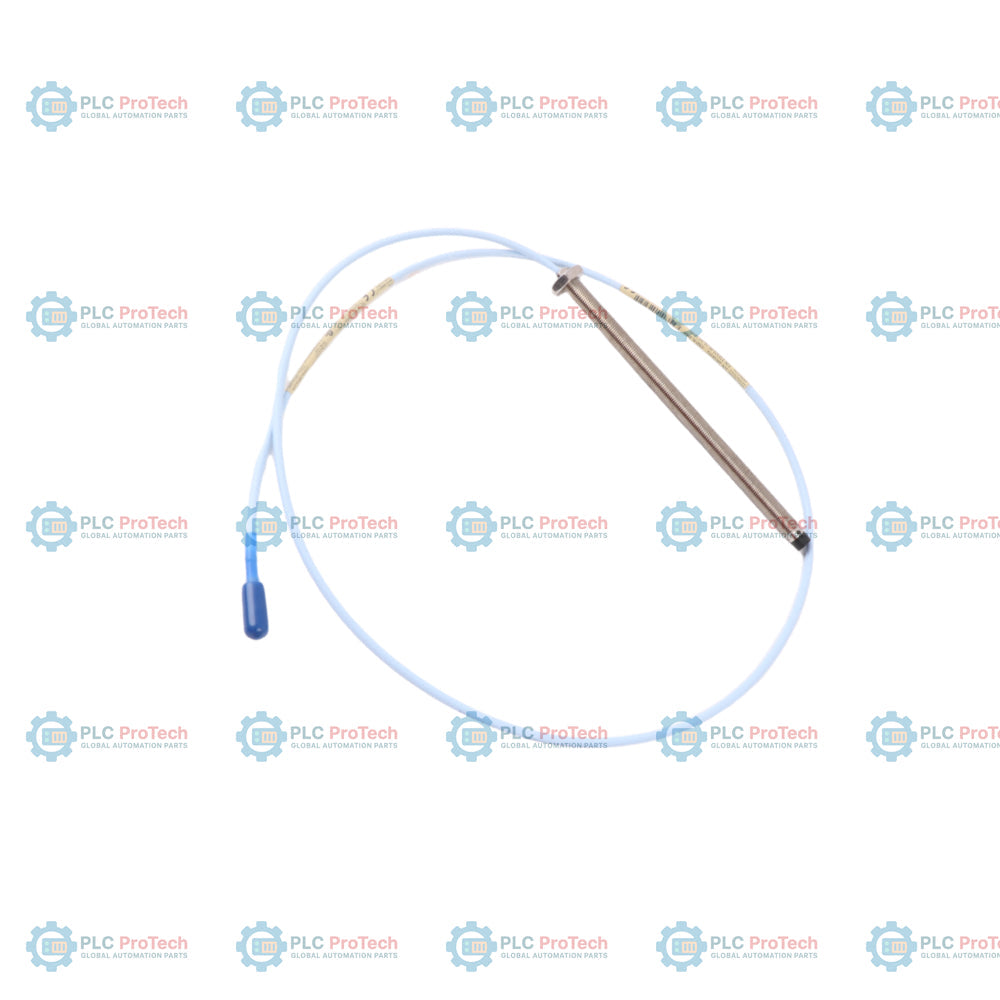

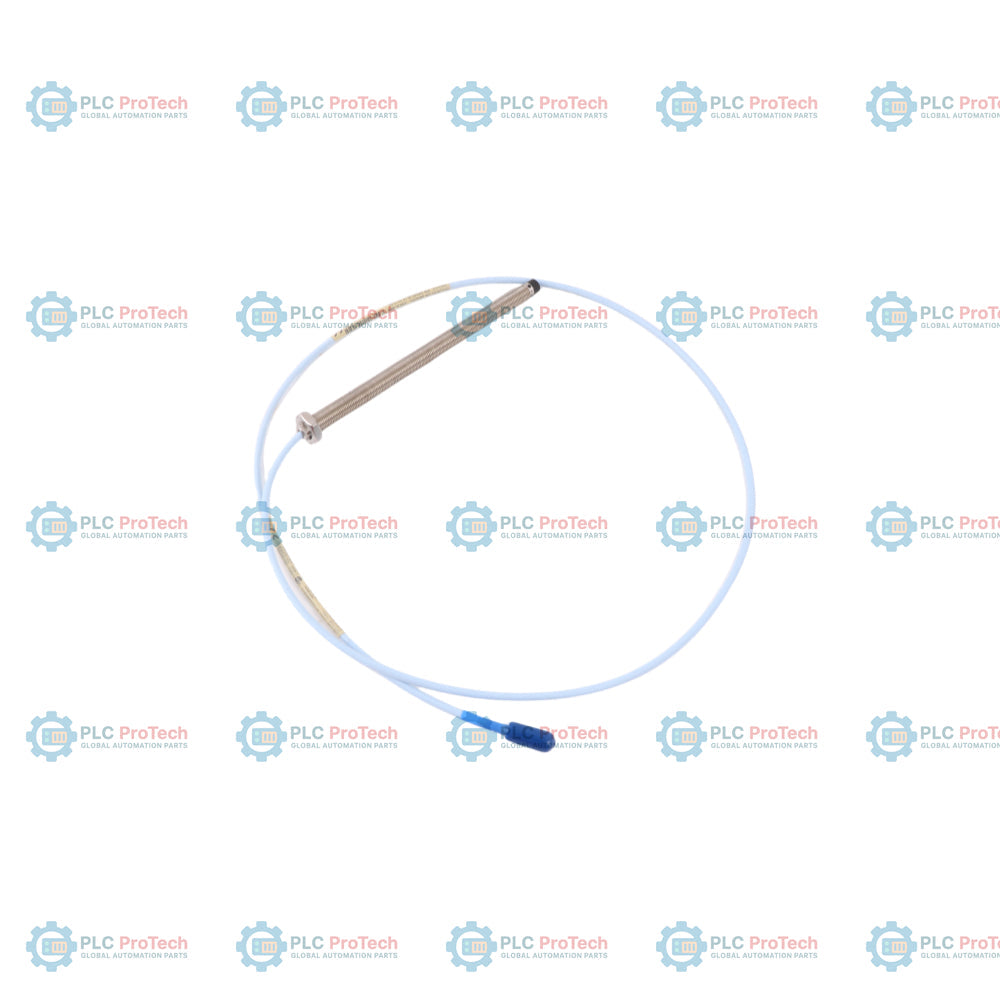

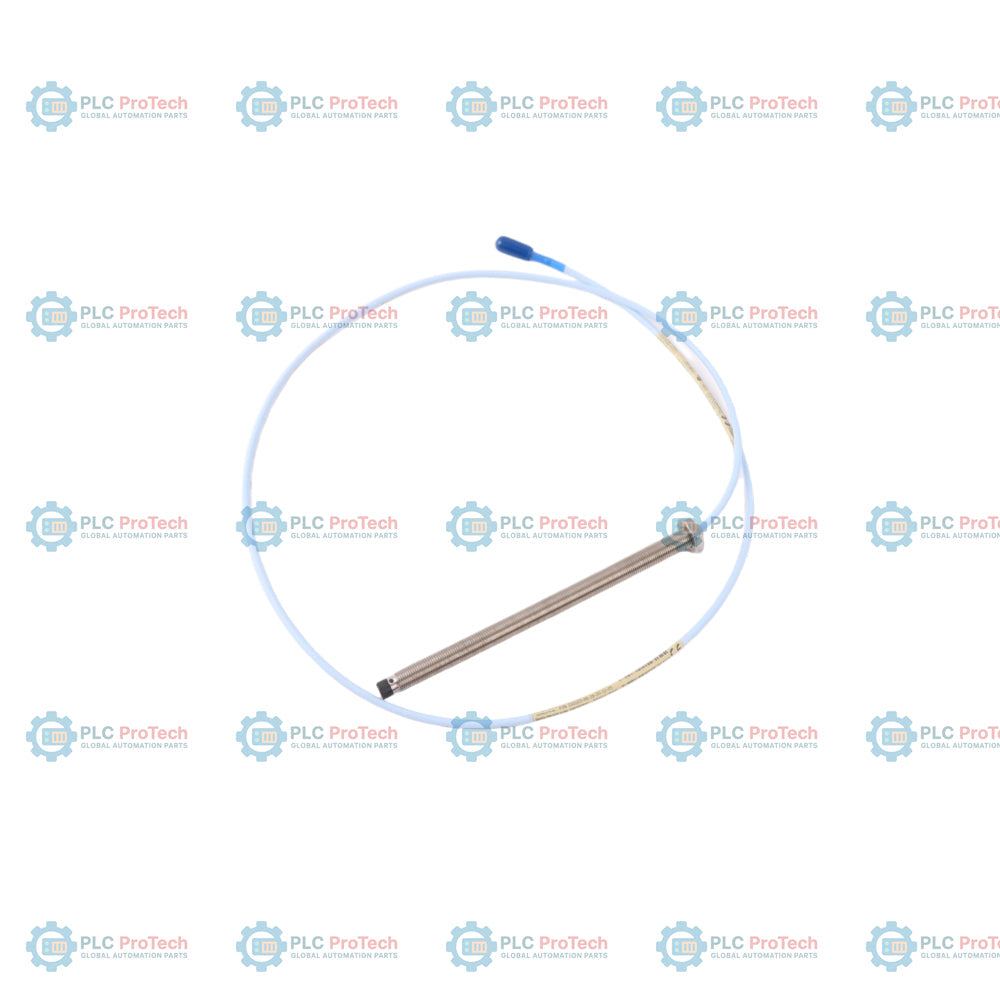

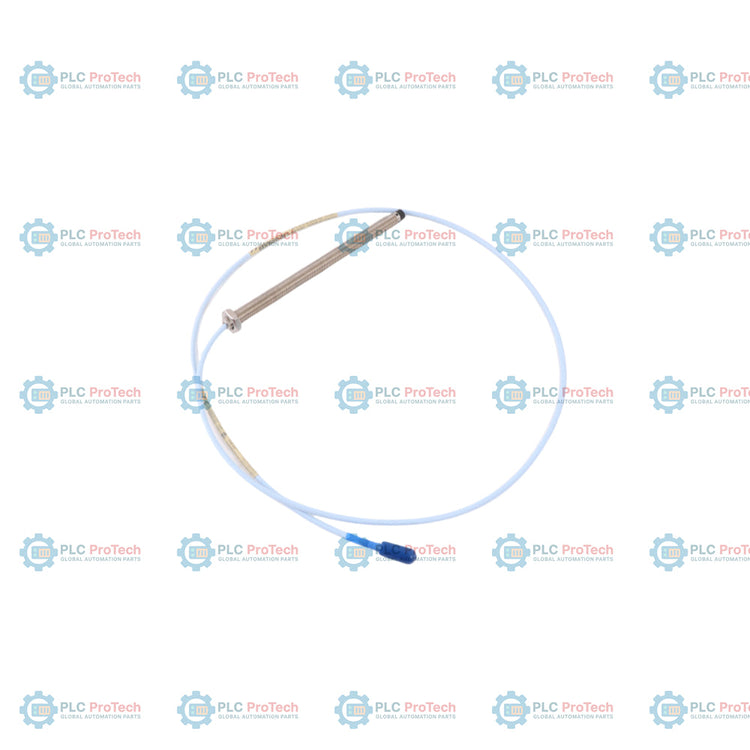

330103-00-16-10-12-05: 3300 XL 8 mm proximity probe, M10 x 1 thread, Option 00 (0.0 mm unthreaded length), Option 16 (160 mm case length), Option 10 (1.0 m total length), Option 12 (Miniature ClickLoc connector, FluidLoc cable), Option 05 (CSA/ATEX/IECEx approvals). This eddy-current displacement probe serves as a key element of the 3300 XL 8 mm proximity transducer system, designed for non-contact measurement of shaft vibration and axial position on critical rotating machinery. The 3300 XL 8 mm probe utilizes an M10 x 1 threaded body, distinguishing it from 3/8-24 UNF variants. This configuration includes a FluidLoc cable (Option 12), which features a specialized seal to prevent oil and other liquids from migrating through the interior of the cable, making it ideal for applications requiring enhanced protection against fluid leakage.

Features

• M10 x 1 probe thread size for metric installation requirements
• Option 00 (0.0 mm unthreaded length) for maximum installation flexibility
• Option 16 (160 mm overall case length)
• Option 10 (1.0 m total system length)
• Option 12 (Miniature ClickLoc connector with FluidLoc cable for superior fluid sealing)
• Option 05 (CSA, ATEX, IECEx hazardous area approvals)
• Compatible with 3300 XL Proximitor sensors and extension cables for complete transducer chain monitoring

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position measurement
• Critical rotating machinery protection
• Fluid-tight environments where cable oil-sealing is required

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330103-00-16-10-12-05	3300 XL 8 mm proximity probe, M10 x 1 thread
A - Unthreaded Length	00	0.0 mm unthreaded length
B - Overall Case Length	16	160 mm case length
C - Total Length	10	1.0 meter
D - Connector/Cable	12	Miniature ClickLoc connector, FluidLoc cable
E - Agency Approval	05	CSA, ATEX, IECEx Approvals

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330103-00-16-10-12-05
Probe Diameter	8.0 mm
Thread Size	M10 x 1
Case Length	160 mm
Unthreaded Length	0.0 mm
Total System Length	1.0 meter
Connector Type	Miniature ClickLoc
Cable Type	FluidLoc
Hazardous Area Approvals	CSA, ATEX, IECEx

Installation Guidelines

• Ensure the probe gap is set according to the 3300 XL system manual (typically -1.25 Vdc).
• Use appropriate mounting brackets (e.g., M10 x 1 threaded mounting brackets) to secure the probe.
• Maintain correct cable routing and shielding practices to minimize electrical interference.
• The Proximitor sensor must be installed in an enclosure that provides at least IP54 protection when used in hazardous area applications.
