Description

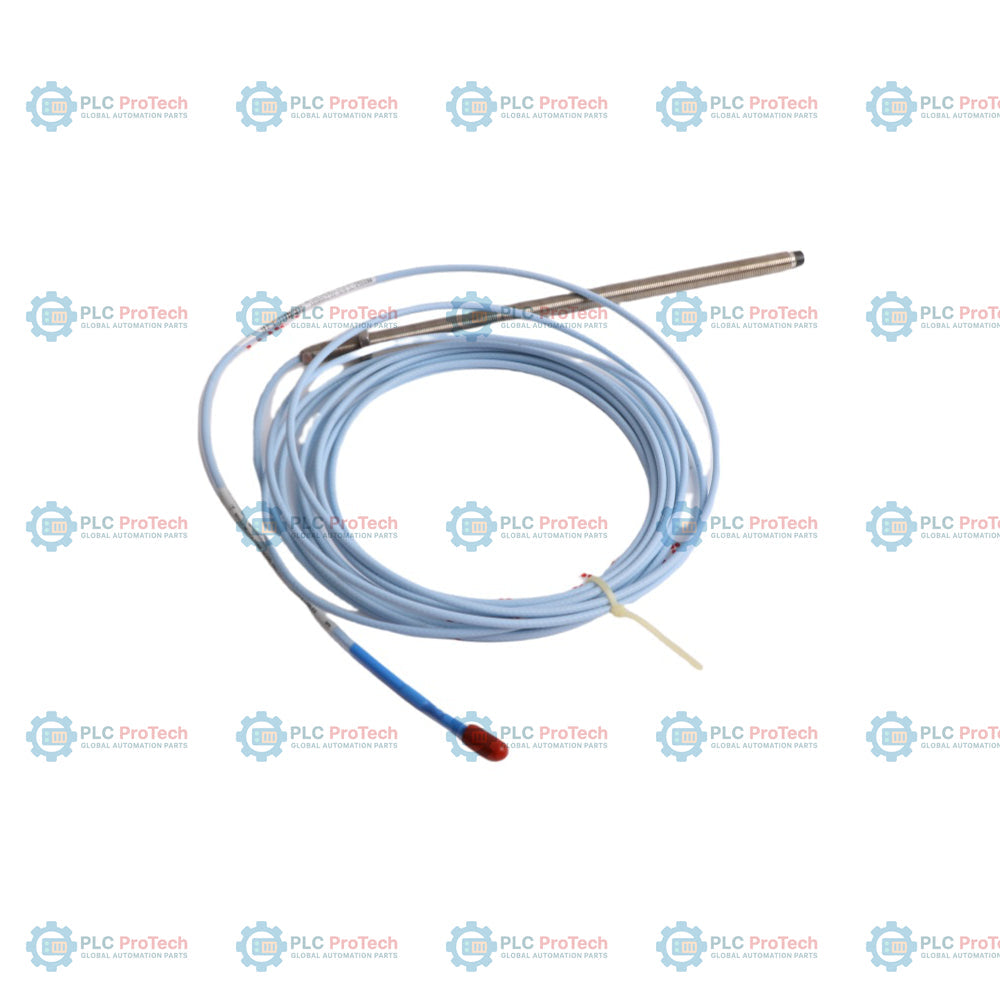

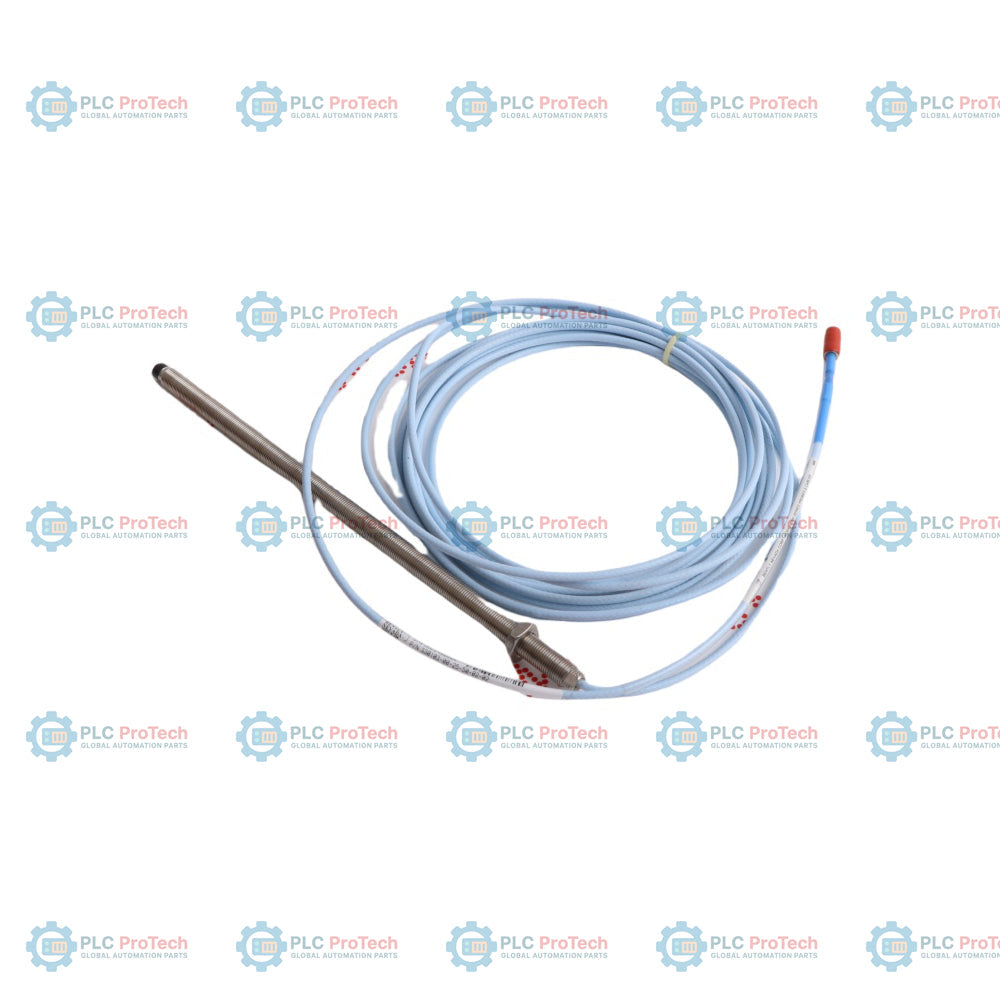

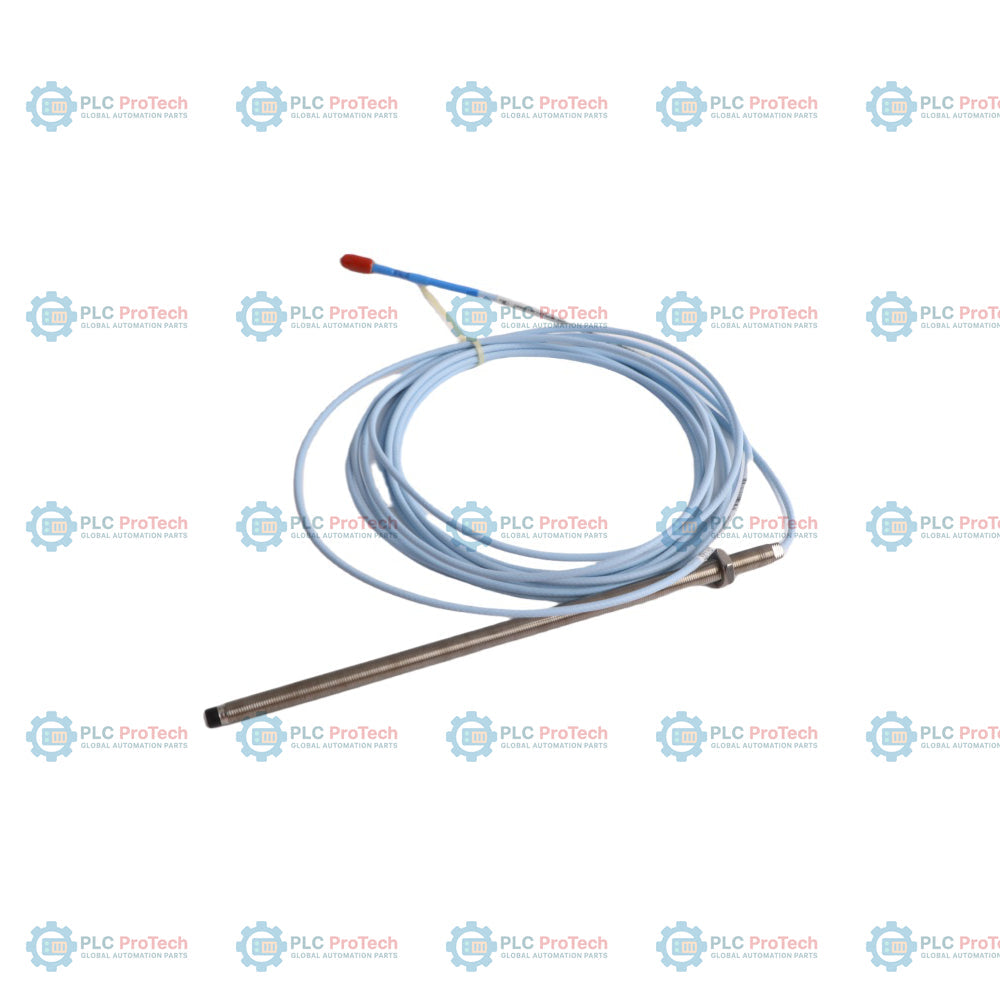

330103-00-25-10-02-00 is a 3300 XL 8 mm proximity probe configuration featuring an M10 x 1 thread, 0.0 in unthreaded length (Option 00), and a 2.5 in case length (Option 25). This sensor is designed for non-contact eddy-current displacement measurement within 3300 XL monitoring chains, providing precise shaft vibration and axial position data for critical rotating machinery. This configuration includes a 1.0 m total system length (Option 10) and is equipped with a miniature coaxial ClickLoc connector (Option 02) for reliable signal transmission. It is supplied without agency approvals (Option 00) and without armor. This probe is part of the 3300 XL 8 mm transducer system, which is fully backward compatible with earlier 3300-series systems.

Features

• M10 x 1 threaded probe body
• 2.5 in case length
• 0.0 in unthreaded length
• 1.0 m total system length
• Miniature coaxial ClickLoc connector (standard cable)
• Compatible with 3300 XL Proximitor sensors and extension cables

Applications

• Turbine and compressor shaft vibration monitoring
• Rotor axial position measurement
• Critical rotating machinery protection
• General eddy-current displacement sensing in industrial environments

Ordering Information

Option	Code	Description
Orderable Part Number	330103-00-25-10-02-00	3300 XL 8 mm Proximity Probe, M10 x 1
A - Unthreaded Length	00	0.0 in
B - Case Length	25	2.5 in
C - Total Length	10	1.0 m
D - Connector/Cable	02	Miniature ClickLoc, standard cable
E - Agency Approval	00	Not required

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330103-00-25-10-02-00
System Type	3300 XL 8 mm Proximity Transducer System
Probe Diameter	8 mm
Thread Size	M10 x 1
Unthreaded Length	0.0 in
Case Length	2.5 in
Total Length	1.0 m
Connector Type	Miniature coaxial ClickLoc
Cable Type	Standard
Armor	None
Agency Approvals	None (Option 00)

Installation Guidelines

• Ensure the probe is installed with the correct gap as specified by the 3300 XL system manual for the target machinery.
• The M10 x 1 thread requires a compatible mounting bracket or machine housing.
• Keep the coaxial cable routed away from high-voltage lines or significant electromagnetic interference to maintain signal integrity.
• Standard ClickLoc connectors should be hand-tightened; ensure the connection is secure and protected if environmental moisture is present.

Compliance and Certifications

• CE compliant (General standards for industrial monitoring equipment)
• Designed for compatibility with 3300 XL system components meeting local industrial safety requirements
