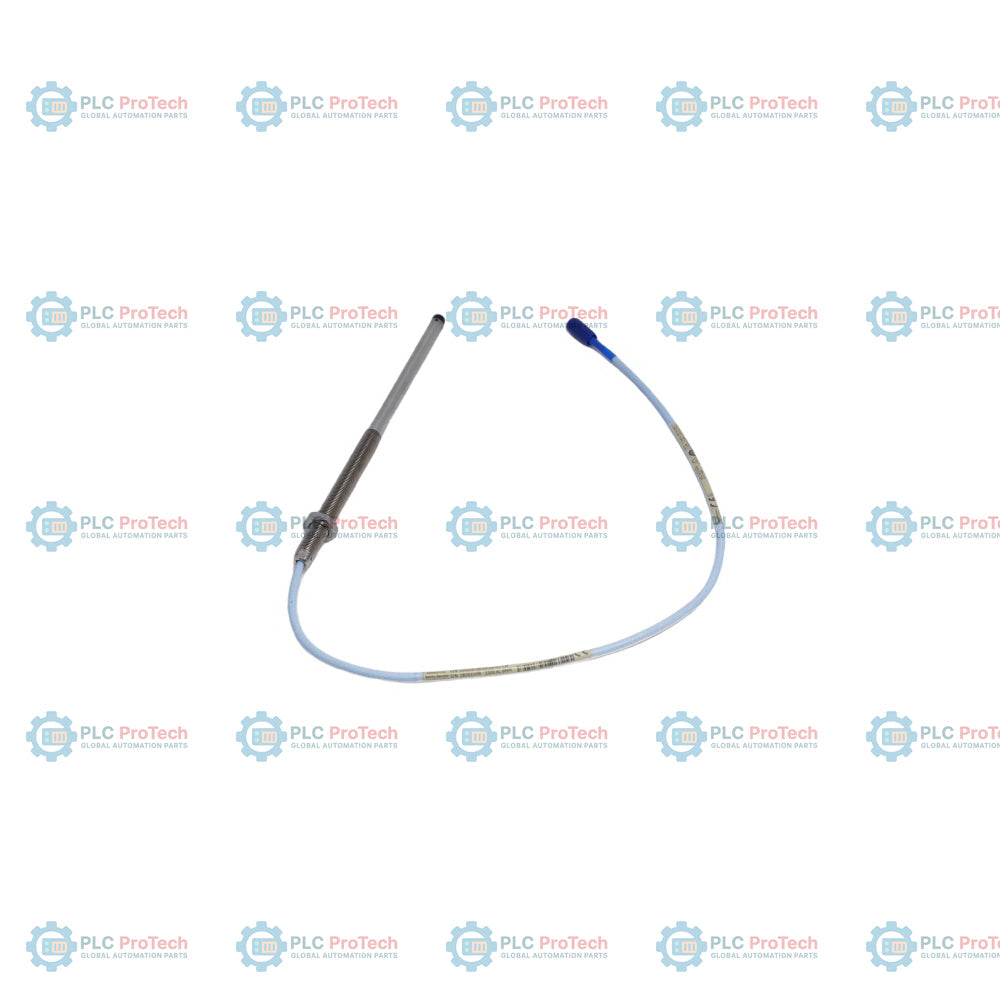

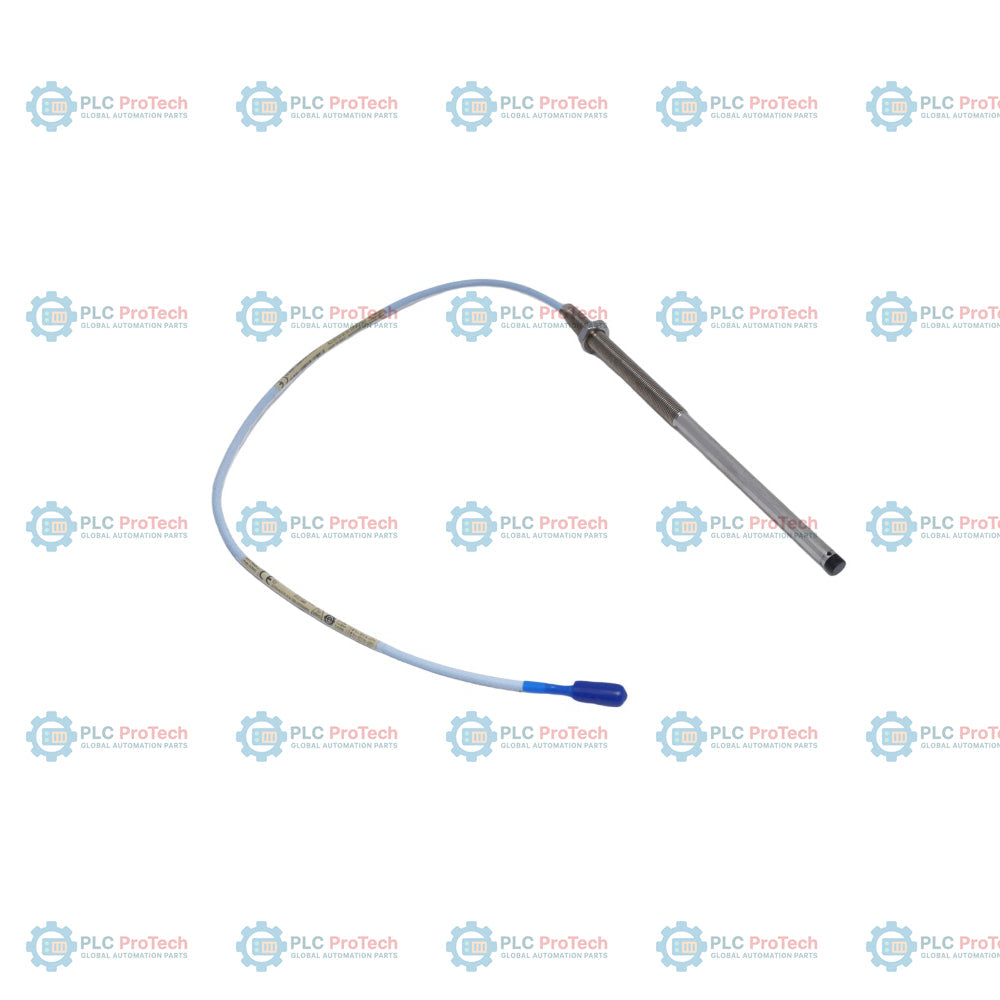

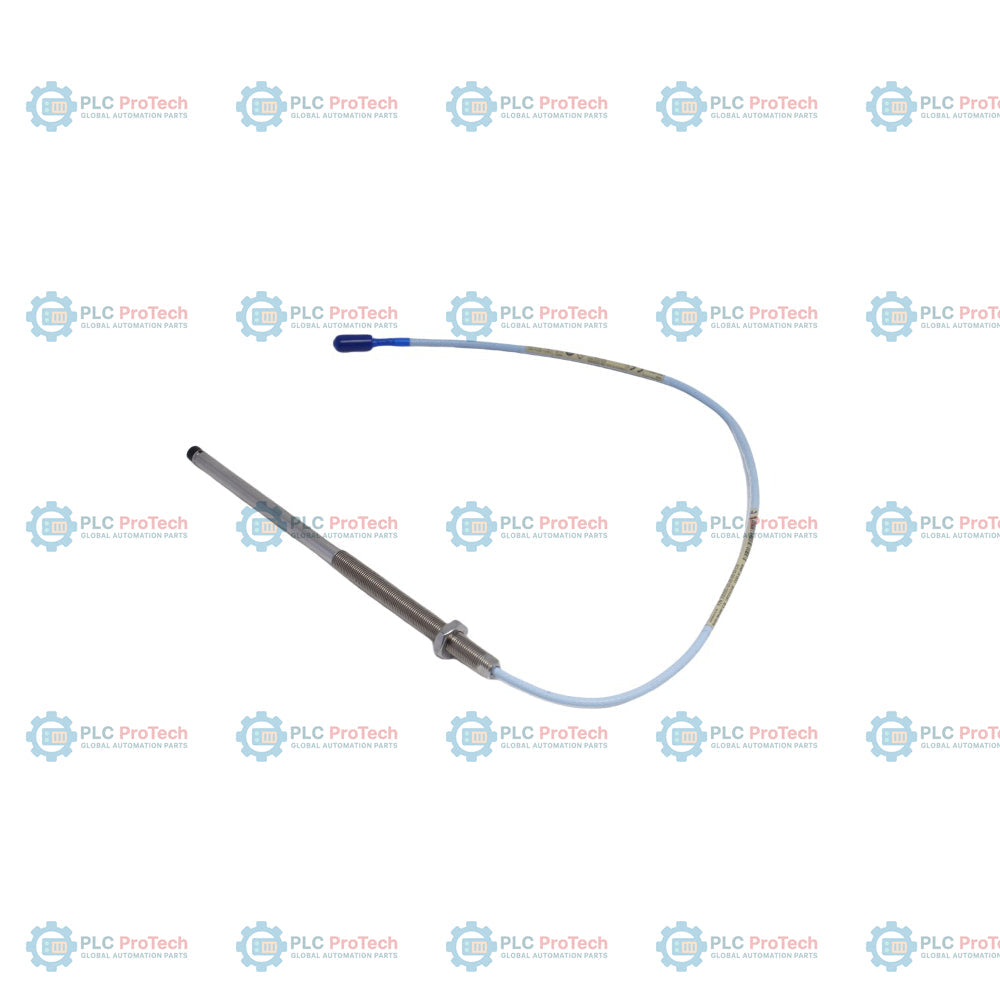

Option 10 (100 mm unthreaded length) and Option 20 (200 mm overall case length) specify this metric 330103-10-20-05-02-CN 3300 XL 8 mm proximity probe configuration. This non-armored probe features an M10 x 1 metric thread, a 0.5-meter (1.6 feet) total length, and a standard coaxial cable terminated with a miniature coaxial ClickLoc connector (Option 02). It is equipped with the -CN China hazardous area approval package, certifying it under NEPSI and CCC safety frameworks for explosion-proof applications in regional environments.
This non-contact eddy-current transducer is used in vibration and axial position measurement systems. It pairs with a 3300 XL Proximitor sensor and a 3300 XL extension cable to measure shaft displacement on rotating machinery such as pumps, compressors, and steam turbines. The M10 x 1 metric thread is suited for industrial equipment utilizing metric mounting ports. Because it lacks external armor, it is intended for installation within protective conduit or machinery internal areas.
| Option Segment | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-10-20-05-02-CN | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length | 10 | 100 mm |
| B - Overall Case Length | 20 | 200 mm |
| C - Total Length | 05 | 0.5 meter (1.6 feet) |
| D - Connector/Cable | 02 | Miniature ClickLoc coaxial connector, standard cable |
| Suffix -CN | -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number/Model | 330103-10-20-05-02-CN |
| Transducer System Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Case Thread Size | M10 x 1 |
| Unthreaded Length | 100 mm |
| Overall Case Length | 200 mm |
| Total Probe Cable Length | 0.5 meter (1.6 feet) |
| Connector Type | Miniature male coaxial ClickLoc |
| Cable Type | Standard 75 Ohm coaxial cable (non-armored) |
| Material | Polyphenylene sulfide (PPS) tip, stainless steel case (AISI 303 or 304) |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Nominal DC Resistance | 7.45 Ohm +/- 0.50 Ohm (center to outer conductor) |
| Dimensions | 200 mm x 11 mm x 11 mm (H x W x D) |
| Weight | 0.16 kg |
| Connection | Type | Function |
|---|---|---|
| Center Conductor | Gold-plated ClickLoc pin | Signal transmission (RF transducer output) |
| Outer Shield | Gold-plated coaxial body | Common return path / Shielding |
Ensure the unthreaded length is selected correctly so the probe does not contact the shaft during machine operation. Keep a minimum side-view clearance of 41.3 mm (1.625 in) from surrounding metal to avoid calibration interference. Tighten the probe body in its bracket or machine port; standard M10 x 1 threads support a maximum torque of 9.0 N-m (80 in-lb). Maintain a physical clearance when routing probe cables; use conduit or cable clamps to secure the cable run. Avoid tight bends; the minimum bend radius for standard cable is 25.4 mm (1.0 in).
| Certification Scheme | Details |
|---|---|
| NEPSI | China national certification for explosive atmospheres (Ex d / Ex ia / Ex n) |
| CCC | China Compulsory Certification for industrial explosion protection |
| RoHS | Compliant with restriction of hazardous substances directives |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-10-20-05-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 160g
Dimensions: 200 mm x 11 mm x 11 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
