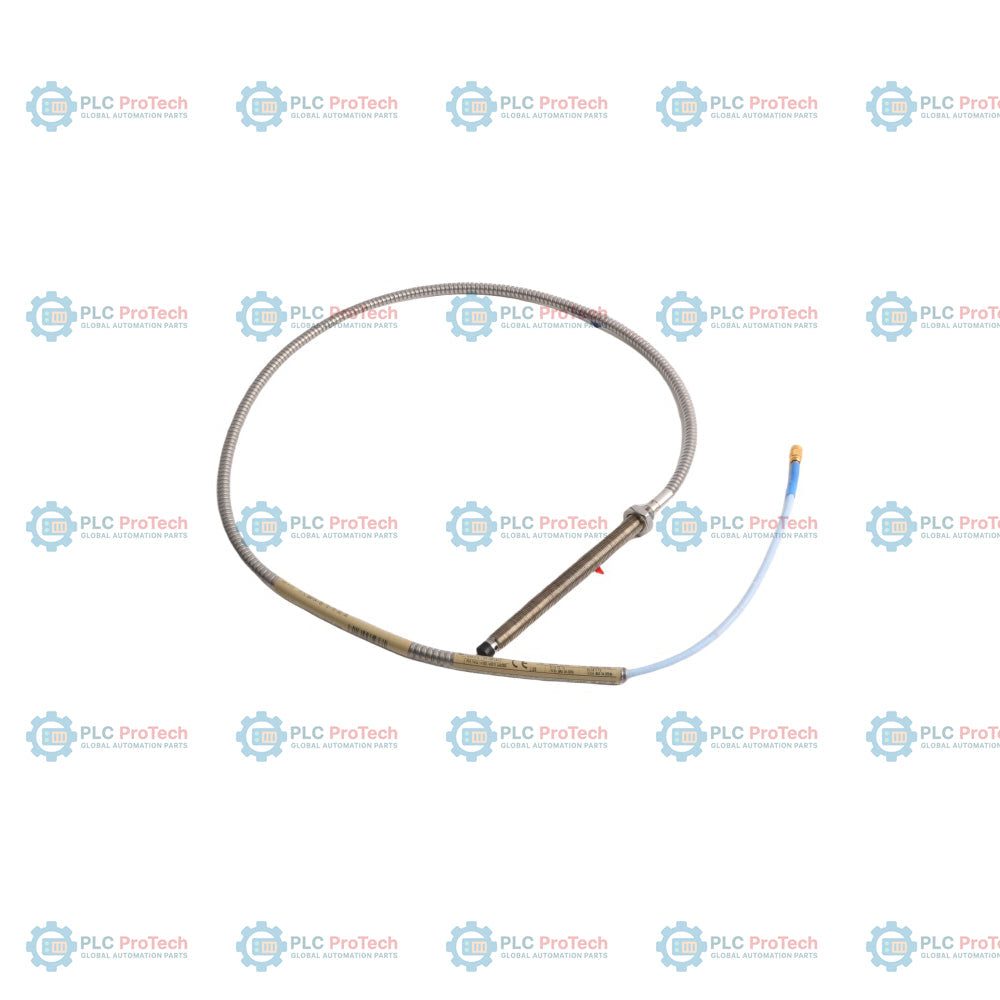

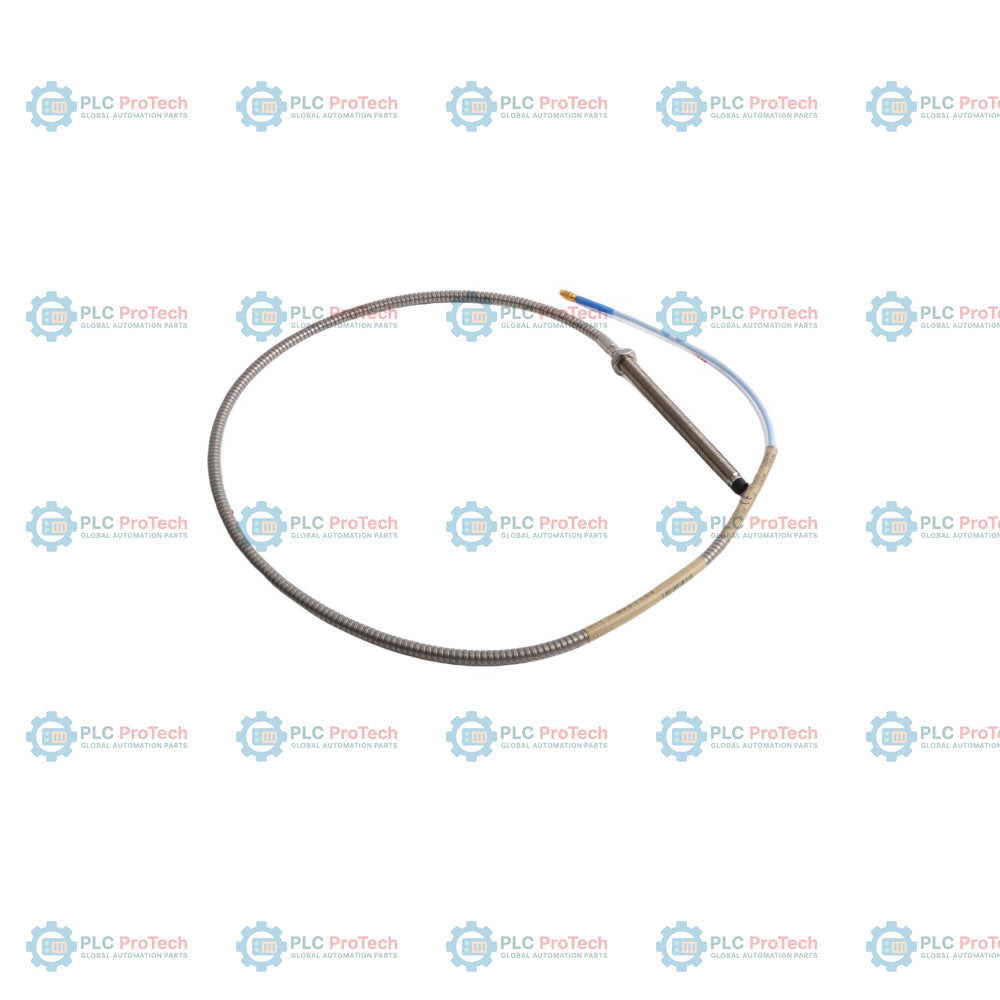

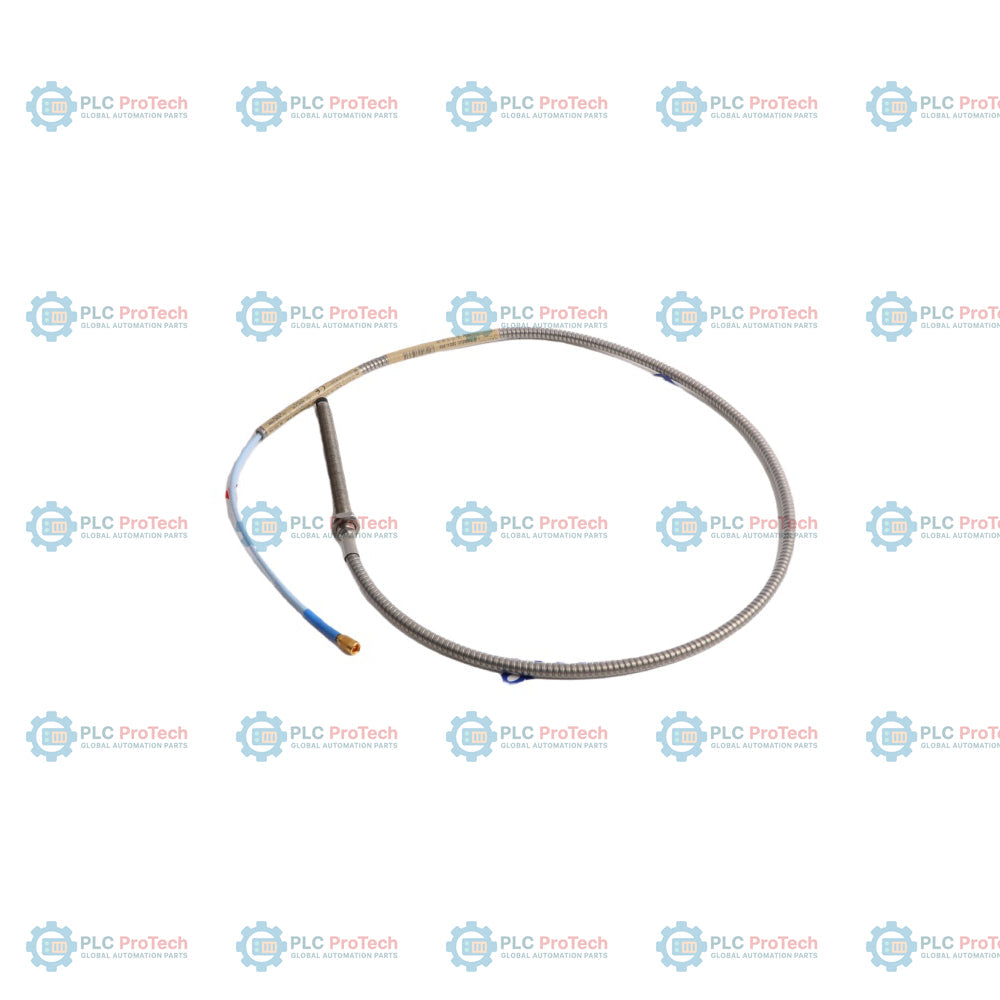

330104-00-12-10-02-05 is a 3300 XL 8 mm smooth case proximity probe, engineered for precise non-contact displacement measurement in critical machinery monitoring applications. This specific configuration features a 0.0 in unthreaded length (Option 00), 1.2 in case length (Option 12), and a 1.0 m total system length (Option 10). It utilizes the Miniature ClickLoc connector (Option 02) and meets CSA, ATEX, and IECEx hazardous area requirements (Option 05).
This probe is a primary component of the 3300 XL 8 mm proximity transducer system, which consists of the probe, an extension cable, and a Proximitor sensor. The smooth case design is typically used in applications where thread adjustment is not required for mounting, providing a consistent reference for shaft vibration and axial position measurements in rotating equipment such as steam turbines, centrifugal compressors, and pumps.
| Option | Code | Description |
|---|---|---|
| Orderable Part Number | 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe, Smooth Case |
| A - Unthreaded Length | 00 | 0.0 in |
| B - Case Length | 12 | 1.2 in |
| C - Total Length | 10 | 1.0 m |
| D - Connector | 02 | Miniature ClickLoc, standard cable |
| E - Agency Approval | 05 | CSA, ATEX, IECEx |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Probe Diameter | 8 mm |
| Case Material | AISI 303 or 304 Stainless Steel |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mil) |
| Operating Temperature | -51 degC to +177 degC |
| Storage Temperature | -51 degC to +177 degC |
| Cable Type | 75 Ohm Coaxial |
| Connector Type | Miniature ClickLoc |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
Ensure the probe is mounted in a rigid, non-conductive fixture if necessary to prevent ground loops. Maintain proper clearance from other conductive objects to avoid interference with the electromagnetic field. The Miniature ClickLoc connector should be tightened to the specified torque to ensure signal integrity. Cable routing should be separated from AC power lines to minimize induced noise.
This product is certified for use in hazardous environments under CSA, ATEX, and IECEx standards (Option 05). Ensure the installation adheres to local electrical codes and the specific hazardous area control drawings provided with the product.
