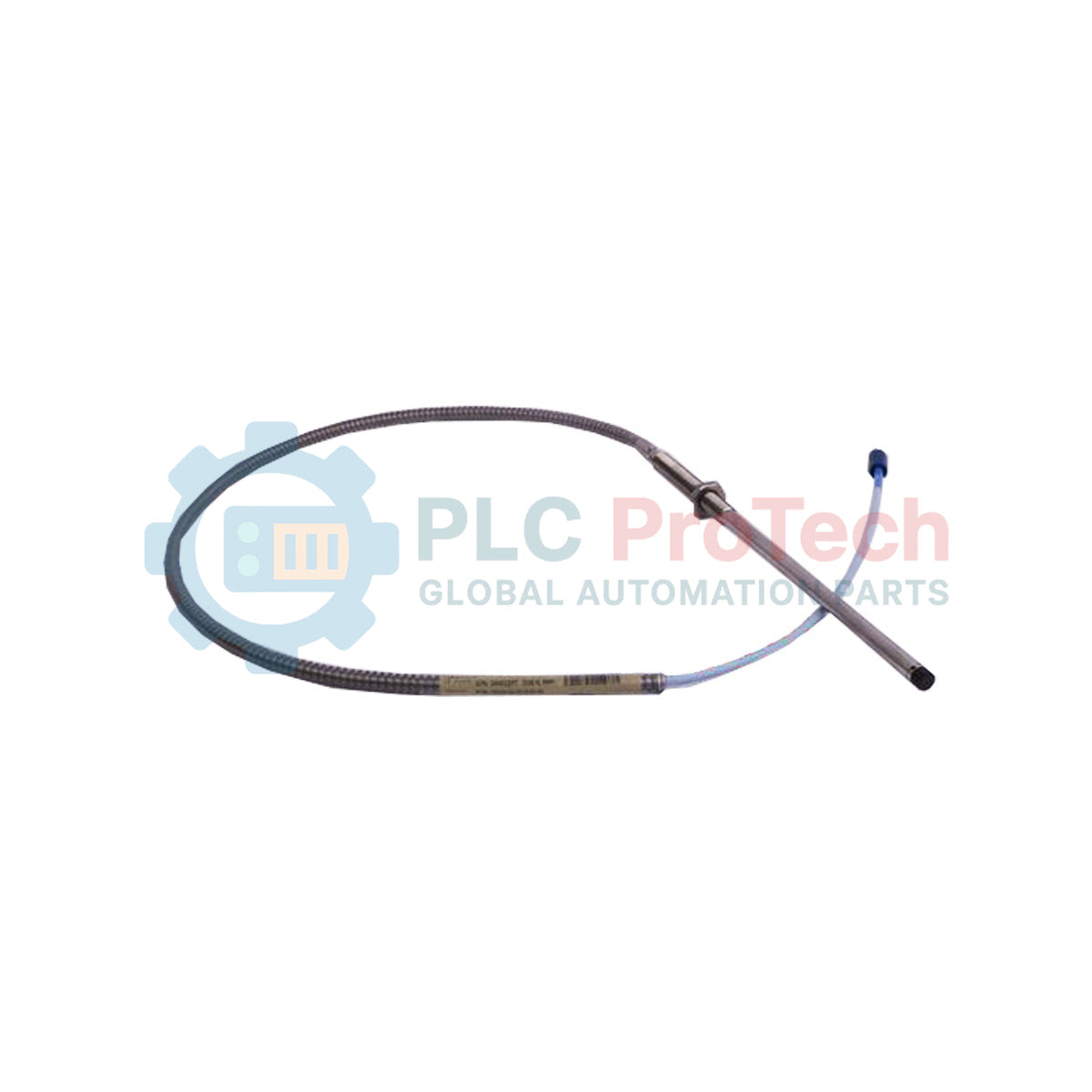

Executing reliable non-contact dynamic displacement and static distance measurements, the Bently Nevada 330104-00-14-10-02-00 is an industrial-grade sensor optimized for critical rotating machinery. As part of the 3300 XL 8 mm Proximity Transducer System, this unthreaded smooth-case probe is engineered to operate in harsh processing environments, providing highly linear feedback of shaft vibration, axial position, and speed. The physical configuration comprises a 140 mm overall case length, a 1.0-meter integrated coaxial cable terminated with a miniature coaxial ClickLoc connector, and a durable polyphenylene sulfide (PPS) tip design to withstand chemical and thermal exposure.
| Option Code | Specification Selection | Configured Value |
|---|---|---|
| 330104-00 | Unthreaded Length Option | 0 mm |
| -14 | Overall Case Length Option | 140 mm |
| -10 | Total Length Option | 1.0 meter (3.3 feet) |
| -02 | Connector and Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| -00 | Agency Approval Option | Not required / Standard design |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 330104-00-14-10-02-00 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 or 304 stainless steel (SST) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 140 mm |
| Total Length | 1.0 meter (3.3 feet) |
| Connector / Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| Operating Temperature | -51 degC to +177 degC (-60 degF to +351 degF) |
| Linear Range | 2.0 mm (80 mils) starting at 0.25 mm (10 mils) from the tip |
| Country of Origin | United States (USA) |
| Net Weight | 0.323 kg (0.71 lbs) |
| Shipping Weight | 1.50 kg (3.30 lbs) |
| Interface Element | Physical Description | Signal / Circuit Assignment |
|---|---|---|
| Coaxial Core | Inner conductor of the integrated coaxial cable | High-frequency RF signal path (Proximitor excitation & response) |
| Coaxial Outer Shield | Braided outer shielding conductor | Signal common / Shield ground connection |
| ClickLoc Connector | Male gold-plated lockable coaxial terminal | Mates directly with the female connector of the 3300 XL extension cable |
The 330104 series represents the smooth-case version of the standard threaded 330101 (fractional thread) and 330103 (metric thread) probes. When replacing older 3300 series non-XL 8 mm probes with the 330104-00-14-10-02-00, verify that the connected extension cable and Proximitor sensor are also upgraded to 3300 XL variants. Mixing XL and non-XL system components can cause non-linear scale factor errors, typically violating the required 200 mV/mil output specification.
Because this is an unthreaded probe with a smooth 140 mm case, it relies entirely on external clamping blocks or mounting sleeves for axial positioning. Ensure that the mounting bracket does not over-tighten on the thin SST case, which can pinch the internal coaxial core and lead to signal attenuation or an open circuit. These probes are factory-calibrated for high-grade AISI 4140 steel targets. Executing measurements on target surfaces made of alternative metals (e.g., stainless steel, aluminum) requires custom calibration adjustments in the Proximitor sensor.
Prior to mating, visually inspect the male ClickLoc connector for moisture, dust, or grease. Clean exclusively with isopropyl alcohol and dry thoroughly before connection. Do not use pliers or heavy wrenches to tighten the ClickLoc connection; a finger-tight turn followed by a positive click is sufficient. Wrap the mated connection in self-amalgamating silicone tape to prevent oil ingress in machinery sumps.
Carefully insert the unthreaded probe shaft into the mounting sleeve or bracket. Check that the probe tip does not contact the shaft target surface during initial insertion.
Connect the probe to the Proximitor sensor using the verified extension cable and monitor the DC gap voltage. Adjust the mechanical insertion depth until the target DC voltage displays approximately -10.0 VDC (corresponds to the middle of the linear range at 1.27 mm / 50 mils gap).
Securely tighten the mounting bracket or clamping mechanism, verifying that the clamp force is distributed evenly over the 140 mm smooth case and that the DC gap voltage remains stable during the tightening process.
