Description

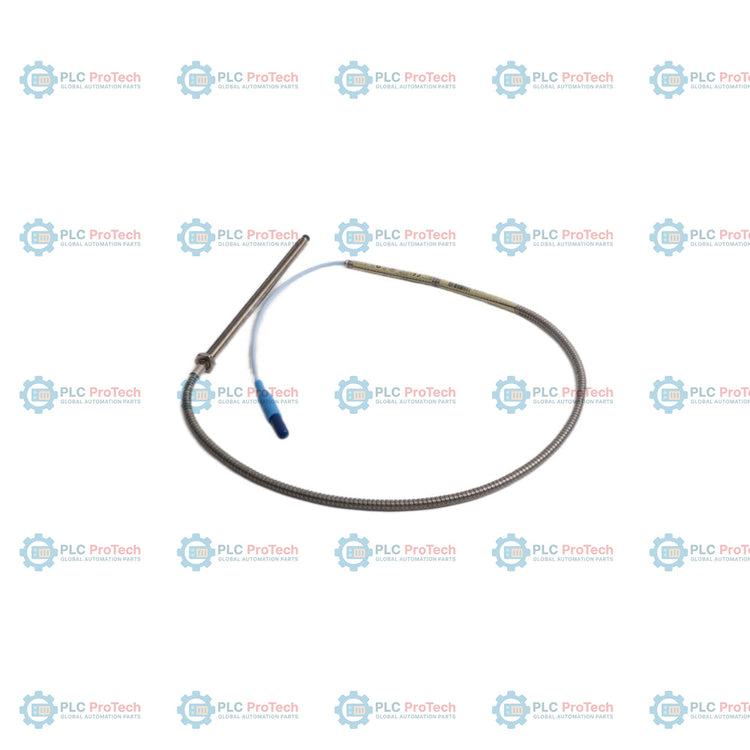

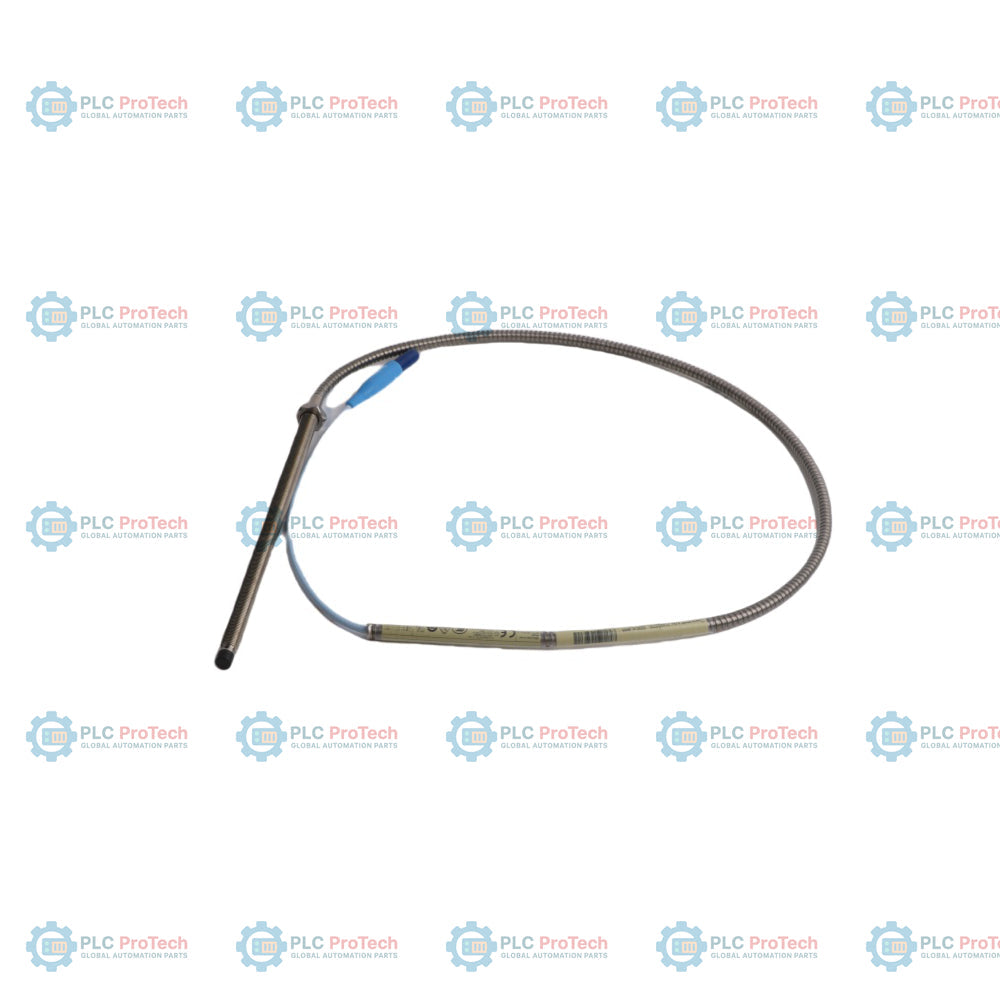

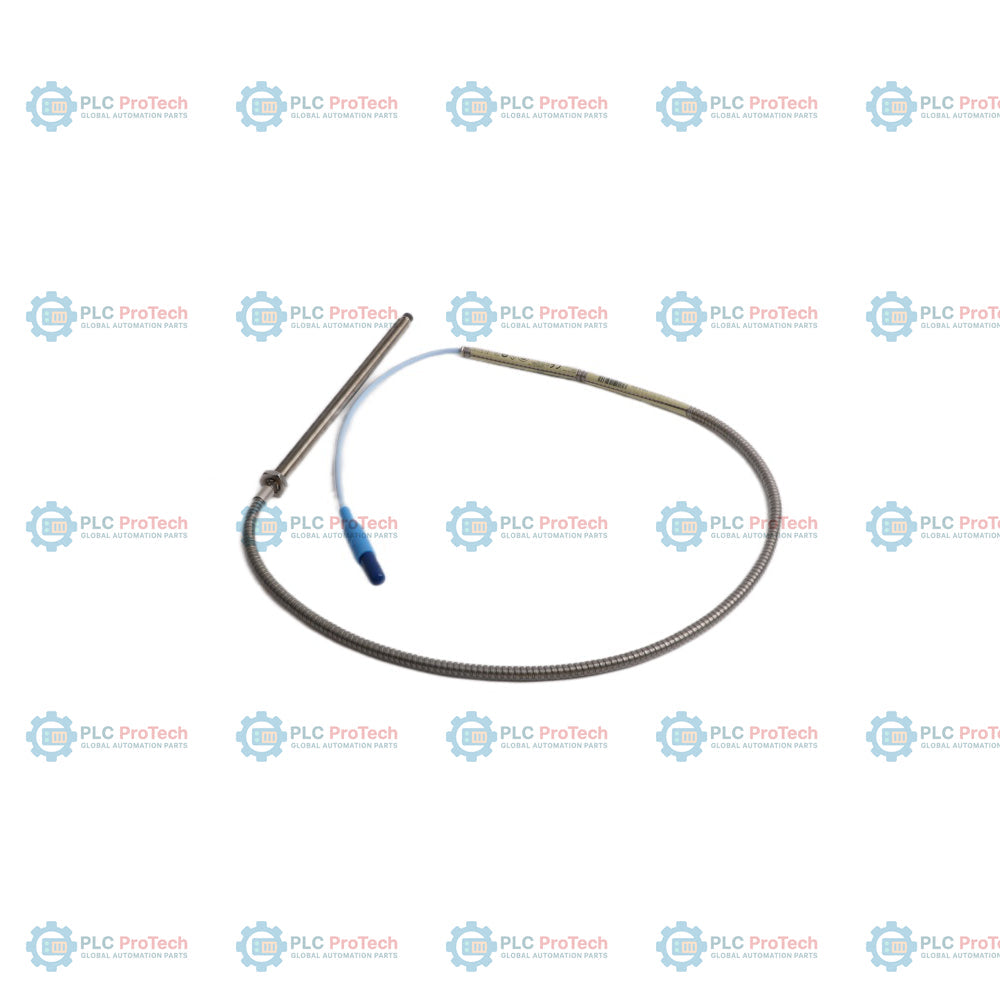

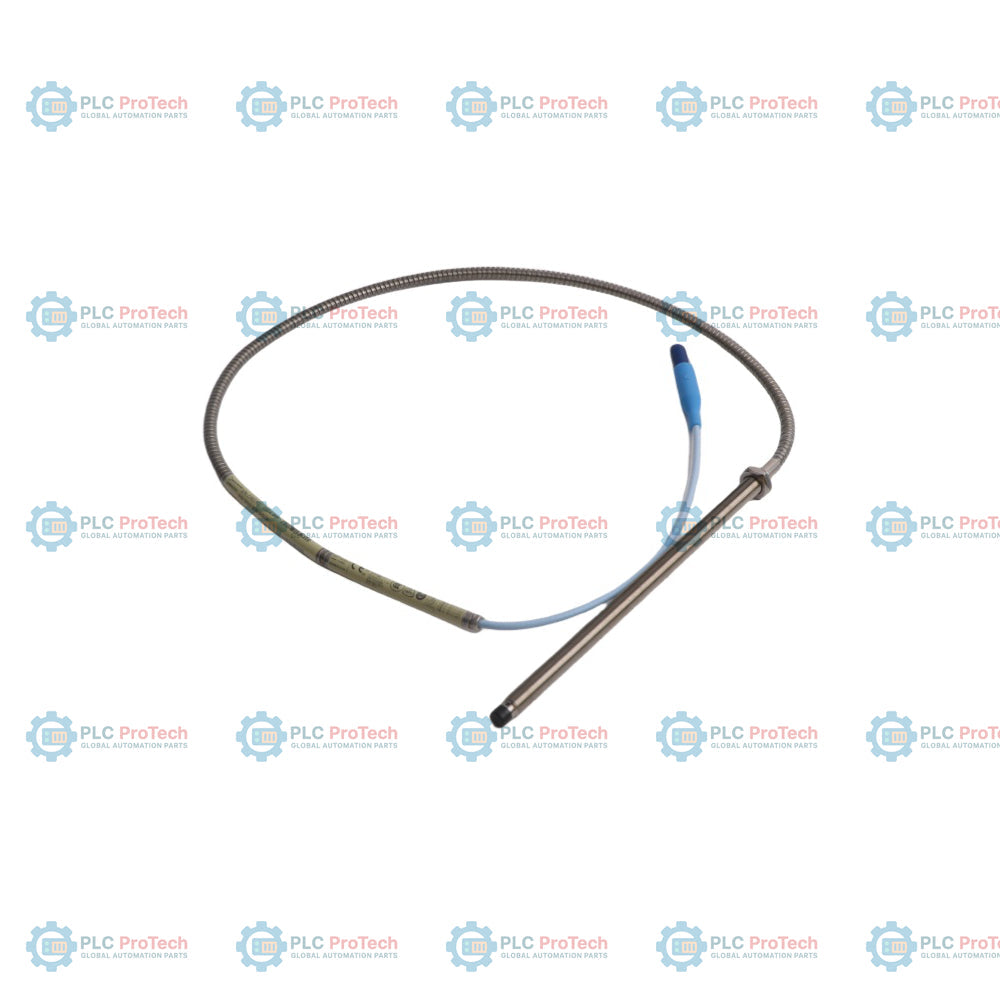

The 330104-00-20-10-01-CN is a 3300 XL 8 mm proximity probe featuring an M10 x 1 thread and integral armor for enhanced physical protection in demanding industrial environments. This transducer is a core component of the 3300 XL 8 mm proximity transducer system, designed to provide accurate, non-contact measurement of shaft vibration and axial position on critical rotating machinery such as turbines, compressors, and pumps.

This configuration utilizes a 1.0 meter total system length (Option 10) and features a standard cable with a connector protector (Option 01) for secure, reliable connections to the 3300 XL Proximitor sensor. The probe is rated for China hazardous area compliance (Suffix -CN), ensuring adherence to NEPSI and CCC requirements. It is built for seamless integration within 3300 XL monitoring chains, utilizing standard 8 mm probe spacing and electrical characteristics.

Features

• M10 x 1 thread configuration with integrated armor for increased mechanical durability
• Standard cable assembly with Miniature ClickLoc coaxial connector and connector protector (Option 01)
• 1.0 meter total system length (Option 10) for standard monitoring chain distances
• 0.0 mm unthreaded length (Option 00) and 200 mm case length (Option 20)
• Suffix -CN certification package for China hazardous area applications (NEPSI, CCC)
• Compatible with 3300 XL 8 mm Proximitor sensors and 3300 XL extension cables

Applications

• Shaft vibration and axial position monitoring on large rotating machinery
• Critical asset protection in petrochemical, power generation, and water processing plants
• Measurement in applications requiring hazardous area protection and mechanical armor
• Rotor dynamics analysis and machinery health diagnostics

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe is gapped correctly according to the 3300 XL system manual for the specific application.
• Use appropriate brackets (e.g., M10 x 1 threaded mounting bracket) to secure the probe, ensuring it is isolated if required by the specific bearing housing design.
• Route cables away from high-voltage lines and sources of electromagnetic interference to maintain signal integrity.
• Install the connector protector (included with Option 01) to protect the Miniature ClickLoc connector from moisture and contaminants in industrial settings.
• Verify that the total length of the probe and extension cable matches the calibration requirements of the Proximitor sensor.

Compliance and Certifications

• China hazardous area approval package (NEPSI + CCC) per -CN suffix
• Compatible with standard 3300 XL safety and performance certifications
