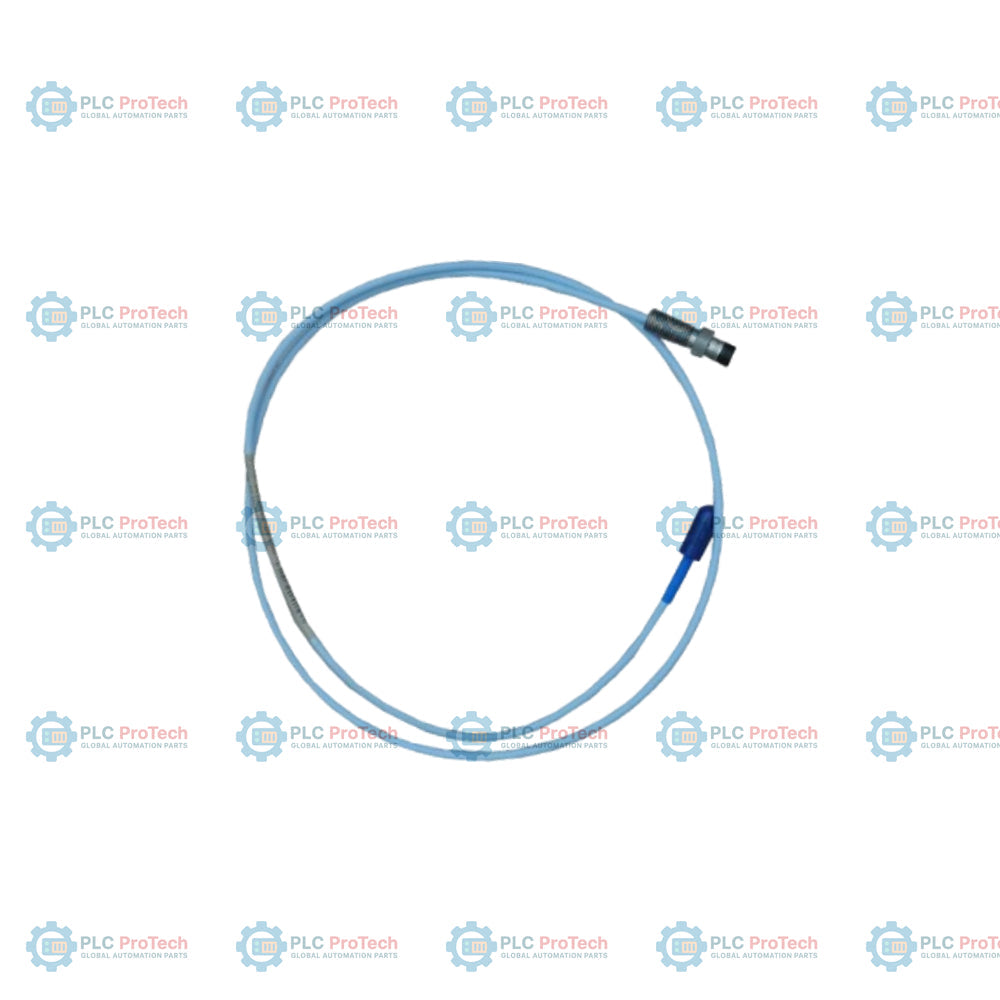

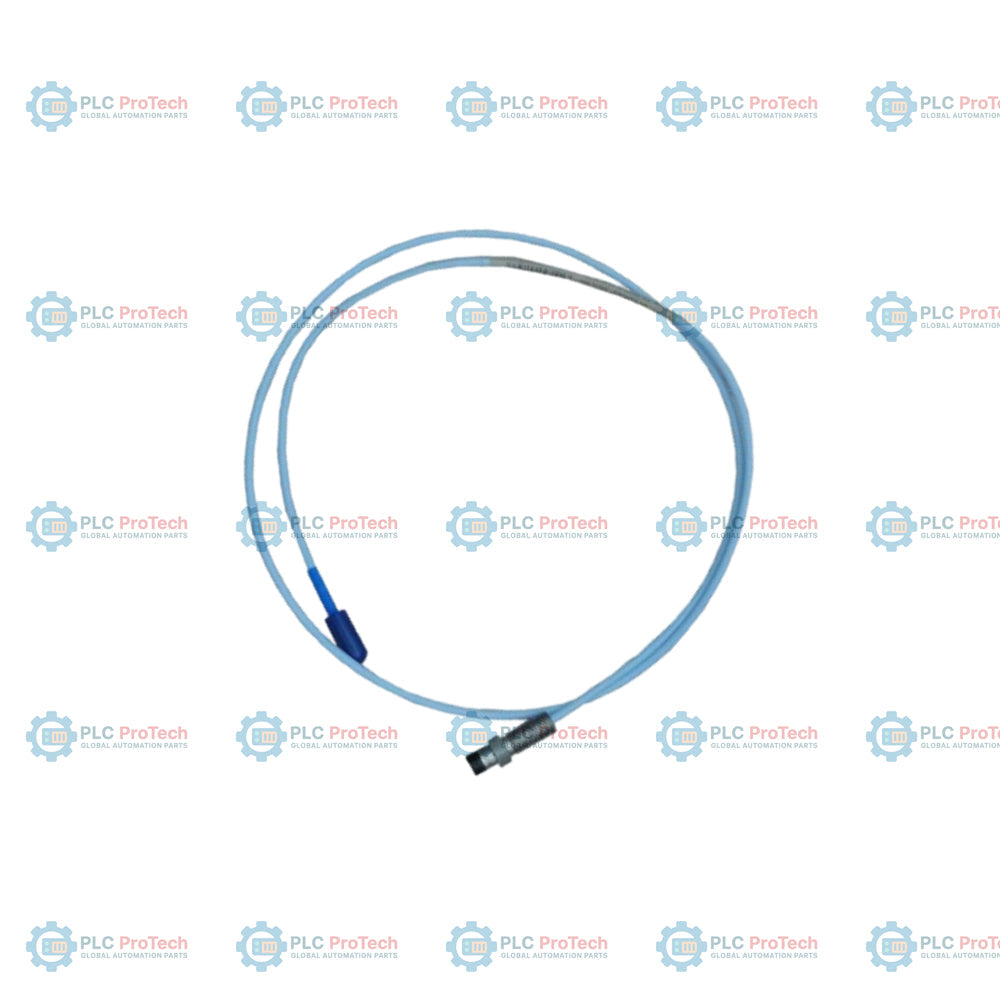

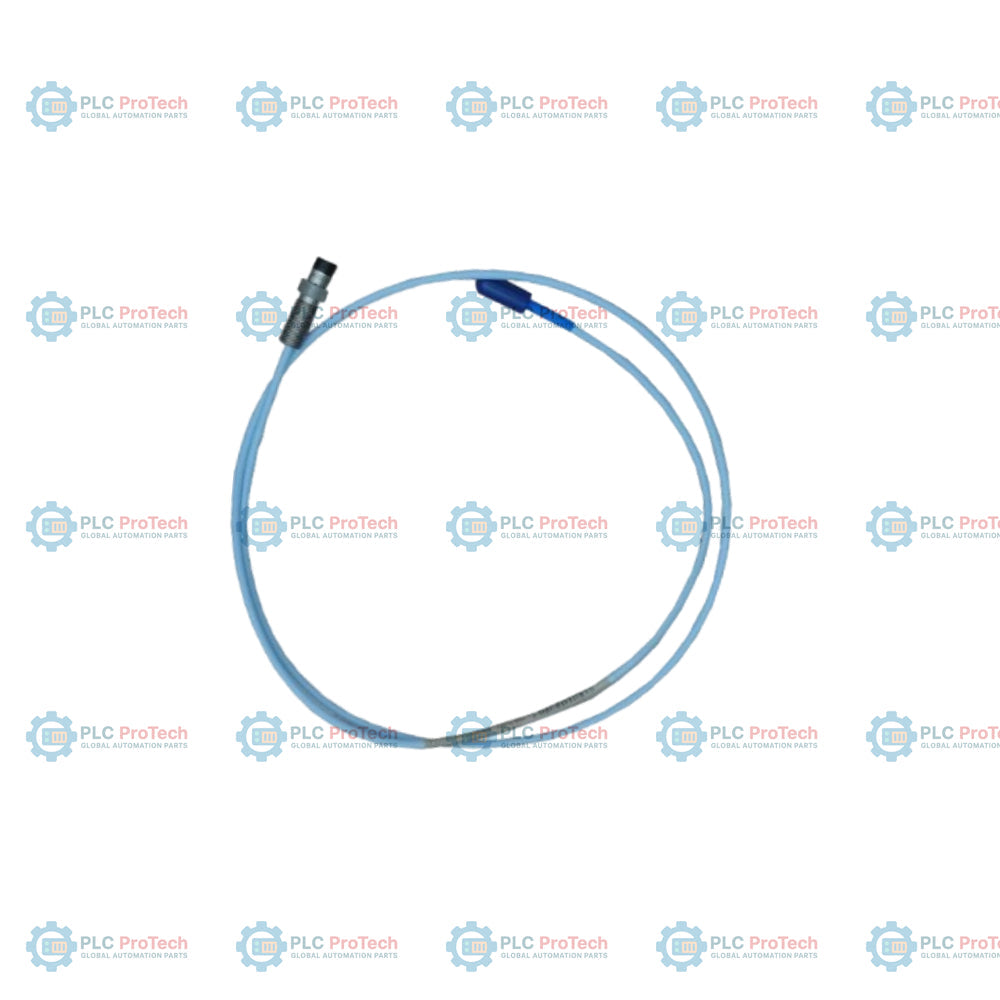

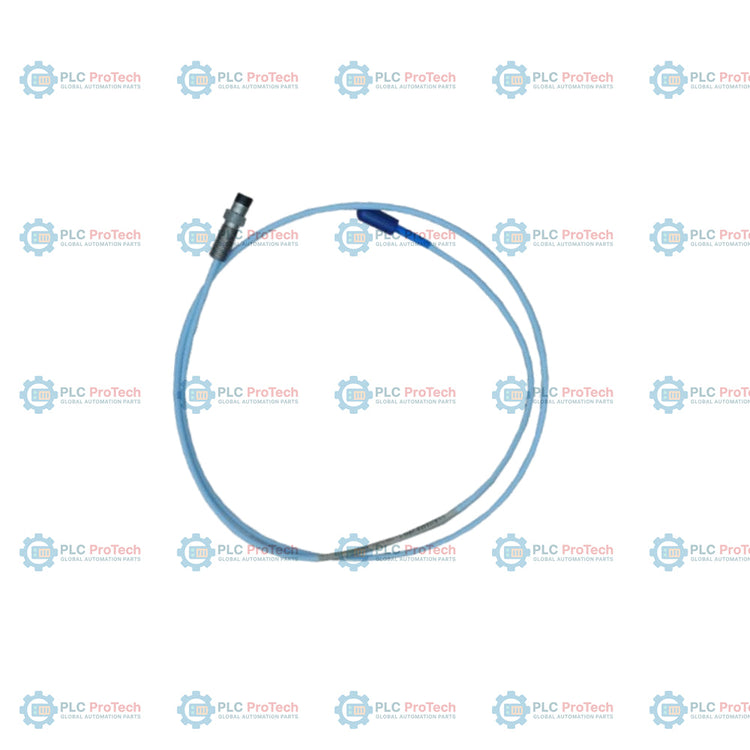

The 330105-02-12-15-02-CN 3300 XL 8 mm reverse mount proximity probe is configured with 0.2 in unthreaded length, 1.2 in case length, 1.5 m total length, and a standard miniature ClickLoc coaxial connector. This specific configuration includes the -CN suffix, which signifies compliance with the China hazardous area approval package, including NEPSI and CCC certifications.
Designed for installation where the probe must be mounted through the machine casing from the inside, this 3300 XL 8 mm proximity probe is a fundamental component of the 3300 XL transducer system. It delivers precise, non-contact displacement measurement for critical rotating machinery, including turbine-generators, compressors, and pumps. The system integrates with 3300 XL Proximitor sensors and extension cables to monitor shaft vibration and axial position, ensuring operational data accuracy within industrial protection environments.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330105-02-12-15-02-CN | 3300 XL 8 mm Reverse Mount Probe |
| A - Unthreaded Length | 02 | 0.2 in |
| B - Case Length | 12 | 1.2 in |
| C - Total Length | 15 | 1.5 m |
| D - Connector/Cable | 02 | Miniature ClickLoc coaxial connector, standard cable |
| Suffix | -CN | China hazardous area approval package (NEPSI + CCC) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330105-02-12-15-02-CN |
| Probe Diameter | 8 mm |
| Mounting Type | Reverse Mount |
| Linear Range | 2 mm (80 mil) |
| Temperature Range | -51 degC to +177 degC |
| Case Material | AISI 303 or 304 stainless steel |
Ensure the probe is installed in a secure, vibration-resistant mount. When using the reverse mount configuration, verify that the internal casing mount is correctly tightened to prevent mechanical drift. Maintain the specified air gap between the probe tip and the target shaft surface to ensure linear operation. Proper shielding of the coaxial extension cable is required to mitigate electromagnetic interference in industrial environments. Ensure that the -CN certified installation complies with all local hazardous area standards for China.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330105-02-12-15-02-CN
Country of origin:United States
Product Type: 3300 XL 8 mm Reverse Mount Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
