Description

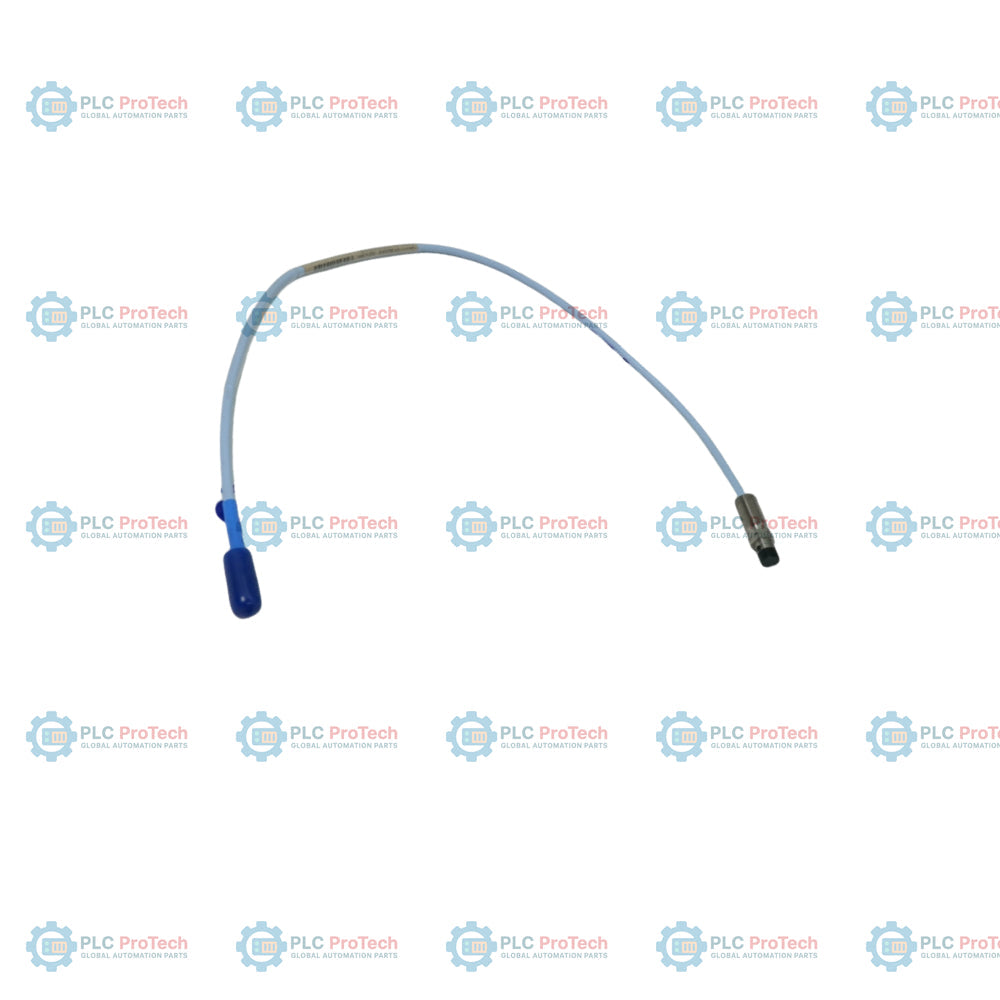

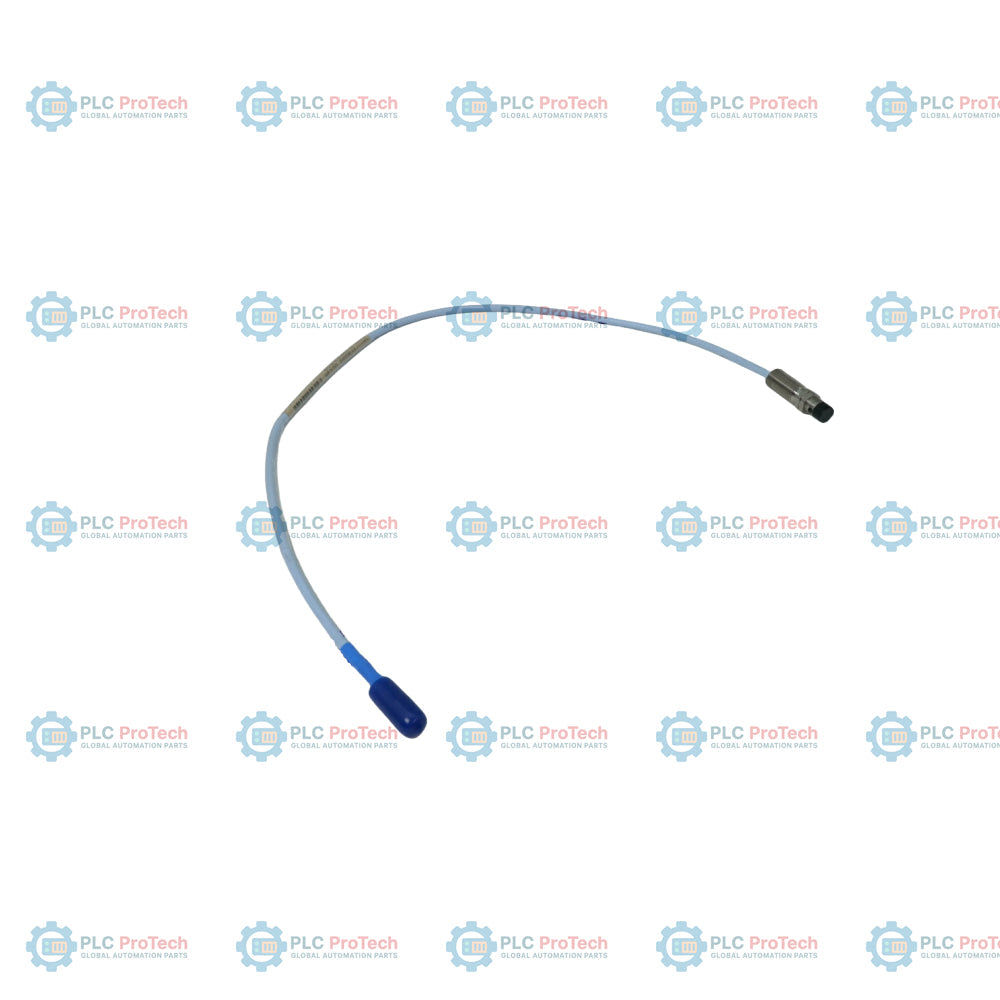

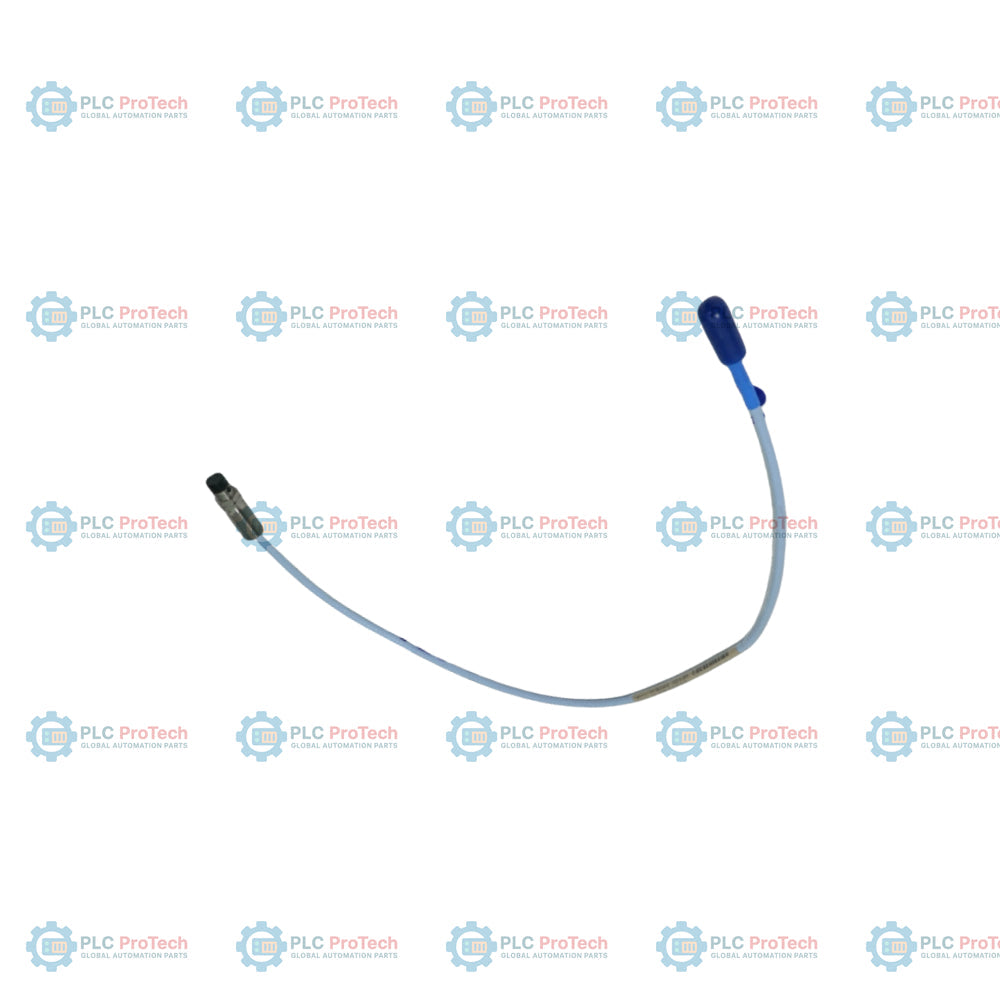

The 330106-05-30-05-02-00 is a 3300 XL 8 mm reverse mount proximity probe, featuring an M10 x 1 thread and a configured unthreaded length of 05 (50 mm), a case length of 30 (300 mm), and a 0.5 meter total system length. This probe is part of the Bently Nevada 3300 XL 8 mm Proximity Transducer System, specifically designed for applications where the probe must be mounted inside the machine case. This configuration includes a standard Miniature ClickLoc coaxial connector (Option 02) and requires no specific agency approvals (Option 00). As a reverse mount probe, it is used in monitoring chains for shaft vibration and axial position on critical rotating machinery, such as turbines and compressors, providing reliable, non-contact eddy-current displacement measurement when paired with compatible 3300 XL Proximitor sensors and extension cables.

Features

• M10 x 1 thread reverse mount design for internal machinery installation
• Option 05 (50 mm) unthreaded length
• Option 30 (300 mm) overall case length
• Option 05 (0.5 meter) total system length
• Option 02 connector type: Miniature ClickLoc coaxial connector, standard cable
• Option 00 agency approval: Not required
• Compatible with 3300 XL 8 mm monitoring chains and Proximitor sensors

Applications

• Turbine shaft vibration monitoring
• Compressor rotor position measurement
• Critical rotating machinery protection
• Fluid film bearing monitoring where reverse-mount configuration is required

Ordering Information

Option	Code on This SKU	Description
Orderable Part Number	330106-05-30-05-02-00	3300 XL 8 mm Reverse Mount Probe, M10 x 1 thread
A - Unthreaded Length	05	50 mm (per datasheet configuration)
B - Overall Case Length	30	300 mm (per datasheet configuration)
C - Total Length	05	0.5 meter (1.6 feet)
D - Connector	02	Miniature ClickLoc coaxial connector, standard cable
E - Agency Approval	00	Not required

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330106-05-30-05-02-00
Probe Diameter	8.0 mm
Thread Size	M10 x 1
Mounting Type	Reverse Mount
Total Length	0.5 meter
Connector	Miniature ClickLoc
Cable Type	Standard
Agency Approvals	Not required

Installation Guidelines

• Ensure the probe is gapped according to the specific 3300 XL system manual instructions to maintain linear output.
• Reverse mount probes are designed for installation through a mounting bracket or machine casing; ensure the correct thread engagement and torque values.
• Route coaxial cables away from high-voltage lines or sources of electromagnetic interference to prevent signal noise.
• The Miniature ClickLoc connector should be kept clean and dry; verify proper connection seating to ensure signal integrity.

Compliance and Certifications

This unit is designated for standard applications where specific hazardous area approvals (CSA, ATEX, IECEx) are not required (Option 00).
