Description

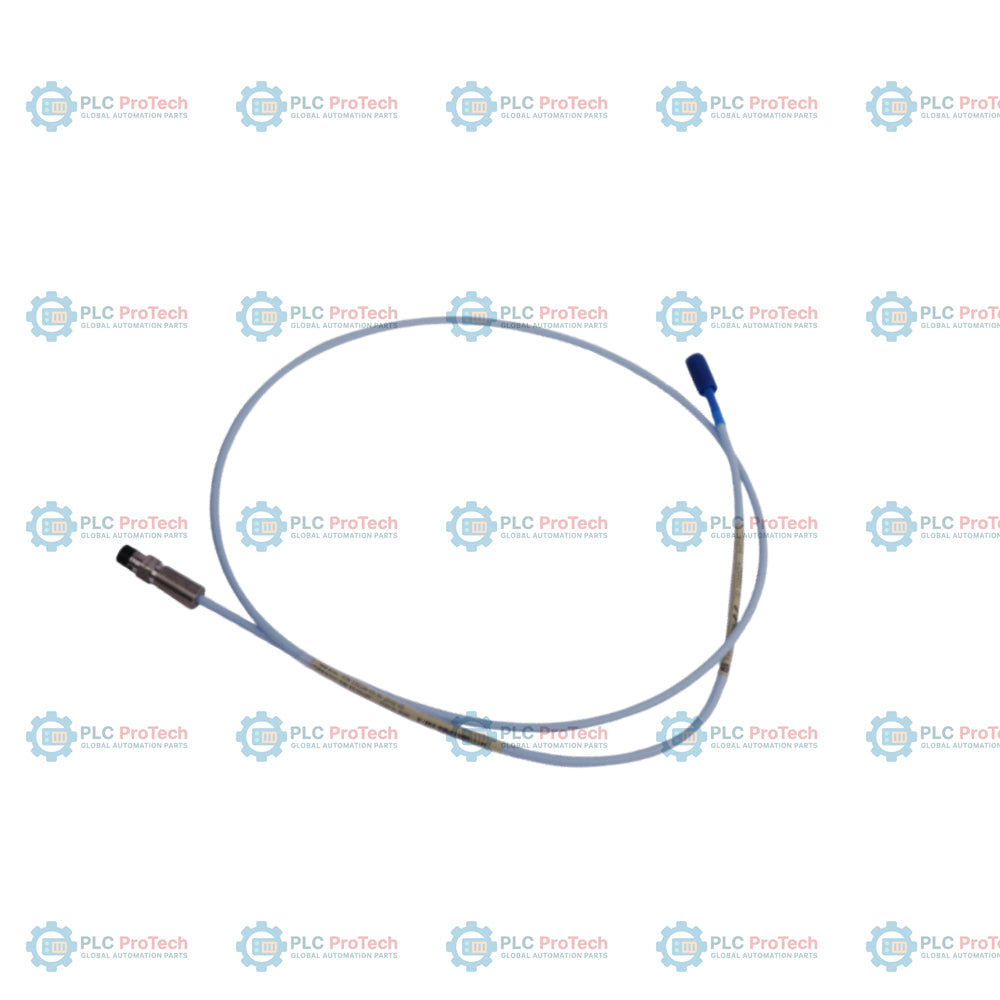

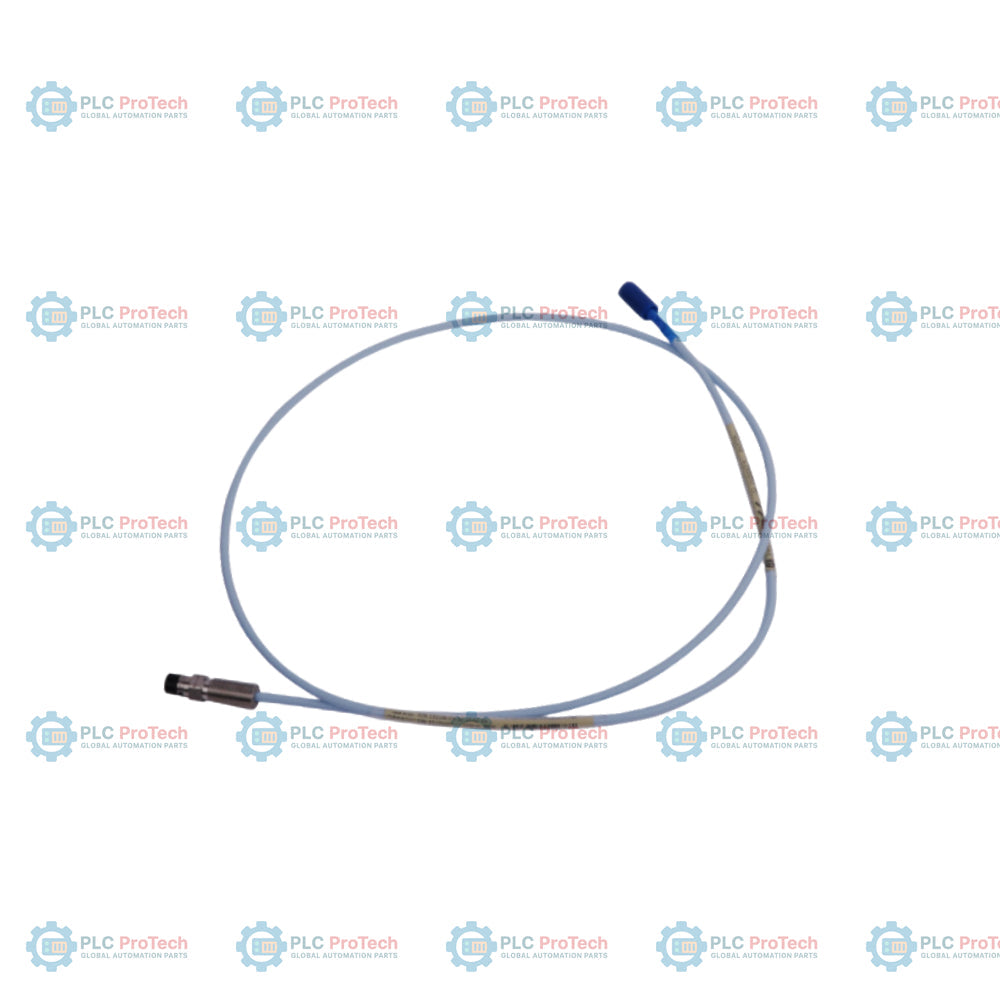

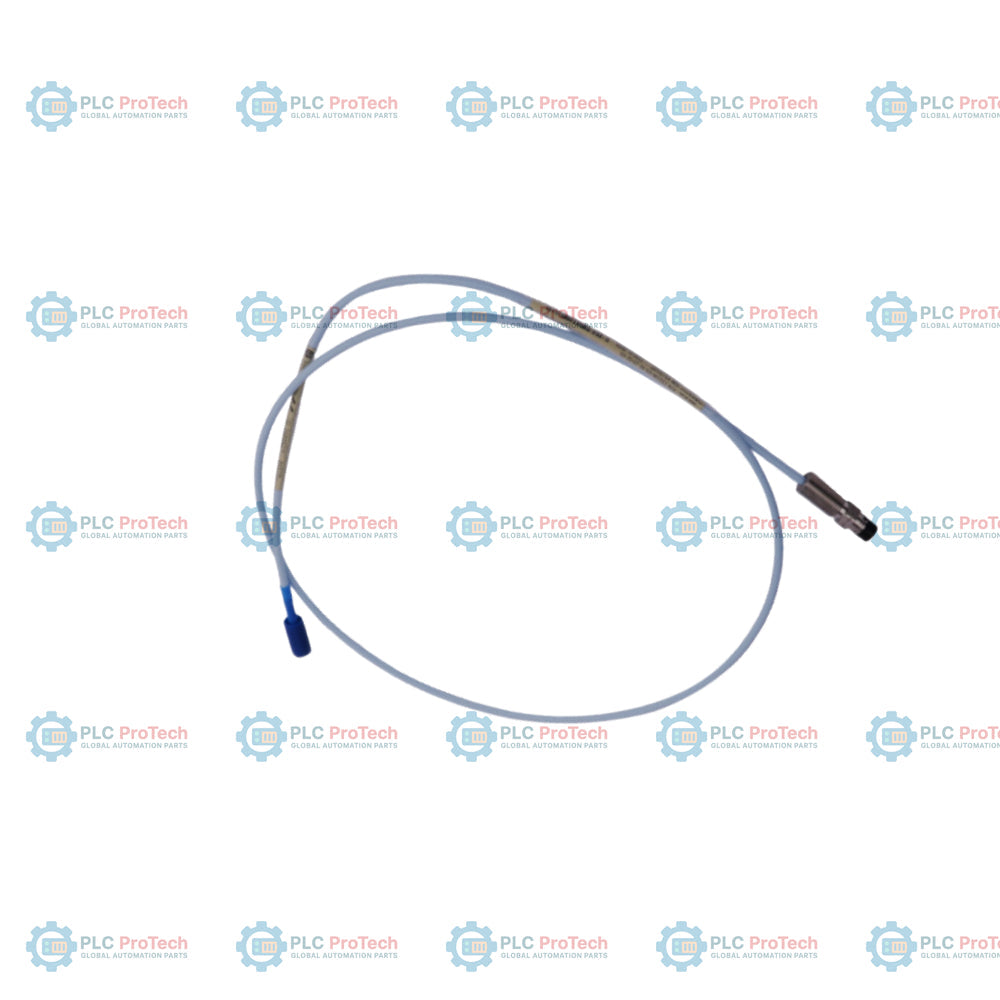

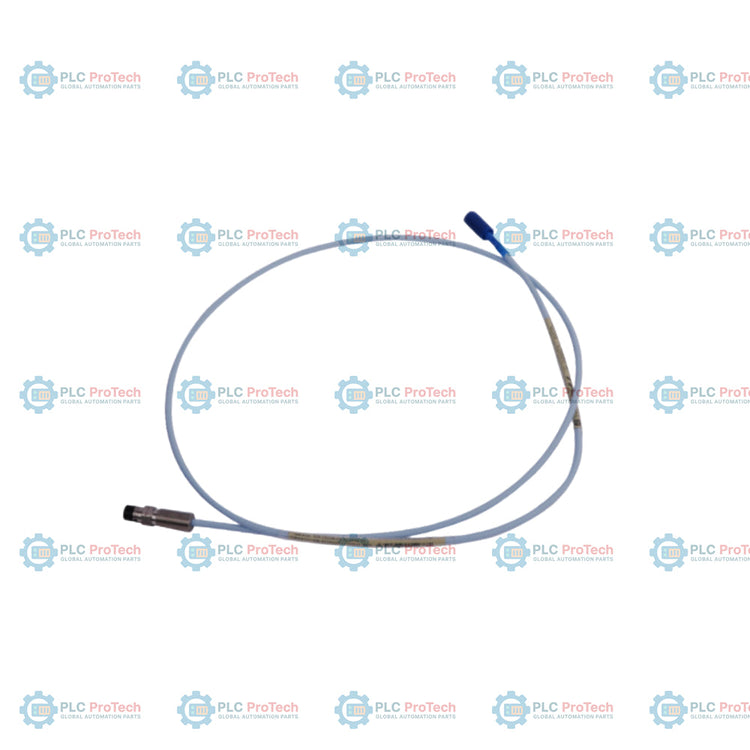

The 330106-05-30-05-02-CN is a 3300 XL 8 mm reverse mount proximity probe, specifically configured with M10 x 1 threads, a 50 mm unthreaded length (Option 05), a 300 mm case length (Option 30), a 0.5 meter total cable length (Option 05), and a miniature coaxial ClickLoc connector without connector protector (Option 02). This transducer is designed for non-contact eddy-current displacement measurement within 3300 XL 8 mm monitoring chains. The system, comprising this probe, a 3300 XL Proximitor sensor, and an extension cable, provides precise shaft vibration and axial position data for critical rotating machinery such as turbines and compressors.

This configuration includes the -CN suffix, signifying the China hazardous area approval package (NEPSI + CCC). Reverse mount probes like the 330106 are engineered for installations where the probe is mounted through the machine case from the inside, with the tip extending into the machine. The 3300 XL system is fully compatible with standard 3300 series components and is designed for reliability in harsh industrial environments, ensuring accurate signal transmission even in high-temperature or vibration-heavy applications.

Features

• 3300 XL 8 mm Reverse Mount Probe: Designed for internal case mounting with M10 x 1 threads.
• Option 05 (Unthreaded Length): 50 mm unthreaded length configuration.
• Option 30 (Case Length): 300 mm overall case length.
• Option 05 (Total Length): 0.5 meter (1.6 feet) probe lead length.
• Option 02 (Connector): Miniature coaxial ClickLoc connector, standard cable.
• Suffix -CN: China hazardous area approval package (NEPSI + CCC).
• System Compatibility: Operates as part of a calibrated 3300 XL transducer chain with matching Proximitor sensor and extension cable.
• Measurement Precision: High-bandwidth eddy-current technology for accurate displacement, position, and vibration sensing.

Applications

• Turbine and generator shaft vibration monitoring.
• Compressor rotor axial position measurement.
• Critical rotating machinery protection in oil and gas, power generation, and petrochemical facilities.
• Hazardous area installations requiring NEPSI/CCC compliance.

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe tip is installed in a location free of physical obstruction to avoid damage to the sensing element.
• Maintain proper gap settings between the probe tip and the target material as specified by the machine monitoring requirements.
• Route cables away from high-voltage lines to prevent electromagnetic interference.
• Use appropriate thread sealing and mounting torque as outlined in the 3300 XL Proximity Transducer System Manual.
• When utilizing the -CN suffix, ensure installation meets all local Chinese hazardous area safety standards (NEPSI/CCC).

Compliance and Certifications

• NEPSI (China)
• CCC (China)
• Compliant with 3300 XL system electromagnetic compatibility standards
