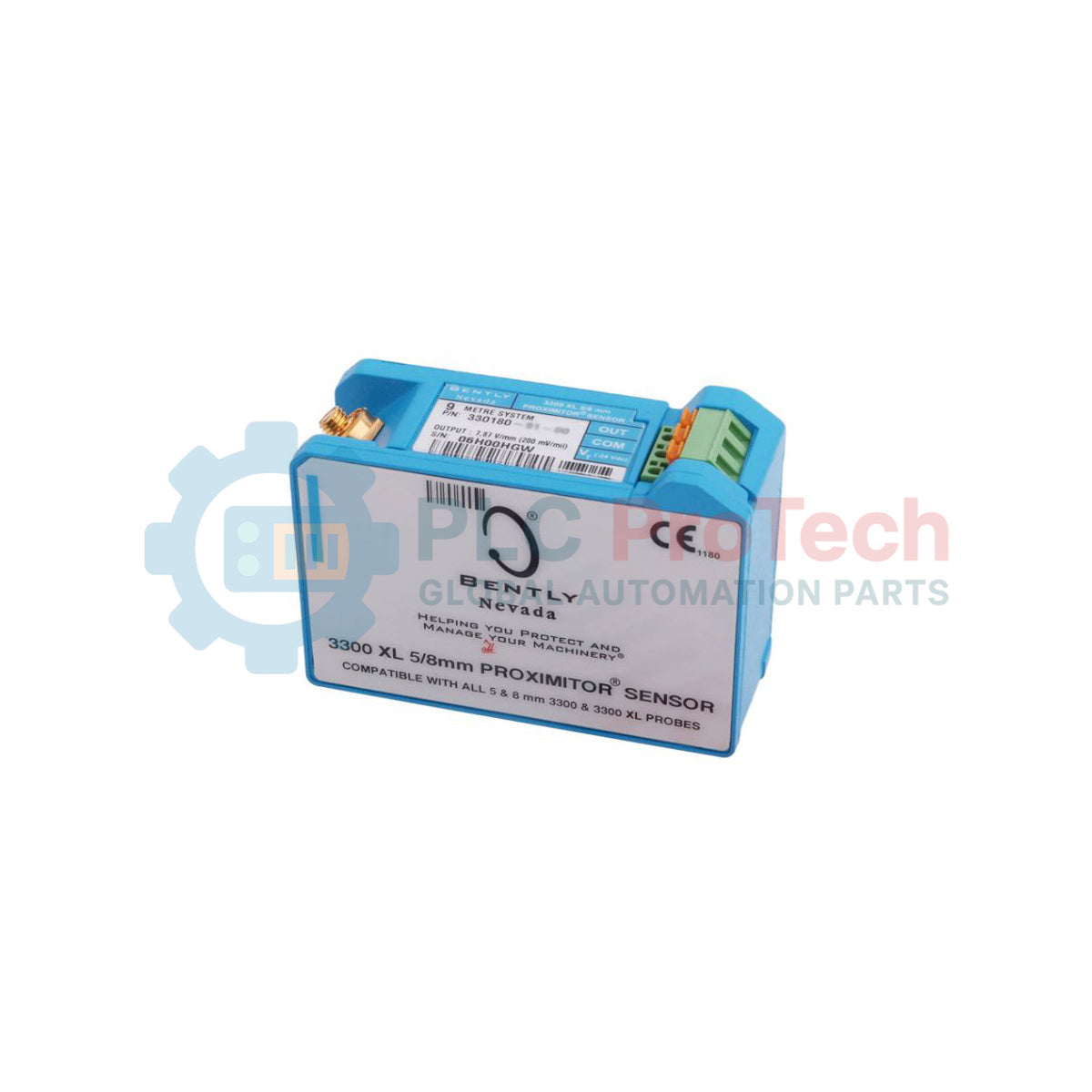

The 330180-X1-05 3300 XL Proximitor Sensor from Bently Nevada is a DIN mount signal conditioning module designed for proximity measurement systems used in rotating machinery protection. It is widely deployed in turbines, compressors, pumps, generators, and industrial drive systems operating in refinery, petrochemical, offshore, and power generation environments where continuous vibration and shaft position monitoring are required to prevent mechanical failure and unplanned downtime.
This model is part of the 3300 XL 5 mm and 8 mm proximity transducer system and converts eddy current probe signals into stable output signals for monitoring and protection logic systems. The DIN rail mounting configuration (X1 modification) enables compact cabinet installation in control panels, reducing wiring complexity and improving serviceability in industrial automation environments. The sensor is designed for stable operation under electrical noise, thermal variation, and long-term industrial vibration exposure.
The 330180-X1-05 configuration defines mechanical mounting, approval handling, and calibration compatibility within the 3300 XL system architecture.
| Segment | Description |
|---|---|
| 330180 | 3300 XL Proximitor Sensor base model |
| X1 | DIN rail mounting modification |
| 05 | Target material calibration option |
| MOD 145193-10 | Internal configuration revision identifier |
The X1 DIN mount configuration allows direct installation inside standard industrial control cabinets. The sensor interfaces with 5 mm and 8 mm proximity probes and extension cables, forming a complete transducer chain for vibration and position measurement.
Target material calibration ensures signal accuracy based on shaft material properties, allowing optimized performance for different rotating machinery applications such as steel shafts, alloy rotors, and industrial turbine assemblies.
| Parameter | Specification |
|---|---|
| Model | 330180-X1-05 |
| Brand | Bently Nevada |
| Origin | U.S.A |
| Product Type | Proximitor Sensor |
| Mounting Type | DIN rail (X1 modification) |
| System Compatibility | 3300 XL 5 mm and 8 mm probes |
| Calibration Option | Target material dependent |
| Operating Temp | -51 to +85 deg C (typical cabinet environment range) |
| Storage Temp | -51 to +85 deg C |
| Power Consumption | Low power electronic module (typical 12 to 24 VDC system supply) |
| Weight | Approx 0.4 kg |
| Application | Machinery protection and vibration monitoring systems |
Is the 330180-X1-05 compatible with both 5 mm and 8 mm probes?
Yes. It is designed for use with both 3300 XL 5 mm and 8 mm proximity probe systems.
What does the X1 option represent?
X1 indicates DIN rail mounting modification for control cabinet installation.
Can this sensor be used in turbine monitoring systems?
Yes. It is commonly used in turbine, compressor, and generator monitoring applications.
What does target material calibration mean?
It adjusts sensor response based on shaft material properties to ensure accurate vibration measurement.
Install the proximitor sensor on a stable DIN rail inside a grounded control cabinet to minimize electromagnetic interference from surrounding power electronics.
Ensure proper separation between signal wiring and high voltage or VFD power cables to maintain measurement integrity in noisy industrial environments.
Use shielded cables for probe connections and maintain correct grounding at a single point to avoid ground loop interference.
Verify calibration settings based on shaft material before commissioning to ensure accurate vibration and position readings.
