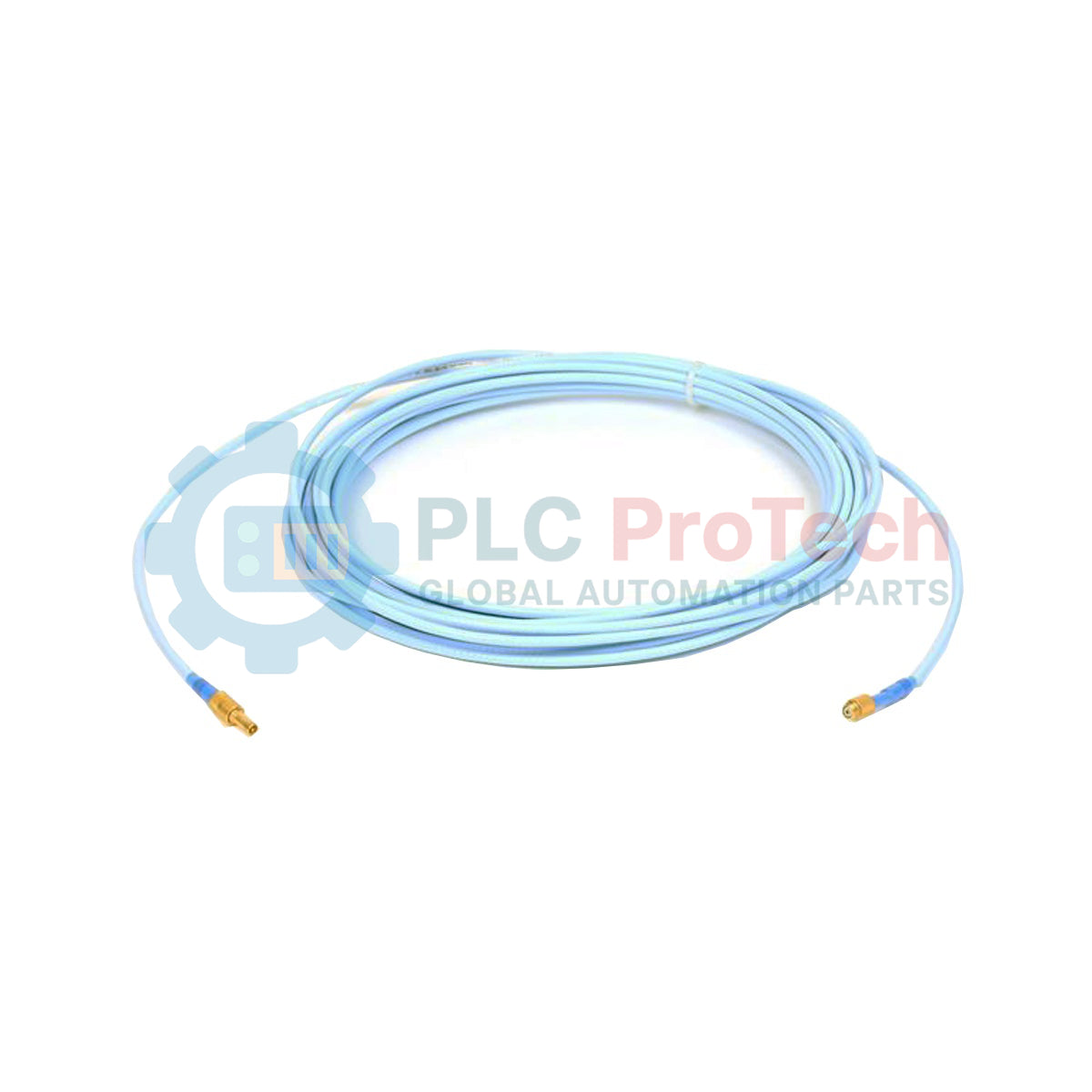

330190-085-01-CN | Bently Nevada | 3300 XL Extended Temperature Range (ETR) Extension Cable

Bently Nevada

Bently Nevada 330190-085-01-CN 3300 XL ETR Extension Cable

SKU 330190-085-01-CN

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330190-085-01-CN
  • Origin United States
  • Product Type: Proximity Probe Extension Cables
  • Payment: T/T, Western Union
  • Weight: 1.5 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Extension Cables

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330190-085-01-CN 3300 XL ETR Extension Cable

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

Designed for demanding industrial environments, the 330190-085-01-CN serves as a ruggedized extension cable within the Bently Nevada 3300 XL Extended Temperature Range (ETR) proximity transducer system. This heavy-duty cable connects a proximity probe to a compatible proximitor sensor, facilitating highly accurate, non-contact vibration and position measurements. Engineered to withstand temperature extremes and mechanical stress, this specific variant incorporates integrated physical armor to prevent damage from abrasive routing paths and environmental hazards.

The structural integrity of this 3300 XL ETR extension cable ensures consistent electrical performance and impedance matching, reducing signal attenuation and phase shifts over its 8.5-meter length. It is certified for specialized regional standards under the CN designation, making it highly suitable for machinery monitoring in heavy industries such as petrochemical processing, power generation, and refining.

Features

  • Extended temperature range (ETR) construction for reliable operation in extreme thermal conditions.
  • Integrated armor shielding for superior mechanical protection in harsh industrial routings.
  • Precise impedance matching with 3300 XL proximity probes and proximitor sensors.
  • 8.5-meter nominal cable length optimized for large-scale machinery integration.
  • Corrosion-resistant connectors ensuring long-term signal integrity.

Applications

  • Steam and gas turbine vibration monitoring.
  • Hydroelectric generator shaft position and radial vibration sensing.
  • Centrifugal compressor and industrial fan shaft displacement tracking.
  • Heavy industrial machinery operating under wide temperature fluctuations.

Technical Specifications

Manufacturer Bently Nevada
Part Number / Model 330190-085-01-CN
Series 3300 XL Extended Temperature Range (ETR)
Cable Length 8.5 meters (27.9 feet)
Cable Option Armored
Agency Approval Option CN (Approvals Country Specific)
Net Weight 0.289 kg
Shipping Weight 1.5 kg
Country of Origin United States

Installation Guidelines

  • Ensure proper bend radius limits are observed during installation to avoid damaging the internal coaxial core and armor.
  • Isolate the cable from high-voltage AC lines to prevent electromagnetic interference (EMI) on the low-level displacement signals.
  • Securely hand-tighten the coaxial connectors; do not use pliers or excessive torque to prevent damage to the gold-plated threads.
  • Use appropriate cable seals or conduits when routing through bulkheads or hazardous areas.

Compliance and Certifications

  • CN Approvals (Country-Specific Industrial Safety & Hazardous Area Compliance)
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the '085' option code mean in part number 330190-085-01-CN?
The '085' option code designates a nominal cable length of 8.5 meters (approximately 27.9 feet).
What is the purpose of the '01' option?
The '01' option signifies that this extension cable comes equipped with integrated metal armor for mechanical protection.
What does the 'CN' suffix indicate?
The 'CN' suffix stands for country-specific agency approvals, typically matching localized regulatory standards for industrial and hazardous areas.
Can this cable be used with standard non-ETR Bently Nevada probes?
Yes, but for optimal performance and matching temperature specifications, it is highly recommended to pair this with 3300 XL ETR probes and sensors.
