Description

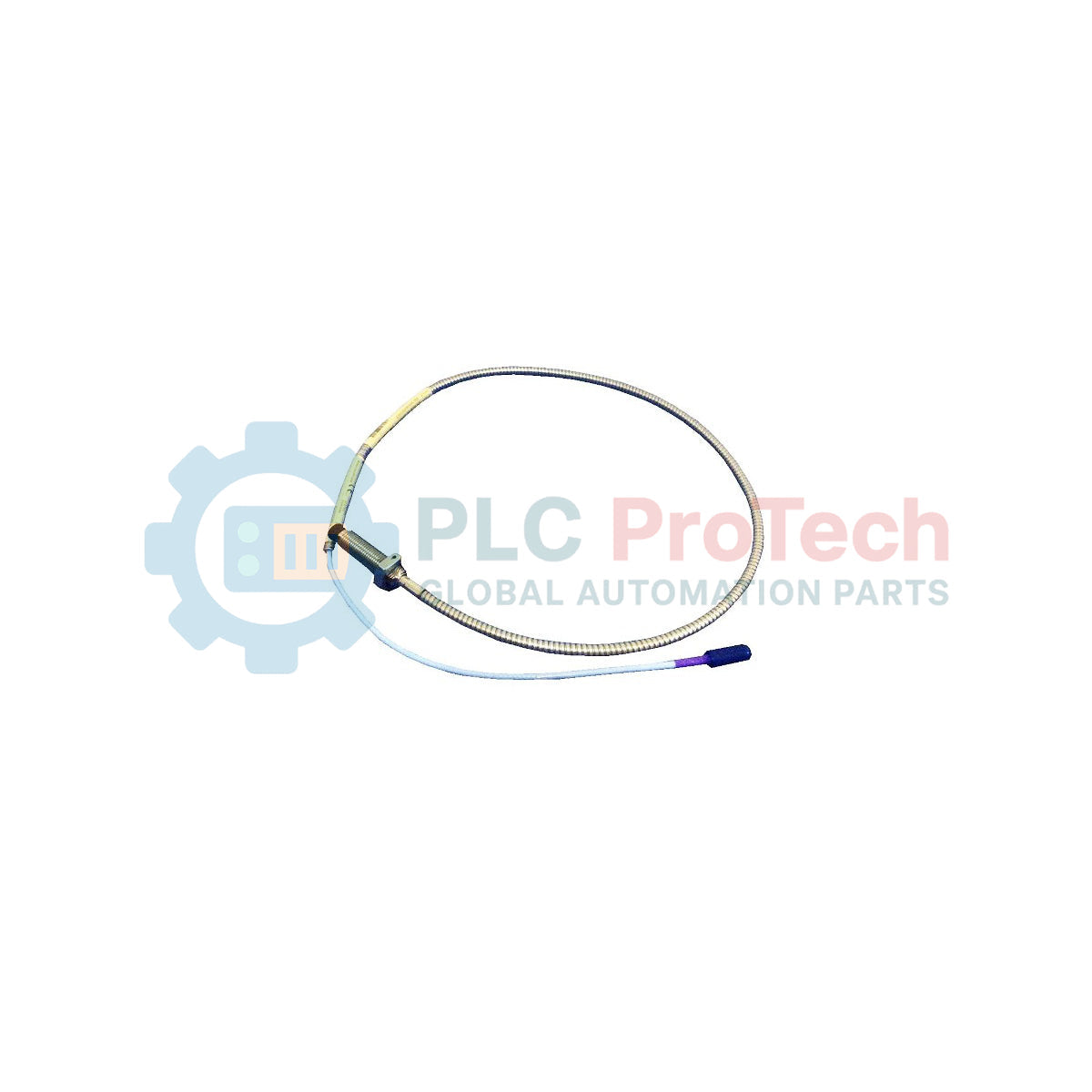

Optimized for critical machinery protection systems, the Bently Nevada 330704-000-050-10-02-CN serves as a robust, non-contacting displacement sensor within the 3300 XL 11mm Proximity Transducer Series. This high-performance probe delivers a linear measurement range of 4.0 mm (160 mils), which is double the range of standard 8mm probe systems. It is specifically engineered to monitor vibration, axial position, and radial shaft movement on high-speed rotating assets where larger measurement ranges or wider mounting tolerances are required. By utilizing a smooth-case design with a 50mm overall length and integrated physical armor, this probe ensures long-term calibration stability and physical durability in highly demanding industrial environments.

Features

• Extended Measurement Range: 11mm tip diameter provides a wide 4.0 mm (160 mil) linear operating range for heavy-duty machinery monitoring.
• Smooth Case Architecture: Threadless case design with 50mm overall case length ensures simple slip-fit mounting configurations.
• ClickLoc Coaxial Connection: Equipped with a miniature coaxial ClickLoc connector for secure, moisture-resistant connections without tool-tightening.
• Flexible Probe Cable: 1.0-meter total length (3.3 feet) high-grade coaxial cable optimized for high-temperature and high-chemical environments.
• Certified Regional Compliance: Configured with the CN agency approval option for country-specific hazardous area regulations.

Applications

• Steam and gas turbine axial thrust and radial vibration monitoring.
• Heavy industrial centrifugal compressors and reciprocating machinery.
• Large-scale generator shaft vibration and rotor position detection.
• High-capacity water pumps and process fluid machinery.
• Industrial gearboxes and critical power transmission systems.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

The 11mm proximity probe is selected over standard 8mm probes when a wider range is required, or when the mechanical gap between the target and the sensor fluctuates significantly. However, because of the larger tip diameter, the magnetic field generated by the probe is broader, making the sensor highly sensitive to surrounding mechanical features.

Alternative Models & Compatibility

This 11mm probe is fully compatible with 3300 XL 11mm Proximitor Sensors (such as the 330780 series). It is not electrically compatible with 3300 XL 8mm, 5mm, or 16mm Proximitor sensors. Intermixing probe sizes will severely degrade the linear scale factor and cause invalid voltage readings in the monitoring system.

Application Pitfalls & Engineering Notes

• Target Diameter Constraints: Because of the 11mm tip, the target shaft diameter must be at least 33 mm (1.3 inches) to avoid signal distortion from the shaft's curvature. Targets smaller than this threshold require specific custom calibration.
• Side Clearance: To prevent unintended magnetic coupling with adjacent metal structures, a minimum radial clearance of 33 mm must be maintained around the probe tip.

Commissioning & Wiring Tips

When routing probe cables, avoid sharp bends. The coaxial cable has a minimum bend radius of 25.4 mm (1.0 inch). Kinking or exceeding this limit changes the characteristic impedance of the coaxial line, introducing high-frequency signal reflections that the monitoring system interprets as false machinery vibration.

Installation Guidelines

1. 1
   Mounting Alignment: Mount the smooth-case probe into the custom clamp assembly. Ensure the probe tip sits flush and parallel to the target shaft surface to avoid angular measurement offset.
2. 2
   Gap Calibration: Measure the mechanical gap before tightening the clamp. Adjust the probe position until the DC gap voltage at the Proximitor matches the engineered mid-point of the linear curve (typically -10 VDC relative to COM for a standard 3300 XL system).
3. 3
   ClickLoc Connection: Clean the ClickLoc contacts with an industrial, non-residue solvent. Mate the connectors by pushing them together until they physically click into place. Do not twist the connector bodies during this locking action.
4. 4
   Cable Protection: Secure the coaxial cable within a conduit or dedicated instrument tray. Ensure there is sufficient slack to prevent stress on the probe's strain-relief boot during operation.
