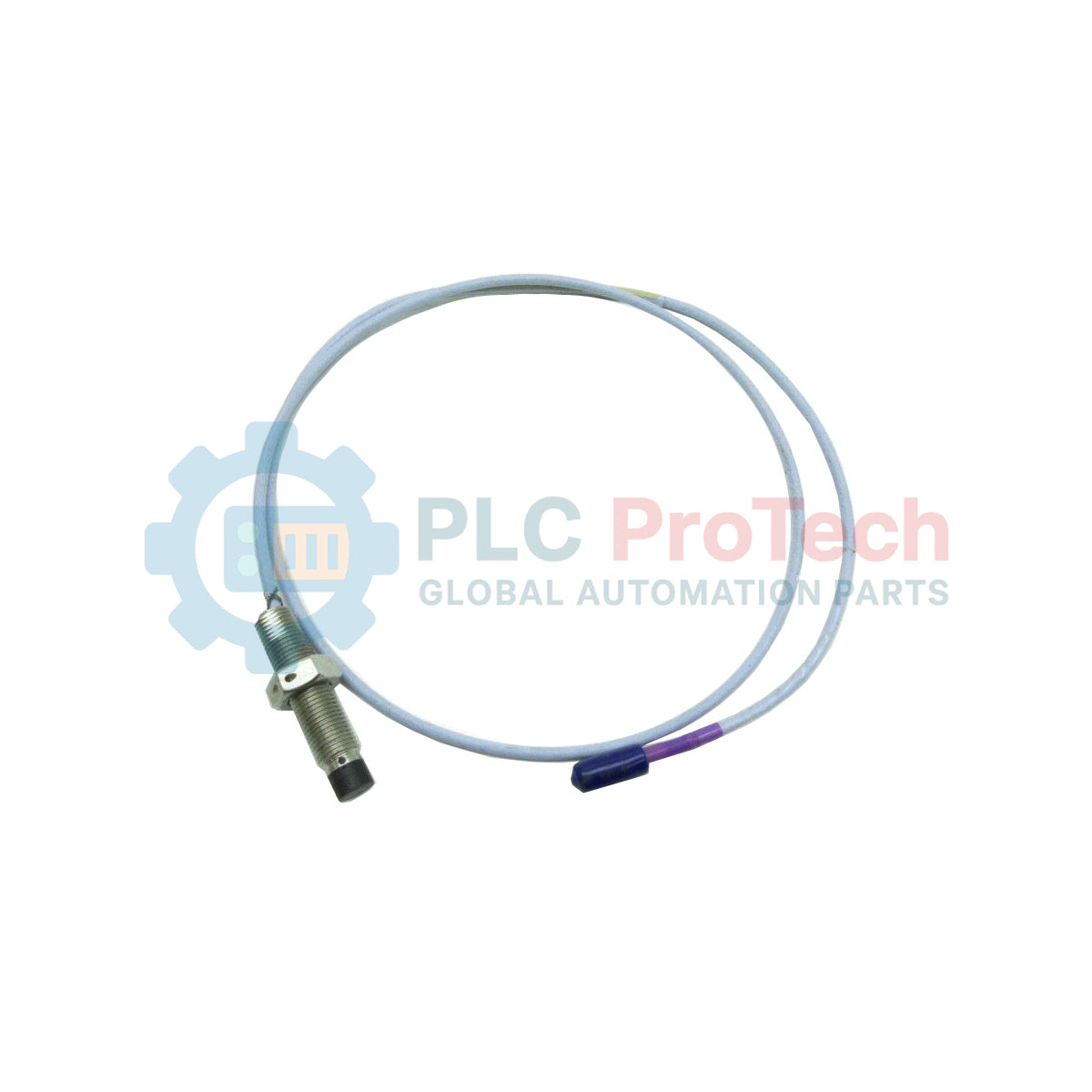

Engineered for high-reliability industrial machinery monitoring, the Bently Nevada 330705-02-18-10-02-CN serves as a fundamental component of the 3300 XL 11 mm Proximity Transducer System. This reverse mount probe is specifically designed for environments where standard thread installations are restricted, allowing installation from the reverse side of the machine housing or mounting bracket. By generating a radio frequency (RF) signal through its 11 mm tip, the probe accurately measures dynamic shaft vibration and static position in critical rotating machinery.
The mechanical assembly features a robust polyphenylene sulfide (PPS) tip molded directly onto an AISI 304 stainless steel (SST) probe case. An integrated Viton O-ring provides a durable seal against differential pressures between the probe tip and the casing. Outfitted with a high-integrity, 75 ohm triaxial, fluoroethylene propylene (FEP) insulated cable and a Miniature ClickLoc coaxial connector, this probe maintains constant transmission impedance to minimize signal degradation over extended operation.
| Manufacturer | Bently Nevada |
| Part Number/Model | 330705-02-18-10-02-CN |
| Series | 3300 XL (11 mm) |
| Probe Type | Reverse Mount Probe |
| Total Length | 1.0 meter (3.3 feet) |
| Connector Type | Miniature ClickLoc coaxial connector |
| Agency Approvals | Country specific (CN option) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Cable Construction | 75 ohm triaxial, fluoroethylene propylene (FEP) insulated |
| Operating Temperature Range | -51 degC to +177 degC |
| Storage Temperature Range | -51 degC to +177 degC |
| Sealing Compound | Viton O-ring |
| Net Weight | 0.07 kg |
| Country of Origin | U.S.A. |
| Connector Component | Interface Type | Function |
|---|---|---|
| Miniature ClickLoc Coaxial | Male Triaxial Coaxial | Connects to 3300 XL 11 mm extension cable or driver |
| Probe Threading | Reverse Mount Threads | Secures probe body into machine wall or mounting bracket |
