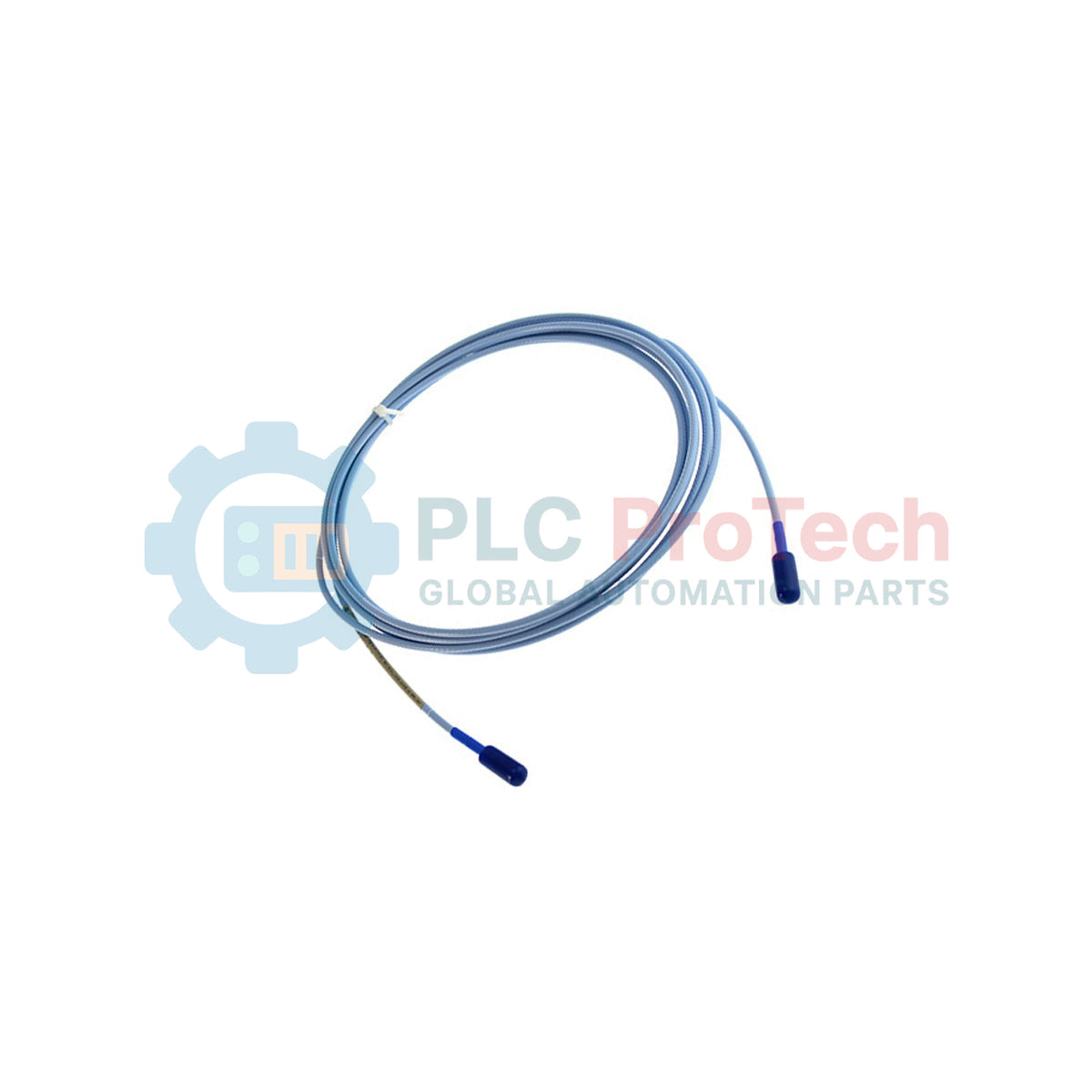

The Bently Nevada 330730-080-13-05 is an 8.0-meter 3300 XL 11 mm Extension Cable designed for high-performance vibration and proximity monitoring within the 3300 XL 11 mm product line. This cable is configured as an armored FluidLoc cable with an integrated connector protector, providing maximum mechanical protection and preventing oil or other process liquids from migrating through the cable interior. Equipped with gold-plated brass ClickLoc connectors, it delivers a secure physical lock that resists structural loosening under severe industrial vibrations. The cable is optimized for machinery protection applications requiring an extended linear range, such as axial thrust position measurements, ramp differential expansion on steam turbines, rod drop monitoring on reciprocating compressors, and speed measurements.
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Component Type | Extension Cable |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Impedance | 75 ohm triaxial |
| Insulation Material | Fluoroethylene propylene (FEP) |
| Armor Type | Flexible AISI 302 SST with FEP outer jacket |
| Connector Material | Gold-plated brass |
| Resistance (Center Conductor) | 0.6 +/- 0.2 ohms (RCORE) |
| Resistance (Coaxial Conductor) | 2.0 +/- 0.5 ohms (RJACKET) |
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Recommended Torque | Finger tight |
| Maximum Connector Torque | 0.565 N-m (5 in-lb) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Armored Extension Cable Weight | 140 g/m (1.5 oz/ft) typical |
| Operating & Storage Temperature | -52 degC to +177 degC (-62 Fahrenheit to +351 Fahrenheit) |
| Relative Humidity | 100% condensing, non-submersible when connectors are protected |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330730-080-13-05
Country of origin:United States
Product Type: 3300 XL 11 mm Extension Cable
Payment: T/T, Western Union
Weight: 360g
Dimensions: 8.0 meters (26.2 feet)
Shipping port: Xiamen
Warranty: 12 months
