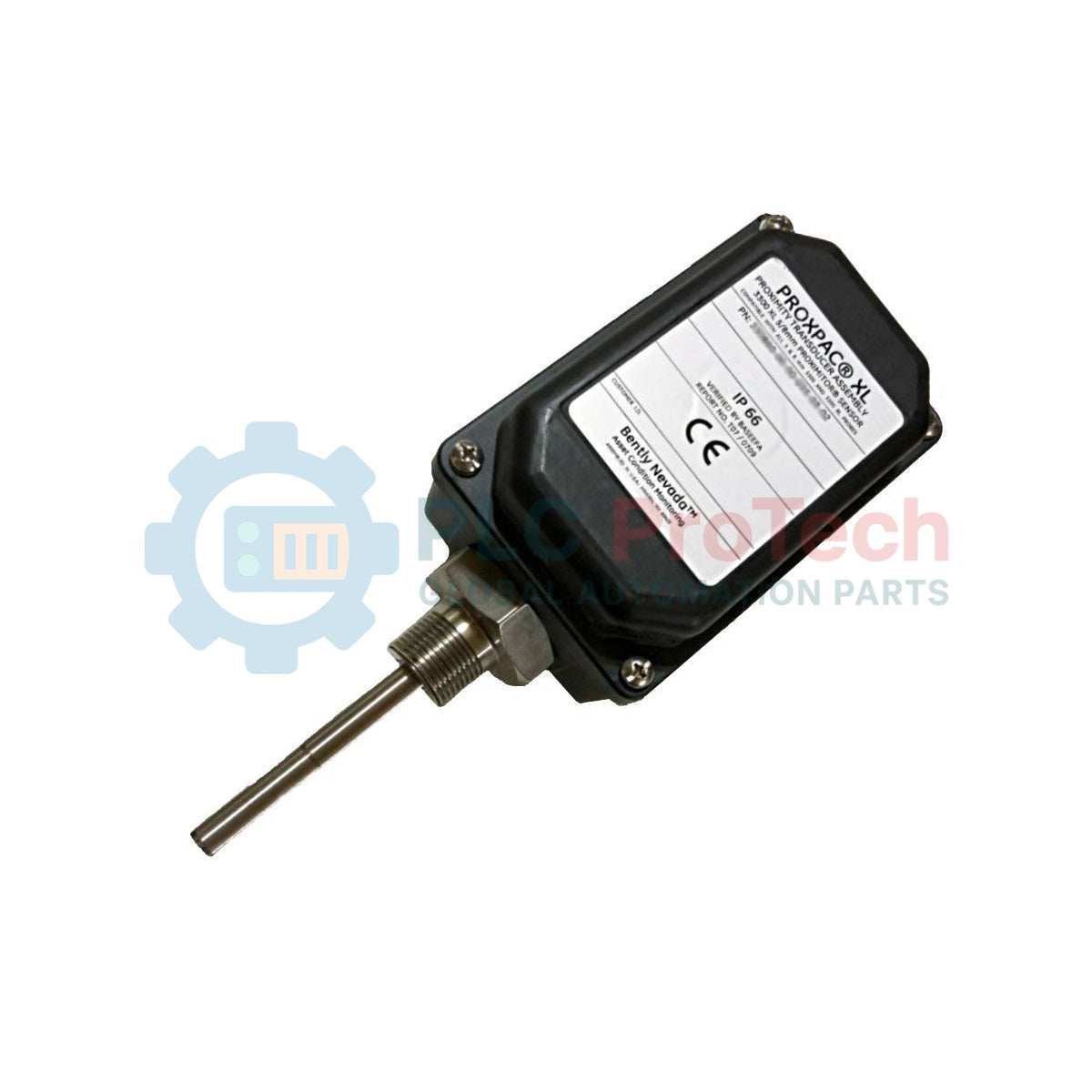

The 330881-28-00-110-03-02 PROXPAC XL Proximity Transducer Assembly from Bently Nevada is designed for precision machinery monitoring in industrial applications. This metric assembly includes a 3300 XL 8 mm proximity probe installed in a probe sleeve with a 1-metre cable, delivering accurate shaft vibration and position measurements. Built with robust materials and optimized for reliable signal transmission, it ensures consistent performance across a wide range of operating temperatures and industrial environments.
3300 XL 8 mm proximity probe with multiple approvals installed in the assembly
Probe penetration of 110 mm (C dimension) for precise measurement alignment
Standoff adapter: None (B dimension 00)
Fittings: One M20 fitting plus two plugs for secure connections
Mounting thread: 3/4-14 NPT, required if a standoff adapter is used
High-quality materials: PPS probe tip, AISI 304 stainless steel probe case
1-metre, 75-ohm triaxial cable with FEP insulation for reliable signal integrity
Wide operating temperature range: -51 °C to +177 °C (-60 °F to +350 °F)
Power requirement: -17.5 Vdc to -26 Vdc without barriers, -23 Vdc to -26 Vdc with barriers, max 12 mA
Supply sensitivity: < 2 mV output change per volt change in input
Output resistance: 50 ohms
The PROXPAC XL Proximity Transducer Assemblyis ideal for:
Shaft vibration and position monitoring in critical rotating machinery
Integration with Bently Nevada PROXPAC XL monitoring systems for real-time diagnostics
Use in industrial environments requiring precise displacement measurements under harsh conditions
Supporting predictive maintenance programs to reduce unplanned downtime and optimize machine performance
| Parameter | Specification |
|---|---|
| Model | 330881-28-00-110-03-02 |
| Product Type | PROXPAC XL Proximity Transducer Assembly |
| Probe Type | 3300 XL 8 mm Proxi |
| Probe Penetration (C) | 110 mm |
| Standoff Adapter (B) | None |
| Fittings | One M20 fitting, two plugs |
| Mounting Thread | 3/4-14 NPT (required if standoff adapter is used) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 stainless |
| Probe Cable | 1-metre, 75-ohm triaxial, FEP insulated |
| After | -17.5 Vdc to -26 Vdc without barriers; -23 Vdc to -26 Vdc with barriers, max 12 mA |
| Supply Sensitivity | < 2 mV change per volt input |
| Output Resistance | 50 ohms |
| Operating Temperature | -51 °C to +177 °C (-60 °F to +350 °F) |
| Weight | 1.5 kg |
| Shipping Weight | 2.5 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330881-28-00-110-03-02
Country of origin:United States
Product Type: PROXPAC XL Proximity Transducer Assembly
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
