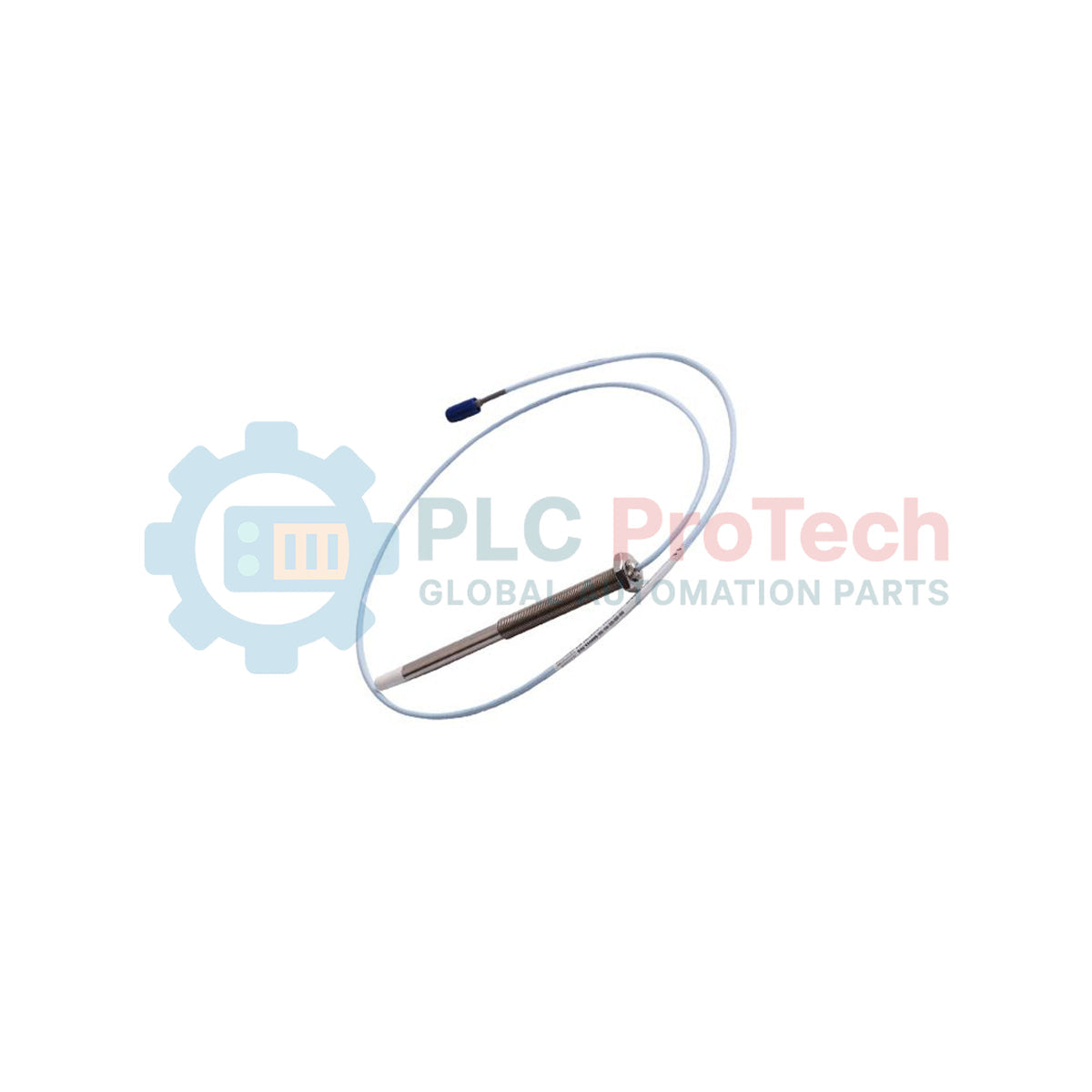

330902-00-40-10-02-CN is an armored 3300 NSv proximity probe with a 1/4-28 UNF thread. It is designed for non-contacting vibration and position measurements where installation clearance is limited.
The probe operates as part of the 3300 XL NSv Proximity Transducer System. A complete system consists of a 3300 NSv probe, a compatible extension cable, and a 3300 XL NSv Proximitor Sensor.
This configuration has a 0.0 in unthreaded length, a 4.0 in overall case length, and a 1.0 m total length. It includes stainless steel armor, a standard FEP-insulated coaxial cable, and a miniature coaxial ClickLoc connector.
The NSv design supports applications where counterbore, side-view, rear-view, or target-size restrictions limit the use of standard 5 mm and 8 mm proximity probes.
| Ordering Position | Code | Configuration |
|---|---|---|
| Base Model | 330902 | 3300 NSv probe, 1/4-28 UNF thread, with armor |
| A: Unthreaded Length | 00 | 0.0 in |
| B: Overall Case Length | 40 | 4.0 in |
| C: Total Length | 10 | 1.0 m (39 in) |
| D: Connector and Cable Type | 02 | Miniature coaxial ClickLoc connector with standard cable |
| E: Agency Approval | CN | China country-specific hazardous-area approval package |
| Manufacturer | Bently Nevada |
|---|---|
| Model | 330902-00-40-10-02-CN |
| Product Type | Armored Proximity Probe |
| Product Series | 3300 XL NSv Proximity Transducer System |
| Probe Configuration | Standard mount |
| Probe Case Thread | 1/4-28 UNF-2A |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 4.0 in |
| Total Length | 1.0 m (39 in) |
| Cable Protection | Stainless steel armor |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Cable Type | 75 ohm coaxial, FEP insulated |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Connector Material | Gold-plated brass |
| Probe Tip Diameter | 5.26 mm (0.207 in) maximum |
| Standard Cable Outside Diameter | 2.8 mm (0.11 in) maximum |
| Armor Outside Diameter | 7.6 mm (0.30 in) maximum |
| Connector Outside Diameter | 7.23 mm (0.285 in) maximum |
| Probe DC Resistance | 4.2 +/- 0.5 ohms for a 1.0 m probe |
| Maximum Rated Tensile Strength | 220 N (50 lb) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Recommended Installation Torque | 5.1 N*m (45 in*lb) |
| Maximum Installation Torque | 7.3 N*m (65 in*lb) |
| Maximum Thread Engagement | 0.375 in |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Storage Temperature | -52 degC to +177 degC (-62 degF to +351 degF) |
| Pressure Seal Material | Viton O-ring |
| Typical Probe Weight | Approximately 14 to 150 g, depending on configuration |
| Complete System Length | 5 or 7 m including the extension cable |
| Complete System Linear Range | 1.5 mm (60 mils) |
| Complete System Recommended Gap | 1.0 mm (40 mils) |
| Complete System Scale Factor | 7.87 V/mm (200 mV/mil) |
| Complete System Frequency Response | 0 to 10 kHz: +0, -3 dB typical |
| Connection | Function |
|---|---|
| Miniature male coaxial ClickLoc connector | Connects the probe cable to a compatible 3300 NSv extension cable |
| 1/4-28 UNF-2A probe case thread | Secures the probe in the machine housing or mounting bracket |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330902-00-40-10-02-CN
Country of origin:United States
Product Type: 3300 NSv Proximity Probes
Payment: T/T, Western Union
Weight: 120g
Dimensions: 11.1 x 11.1 x 1000 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
