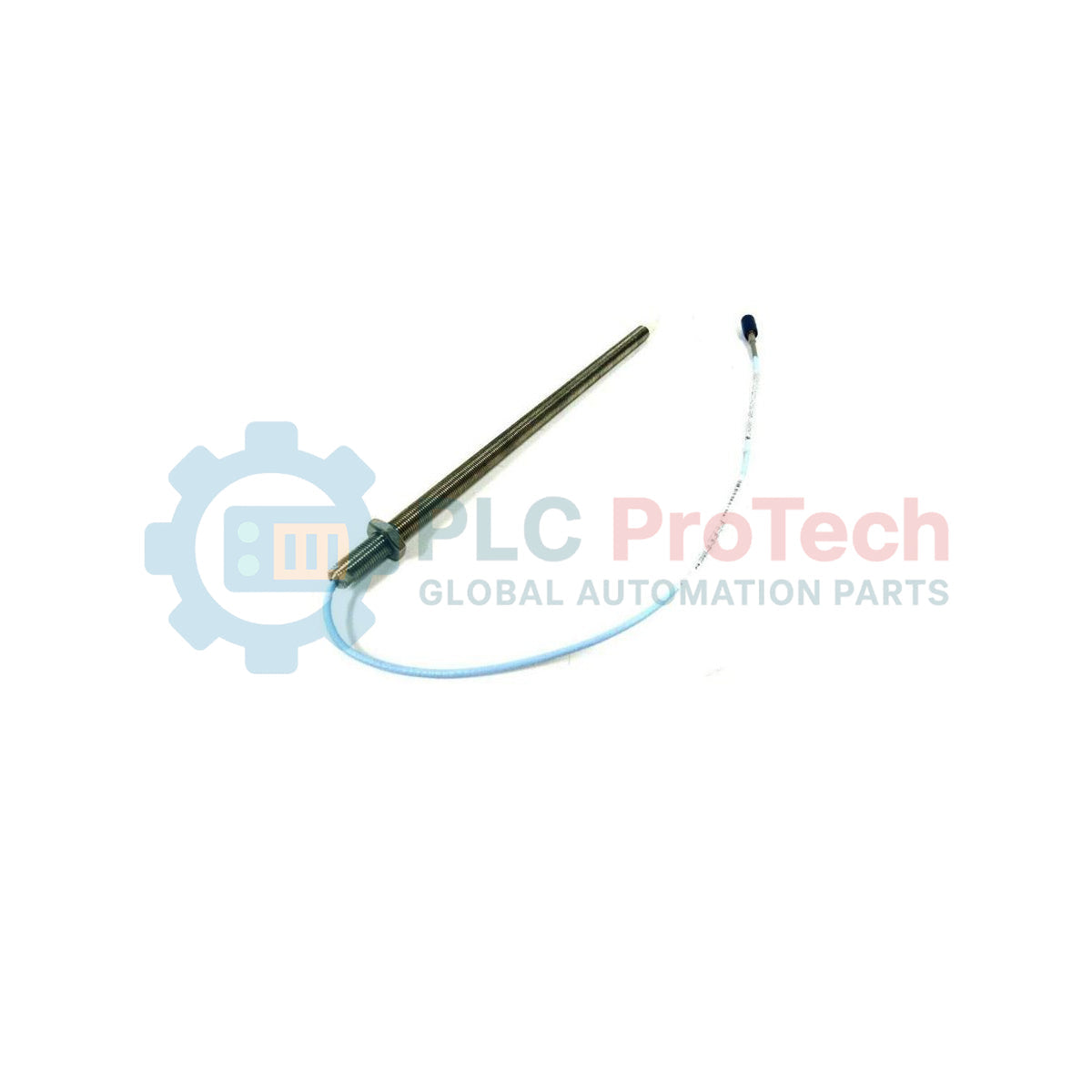

Executing precise eddy current displacement measurements in tight clearances, the Bently Nevada 330905-00-25-05-02-CN serves as a core sensor component of the 3300 NSv proximity transducer system. Engineered specifically for applications with small target diameters and restricted installation space, this transducer delivers high-resolution radial vibration and axial position feedback. The Bently Nevada 330905-00-25-05-02-CN features an M10 x 1 unarmored thread configuration, a 250 mm overall case length, and a 0.5-meter standard coaxial cable terminated with a miniature coaxial ClickLoc connector. Certified for demanding industrial environments, its rugged physical design protects critical internal electronics against severe mechanical stress, temperature fluctuations, and oil exposure.
| Option Code | Option Parameter | Value Specification |
|---|---|---|
| 00 | Unthreaded Length | 0 mm |
| 25 | Overall Case Length | 250 mm |
| 05 | Total Length | 0.5 meter (20 inches) |
| 02 | Connector and Cable Type | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approval | Country-specific approvals (China regulatory compliance) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Thread Standard | M10 x 1 (unarmored) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel (SST) |
| Cable Characteristic Impedance | 75 ohms coaxial |
| Cable Insulation | Fluoroethylene propylene (FEP) |
| Operating Temperature Range | -34 degC to +177 degC (-30 degF to +351 degF) |
| Storage Temperature Range | -51 degC to +177 degC (-60 degF to +351 degF) |
| Country of Origin | United States of America (USA) |
| Shipping Weight (Calculated) | 1.5 kg |
| Package Dimensions (Calculated) | 32 cm x 24 cm x 8 cm |
The 3300 NSv (Narrow System) proximity probe series is engineered exclusively for machinery with small targets or restricted clearances. Do not cross-connect the 3300 NSv probe with standard 3300 XL 5mm, 8mm, or 11mm Proximitor sensors, as the calibration curves and eddy current excitation profiles differ significantly. Ensure your monitoring terminal is configured with the specific 3300 NSv Proximitor Sensor (e.g., 330901) to avoid non-linear scaling errors or false fault alerts.
When utilizing the M10 unarmored case style, side-clearance is critical. Because the probe does not have a metal protective sleeve extending to the tip, it is highly sensitive to lateral metallic structures. Maintain a minimum clear radial distance of 1.5 times the probe head diameter around the sensor tip. Failure to maintain this clearance will result in the sensor calibration reacting to the mounting bracket or bore wall instead of the target shaft surface.
Always employ a calibrated torque wrench during installation. Over-tightening the thread inside the bracket can warp the inner coaxial conductor, altering the cable impedance and introducing measurement errors. When mating the miniature ClickLoc coaxial connector, apply the designated connector silicon sleeve or self-fusing tape to prevent machinery oil and moisture ingress from grounding the signal shield.
Isolate, lock out, and fully de-energize the monitored machinery and the receiving monitoring rack before executing installation. Ensure the installation environment is free of flammable gases and hot oil vapors before unmounting or adjusting the probe assembly.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330905-00-25-05-02-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 1500g
Dimensions: 32 cm x 24 cm x 8 cm
Shipping port: Xiamen
Warranty: 12 months
