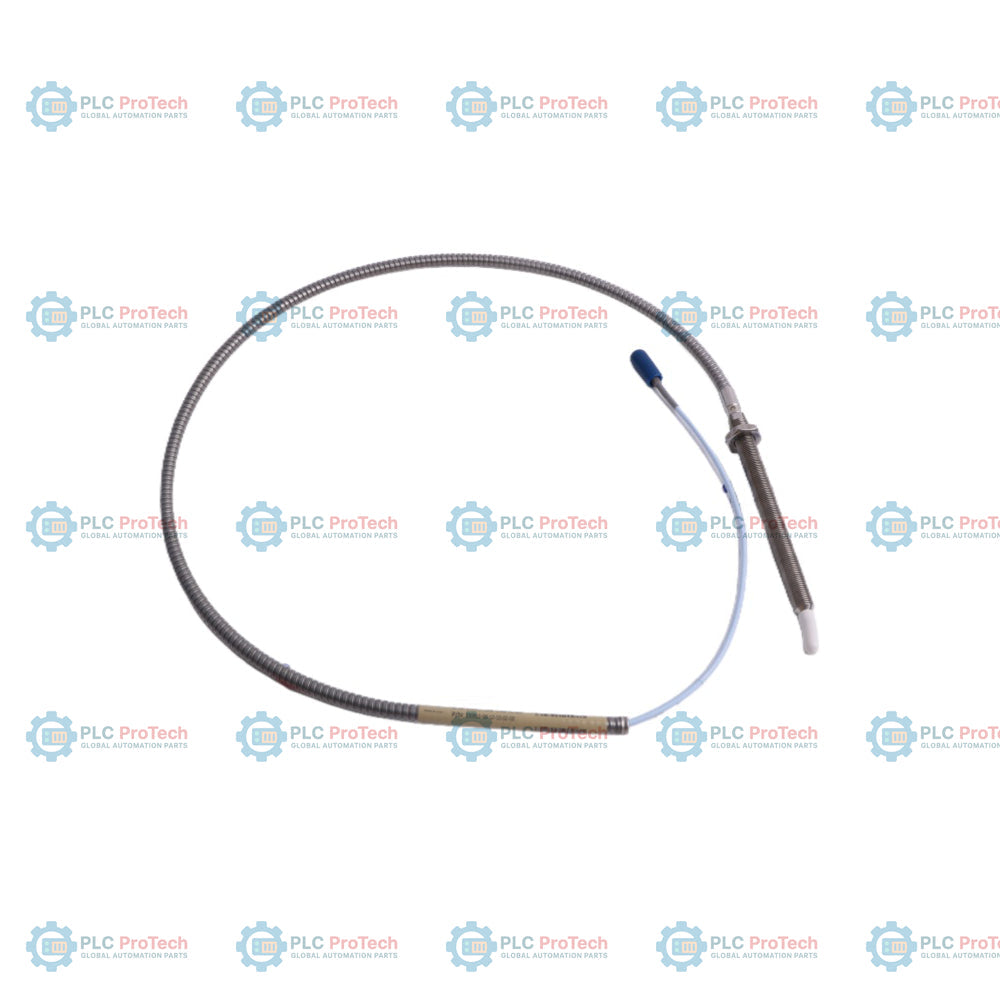

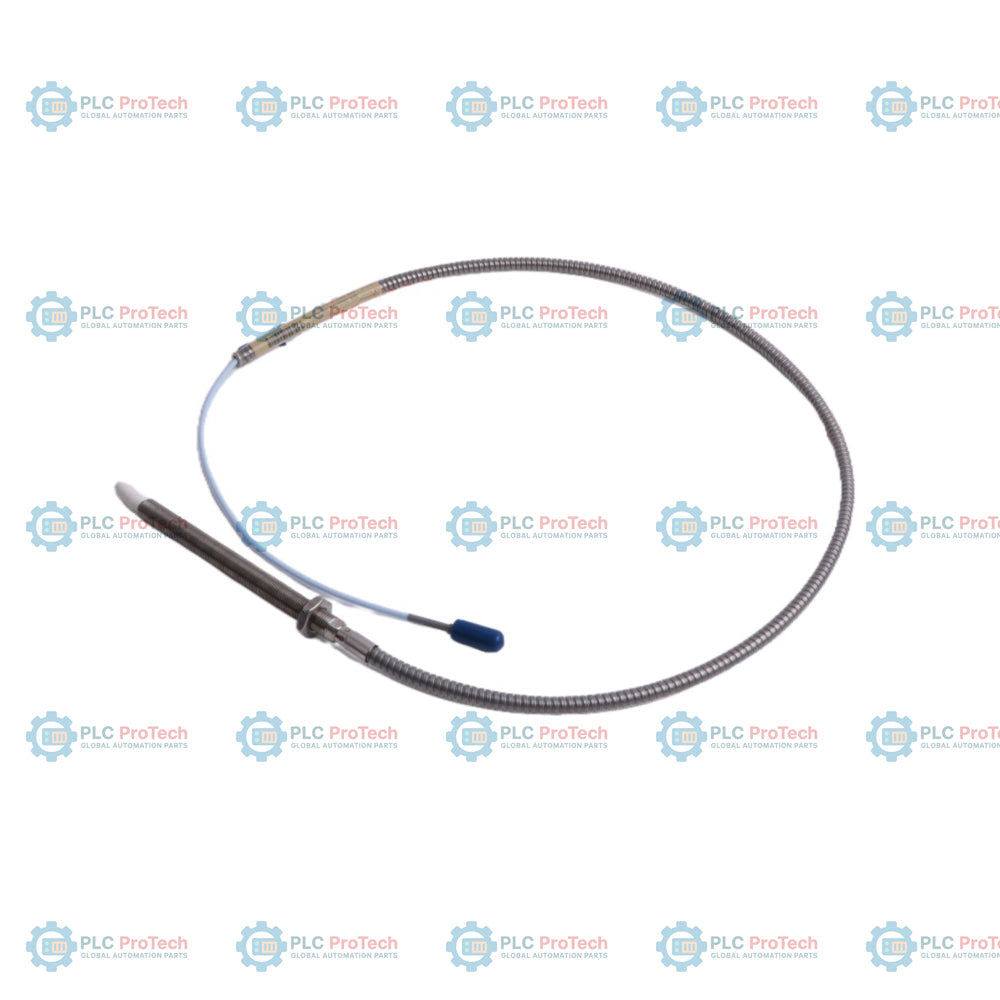

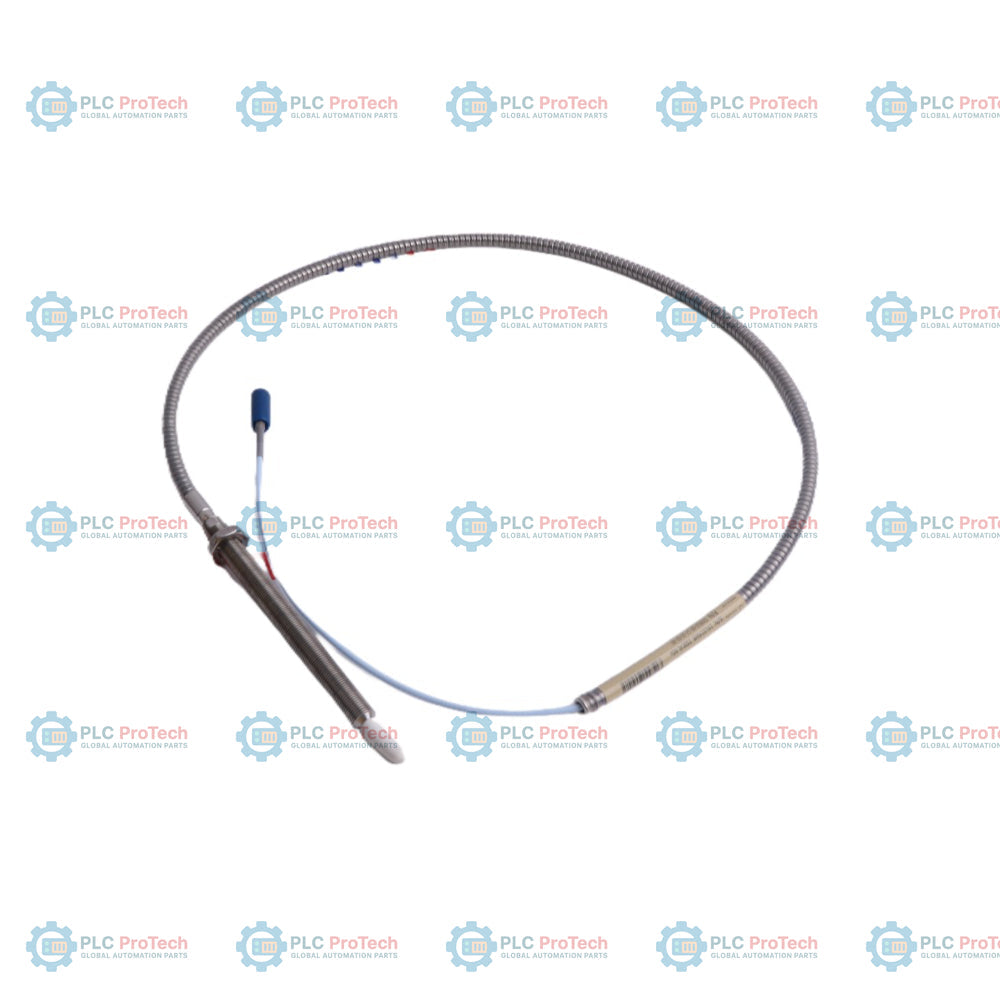

The 330910-00-10-50-02-00 3300 NSv proximity probe is a metric threaded sensor configuration featuring an M10x1 thread, integrated stainless steel flexible armor, 0 mm of unthreaded length (Option 00), and a 100 mm overall case length (Option 10). This specific assembly is built with a 5.0 meter total cable length (Option 50), terminated with a miniature coaxial ClickLoc connector (Option 02), and is configured for general-purpose applications where hazardous area agency approvals are not required (Option 00).
Unlike unarmored metric variants in the same series, this configuration provides a flexible stainless steel armor sleeve that guards the transducer cable against physical damage, mechanical wear, and sharp edges inside the machinery enclosure. The 3300 NSv system is applied where target geometry is limited or shaft diameters are small, requiring a specialized eddy-current footprint that differs from standard 8 mm sensor lines. This probe operates within a complete transducer circuit alongside a 3300 NSv extension cable and a 3300 XL NSv Proximitor sensor to track high-speed shaft vibration and axial position.
This proximity probe is used on high-speed rotating machinery with narrow target pathways, such as small-bore pumps, centrifugal compressors, aeroderivative gas turbines, and auxiliary machinery. The armored casing makes this variant suited for oil-mist environments, internal machine housings, and areas where physical debris or maintenance activities risk damaging standard coaxial lines.
| Option Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Base Model | 330910 | 3300 NSv Proximity Probe, M10x1 thread, with stainless steel armor |
| A: Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B: Overall Case Length Option | 10 | 100 mm overall case length |
| C: Total Length Option | 50 | 5.0 meters (16.4 feet) total length |
| D: Connector and Cable Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E: Agency Approval Option | 00 | Agency approvals not required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / SKU | 330910-00-10-50-02-00 |
| Transducer Series | 3300 XL NSv |
| Thread Specification | M10x1 metric thread |
| Armor Configuration | Stainless steel flexible armor (uncoated) |
| Unthreaded Length | 0 mm |
| Case Length | 100 mm |
| Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Cabling Base | 75 ohm standard coaxial core |
| Linear Range | 1.5 mm (60 mils), spanning from 0.25 mm to 1.75 mm (10 to 70 mils) |
| System Sensitivity / Scale Factor | 7.87 V/mm (200 mV/mil) +12.5% / -20% over temperature |
| Recommended Gap | 1.0 mm (40 mils) |
| Probe DC Resistance (5.0 m) | 5.3 +/- 0.7 ohms (center conductor to outer conductor) |
| Operating Temperature (Probe) | -55 degC to +177 degC (-67 degF to +350 degF) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Recommended Case Torque | 11.3 N m (100 in-lb) |
| Maximum Case Torque | 33.9 N m (300 in-lb) |
| Interface Component | Specification Details |
|---|---|
| Probe Cable Termination | Miniature male coaxial ClickLoc connector |
| Shielding and Grounding | Center conductor and shield isolated from case; shielding continues through standard extension cable to Proximitor Sensor |
Thread engagement must not exceed a maximum length of 15 mm for M10x1 metric threaded probe cases to prevent thread binding. Mount the probe case into the bracketry using the recommended mounting torque of 11.3 N m (100 in-lb) to prevent case distortion. Maintain a minimum physical bend radius of 25.4 mm (1.0 in) along the armored cable routing. Protect the coaxial connector connection using self-fusing silicone tape or an approved connector protector kit to block fluid penetration.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330910-00-10-50-02-00
Country of origin:United States
Product Type: 3300 NSv Proximity Probes
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 120g
Dimensions: 45 mm x 90 mm x 90 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
