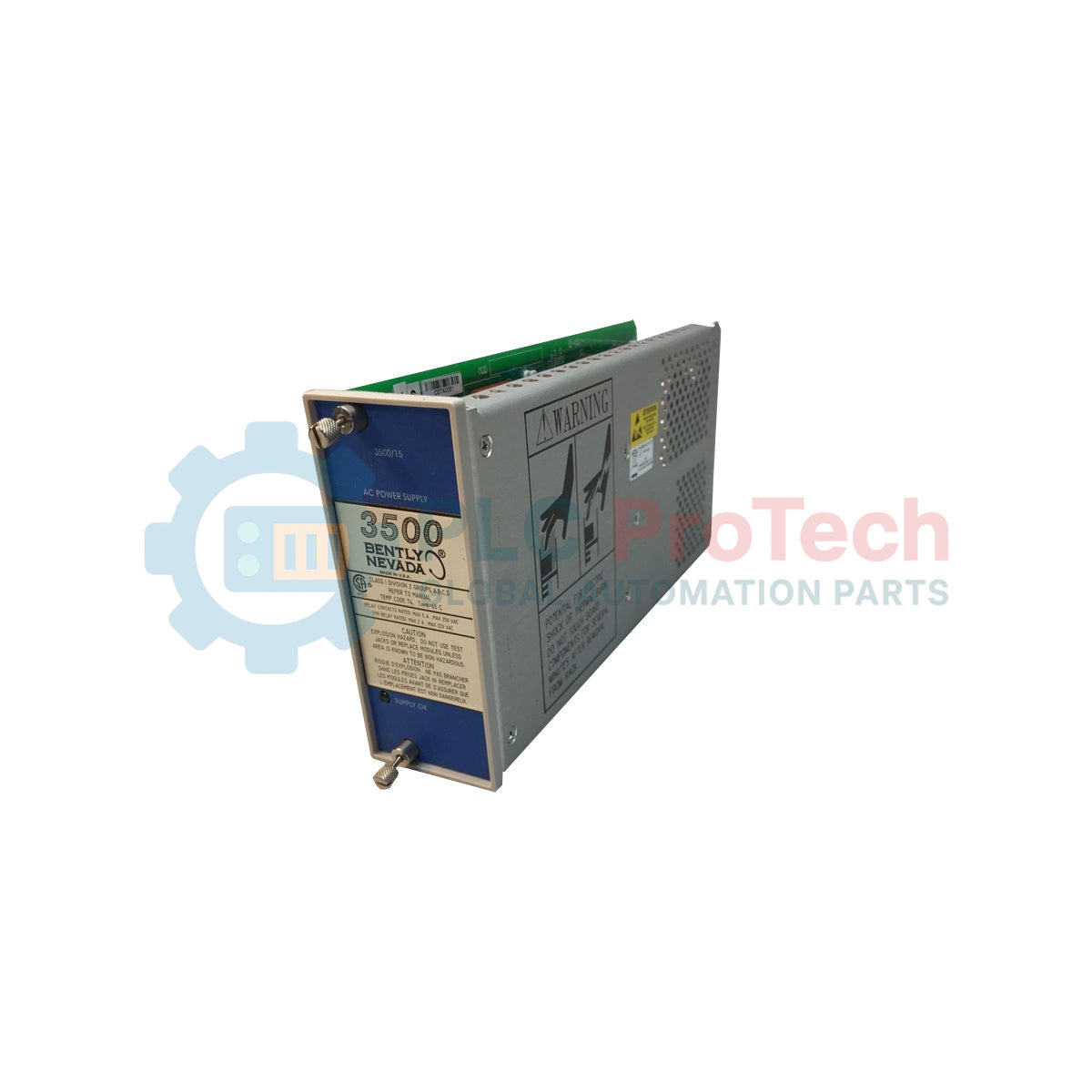

The Bently Nevada 3500/15-01-01-01 is a half-height power supply module designed to reside on the left side of a 3500 series machinery protection rack. This module converts external legacy low voltage AC input power into the regulated DC voltages required to power all other active modules within the same rack. A single 3500/15 power supply is electrically rated to support a fully loaded rack on its own. When two modules are installed concurrently within the designated rack slots, they function in a redundant power configuration. In this dual-supply architecture, the module positioned in the lower slot serves as the primary power source, while the module in the upper slot acts as the automatic backup utility.
| Component | Option | Description |
|---|---|---|
| Model | 3500/15 | 3500/15 Power Supply Module |
| Power Supply Type (Top Slot) | 01 | Low Voltage AC (85 to 132 Vac rms) |
| Power Supply Type (Bottom Slot) | 01 | Low Voltage AC (85 to 132 Vac rms) |
| Agency Approval | 01 | CSA / NRTL / C (Class 1, Division 2) |
| Parameter | Value |
|---|---|
| Nominal Input Voltage | 110 Vac nominal |
| Input Voltage Range | 85 to 132 Vac rms (120 to 188 Vac pk) |
| Input Voltage (Older Hardware) | 85 to 125 Vac rms (for PIM prior to Rev. R and Supply prior to Rev. M) |
| Input Frequency | 47 to 63 Hz |
| Full Rack Current Draw | 4.5 A rms (maximum) |
| Over-Voltage Protection | Causes the fuse to open on the PIM |
| Parameter | Value |
|---|---|
| Power Supply Module Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) |
| Power Supply Module Weight | 1.39 kg (3.06 lb) |
| Power Input Module Dimensions (H x W x D) | 120.7 mm x 25.4 mm x 114.3 mm (4.75 in x 1.0 in x 4.5 in) |
| Power Input Module Weight | 0.34 kg (0.75 lb) |
| Operating Temperature Range | -30 degC to +65 degC (-22 F to +150 F) |
| Storage Temperature Range | -40 degC to +85 degC (-40 F to +185 F) |
| Humidity Limits | 95%, non-condensing |
| Minimum Rack Loading | No minimum rack load is required |
