Description

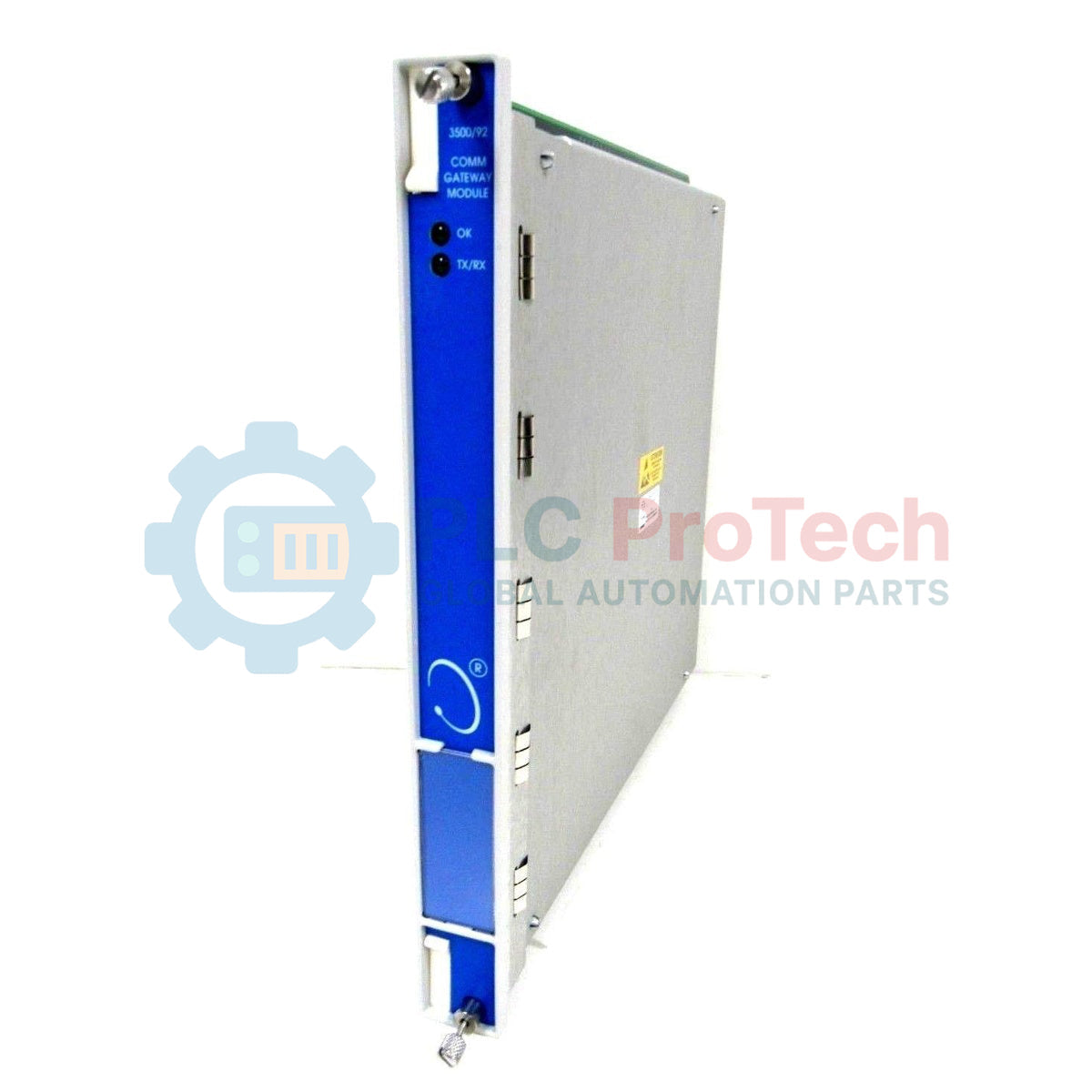

The 3500/92-03-01-CN is an industrial communication module that provides high-speed integration of rack-monitored variables and statuses with process control systems, distributed control systems (DCS), and plant automation networks. The module supports both Ethernet TCP/IP and serial multi-drop infrastructures (including RS232, RS422, and RS485 physical layers) to manage the transmission of critical machinery data. Beyond plant host interfaces, it enables seamless Ethernet communications with the 3500 Rack Configuration Software and 3500 Data Acquisition Software packages.

By incorporating an internal network backplane, the 3500/92-03-01-CN collects time-stamped measured values, current hardware module statuses, and current alarm event logs directly from adjacent machinery protection cards. The unit features a Configurable Modbus Register Utility to customize information maps transferred via Modicon Modbus (serial) and Modbus/TCP (Ethernet) protocols. This specific model variant consists of a full-height front processor combined with an Ethernet/RS232 Modbus I/O module designed for robust serial-to-network translations.

Features

• Comprehensive communication capabilities across all 3500 rack-monitored values, alarm statuses, and hardware operational diagnostics.
• Configurable Modbus Register Utility allows custom-tailored database layouts matching process control architecture profiles.
• Supports Modicon Modbus (RTU mode via serial lines) and standard Modbus/TCP frames over Ethernet networks.
• Provides isolated dual-protocol operation for concurrently serving automation hosts and Bently Nevada software utilities.
• Front panel diagnostic array featuring a dedicated OK LED for system health and a TX/RX LED to confirm intra-rack communication traffic.

Applications

• Distributed Control System (DCS) and Programmable Logic Controller (PLC) machine data streaming.
• Real-time remote vibration monitoring and thermal metric aggregation over standard plant infrastructure.
• Integration of turbomachinery protection systems with safety instrumented systems (SIS) and plant historians.
• Remote configuration, diagnosis, and acquisition management via centralized server configurations.

Ordering Information

The 3500/92-03-01-CN configuration corresponds to the following exact build options from the 3500/92 series database:

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Module Placement: Install the main processing board in a designated full-height front slot of the 3500 system rack chassis. Align and secure the paired Ethernet/RS232 Modbus I/O module in the corresponding rear chassis slot directly opposite the front module.
• Electrostatic Control: Wear a clean grounding wrist strap (such as part number 04425545) before unboxing or touching the circuit assemblies to avoid exposing internal logic gates to static discharge damages.
• Network Segmenting: Use standard 10BASE-T Shielded Category 5 cables equipped with RJ-45 termination blocks for the network segment. Ensure length parameters do not exceed 98 meters (320 feet) without external repeating hardware.
• Serial Cable Configuration: Maximum recommended physical run metrics for serial interfaces should not surpass 1220 meters (4000 feet) for multi-dropped arrangements when matching RS422 or RS485 communication lines.
• Thermal Isolation: Ensure unobstructed cabinet airflow across the top and bottom panels of the rack chassis to verify ambient air properties stay well within the -30 Celsius to +65 Celsius operating baseline.

Compliance and Certifications

• FCC: Complies with Part 15 of the FCC Rules for interference control.
• EMC Directive: 2014/30/EU (Standards: EN 61000-6-2 for Industrial Immunity, EN 61000-6-4 for Industrial Emissions).
• Electrical Safety: Low Voltage Directive 2014/35/EU (Standard: EN 61010-1).
• RoHS: Directive 2011/65/EU compliance.
• Maritime Approvals: Certified under DNV GL classification rules for ships, offshore units, and light craft; certified under ABS Rules for Steel Vessels and Offshore Structures.
• Hazardous Area Standards: Class I, Zone 2: AEx/Ex nA nC ic IIC T4 Gc and AEx/Ex ec nC ic IIC T4 Gc; Class I, Division 2, Groups A, B, C, and D (T4 rating at ambient zones matching -20 Celsius to +65 Celsius).
• ATEX/IECEx: Ex II 3 G Ex nA nC ic IIC T4 Gc / Ex ec nC ic IIC T4 Gc.
