3500/92-04-01-CN | Bently Nevada | 3500/92 Communication Gateway

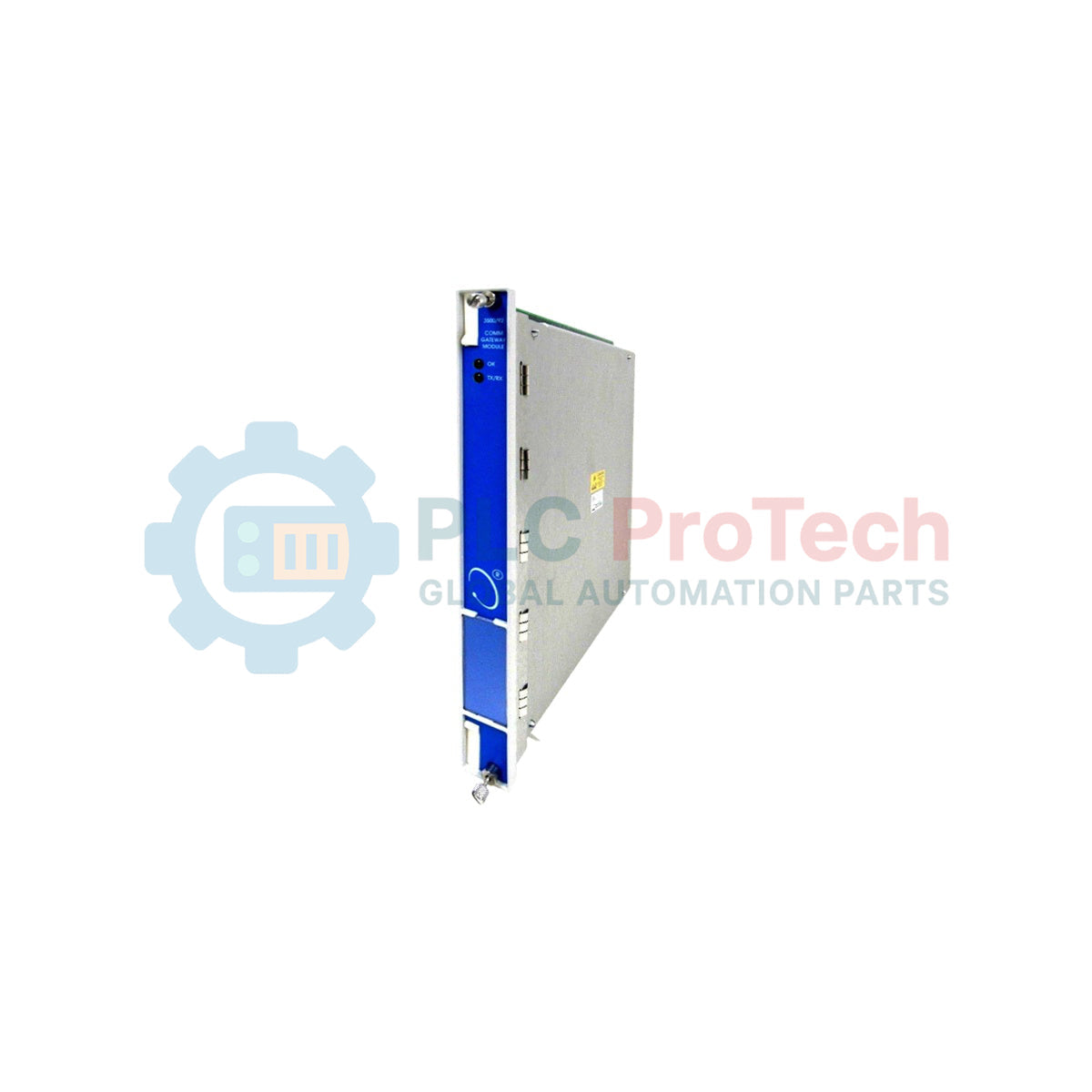

Bently Nevada 3500/92-04-01-CN 3500 Series Communication Gateway Module

SKU 3500/92-04-01-CN

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 3500/92-04-01-CN
Origin United States
Product Type: Communication Gateway Modules
Payment: T/T, Western Union
Weight: 0.32 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Integrating seamlessly into the 3500 Machinery Protection System, the Bently Nevada 3500/92-04-01-CN establishes a high-performance digital gateway for transmitting critical machinery diagnostics to external host systems. This communication module processes data from other monitor modules within the rack and transmits values, status, and alarms over serial or Ethernet links. This specific configuration features an Ethernet/RS485 Modbus I/O module with low memory and country-specific CN agency approvals, designed to meet strict field safety and technical standards.

Features

Flexible Communication Protocols: Supports Modbus RTU via RS485 and Modbus TCP/IP via Ethernet.
Real-Time Data Access: Transmits channel values, statuses, alert levels, and system event lists to host controllers.
Compact Integration: Occupies a single slot in the 3500 rack, reducing panel footprint.
Robust Diagnostic Mapping: Customizable registers allow efficient DCS or SCADA alignment.

Applications

Power Generation Turbomachinery integration with plant control networks.
Petrochemical and Refining process safety control architectures.
Compressor and Gas Turbine remote health monitoring.
Distributed SCADA and Plant Historian data concentration.

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model/Part Number	3500/92-04-01-CN
System Series	3500 Machinery Protection System
I/O Module Option	04 (Ethernet / RS485 Modbus I/O Module)
Memory Option	01 (Low Memory)
Agency Approval Option	CN (Country Specific Approvals - China)
Power Consumption	5.6 Watts typical (with RS485 I/O Module installed)
Country of Origin	United States (USA)
Shipping Weight	3.0 kg

Connections and Interfaces

Interface Type	Port Description / Pin Assignment
Ethernet Port	RJ-45 connector supporting Modbus/TCP protocol
RS485 Port	Standard terminal block connections for differential 2-wire / 4-wire multidrop layouts
Config Port	Front-panel connection for module configuration utilities

Empirical Engineering Insights

Alternative Models & Compatibility

This module replaces older communication gateways in legacy 3500 architectures. Ensure your 3500 Rack Configuration Software is updated to version 4.0 or higher to correctly map the 04 (Ethernet/RS485) hardware footprint. Be aware that the low-memory (01) model variant cannot store high-density event records compared to high-memory equivalents; verify your controller's polling demands before hot-swapping.

Application Pitfalls & Engineering Notes

When deploying the RS485 interface in noisy industrial spaces, minimize EMI interference by running communication lines isolated from high-voltage motor starters and variable frequency drive output cables. A common failure mode on the low-memory version is register buffer overflow caused by high host polling speeds; do not configure polling frequencies tighter than 500 milliseconds.

Commissioning & Wiring Tips

For RS485 serial runs, install a 120-ohm termination resistor at the absolute physical end-of-line node to prevent signal reflection. Always connect the cable shield to the instrumentation ground terminal on the 3500 rack frame only. Floating shields on long cable runs risk generating high ground loop current paths.

Installation Guidelines

CRITICAL WARNING: De-energize the main 3500 power supply modules before physically seating or unseating the backend I/O module. Attempting to insert the RS485 Ethernet I/O assembly under power can cause high-voltage transients on the backplane, risking hardware failure on adjacent monitoring modules.

1 Insert the main module into the designated slot on the front of the 3500 rack, ensuring the guide rails align. Secure the captive screws.

2 Align and slide the Ethernet/RS485 Modbus I/O module into the corresponding slot on the rear of the rack and hand-tighten the securing fasteners.

3 Connect the communication cables (RJ-45 Ethernet or shielded RS485 pairs) and ground the shields in accordance with local industrial electrical standards.

4 Power on the rack and load the correct register maps using the 3500 Rack Configuration Software utility.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What configuration options are represented by the -04-01-CN suffix?

The -04 suffix designates the Ethernet and RS485 Modbus I/O module interface. The -01 suffix indicates the Low Memory hardware version. The -CN suffix indicates country-specific approvals optimized for installations requiring specific regulatory compliance.

What is the typical power draw of the gateway during operations?

When paired with the Modbus RS485 I/O module, the device typically consumes 5.6 watts of power from the rack backplane.

Can I poll this gateway module concurrently over Ethernet and RS485?

Yes. The gateway interfaces support dual concurrent communications, allowing parallel access via Modbus TCP over Ethernet and Modbus RTU over RS485.

What should be the minimum Modbus polling interval for the low-memory variant?

To prevent communication bottlenecks and CPU timeouts, it is highly recommended to configure the master DCS or PLC polling rate to 500 milliseconds or higher.
